Aluminum Crossover Ladder 3 Step 36 x 29-1/8 In. Platform 500 Lb. Capacity Silver

Aluminum Cross Over Ladder for Safer Elevated Access in Industrial Work Areas, 500 lb. Capacity with 29-1/8 in., Silver Finish – Model COL-AL-3-26-23
In industrial settings, every inch of floor space matters. With the installation of a cross over ladder, all floor space is able to be utilized fully. An aluminum construction and simple mounting, the ladder can be placed in a permanent location to best fit the floor layout. Serrated steps give the user sure footing going up and down the ladder, while the handrails give added security. Mid and top rails give balance and safety support to users while on the upper platform. Hardware is included.
Product Status
Available Non-Returnable
Key Features
  • Aluminum construction offers long lasting use
  • Pre-drilled holes for secure mounting to surface
  • Secure steps for traversing up or down
  • Highly visible yellow powder coated handrail
Quick Actions

Product Resources

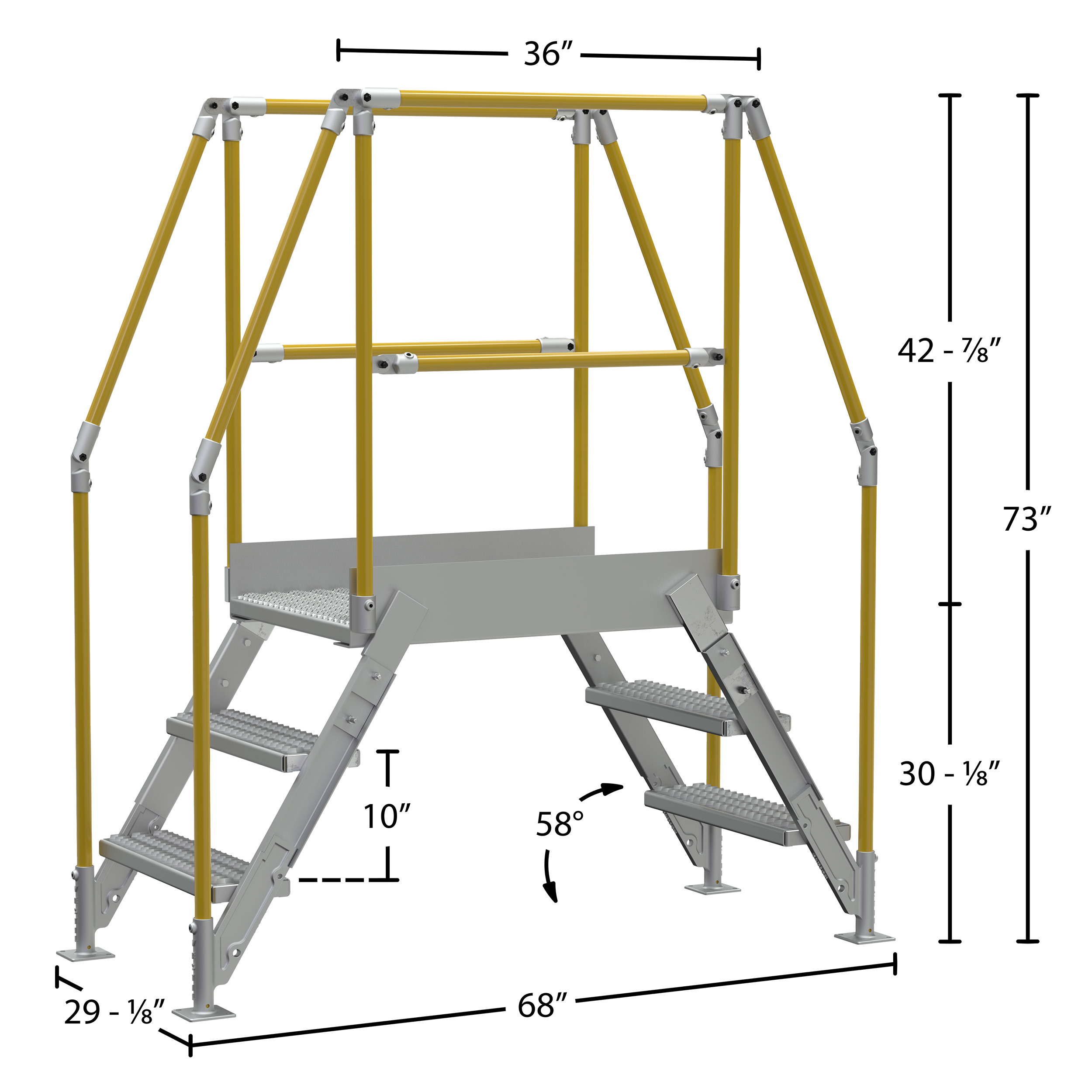

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Aluminum Cross-Over Ladders   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 210 lbs
Assembled Size 29.25"W x 66.5"L x 73"H
Total Ship Weight 250 lbs
Package 1 Size 40"W x 48"D x 30"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 500
Step Angle 58 Degrees
Step Spacing 10"
Top Step (HxWxD) 30"x26"x36"
Other Step (WxD) 26"x7"
Extended Product Details

Marketing Specs.

MFG Model # (Series)
COL-AL-3-26-23
Product Name
Aluminum Crossover Ladder 3 Step 36 x 29-1/8 In. Platform 500 Lb. Capacity Silver
UPC
691215340496
GTIN
00691215340496
Taxonomy 1
Building Supplies
Taxonomy 2
Ladders & Scaffolding
Taxonomy 3
Ladders
Taxonomy 4
Cross-Over
Assembled Depth (in.)
66.5
Assembled Width(in.)
29.25
Assembled Height(in.)
73
Assembled Weight(lbs.)
210
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
30
Package Weight (in.)
250
Subclass
9
Freight Class
110
NMFC Code
Ladders or Stepladders in packages
NMFC Number
108775
LTL Freight
LTL Palletized
UNSPSC
30191501
HTSUS Number
7326.90.8660
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: COL-AL-3-26-23

COL-AL-3-26-23

Aluminum Crossover Ladder 3 Step 36 x 29-1/8 In. Platform 500 Lb. Capacity Silver

In industrial settings, every inch of floor space matters. With the installation of a cross over ladder, all floor space is able to be utilized fully. An aluminum construction and simple mounting, the ladder can be placed in a permanent location to best fit the floor layout. Serrated steps give the user sure footing going up and down the ladder, while the handrails give added security. Mid and top rails give balance and safety support to users while on the upper platform. Hardware is included.

  • Aluminum construction offers long lasting use
  • Pre-drilled holes for secure mounting to surface
  • Secure steps for traversing up or down
  • Highly visible yellow powder coated handrail

Core Data

Assembled Weight: 210 Assembled Size: 29.25"W x 66.5"L x 73"H Color: Silver
Total Ship Weight: 250 Package 1 Size: 40"W x 48"D x 30"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 500
Step Angle: 58 Degrees
Step Spacing: 10"
Top Step (HxWxD): 30"x26"x36"
Other Step (WxD): 26"x7"
