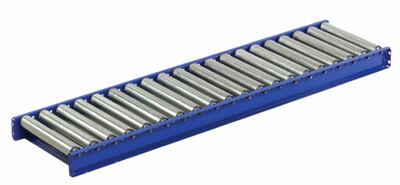

Steel Conveyor 3" Roller Center 12 In. x 120 In. 1400 Lb. Capacity Blue

Conveyor Rollers for Efficient Product Transfer and Production Flow, 1,400 lb. Capacity with 12 in. x 120 in., Blue Finish – Model CONV-0312-120
Are you drained from constantly lifting heavy boxes? Are you looking for a simple transition from workstation to workstation? Is that a yes? Then check out our roller conveyors! With a conveyor, the hard work is done by the individual rollers. The lightest of touch or push will simply assist the item to glide over the rollers and down the conveyor. Rollers are secured to a steel channel border. This conveyor is to be permanently installed into each work area.
Product Status
Available Ships from Gurnee, IL 60031 Non-Returnable
Key Features
  • Welded cross bracing
  • Spring loaded axle
  • Frame built of 10 gauge steel
  • 1.9" roller diameter
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  6 Months Warranty
Product Data

Core Data

Assembled Weight 130 lbs
Assembled Size 12"W x 120"L x 3.875"H
Total Ship Weight 150 lbs
Package 1 Size 14"W x 120"D x 10"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1400
Capacity per Foot (lb.) 140
Overall Length (in.) 120
Overall Width (in.) 12
Overall Width (in.) 3.875
Roller Diameter (in.) 1.9
Roller Spacing Centers (in.) 3
Standard Frame Size (ft.) 10
Steel (gauge) 10
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CONV-0312-120
Product Name
Steel Conveyor 3" Roller Center 12 In. x 120 In. 1400 Lb. Capacity Blue
UPC
691215374729
GTIN
00691215374729
Taxonomy 1
Material Handling
Taxonomy 2
Conveyors
Taxonomy 3
Conveyor Parts & Accessories
Assembled Depth (in.)
120
Assembled Width(in.)
12
Assembled Height(in.)
3.875
Assembled Weight(lbs.)
130
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
CONVL-12-1723, CONVL-12-2430, CONVL-12-3137, CONVL-12-3844

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
120
Package Width (in.)
14
Package Height (in.)
10
Package Weight (in.)
150
Subclass
1
Freight Class
85
NMFC Code
Gravity roller
NMFC Number
120060
LTL Freight
LTL Palletized
UNSPSC
30191501
HTSUS Number
8428.20.0010
USMCA HS
8428.20
Origin Criterion
B
Certification Indicator
A
ECCN
EAR99
US Shipping Point
Gurnee, IL
Supplier Postal Code
60031
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
6 Months Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CONV-0312-120

CONV-0312-120

Steel Conveyor 3" Roller Center 12 In. x 120 In. 1400 Lb. Capacity Blue

Are you drained from constantly lifting heavy boxes? Are you looking for a simple transition from workstation to workstation? Is that a yes? Then check out our roller conveyors! With a conveyor, the hard work is done by the individual rollers. The lightest of touch or push will simply assist the item to glide over the rollers and down the conveyor. Rollers are secured to a steel channel border. This conveyor is to be permanently installed into each work area.

  • Welded cross bracing
  • Spring loaded axle
  • Frame built of 10 gauge steel
  • 1.9" roller diameter

Core Data

Assembled Weight: 130 Assembled Size: 12"W x 120"L x 3.875"H Color: Blue
Total Ship Weight: 150 Package 1 Size: 14"W x 120"D x 10"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Overall Length (in.): 120
Overall Width (in.): 12
Overall Width (in.): 3.875
Roller Diameter (in.): 1.9
Roller Spacing Centers (in.): 3
Standard Frame Size (ft.): 10
Steel (gauge): 10
