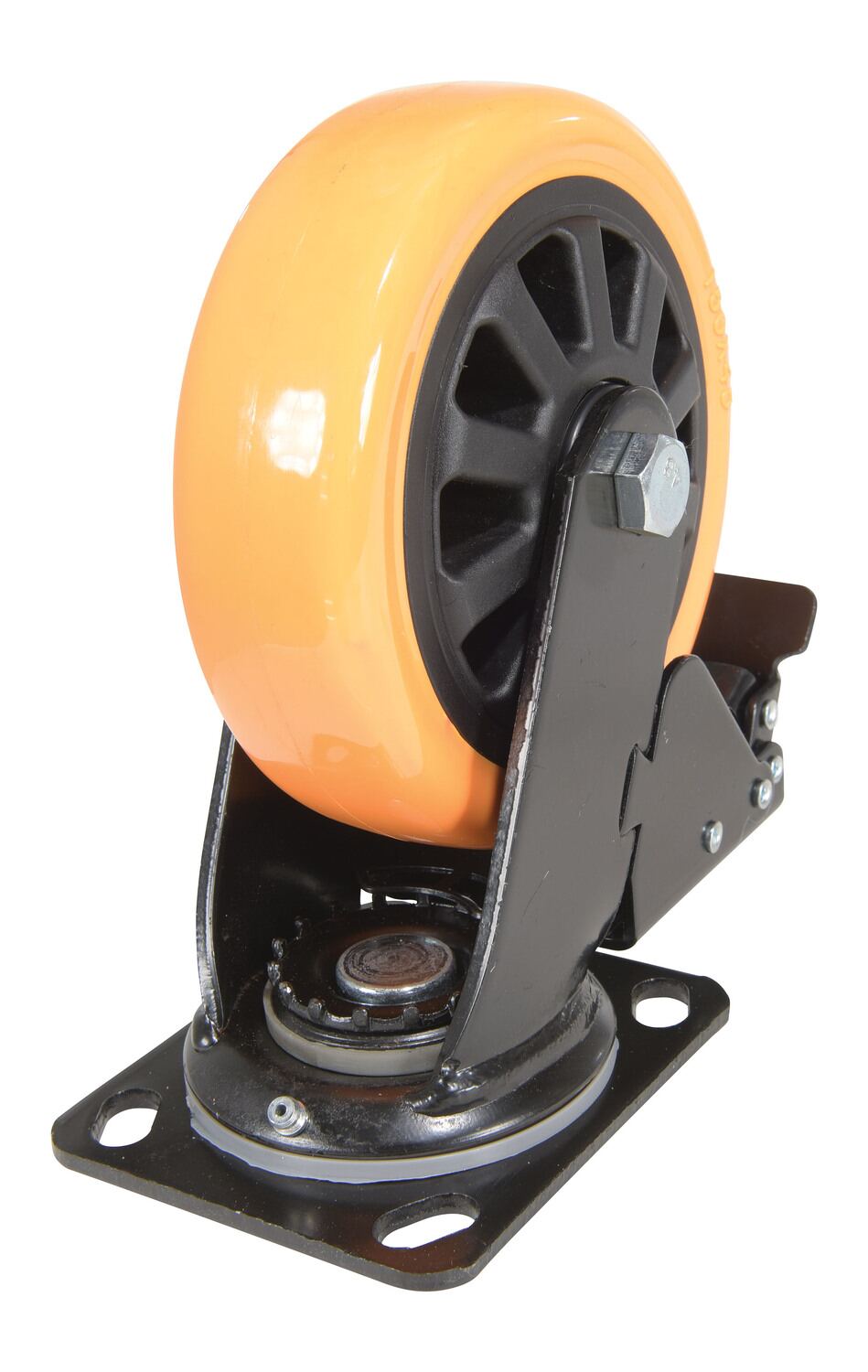

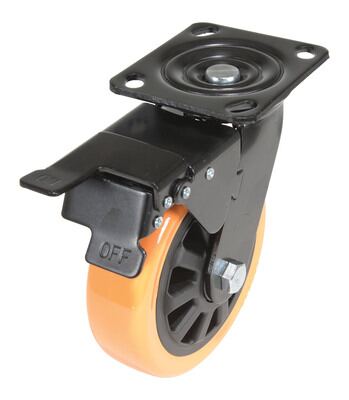

Polyurethane Swivel With Total Brake Caster 6 In. Diameter x 2 In. Width 836 Lb. Capacity Orange/Black

Swivel with Total Brake Caster for Industrial Carts and Mobile Material Handling Equipment, 836 lb. Capacity with 6 in. Diameter
Polyurethane is ideal for most environments. It is resistant to a variety of chemicals, and produces an easy roll for ergonomic applications. It also provides good floor preservation and works effectively in both indoor and outdoor environments. The unique spoke design allows for a lighter weight caster with the same amount of capacity.
Product Status
Available QuickShip
Key Features
  • Non-marking for good floor preservation and quiet operation
  • Chemical & moisture resistant
  • Anti-corrosive & rust resistant Zinc Plated finish
  • Precision ball bearing
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   360 Image   90 Days Warranty
Product Data

Core Data

Assembled Weight 5.83 lbs

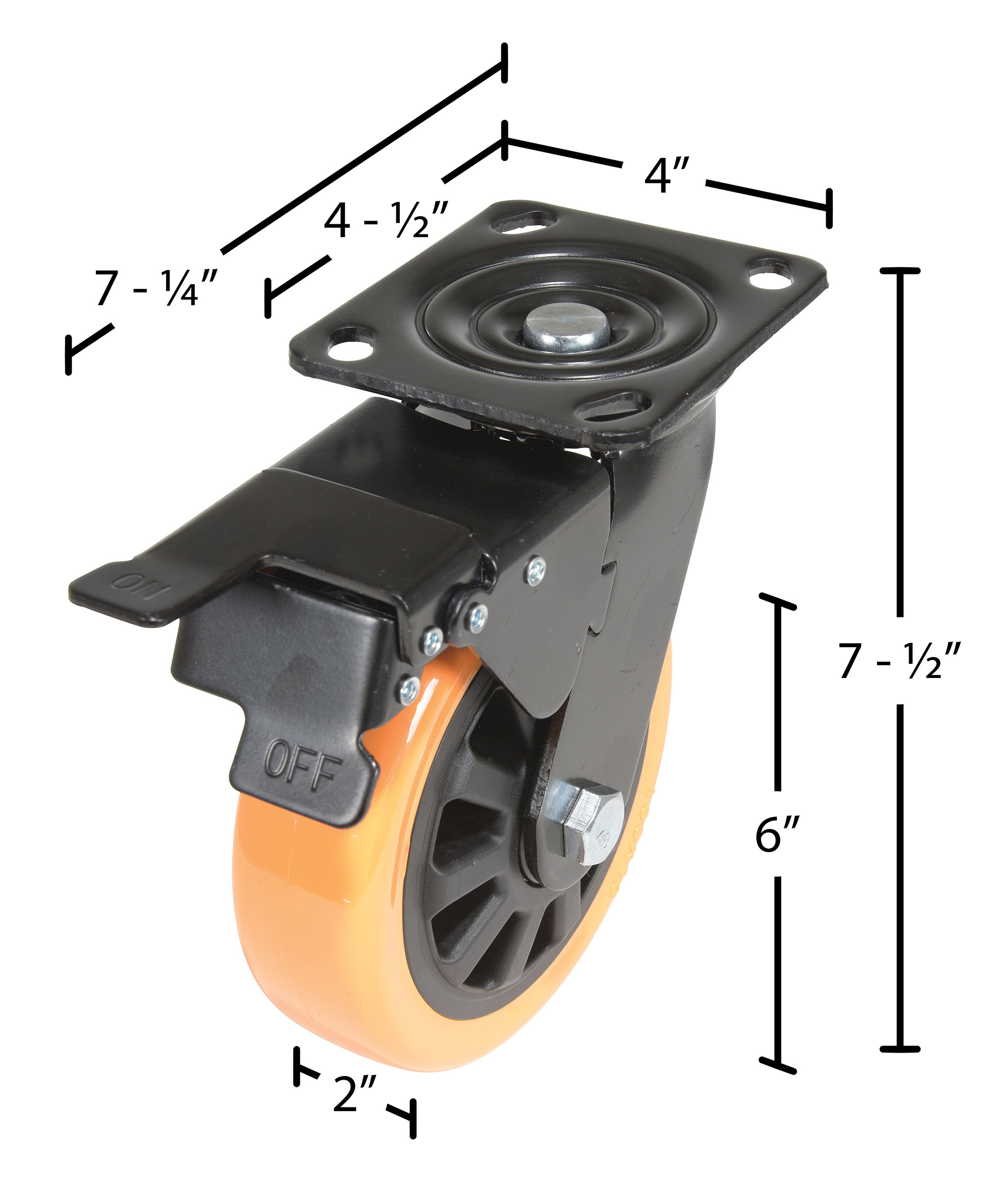

Assembled Size 4"W x 7.25"L x 7.5"H
Total Ship Weight 7 lbs
Package 1 Size 9"W x 5"D x 9"H
Color / Finish Orange
Freight Type Parcel

Additional Attributes

Brake Yes
Caster Mounting Type Plate
Mounting Type Flush/Top Plate
Capacity 836 Lbs
Caster Size 6 x 2
Capacity 836
Finish ZINC PLATED

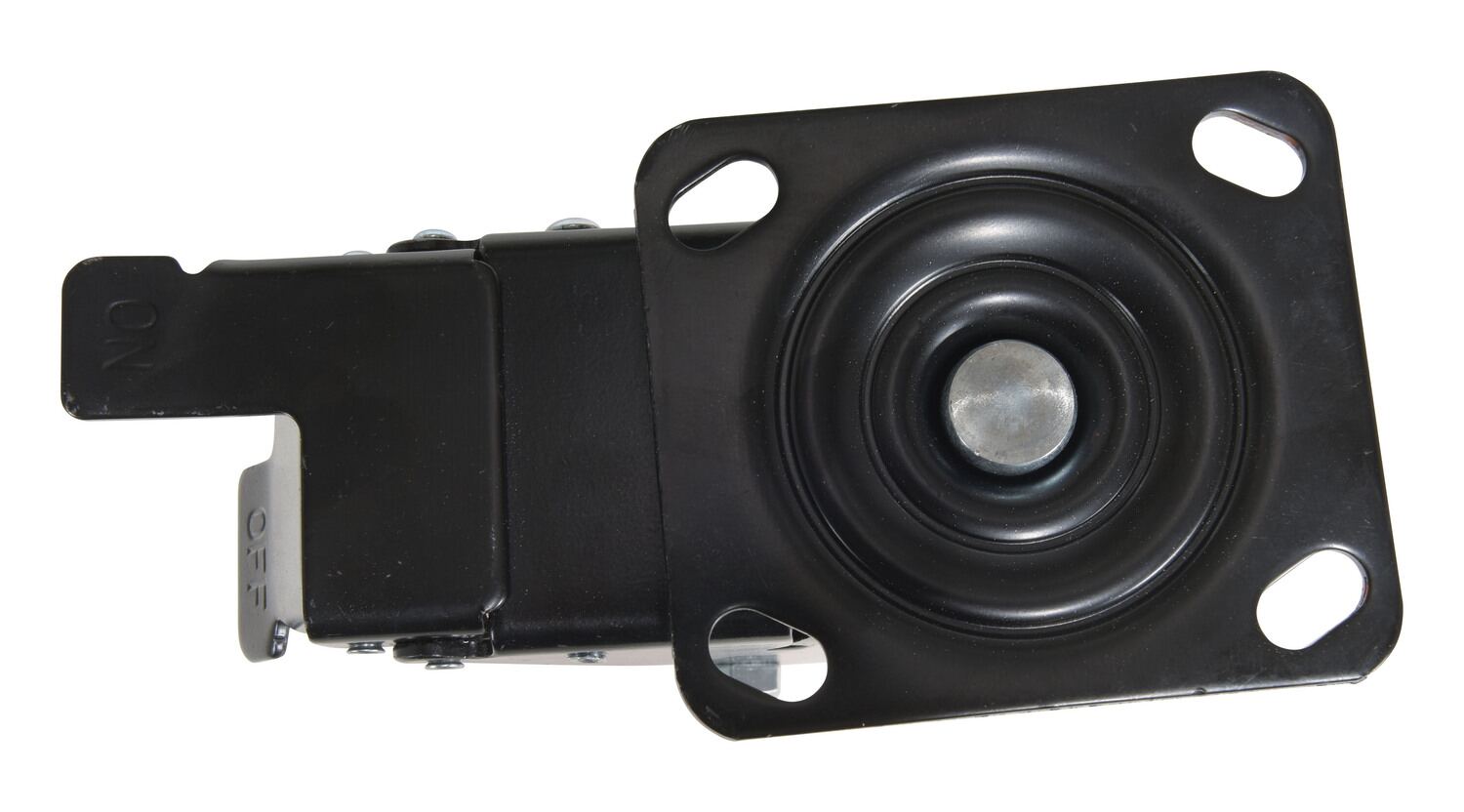

Top Plate Size 4 x 4-1/2
Wheel Bearings PRECISION BALL BEARINGS
Tread Material POLY ON POLY (N29 SERIES)
Tread Color ORANGE
Core Material POLY
Core Color BLACK
Durometer 98 SHORE A
Temperature Range 23 TO 176 DEGREES FAHRENHEIT
Diameter 6
Plate Thickness 3/16
Offset / Swivel Lead 2
Raceway Type DOUBLE BALL
Sealed Raceway Y
Zerk Fitting RACEWAY
Double Welded Forks OUTSIDE
Bulldog N
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CST-BN-6X2PUP-SWTB
Product Name
Polyurethane Swivel With Total Brake Caster 6 In. Diameter x 2 In. Width 836 Lb. Capacity Orange/Black
UPC
691215332385
GTIN
00691215332385
Taxonomy 1
Hardware
Taxonomy 2
Builders Hardware
Taxonomy 3
Casters & Glides
Taxonomy 4
Casters
Assembled Depth (in.)
7.25
Assembled Width(in.)
4
Assembled Height(in.)
7.5
Assembled Weight(lbs.)
5.83
Color/Finish
Orange
Material
Polyurethane
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
5
Package Width (in.)
9
Package Height (in.)
9
Package Weight (in.)
7
Freight Class
65
NMFC Code
Casters NOI in bags boxes or drums
NMFC Number
41725
LTL Freight
Parcel
UNSPSC
31162701
HTSUS Number
8716.90.3000
USMCA HS
8716.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
