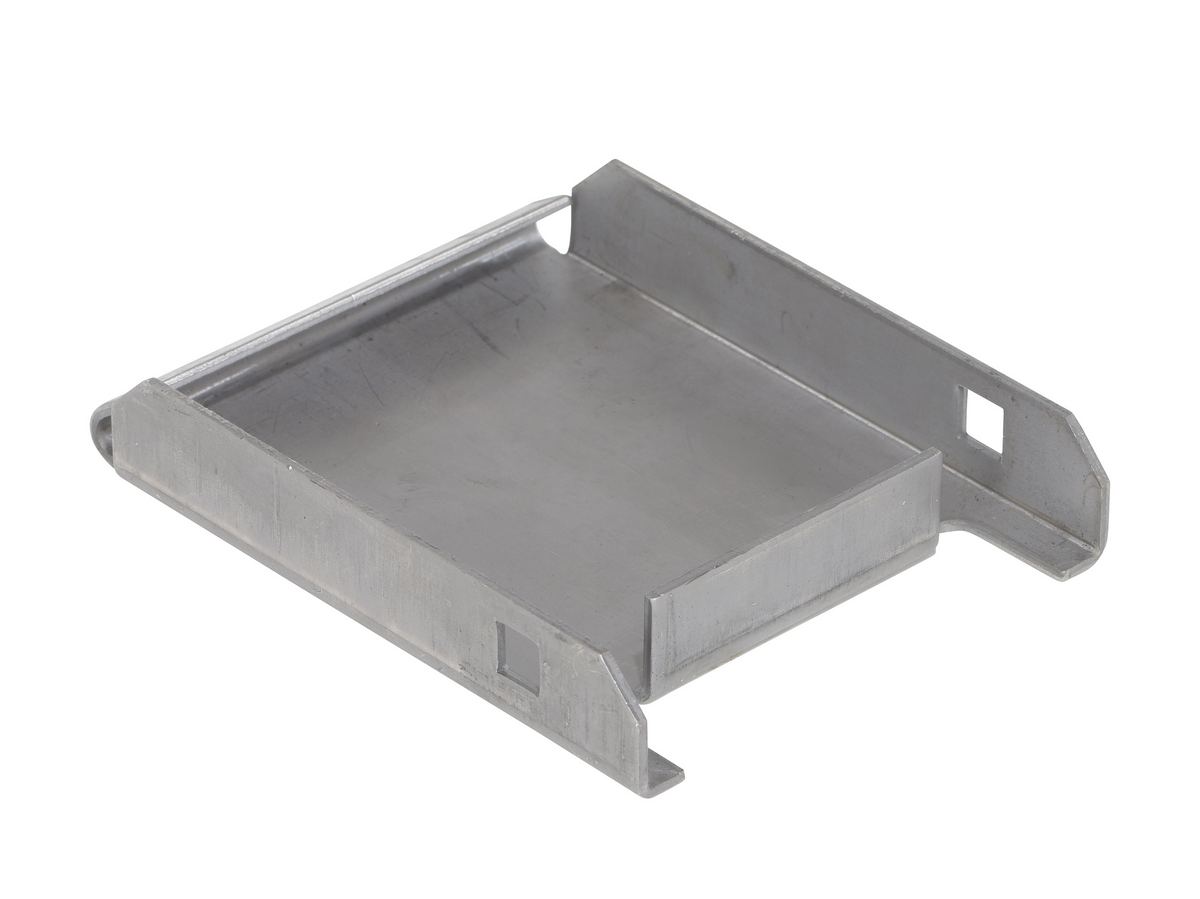

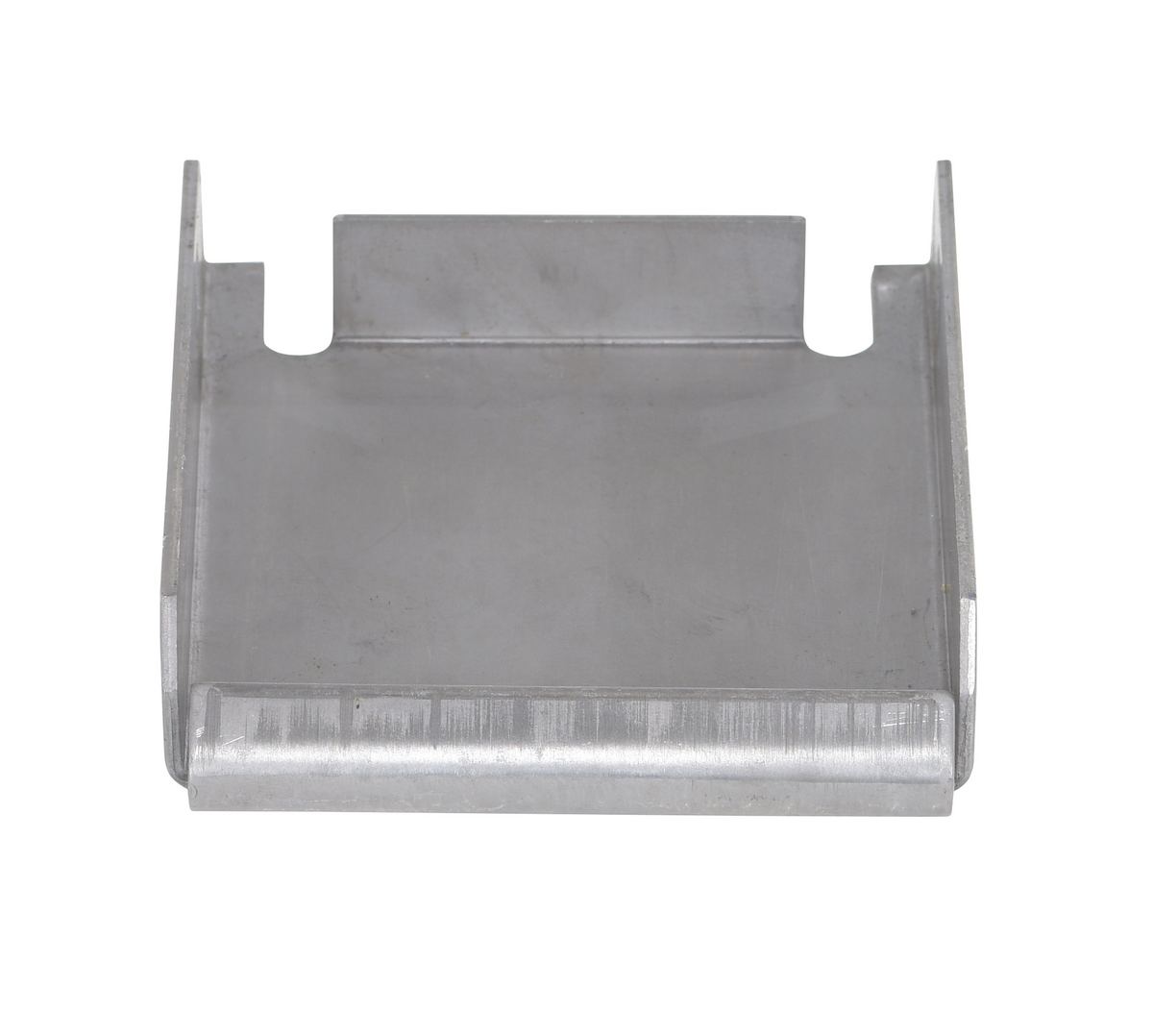

Steel Caster Pad 4 In. x 4-1/2 In. Top Plate Gray

Caster Pad for Industrial Carts and Mobile Material Handling Equipment, 4 in. x 4-1/2 in.
Caster pads are a nice addition to existing or new carts. Caster pads make the transition between casters quick and simple. Instead of using multiple hardware sets the caster pads allow casters to be connected to the units with a single pin and bolt connection. Simply weld the pad to the bottom of the cart in the position where the casters will be placed. The casters then fit snugly inside of the caster pad. With a single nut and bolt, the caster is held securely in place.
Product Status
Available QuickShip
Key Features
  • Pre-drilled caster attachment holes
  • Durable steel construction with unpainted finish
  • Uses 3/8" x 5" bolt and nut combo to secure caster to plate
  • Designed perfectly for corner edges
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  90 Days Warranty
Product Data

Core Data

Assembled Weight 0.92 lbs
Assembled Size 4.375"W x 5.6875"L x 0.9375"H
Total Ship Weight 1 lbs
Package 1 Size 5"W x 5"D x 1"H
Color / Finish GRAY
Freight Type Parcel
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CST-CP-S-400X412
Product Name
Steel Caster Pad 4 In. x 4-1/2 In. Top Plate Gray
UPC
691215363365
GTIN
00691215363365
Taxonomy 1
Hardware
Taxonomy 2
Builders Hardware
Taxonomy 3
Casters & Glides
Taxonomy 4
Pads
Assembled Depth (in.)
5.6875
Assembled Width(in.)
4.375
Assembled Height(in.)
0.9375
Assembled Weight(lbs.)
0.92
Color/Finish
GRAY
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
99-612-001

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
5
Package Width (in.)
5
Package Height (in.)
1
Package Weight (in.)
1
Freight Class
65
NMFC Code
Casters NOI in bags boxes or drums
NMFC Number
41725
LTL Freight
Parcel
UNSPSC
31162701
HTSUS Number
8716.90.5060
USMCA HS
8716.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
