Product Data Sheet

  Print to PDF
  All Products   Drum Handling Equipment   Cylinder Equipment   Welding Cylinder Torch Carts CYL-2
Product Image

Visual Reference

CYL-2
CYL-2
CYL-2
CYL-2
CYL-2
CYL-2

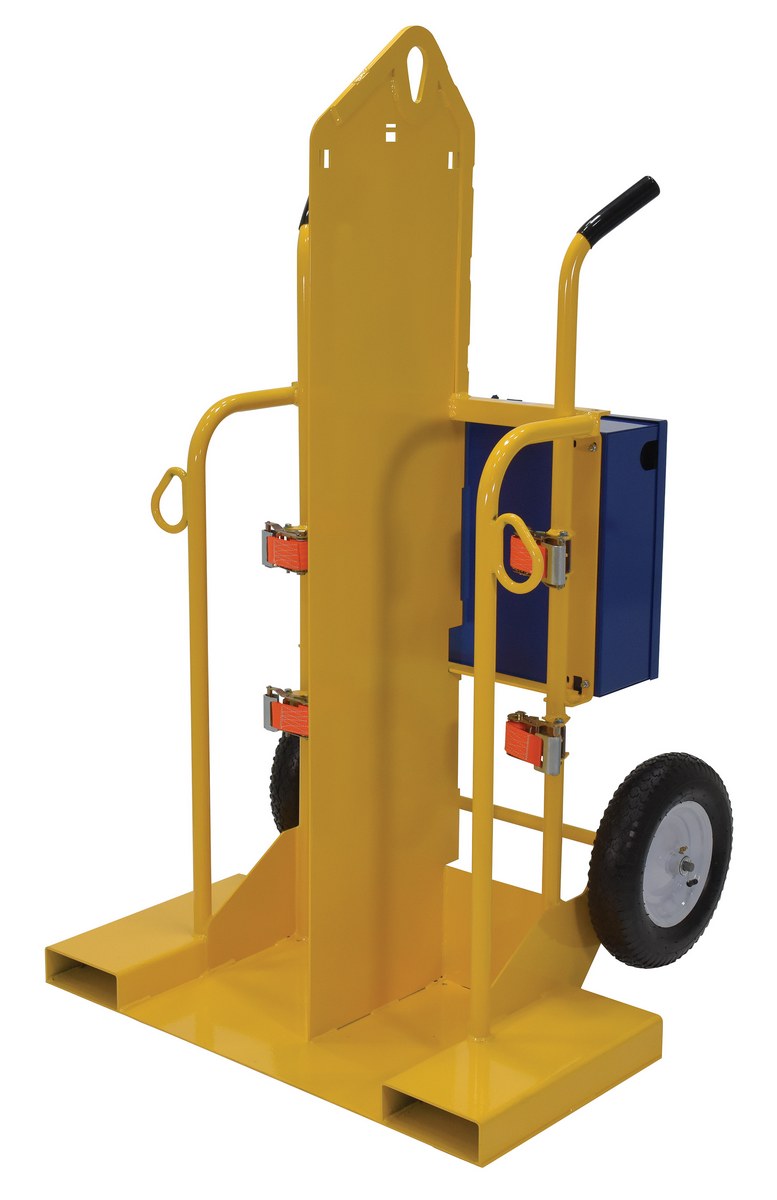

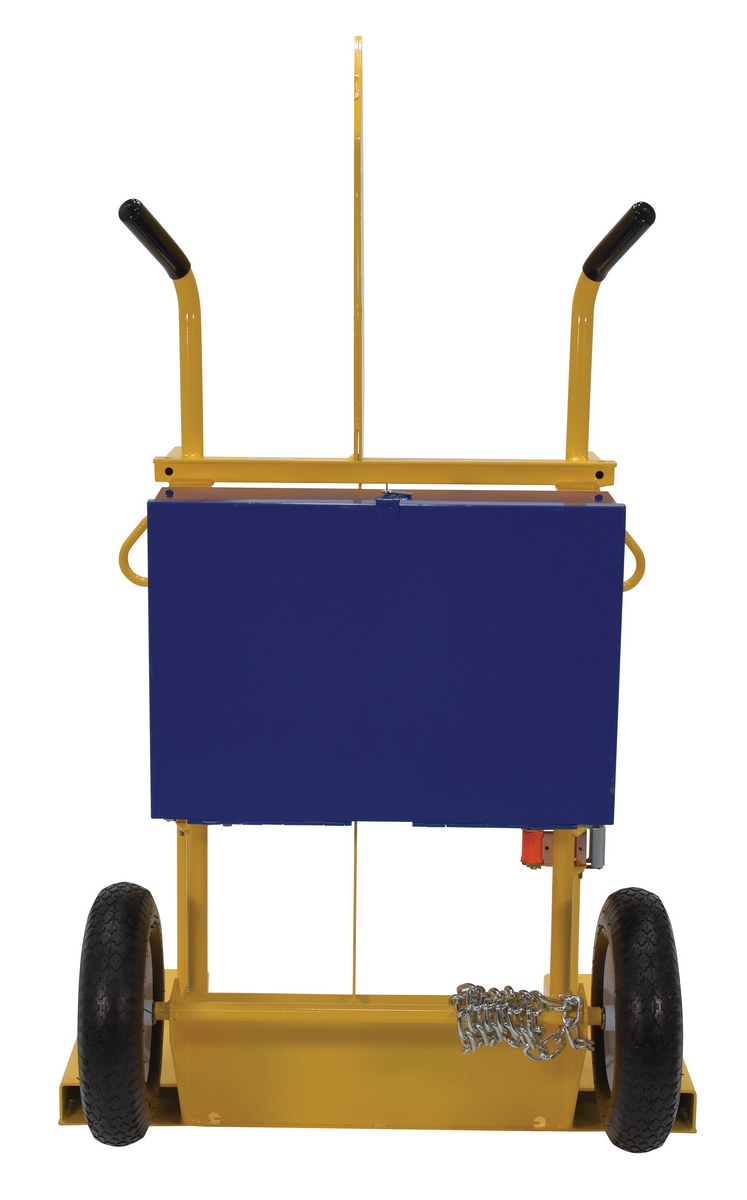

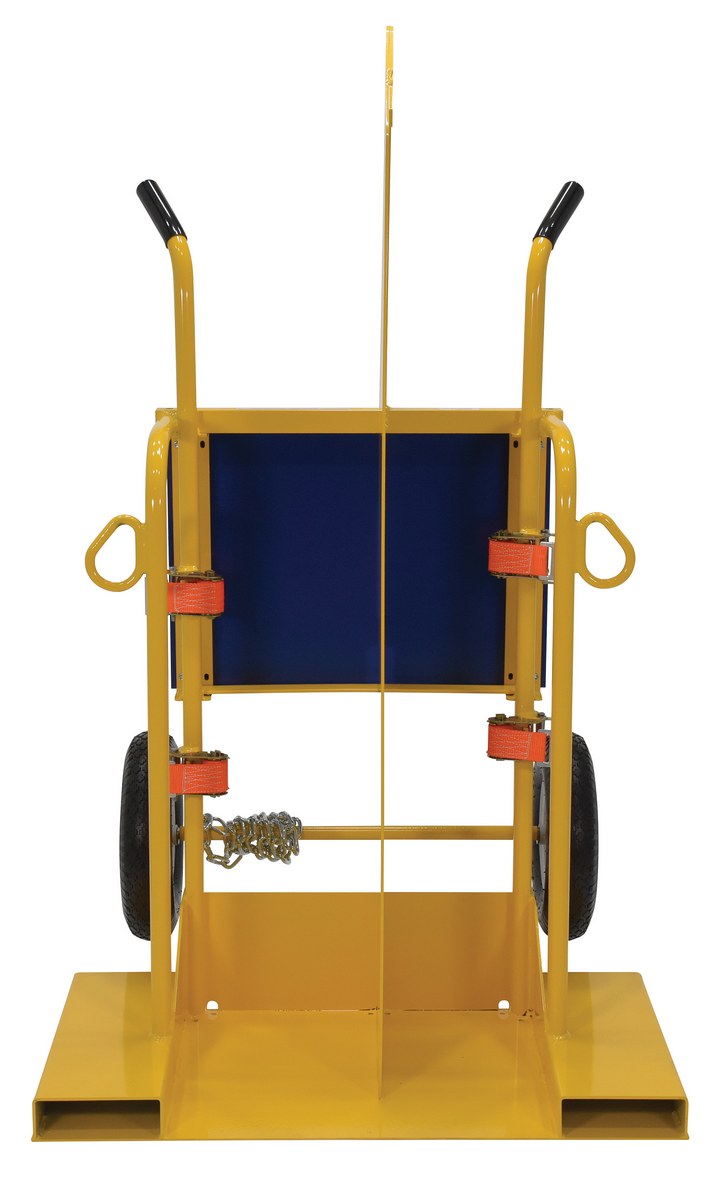

Steel Welding Cylinder Torch Cart 34-9/16 In. x 40-1/4 In. x 66-3/8 In. 500 lb. Capacity Yellow

Welding Canister Torch Cart for Commercial and Industrial Cylinder Equipment Use, 500 lb. Capacity with 34-9/16 in. x 40-1/4 in. x 66-3/8 in.
The welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Brackets are included for holding cutting torch and hose. Sturdy handles and large wheels for tilt-n-go portability. This unit includes lockable storage box for regulators. Box includes hose opening so regulator does not need to be disconnected for storage. Overhead lift eye. Fork pockets for transportation. Welded steel construction with painted finish. Not designed for use as a storage means for gas cylinders.
Product Status
Available QuickShip
Key Features
  • Steel brackets safely hold cutting torch & hoses
  • Cylinder dolly transports cylinders and cutting torch from workstation to workstation
  • Heavy-duty ratchet straps holds tanks in compartment
  • Lockable storage box for regulator
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   CYL-2, CYL-2-FF, CYL-2-FP & CYL-2-FP-FF Welding Cylinder Torch Cart Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 240 lbs
Assembled Size 40.25"W x 34.5625"L x 66.375"H
Total Ship Weight 282 lbs
Package 1 Size 40"W x 48"D x 75"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 500
Wheel Diameter (in.) 16
Wheel (qty.) 2
Wheel Width (in.) 4
Wheel Bearings (in.) 5/8
Wheel Type Pneumatic
Material Thickness (in.) 7/16
Maximum Eye Diameter (in.) 2
Fork Pocket Width (in.) 7-1/2
Fork Pocket Height (in.) 2-9/16
Ratchet Strap Length (in.) 37
Base Plate Length (in.) 19-1/2
Base Plate Usable Quantity/Width (in.) (2) 13-3/8, 10-7/16
Cylinder Capacity (quantity) 2
For Use With Fork Truck
Handle Type Double
Max. Tank Diameter Acetylene (cubic feet) 397, #5 Tank
Max. Tank Diameter Oxygen (mL) 260, Size T Bottle
Storage Box Length (in.) 7-1/8
Storage Box Width (in.) 26-3/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CYL-2
Product Name
Steel Welding Cylinder Torch Cart 34-9/16 In. x 40-1/4 In. x 66-3/8 In. 500 lb. Capacity Yellow
UPC
691215055673
GTIN
00691215055673
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Cylinder Caddy
Assembled Depth (in.)
34.5625
Assembled Width(in.)
40.25
Assembled Height(in.)
66.375
Assembled Weight(lbs.)
240
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
75
Package Weight (in.)
282
Subclass
3
Freight Class
250
NMFC Code
Vehicles, other than self-propelled
NMFC Number
189800
LTL Freight
LTL Palletized
UNSPSC
24101504
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CYL-2

CYL-2

Steel Welding Cylinder Torch Cart 34-9/16 In. x 40-1/4 In. x 66-3/8 In. 500 lb. Capacity Yellow

The welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Brackets are included for holding cutting torch and hose. Sturdy handles and large wheels for tilt-n-go portability. This unit includes lockable storage box for regulators. Box includes hose opening so regulator does not need to be disconnected for storage. Overhead lift eye. Fork pockets for transportation. Welded steel construction with painted finish. Not designed for use as a storage means for gas cylinders.

  • Steel brackets safely hold cutting torch & hoses
  • Cylinder dolly transports cylinders and cutting torch from workstation to workstation
  • Heavy-duty ratchet straps holds tanks in compartment
  • Lockable storage box for regulator

Core Data

Assembled Weight: 240 Assembled Size: 40.25"W x 34.5625"L x 66.375"H Color: Yellow
Total Ship Weight: 282 Package 1 Size: 40"W x 48"D x 75"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 500
Wheel Diameter (in.): 16
Wheel (qty.): 2
Wheel Width (in.): 4
Wheel Bearings (in.): 5/8
Wheel Type: Pneumatic
Material Thickness (in.): 7/16
Maximum Eye Diameter (in.): 2
Fork Pocket Width (in.): 7-1/2
Fork Pocket Height (in.): 2-9/16
Ratchet Strap Length (in.): 37
Base Plate Length (in.): 19-1/2
Base Plate Usable Quantity/Width (in.): (2) 13-3/8, 10-7/16
Cylinder Capacity (quantity): 2
For Use With: Fork Truck
Handle Type: Double
Max. Tank Diameter Acetylene (cubic feet): 397, #5 Tank
Max. Tank Diameter Oxygen (mL): 260, Size T Bottle
Storage Box Length (in.): 7-1/8
Storage Box Width (in.): 26-3/16
