Steel Portable Deluxe Cylinder Lifter with Pneumatic Wheels 27-1/16 In. x 19 In. x 51-3/8 In. 500 Lb. Blue

Pneumatic Portable Tank Lifter for Moving Loads Through Warehouses and Production Areas, 500 lb. Capacity with 27-1/16 in. x 19 in. x 51-3/8 in.

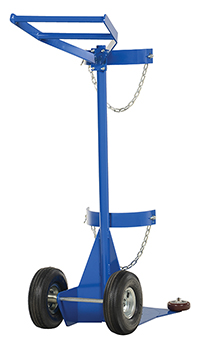

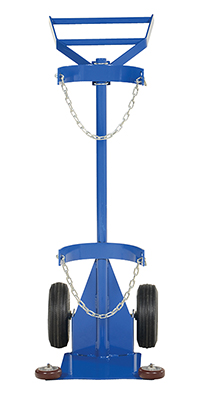

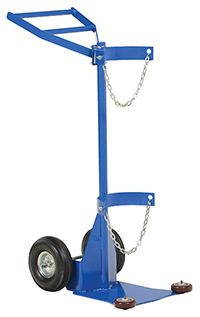

The Cylinder dolly transports cylinders from workstation to workstation. This deluxe version feature roller guides attached to the nose plate. The hard rubber roller guides allow for easier entry onto the nose plate. Secure the cylinder with the included restraint chains. Tilt unit back and transport.
Product Status
Available
Key Features
  • Use in industrial applications for optimal results
  • Cylinder dolly transports cylinders for ideal operation

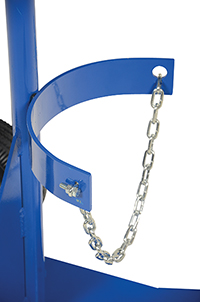

  • Includes restraint chains in order to secure cylinders for maximum efficiency

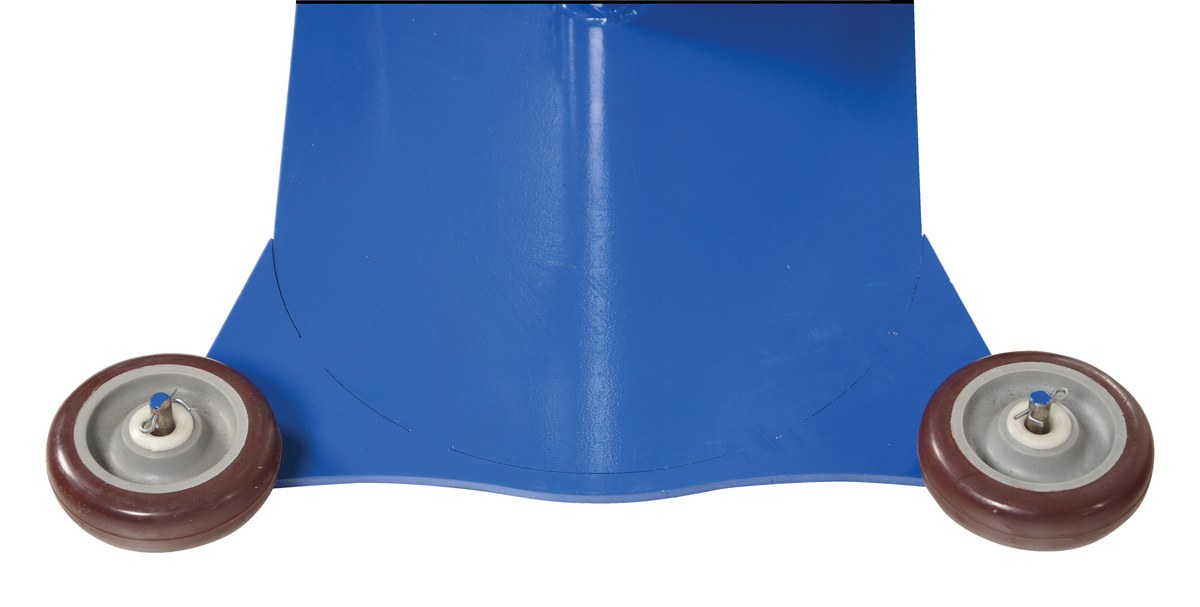

  • Features hard rubber roller guides which allow for entry on nose plate
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Cylinder Dolly   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 70 lbs
Assembled Size 19"W x 27.0625"L x 51.375"H
Total Ship Weight 86 lbs
Package 1 Size 24"W x 30"D x 56"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 500
Maximum Cylinder Diameter (in.) 11-1/2
Nose Plate Width (in.) 12
Nose Plate Depth (in.) 15-1/2
Wheel Quantity/Diameter/Width (in.) (2) 10 x 3-1/2
Wheel Type Pneumatic
Roller Guide Quantity/Diameter/Height (in.) (2) 4 x 1-1/4
Roller Type Hard Rubber
Nose Plate Thickness (in.) 1/4
Overall Width (in.) 19
Overall Length (in.) 27-1/16
Overall Height (in.) 52-1/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CYL-DLX-1-PN
Product Name
Steel Portable Deluxe Cylinder Lifter with Pneumatic Wheels 27-1/16 In. x 19 In. x 51-3/8 In. 500 Lb. Blue
UPC
691215064897
GTIN
00691215064897
Taxonomy 1
Tools
Taxonomy 2
Portable Powered Tools
Taxonomy 3
Welding / Soldering / Brazing
Taxonomy 4
Metal
Taxonomy 5
Welding & Supplies
Taxonomy 6
Parts & Accessories
Taxonomy 7
Cylinder Carts
Assembled Depth (in.)
27.0625
Assembled Width(in.)
19
Assembled Height(in.)
51.375
Assembled Weight(lbs.)
70
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
30
Package Width (in.)
24
Package Height (in.)
56
Package Weight (in.)
86
Subclass
1
Freight Class
150
NMFC Code
Carts Barrel Hand SU on wheels or KD flat
NMFC Number
188760
LTL Freight
LTL Palletized
UNSPSC
24111800
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
