Steel Torch Cart-Lift Eye with Foam Filled Wheels 22-13/16 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity Yellow

Welding Cylinder Torch Cart for Commercial and Industrial Cylinder Equipment Use, 500 lb. Capacity with 22-13/16 in. x 34-1/2 in. x 66-3/8 in., Yellow Finish – Model CYL-EH-FF

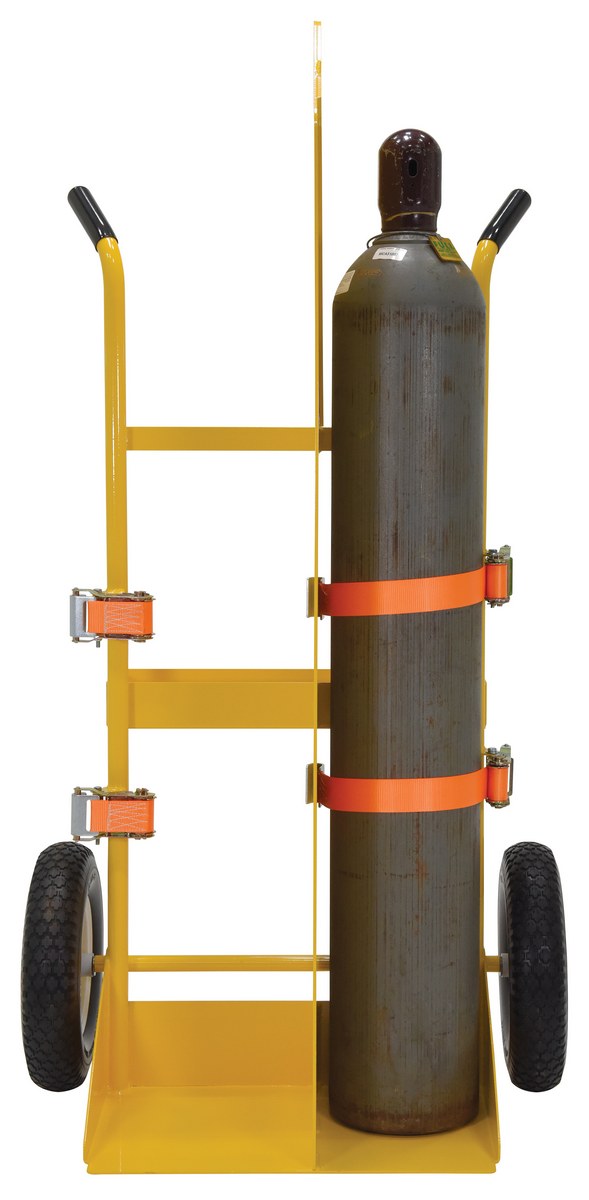

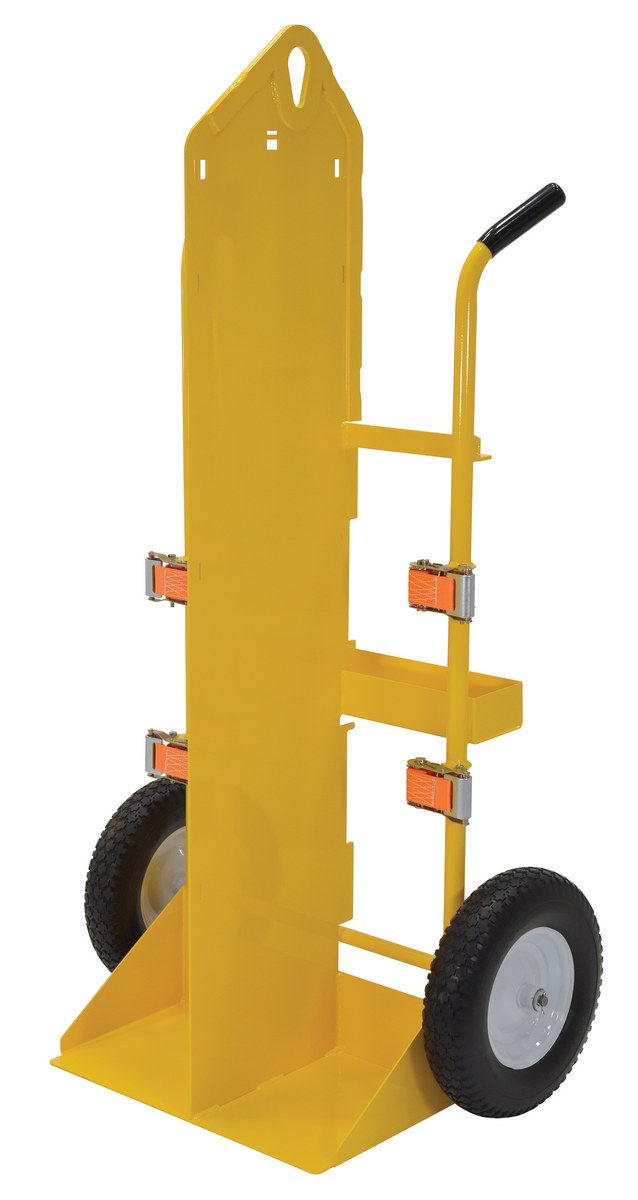

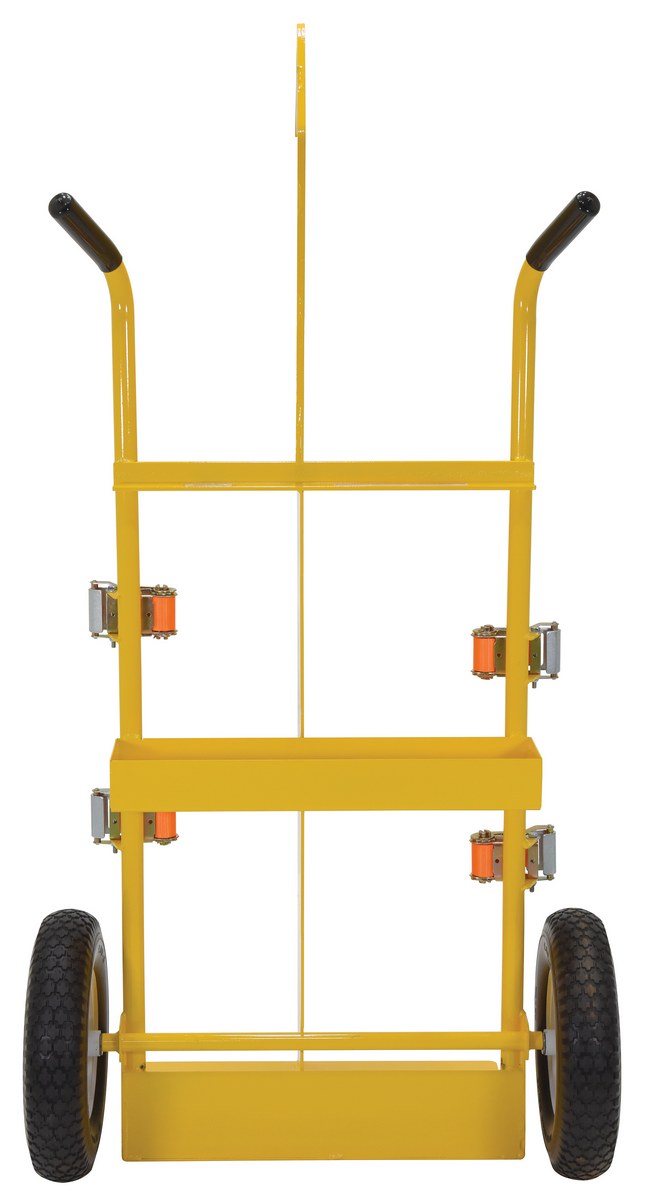

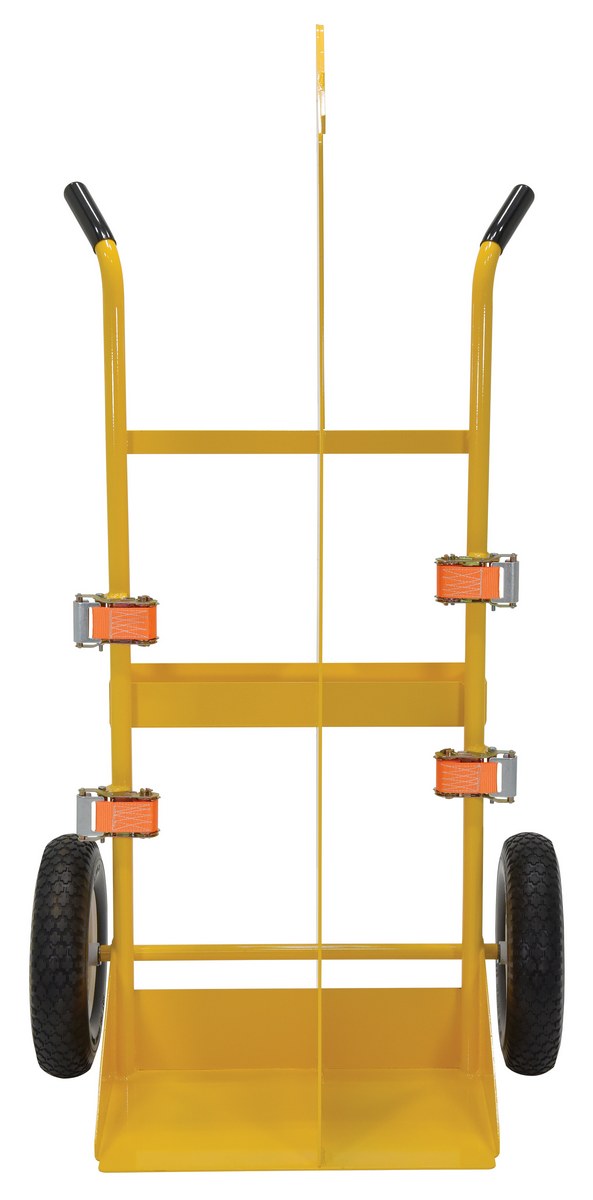

The welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Convenient open-top storage tray. Sturdy handles and large wheels for tilt-n-go portability. Welded steel construction with powder coat finish. Not designed for use as a storage means for gas cylinders.
Product Status
Out of Stock QuickShip
Key Features
  • Sturdy handles and large wheels for tilt-n-go portability
  • Cylinder dolly transports cylinders and cutting torch from workstation to workstation
  • Heavy-duty ratchet straps holds tanks in compartment
  • Open-top storage tray conveniently holds tools & other materials
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   CYL-EH, EYL-EH-FF, CYL-EH-FP & CYL-EH-FP-FF Cylinder Dollies Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 162 lbs
Assembled Size 34.5"W x 22.8125"L x 66.375"H
Total Ship Weight 185 lbs
Package 1 Size 40"W x 48"D x 63"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 500
Wheel Diameter (in.) 16
Wheel (qty.) 2
Wheel Width (in.) 2-1/2
Wheel Bearings (in.) 5/8
Wheel Type Foam Filled
Material Thickness (in.) 7/16
Cylinder Capacity (qty.) 2
Base Plate Usable Quantity/Width (in.) (2) 13-3/8, 10-7/16
Base Plate Length (in.) 14-5/16
Handle Type Double
Includes Ratchet Straps
Max. Tank Diameter Acetylene (cubic feet) 397, #5 Tank
Max. Tank Diameter Oxygen (mL) 260, Size T Bottle
Tool Tray Length (in.) 24
Tool Tray Width (in.) 5
Tool Tray Height (in.) 3
Maximum Eye Diameter (in.) 2

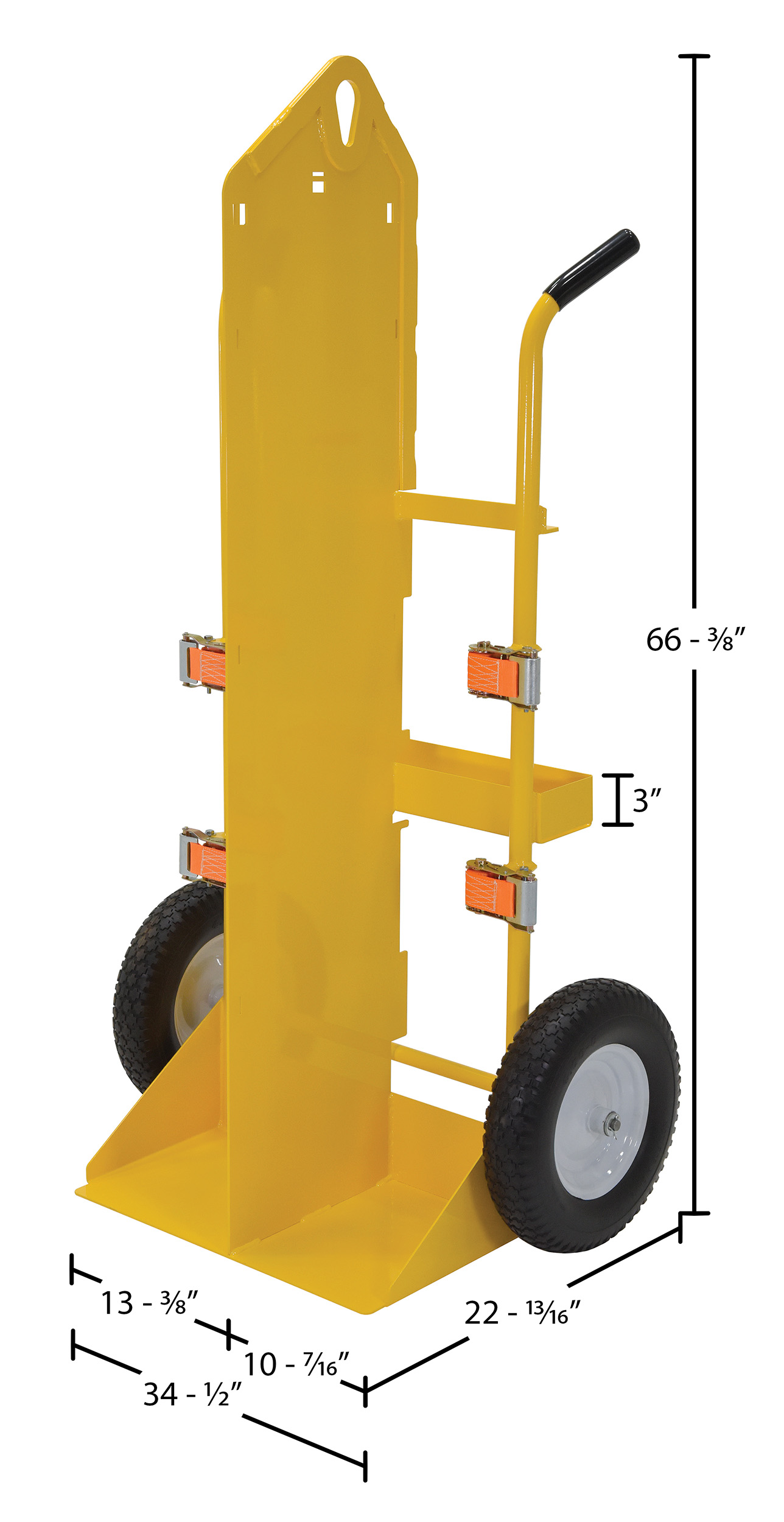

Overall Width (in.) 34-1/2
Overall Depth (in.) 22-13/16
Overall Height (in.) 66-3/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CYL-EH-FF
Product Name
Steel Torch Cart-Lift Eye with Foam Filled Wheels 22-13/16 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity Yellow
UPC
691215085588
GTIN
00691215085588
Taxonomy 1
Tools
Taxonomy 2
Portable Powered Tools
Taxonomy 3
Welding / Soldering / Brazing
Taxonomy 4
Metal
Taxonomy 5
Welding & Supplies
Taxonomy 6
Parts & Accessories
Taxonomy 7
Cylinder Carts
Assembled Depth (in.)
22.8125
Assembled Width(in.)
34.5
Assembled Height(in.)
66.375
Assembled Weight(lbs.)
162
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
63
Package Weight (in.)
185
Subclass
3
Freight Class
250
NMFC Code
Vehicles, other than self-propelled
NMFC Number
189800
LTL Freight
LTL Palletized
UNSPSC
24111800
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
