Product Data Sheet

  Print to PDF
  All Products   Drum Handling Equipment   Cylinder Equipment   Cylinder Storage Cabinets (USA sales) CYL-V-4
Product Image

Visual Reference

CYL-V-4
CYL-V-4
CYL-V-4
CYL-V-4
CYL-V-4
CYL-V-4

Steel Vertical Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Cylinder Storage Cabinet for Organized Industrial Storage and Secure Work Areas, 200 lb. Capacity with 32 in. x 30 in. x 35-1/4 in., Yellow Finish – Model CYL-V-4
Steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel, and the bottom, back, and top are mode of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cabinets. Includes red lettered sign age noting "flammable no smoking". Meets OSHA sec. 1910.110 (f )(6)(ii), ANSI pan 55 + 58, and CGA P-1 design standards. Rugged steel construction with safety yellow baked-in powder-coated toughness.
Product Status
Available
Key Features
  • Meets pan 58 and OSHA 1910 110 requirements
  • Ideal for vertical storage of other gas style cylinders
  • Include chains for securing cylinders
  • Includes lockable doors lag holes in base for security
Quick Actions

Product Resources

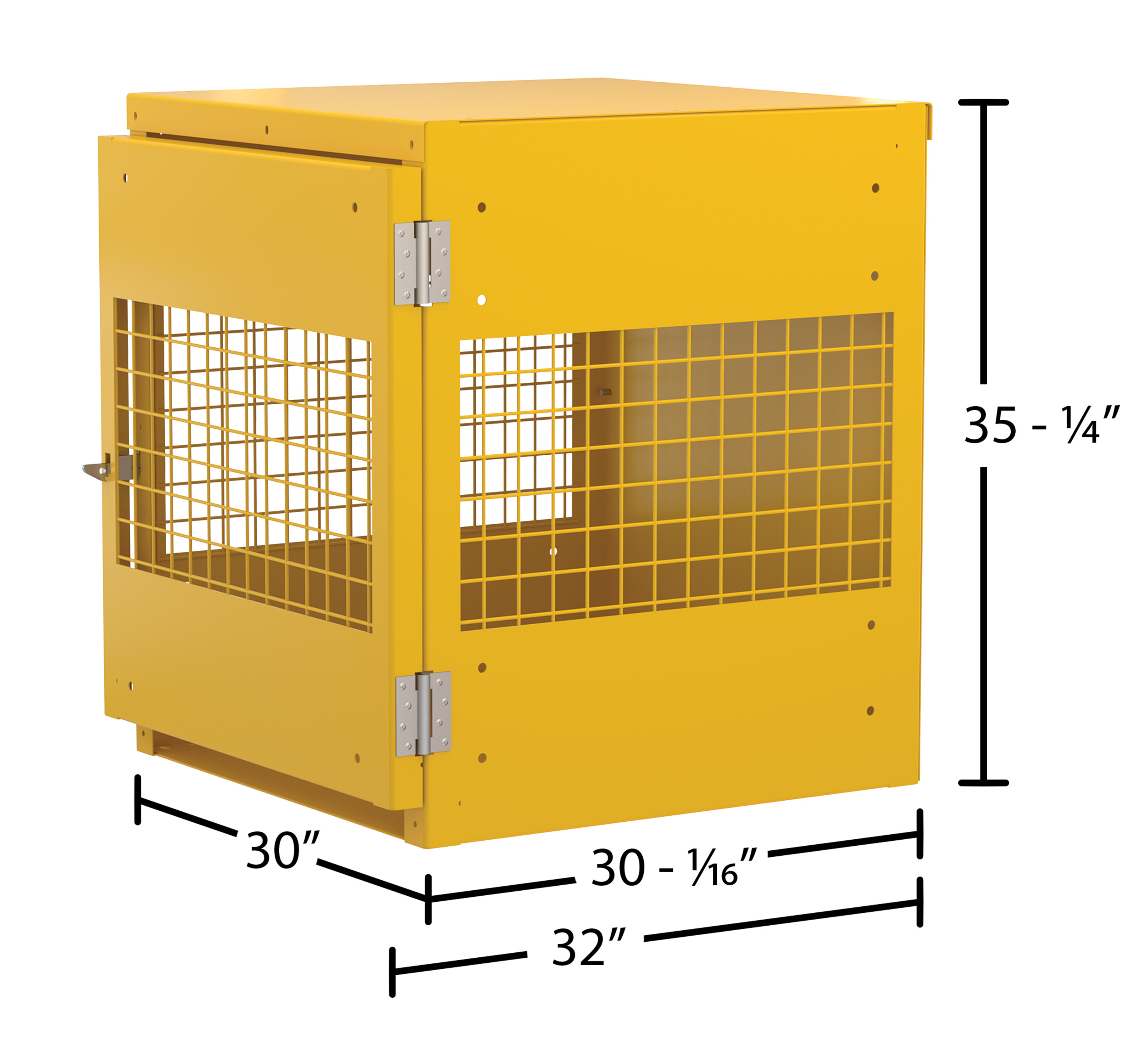

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   CYL-V Series Vertical Storage Cabinet Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 124 lbs
Assembled Size 30"W x 32"L x 35.25"H
Total Ship Weight 220 lbs
Package 1 Size 40"W x 48"D x 36"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Cylinder Capacity (qty.) 4
Storage Design Vertical
County of Use USA
OSHA 1910.110 (f)(6)(ii)
ANSI NFPA 55 + 58
CGA P-1
Signage FLAMMABLE NO SMOKING
Includes Lag Holes (Lag Hardware NOT Included)
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CYL-V-4
Product Name
Steel Vertical Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow
UPC
691215133258
GTIN
00691215133258
Taxonomy 1
Cleaning & Janitorial
Taxonomy 2
Storage & Organization
Taxonomy 3
Industrial Storage
Taxonomy 4
Cabinets
Taxonomy 5
Cylinder Storage
Assembled Depth (in.)
32
Assembled Width(in.)
30
Assembled Height(in.)
35.25
Assembled Weight(lbs.)
124
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
36
Package Weight (in.)
220
Subclass
4
Freight Class
175
NMFC Code
Cabinets NOI
NMFC Number
39495
LTL Freight
LTL Palletized
UNSPSC
24102000
HTSUS Number
9403.20.0090
USMCA HS
9403.20
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CYL-V-4

CYL-V-4

Steel Vertical Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel, and the bottom, back, and top are mode of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cabinets. Includes red lettered sign age noting "flammable no smoking". Meets OSHA sec. 1910.110 (f )(6)(ii), ANSI pan 55 + 58, and CGA P-1 design standards. Rugged steel construction with safety yellow baked-in powder-coated toughness.

  • Meets pan 58 and OSHA 1910 110 requirements
  • Ideal for vertical storage of other gas style cylinders
  • Include chains for securing cylinders
  • Includes lockable doors lag holes in base for security

Core Data

Assembled Weight: 124 Assembled Size: 30"W x 32"L x 35.25"H Color: Yellow
Total Ship Weight: 220 Package 1 Size: 40"W x 48"D x 36"H Freight: LTL Palletized

Specifications

Cylinder Capacity (qty.): 4
Storage Design: Vertical
County of Use: USA
OSHA: 1910.110 (f)(6)(ii)
ANSI: NFPA 55 + 58
CGA: P-1
Signage: FLAMMABLE NO SMOKING
Includes: Lag Holes (Lag Hardware NOT Included)
