Steel Knockdown Vertical Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Cylinder Storage Cabinet for Organized Industrial Storage and Secure Work Areas, 200 lb. Capacity with 32 in. x 30 in. x 35-1/4 in., Yellow Finish – Model CYL-V-4-KD
Steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel, and the bottom, back, and top are mode of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cabinets. Chains for securing cylinders are included. Meets OSHA sec. 1910.110 (f )(6)(ii), ANSI NFPA 55 + 58, and CGA P-1 design standards. Rugged steel construction with safety yellow baked-in powder-coated toughness. This cabinet is shipped knock down and requires user assembly.
Product Status
Available
Key Features
  • Ideal for vertical storage of other gas style cylinders
  • Design allows inside contents to be viewed
  • Includes red lettered signage noting "flammable - no smoking"
  • Meets NFPA 58 and OSHA 1910 110 requirements
Quick Actions

Product Resources

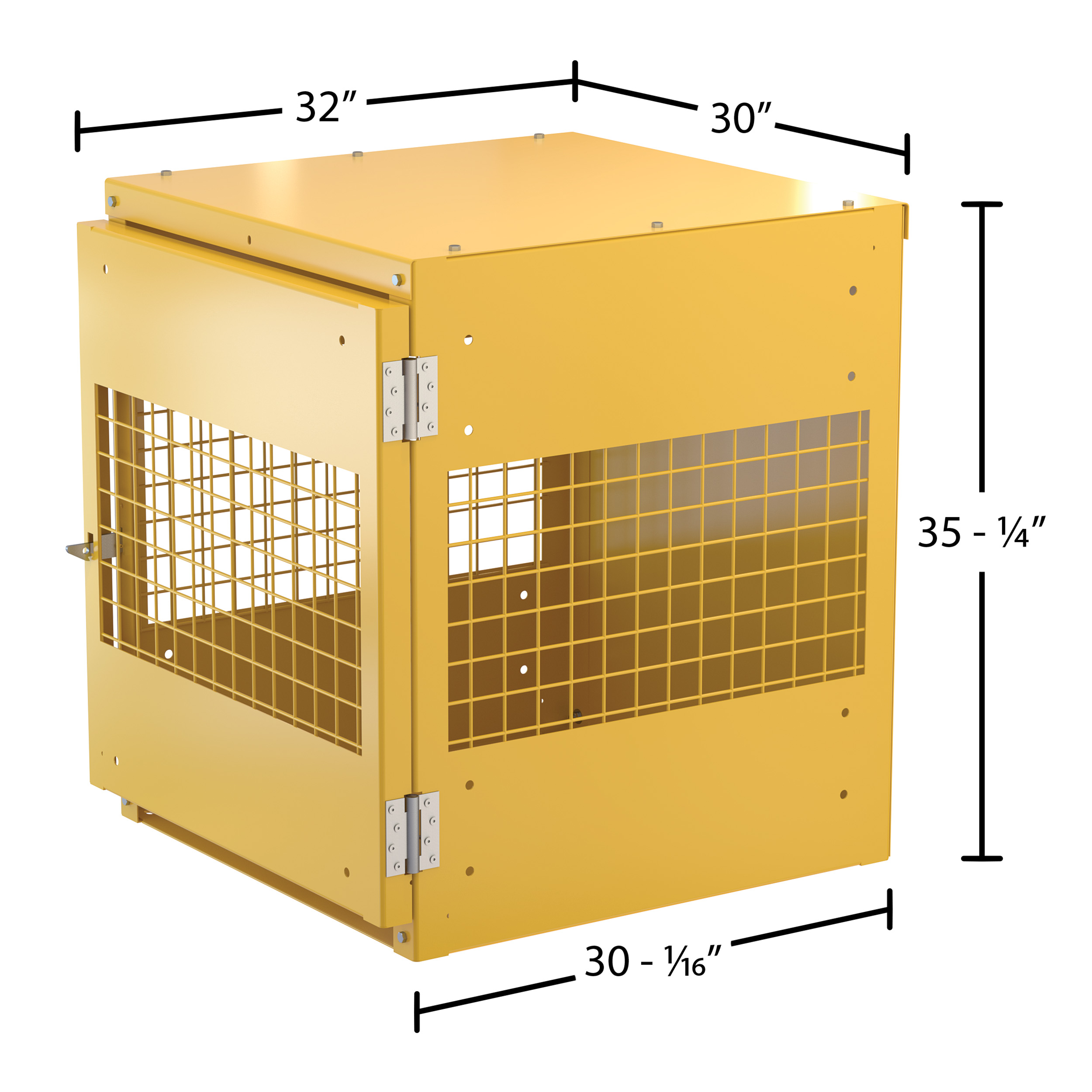

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   CYL-V Series Vertical Storage Cabinet Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 125 lbs
Assembled Size 30"W x 32"L x 35.25"H
Total Ship Weight 220 lbs
Package 1 Size 40"W x 48"D x 20"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Cylinder Capacity (qty.) 4
Storage Design Vertical
County of Use USA
OSHA 1910.110 (f)(6)(ii)
ANSI NFPA 55 + 58
CGA P-1
Signage FLAMMABLE NO SMOKING
Includes Lag Holes (Lag Hardware NOT Included)
Ships Knock Down
Extended Product Details

Marketing Specs.

MFG Model # (Series)
CYL-V-4-KD
Product Name
Steel Knockdown Vertical Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow
UPC
691215133265
GTIN
00691215133265
Taxonomy 1
Cleaning & Janitorial
Taxonomy 2
Storage & Organization
Taxonomy 3
Industrial Storage
Taxonomy 4
Cabinets
Taxonomy 5
Cylinder Storage
Assembled Depth (in.)
32
Assembled Width(in.)
30
Assembled Height(in.)
35.25
Assembled Weight(lbs.)
125
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
20
Package Weight (in.)
220
Subclass
6
Freight Class
100
NMFC Code
Cabinets NOI
NMFC Number
39495
LTL Freight
LTL Palletized
UNSPSC
24102000
HTSUS Number
9403.20.0090
USMCA HS
9403.20
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
