Vinyl Dock Seal 10 In. 8 Ft. x 8 Ft. Black

Truck Dock Seal for Commercial Dock Access and Waterfront Operations, 10 in., Black Finish – Model D-150-10
The superior nylon reinforced vinyl facing has a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded on a durable pressure treated wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction with beveled fronts and a through the wall installation kit that is included. Five inch (5") maximum compression is recommended . Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete the survey sheet.
Product Status
Available Non-Returnable
Key Features
  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Dock Seal Model D-150   Dock Seal/Shelter Installation Instructions   90 Days Warranty
Product Data

Core Data

Assembled Weight 110 lbs

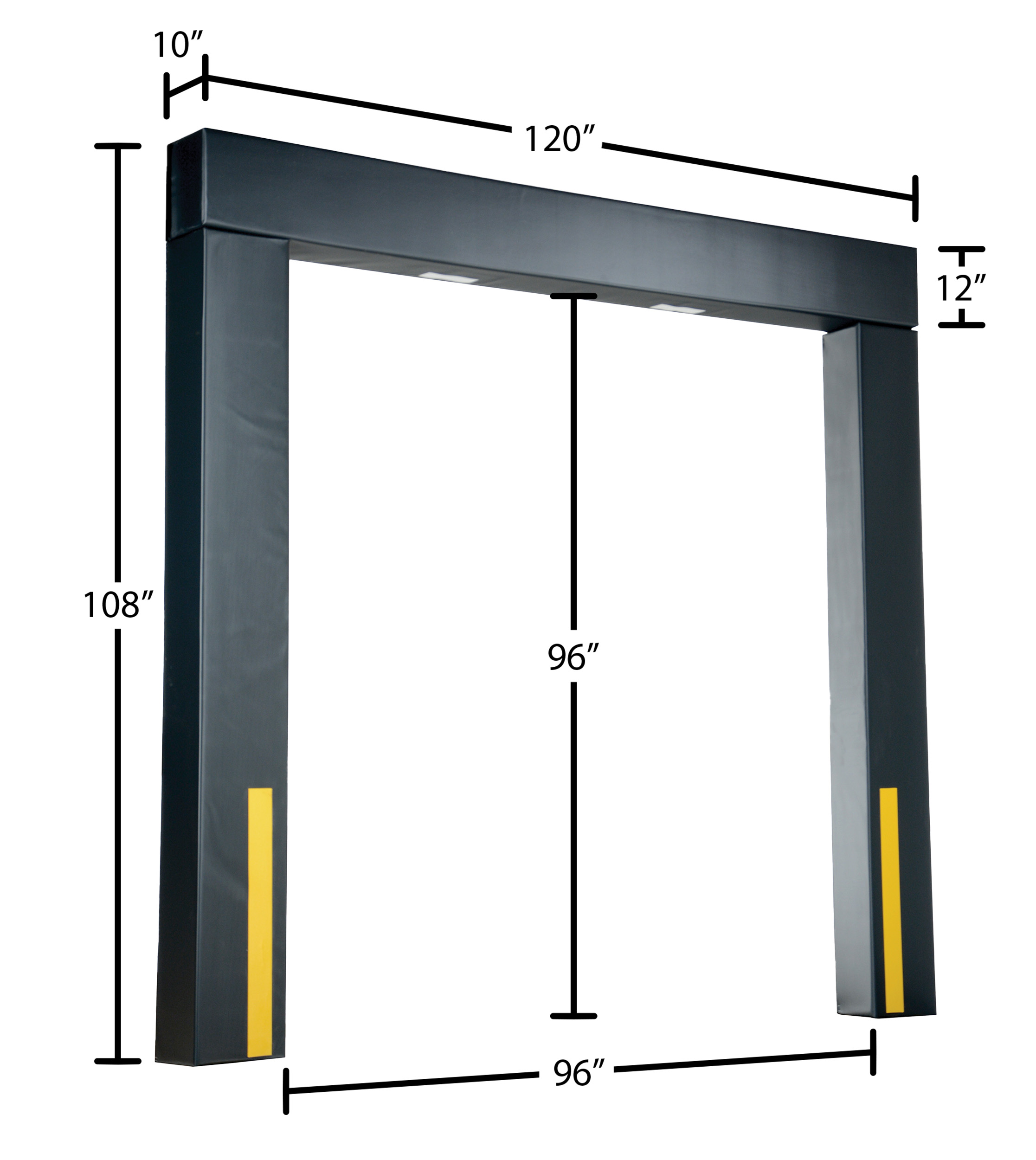

Assembled Size 120"W x 10"L x 108"H
Total Ship Weight 212 lbs
Package 1 Size 36"W x 120"D x 16"H
Color / Finish Black
Freight Type LTL Palletized

Additional Attributes

Projection (in.) 10
Nylon Reinforced Vinyl (oz.) 36
Nylon Reinforced Guide Strips (in.) 2
Top Height (in.) 12
Side Wall Width (in.) 9-1/2
Face Width (in.) 12
Maximum Compression (in.) 5
Standard Guide Stipe Height (in.) 30
Side Height (in.) 96
Max Door Width (in.) 96
Max Door Height (in.) 96
Extended Product Details

Marketing Specs.

MFG Model # (Series)
D-150-10
Product Name
Vinyl Dock Seal 10 In. 8 Ft. x 8 Ft. Black
UPC
691215012058
GTIN
00691215012058
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dock Seals and Shelters
Taxonomy 4
Seals
Assembled Depth (in.)
10
Assembled Width(in.)
120
Assembled Height(in.)
108
Assembled Weight(lbs.)
110
Color/Finish
Black
Material
Vinyl
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
120
Package Width (in.)
36
Package Height (in.)
16
Package Weight (in.)
212
Subclass
4
Freight Class
175
NMFC Code
Pads Padding Cushions or Pillows
NMFC Number
149265
LTL Freight
LTL Palletized
UNSPSC
24101802
HTSUS Number
3925.20.0091
USMCA HS
3925.20
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Yes
