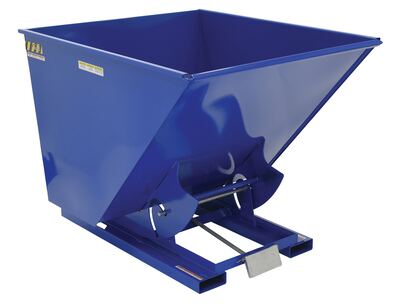

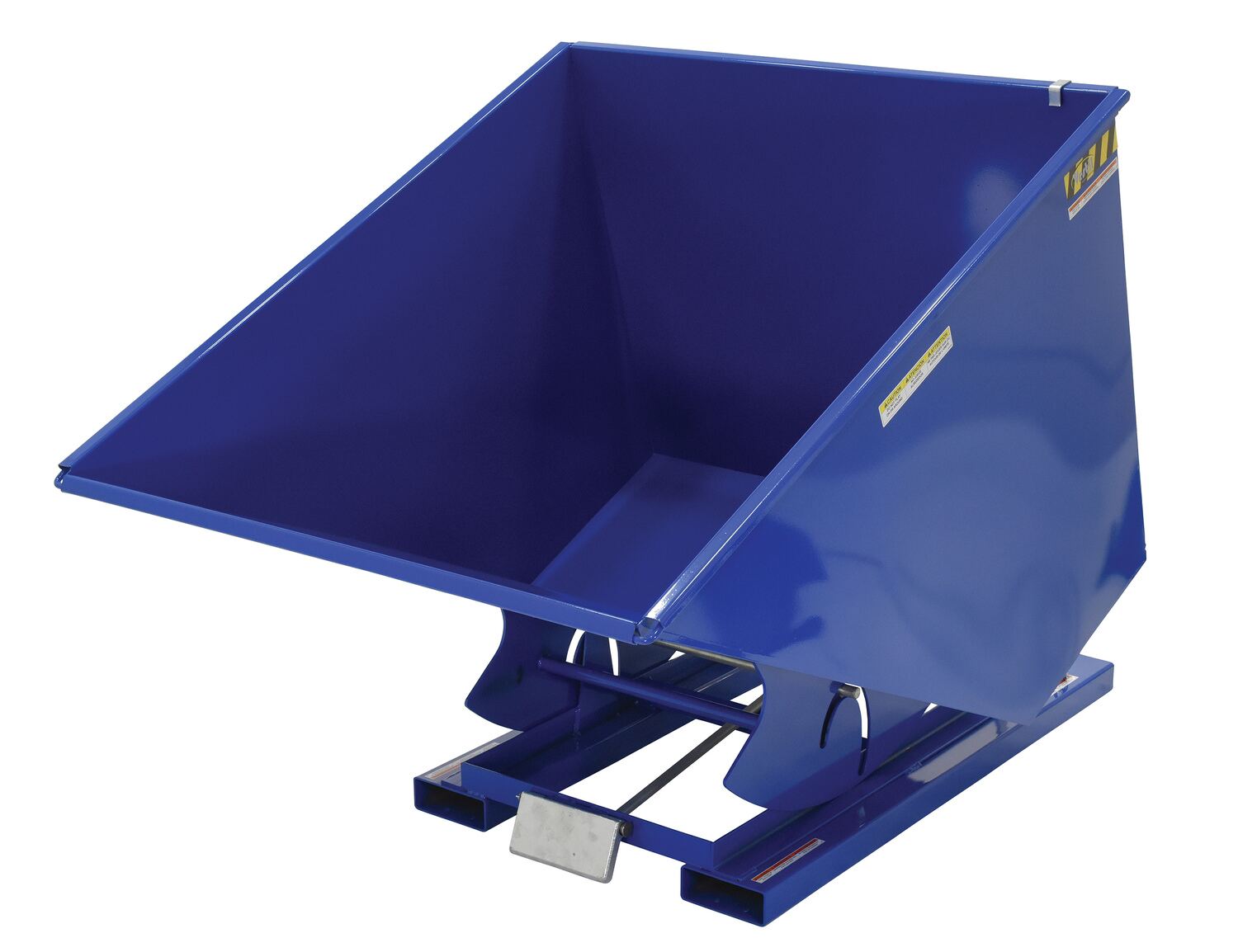

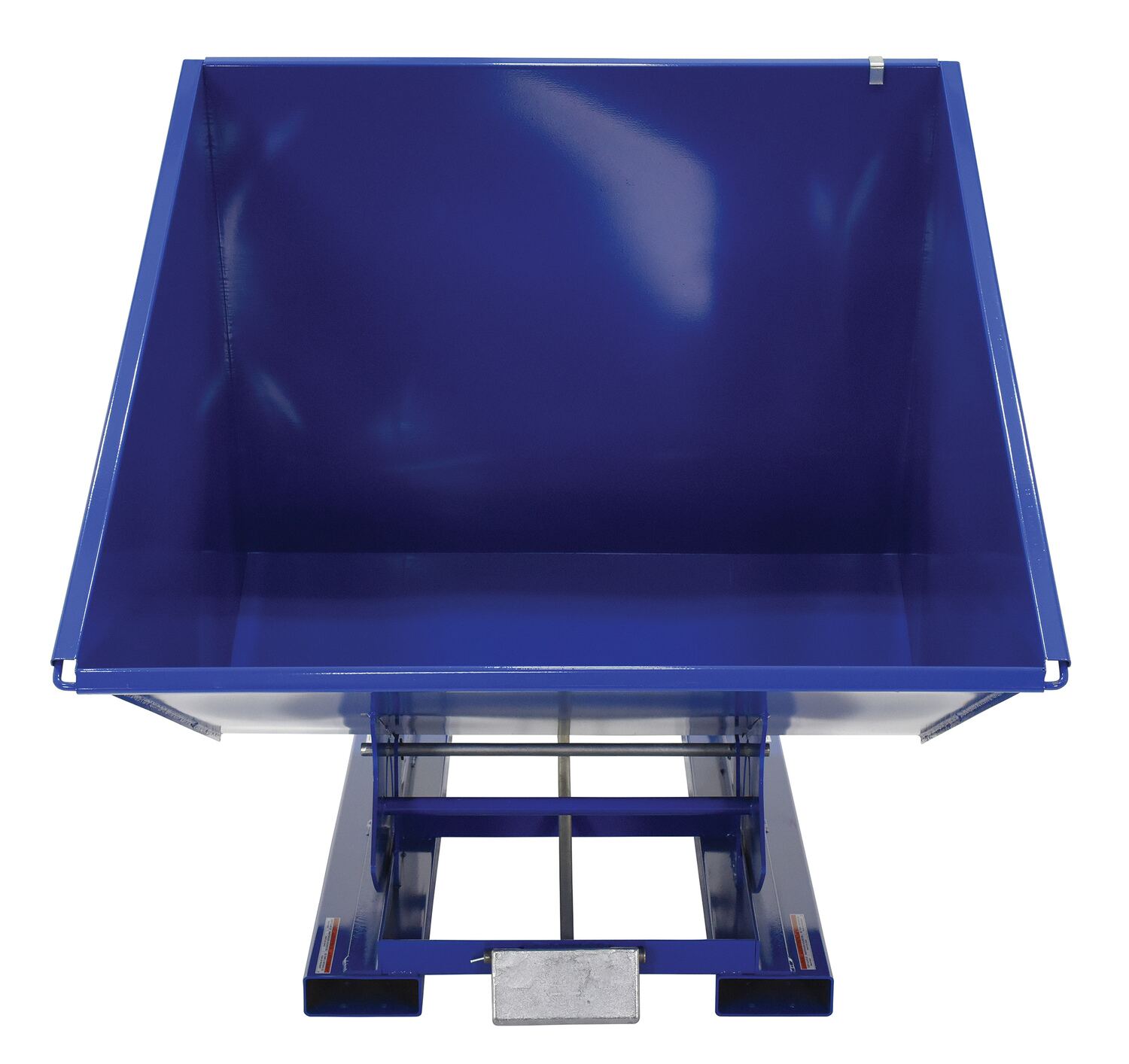

Steel High Strength Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity Blue

Self-Dumping Hopper for Forklift Material Handling and Controlled Load Discharge, 4,000 lb. Capacity with 2 Cubic Yard

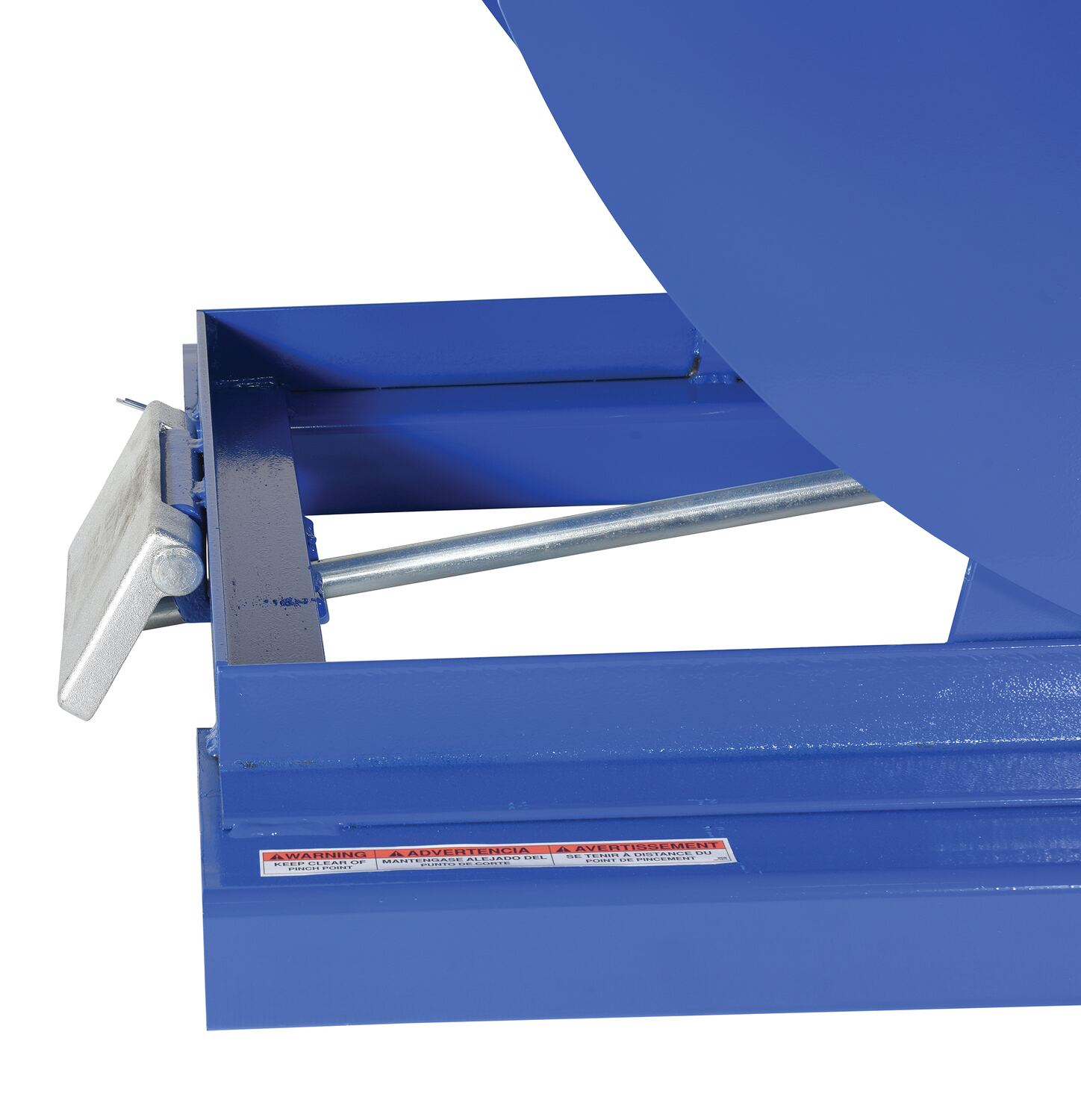

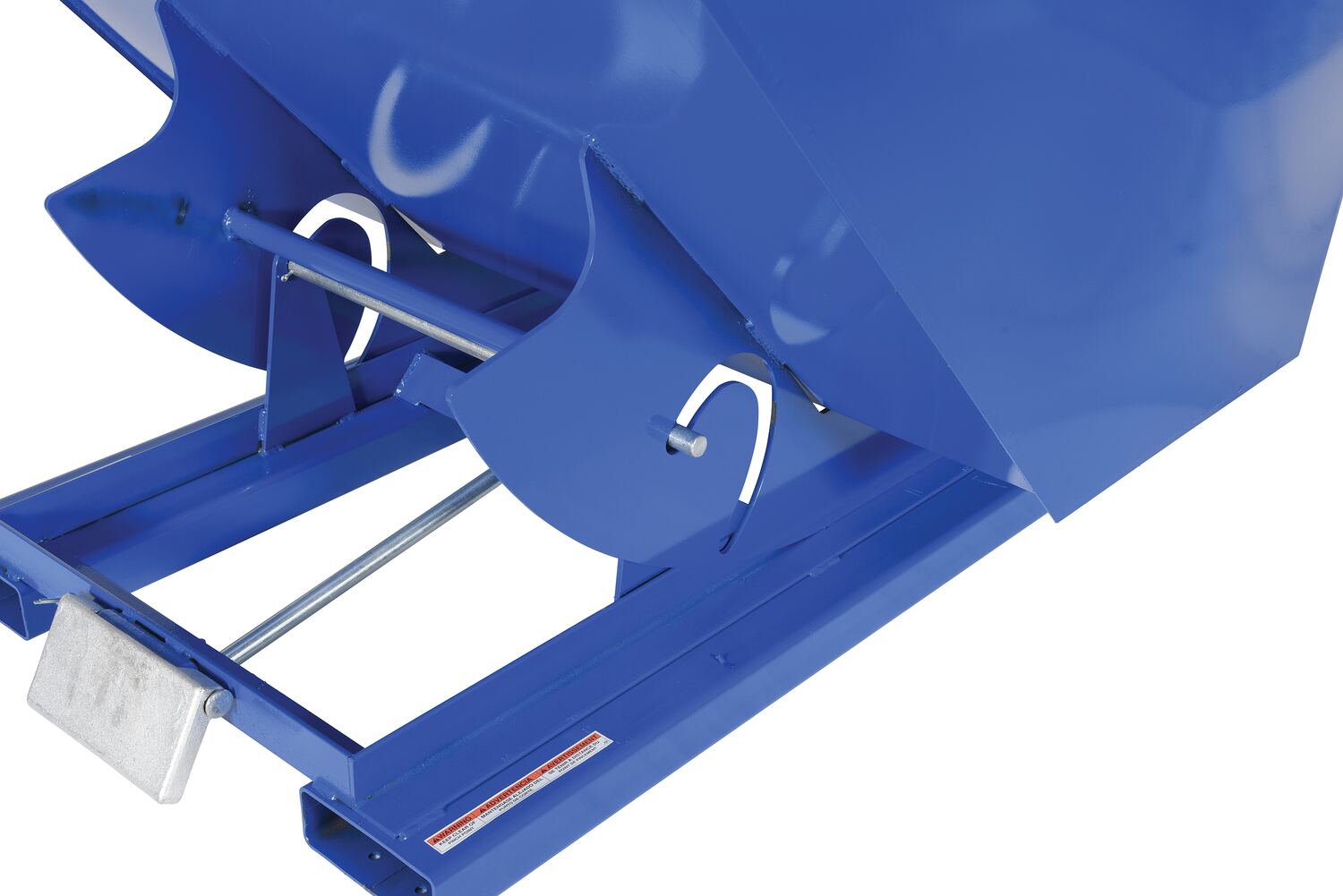

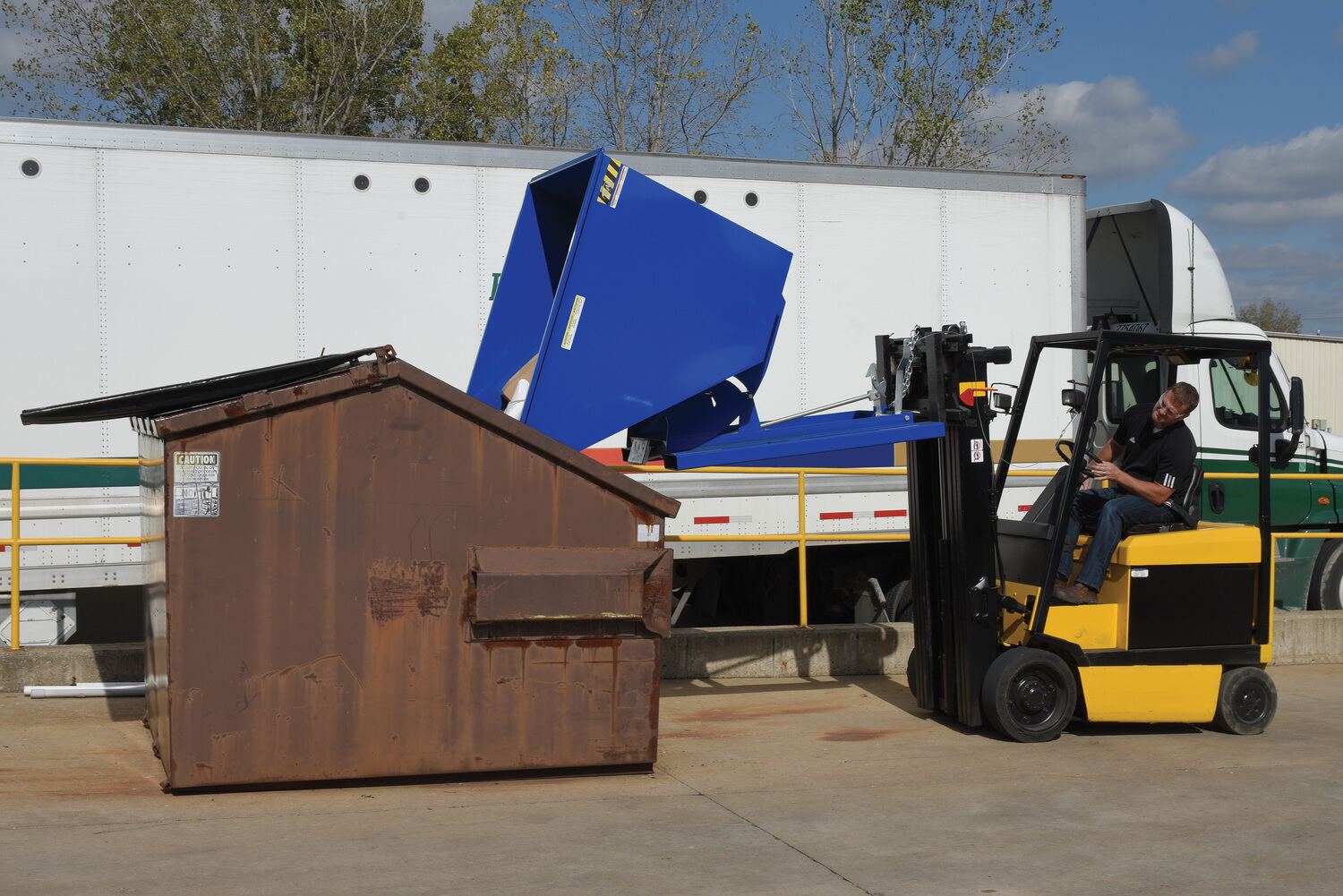

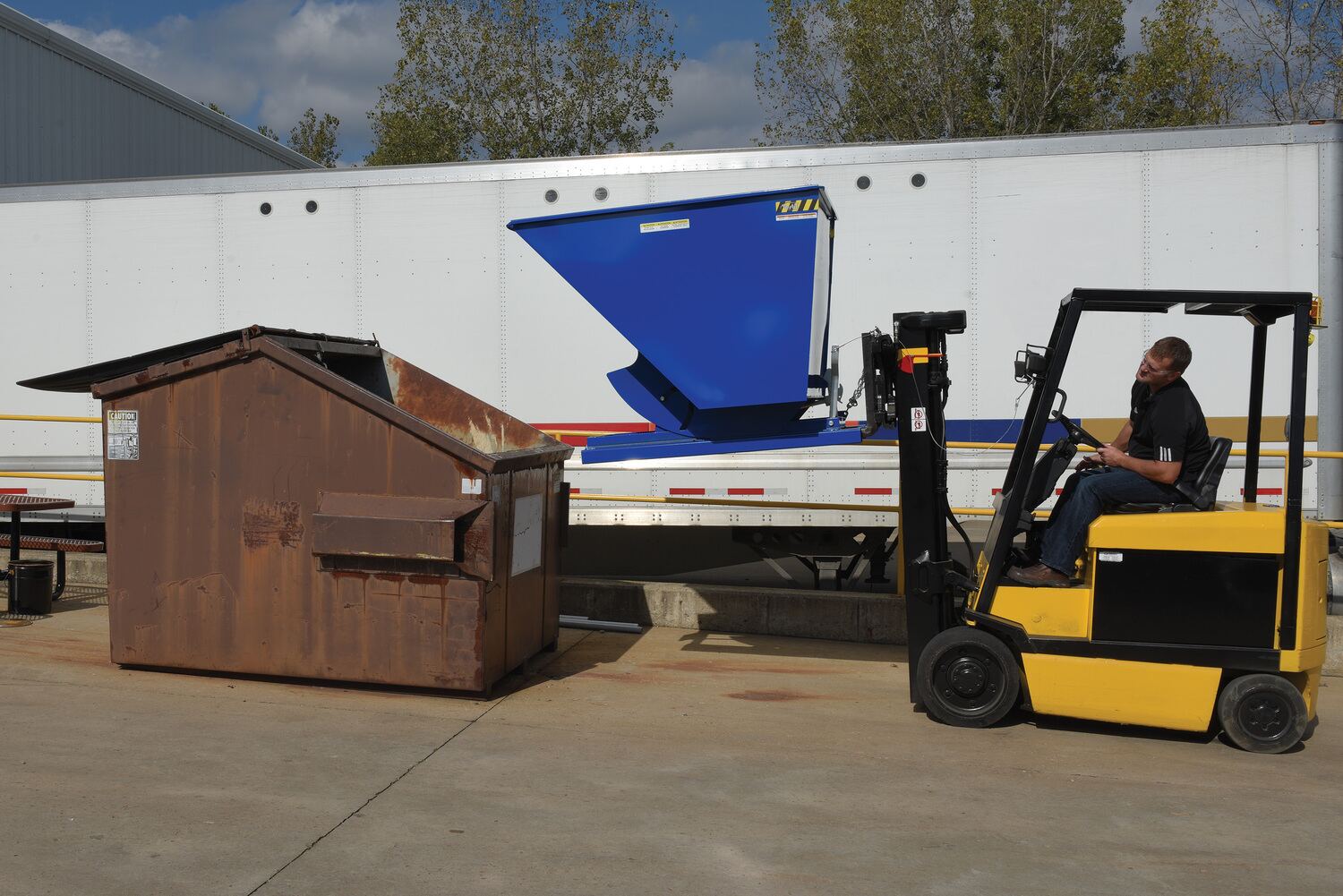

This high strength self-dumping steel Hopper with bumper release automatically dumps when bumper release contacts the front of the dumpster. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. Hopper is stackable if you stack the top hopper turned ninety (90) degrees from the bottom. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. Length dimension is measured at top of chute.
Product Status
Temporarily Unavailable - Please Contact Sales
Key Features
  • Returns to upright and locked position automatically

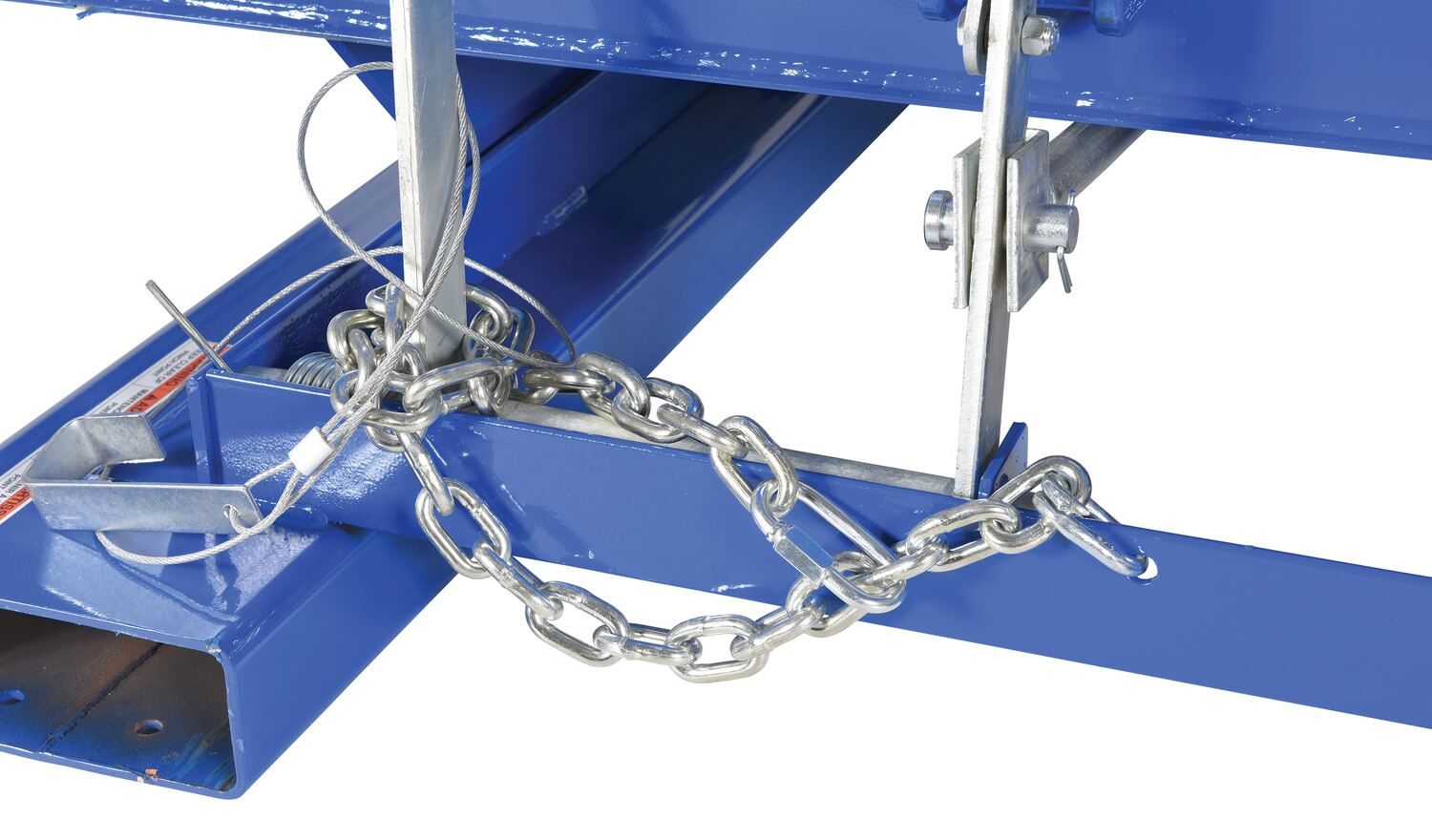

  • Safety restraint secures the hopper to the fork truck

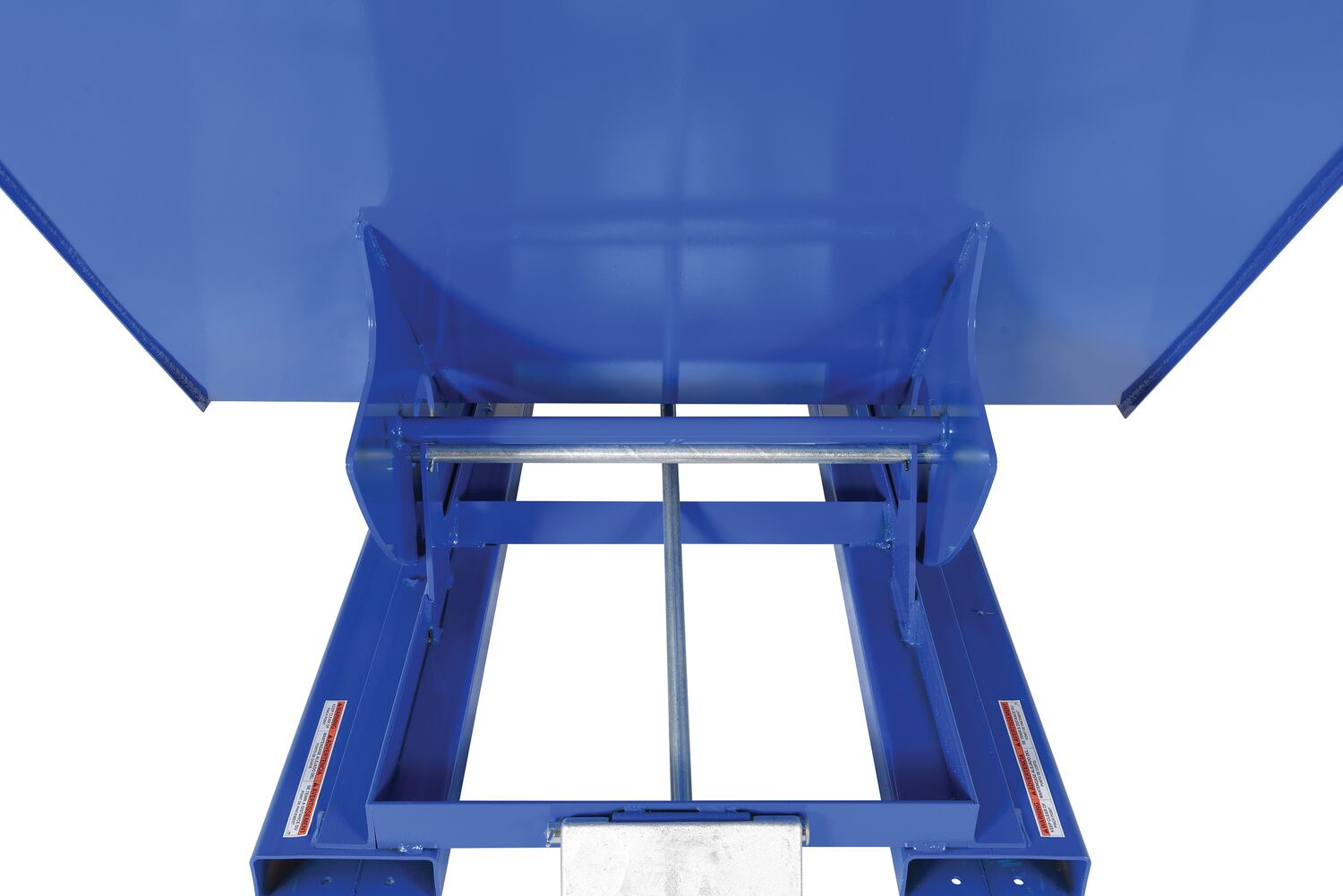

  • Full-length fork pocket
  • Chute and sides of hopper made out of 10 GA high strength steel
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   H Series Self Dumping Hoppers Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 705 lbs
Assembled Size 56.5625"W x 68.3125"L x 51.8125"H
Total Ship Weight 708 lbs
Package 1 Size 57"W x 70"D x 52"H
Color / Finish Blue
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 4,000
Steel High Strength
Volume (cu. yrd.) 2
Fork Pocket Center (in.) 28
Pull Cable Length (ft.) 4
Usable Fork Pocket Width (in.) 7-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
D-200-HS
Product Name
Steel High Strength Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity Blue
UPC
691215378161
GTIN
00691215378161
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Hoppers & Accessories
Taxonomy 4
Hoppers
Assembled Depth (in.)
68.3125
Assembled Width(in.)
56.5625
Assembled Height(in.)
51.8125
Assembled Weight(lbs.)
705
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
70
Package Width (in.)
57
Package Height (in.)
52
Package Weight (in.)
708
Subclass
1
Freight Class
200
NMFC Code
Hoppers or Bins, a bulk material handling or storage
NMFC Number
99950
LTL Freight
LTL Loose
UNSPSC
47121702
HTSUS Number
7309.00.0090
USMCA HS
7309.00
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: D-200-HS

D-200-HS

Steel High Strength Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity Blue

This high strength self-dumping steel Hopper with bumper release automatically dumps when bumper release contacts the front of the dumpster. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. Hopper is stackable if you stack the top hopper turned ninety (90) degrees from the bottom. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. Length dimension is measured at top of chute.

  • Returns to upright and locked position automatically
  • Safety restraint secures the hopper to the fork truck
  • Full-length fork pocket
  • Chute and sides of hopper made out of 10 GA high strength steel

Core Data

Assembled Weight: 705 Assembled Size: 56.5625"W x 68.3125"L x 51.8125"H Color: Blue
Total Ship Weight: 708 Package 1 Size: 57"W x 70"D x 52"H Freight: LTL Loose

Specifications

Uniform Capacity (lb.): 4,000
Steel: High Strength
Volume (cu. yrd.): 2
Fork Pocket Center (in.): 28
Pull Cable Length (ft.): 4
Usable Fork Pocket Width (in.): 7-1/2
