  All Products   Fork Truck Attachments   Hoppers   D Style - Self-Dumping Steel Hoppers with Bumper Release D-500-HD
Product Image

Visual Reference

D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-500-HD
D-500-HD

Steel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity Blue

Self-Dumping Heavy-Duty Steel Hopper Bin for Forklift Material Handling and Controlled Load Discharge, 6,000 lb. Capacity with 5 Cubic Yard, Blue Finish
The self- dumping Hopper is ideal for discarding material products. The blue powder coated steel construction is durable and long lasting through the toughest of environments. Additional features include; an automatic return to the upright position, full length fork tubes for easy portability, a safety chain restraint for secure transporting while on fork lift, and a 60" manual pull steel cable for dumping from the driving position, as well as, a front hopper release. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. A magnet is attached to the pull cable handle for quick attachment to the side of the hopper chute.
Product Status
Out of Stock QuickShip
Key Features
  • Automatic bumper release dumps when it contacts the side of the dumpster
  • Returns to upright and locked position automatically
  • Full-length fork tube provide a solid base
  • Safety chain restraint secures the hopper to the fork truck
Quick Actions

Product Resources

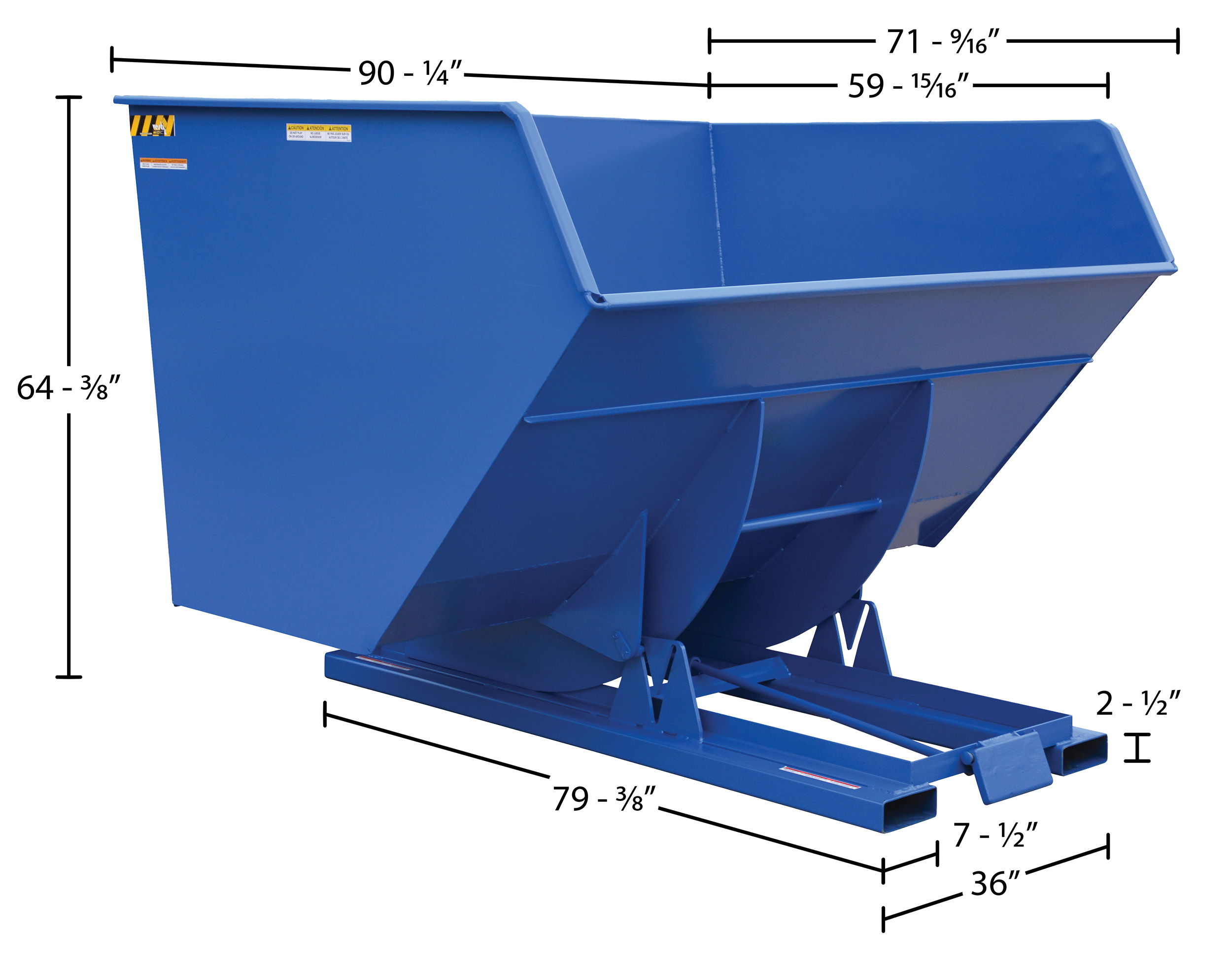

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   D series Steel Hoppers Instruction Manual   Galvanized D series Steel Hoppers Instruction Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 1250 lbs
Assembled Size 90.25"W x 79.375"L x 64.375"H
Total Ship Weight 1250 lbs
Package 1 Size 90"W x 80"D x 65"H
Color / Finish Blue
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 6,000
Steel (gauge) 8
Volume (cu. yrd.) 5
Fork Pocket Center (in.) 28
Usable Fork Pocket Width (in.) 7-1/2
Usable Fork Pocket Height (in.) 2-1/2
Cable Length (in.) 60
Extended Product Details

Marketing Specs.

MFG Model # (Series)
D-500-HD
Product Name
Steel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity Blue
UPC
691215108089
GTIN
00691215108089
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Hoppers & Accessories
Taxonomy 4
Hoppers
Assembled Depth (in.)
79.375
Assembled Width(in.)
90.25
Assembled Height(in.)
64.375
Assembled Weight(lbs.)
1250
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
80
Package Width (in.)
90
Package Height (in.)
65
Package Weight (in.)
1250
Subclass
1
Freight Class
200
NMFC Code
Hoppers or Bins a bulk material handling or storage
NMFC Number
99950
LTL Freight
LTL Loose
UNSPSC
47121702
HTSUS Number
7309.00.0090
USMCA HS
7309.00
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: D-500-HD

D-500-HD

Steel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity Blue

The self- dumping Hopper is ideal for discarding material products. The blue powder coated steel construction is durable and long lasting through the toughest of environments. Additional features include; an automatic return to the upright position, full length fork tubes for easy portability, a safety chain restraint for secure transporting while on fork lift, and a 60" manual pull steel cable for dumping from the driving position, as well as, a front hopper release. Self-dumping hoppers facilitate compliance with OSHA general industry rule 29 CFR 1910.178(m)(5)(iii) by allowing lift truck operators to remain at the controls of their truck throughout the dumping process. A magnet is attached to the pull cable handle for quick attachment to the side of the hopper chute.

  • Automatic bumper release dumps when it contacts the side of the dumpster
  • Returns to upright and locked position automatically
  • Full-length fork tube provide a solid base
  • Safety chain restraint secures the hopper to the fork truck

Core Data

Assembled Weight: 1250 Assembled Size: 90.25"W x 79.375"L x 64.375"H Color: Blue
Total Ship Weight: 1250 Package 1 Size: 90"W x 80"D x 65"H Freight: LTL Loose

Specifications

Uniform Capacity (lb.): 6,000
Steel (gauge): 8
Volume (cu. yrd.): 5
Fork Pocket Center (in.): 28
Usable Fork Pocket Width (in.): 7-1/2
Usable Fork Pocket Height (in.): 2-1/2
Cable Length (in.): 60
