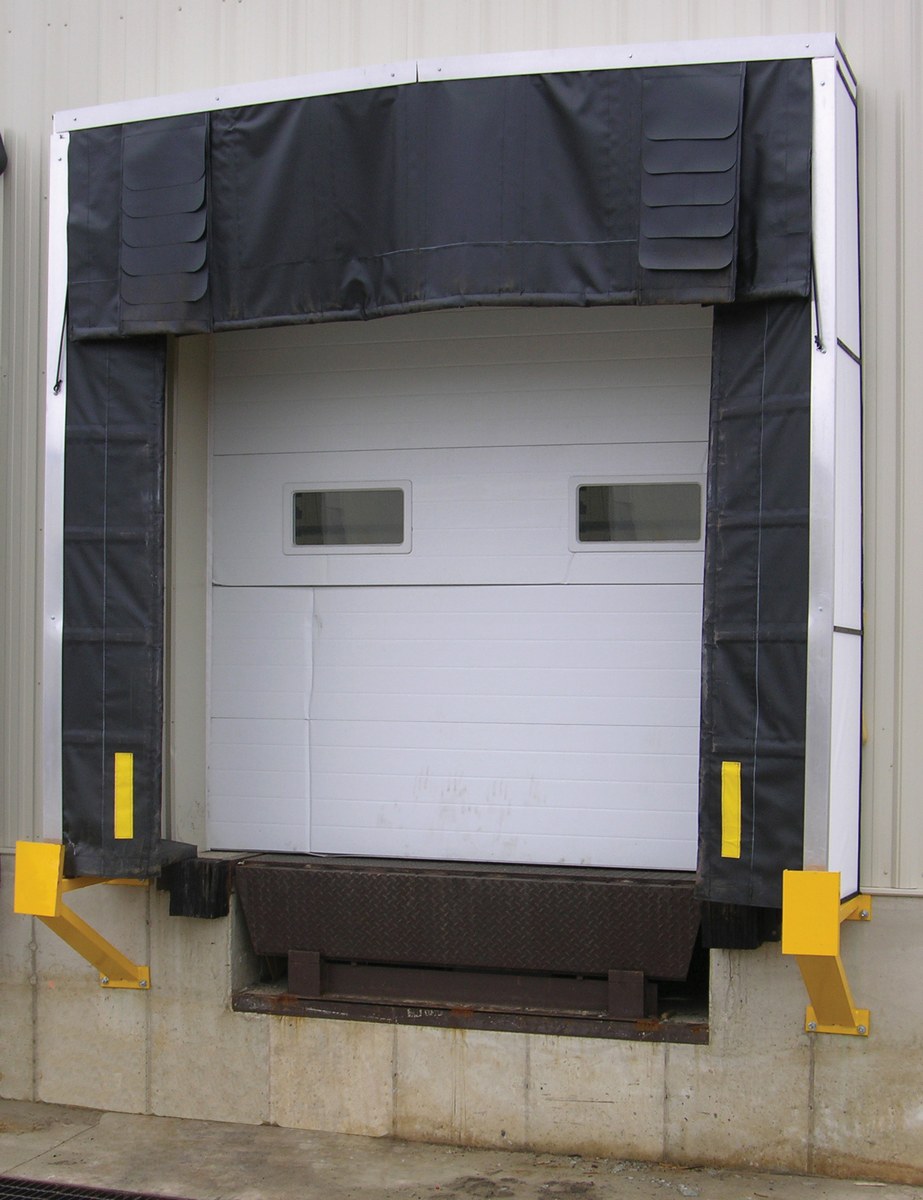

Vinyl Dock Shelter 18 In. 11 Ft. x 10.5 Ft. Black

Truck Dock Door Shelter for Commercial Dock Access and Waterfront Operations, 18 in.
The Dock Shelter is used with doors up to one-hundred twenty (120) inch width by one-hundred twenty (120) inch height. The dock shelter reduces oversized doors to match truck openings. The long wear fabric is highly resistant to abrasion and tearing. Fiberglass staved are sewn into the flaps. Seal is formed along the fronts and top of trailer when the vertical and top panels are pushed inward by the trailer. There has a recommended minimum trailer penetration for a good seal with a supporting structure that is made of wolmanized lumber. Shelter is protected by safety yellow steel guide protectors. When installed, the shelter will close the door opening down to ninety (90) inch width by ninety (90) inch height (between flaps). Includes two (2) yellow steel guide protectors and foam-filled corner pads for extra sealing action. This unit is non-returnable.
Product Status
Available Non-Returnable
Key Features
  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Dock Shelters   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 208 lbs
Assembled Size 132"W x 18"L x 126"H
Total Ship Weight 433 lbs
Package 1 Size 15"W x 135"D x 21"H
Color / Finish Black
Freight Type LTL Palletized

Additional Attributes

Projection (in.) 18
Long Wear Fabric (oz.) 40
Top Header Piece Width (in.) 132
Drop Curtain Height (in.) 36
Vertical Pieces (in.) 126 tall
Vertical Flap Width (in.) 21
Recommended Trailer Penetration (in.) 10
Supported Wolmanized Lumber Width (in.) 2
Supported Wolmanized Lumber Length (in.) 4
Standard Guide Stipe Height (in.) 24
Vinyl Flaps (oz.) 40
Extended Product Details

Marketing Specs.

MFG Model # (Series)
D-750-18
Product Name
Vinyl Dock Shelter 18 In. 11 Ft. x 10.5 Ft. Black
UPC
691215012409
GTIN
00691215012409
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dock Seals and Shelters
Taxonomy 4
Seal / Shelter Combo
Assembled Depth (in.)
18
Assembled Width(in.)
132
Assembled Height(in.)
126
Assembled Weight(lbs.)
208
Color/Finish
Black
Material
Vinyl
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
135
Package Width (in.)
15
Package Height (in.)
21
Package Weight (in.)
228
Subclass
6
Freight Class
100
NMFC Code
Pads Padding Cushions or Pillows
NMFC Number
149265
Package 2 Depth (in.)
48
Package 2 Width (in.)
40
Package 2 Height (in.)
27
Package 2 Weight (lbs.)
205
Package 2 Subclass
9
Package 2 Freight Class
70
Package2 NMFC Number
95190
LTL Freight
LTL Palletized
UNSPSC
24101800
HTSUS Number
3925.20.0091
USMCA HS
3925.20
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Yes
