Product Data Sheet

  Print to PDF
  All Products   Fork Truck Attachments   Hoppers   Casters For Hoppers (D, R & H) D-CK4-C23C
Product Image

Visual Reference

D-CK4-C23C
D-CK4-C23C
D-CK4-C23C
D-CK4-C23C
D-CK4-C23C

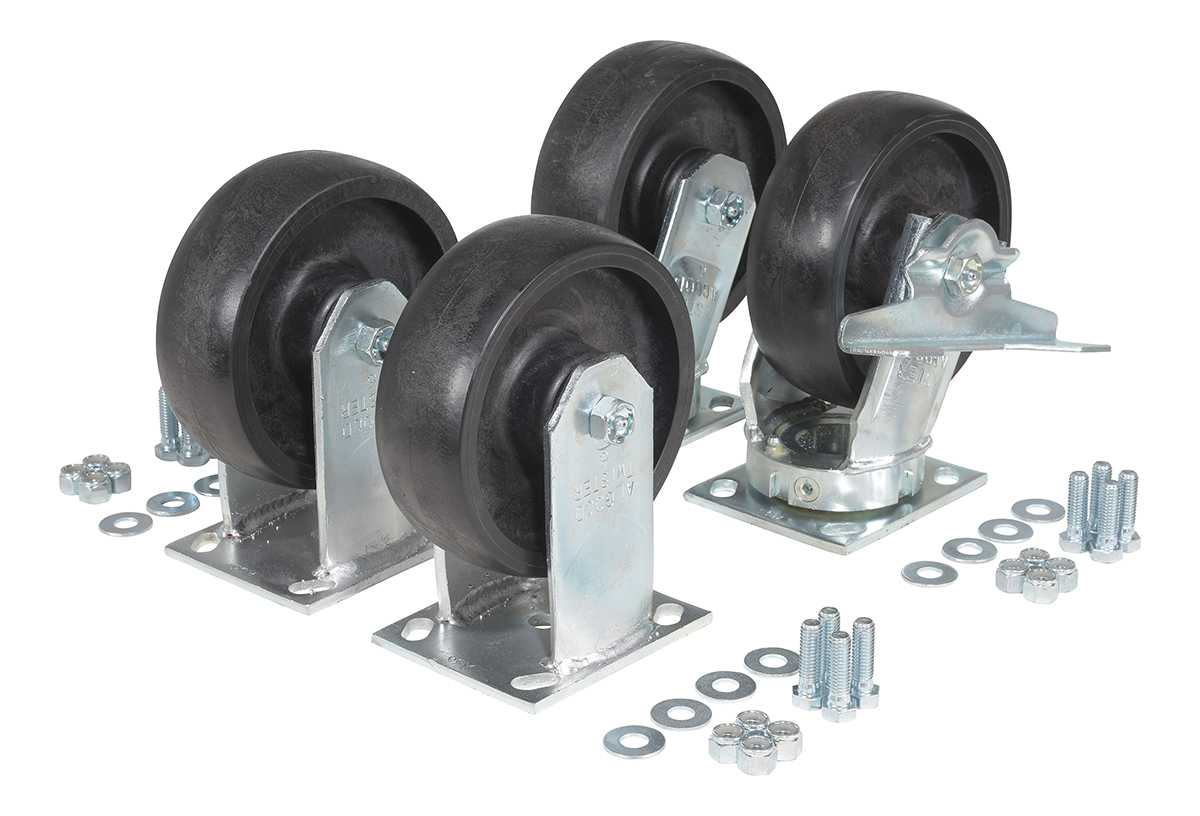

Glass-Filled Nylon Caster Kit 6 in x 2 in 8000 lb Capacity Black

Caster Kits for Industrial Carts and Mobile Material Handling Equipment, 8,000 lb. Capacity
Made of high-tech proprietary Glass Filled Nylon. Provides better impact resistance than standard Glass Filled Nylon. Does not absorb moisture like phenolic, and offers better floor preservation than Ductile Steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Top plate measures 4 X 41/2". Black tread color. 85 (+/-5) Shore D. Wheel core material is Glass Filled Nylon. Made In Canada. 3 Year warranty.
Product Status
Available QuickShip
Key Features
  • Non-marking high quality proprietary tread
  • Absorbs impact
  • Water resistant
  • Sealed ground precision ball bearings
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Hopper Casters Installation Manual   3 Years Warranty
Product Data

Core Data

Assembled Weight 5.72 lbs
Assembled Size 4"W x 6"L x 7.5"H
Total Ship Weight 30 lbs
Package 1 Size 10"W x 18"D x 11"H
Color / Finish Black
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 8000
Product Dimensions/Weight 1 Rigid Caster
Hardware Included Yes
Swivel Caster Qty 1
Swivel Caster Diameter/Width (in.) 6x2
Swivel Caster w/Brake Qty 1
Swivel Caster w/Brake Diameter/Width (in.) 6x2
Rigid Caster Qty 2
Rigid Caster Diameter/Width (in.) 6x2
Swivel Casters Wheel Bearings Ball Bearings
Caster Material Glass Filled Nylon
Extended Product Details

Marketing Specs.

MFG Model # (Series)
D-CK4-C23C
Product Name
Glass-Filled Nylon Caster Kit 6 in x 2 in 8000 lb Capacity Black
UPC
691215345934
GTIN
00691215345934
Taxonomy 1
Hardware
Taxonomy 2
Builders Hardware
Taxonomy 3
Casters & Glides
Taxonomy 4
Casters
Assembled Depth (in.)
6
Assembled Width(in.)
4
Assembled Height(in.)
7.5
Assembled Weight(lbs.)
5.72
Color/Finish
Black
Material
Glass Filled Nylon/GFN
Option? Y/N
Y
Sell UOM
ST-Set
Country Of Origin
TW
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
D Style Hoppers, R-125-HD-BK, R-125-HD-BL, R-125-HD-GYSG, R-125-HD-OR, R-125-HD-RD, R-125-HD-SL, R-125-HD-WT, R-125-HD-YL, R-250-HD-BK, R-250-HD-BL, R-250-HD-GYSG, R-250-HD-OR, R-250-HD-RD, R-250-HD-SL, R-250-HD-WT, R-250-HD-YL

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
18
Package Width (in.)
10
Package Height (in.)
11
Package Weight (in.)
30
Freight Class
65
NMFC Code
Casters NOI in bags boxes or drums
NMFC Number
41725
LTL Freight
Parcel
UNSPSC
31162701
HTSUS Number
8716.90.3000
USMCA HS
8716.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
3 Years Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: D-CK4-C23C

D-CK4-C23C

Glass-Filled Nylon Caster Kit 6 in x 2 in 8000 lb Capacity Black

Made of high-tech proprietary Glass Filled Nylon. Provides better impact resistance than standard Glass Filled Nylon. Does not absorb moisture like phenolic, and offers better floor preservation than Ductile Steel or cast iron. Resists most chemicals, solvents, gases, acids and steam cleaning. Top plate measures 4 X 41/2". Black tread color. 85 (+/-5) Shore D. Wheel core material is Glass Filled Nylon. Made In Canada. 3 Year warranty.

  • Non-marking high quality proprietary tread
  • Absorbs impact
  • Water resistant
  • Sealed ground precision ball bearings

Core Data

Assembled Weight: 5.72 Assembled Size: 4"W x 6"L x 7.5"H Color: Black
Total Ship Weight: 30 Package 1 Size: 10"W x 18"D x 11"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 8000
Product Dimensions/Weight: 1 Rigid Caster
Hardware Included: Yes
Swivel Caster Qty: 1
Swivel Caster Diameter/Width (in.): 6x2
Swivel Caster w/Brake Qty: 1
Swivel Caster w/Brake Diameter/Width (in.): 6x2
Rigid Caster Qty: 2
Rigid Caster Diameter/Width (in.): 6x2
Swivel Casters Wheel Bearings: Ball Bearings
Caster Material: Glass Filled Nylon
