Product Data Sheet

  Print to PDF
  All Products   Fork Truck Attachments   Hoppers   Casters For Hoppers (D, R & H) D-CK4-PU8-2
Product Image

Visual Reference

D-CK4-PU8-2
D-CK4-PU8-2
D-CK4-PU8-2
D-CK4-PU8-2
D-CK4-PU8-2
D-CK4-PU8-2

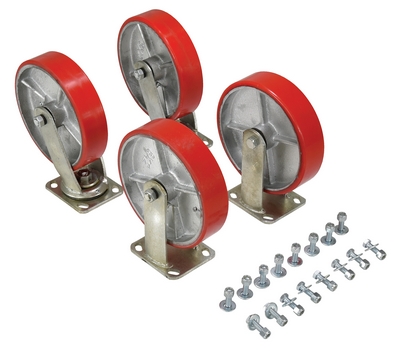

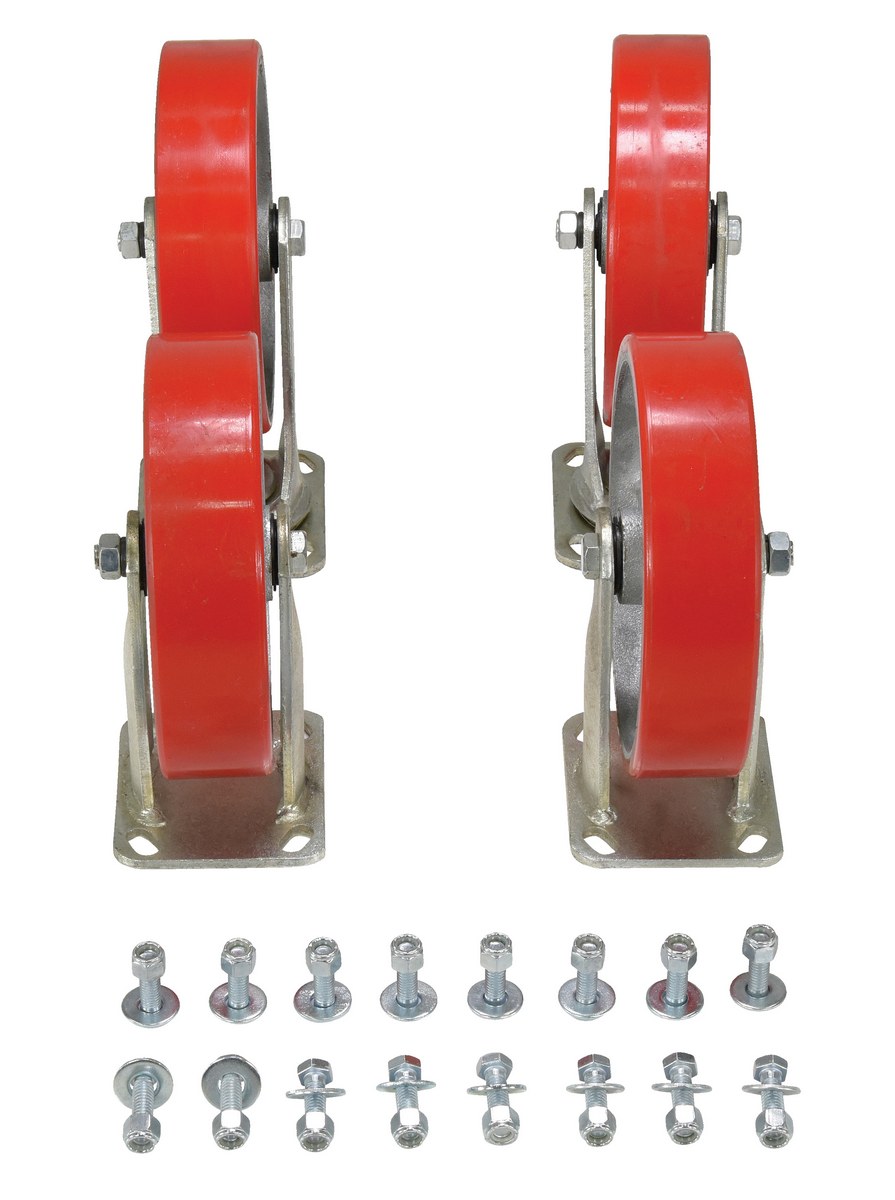

Poly On Steel Caster Kit 8 In. x 2 In. 3084 Lb. Capacity Red

Dumping Bin Caster for Industrial Carts and Mobile Material Handling Equipment, 3,084 lb. Capacity with 8 in. x 2 in.
Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Hopper casters are bolted-on by utilizing the factory stamped holes in the fork tubes. The casters are shipped installed to prevent freight damage.
Product Status
Available QuickShip
Key Features
  • Designed to be easily installed on hoppers
  • 2 rigid and 2 swivel casters included
  • Casters allow hopper units to be transported without the use of a fork truck
  • Heavy duty caster construction provides long lasting durable use
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Hopper Casters Installation Manual   90 Days Warranty
Product Data

Core Data

Assembled Weight 40 lbs

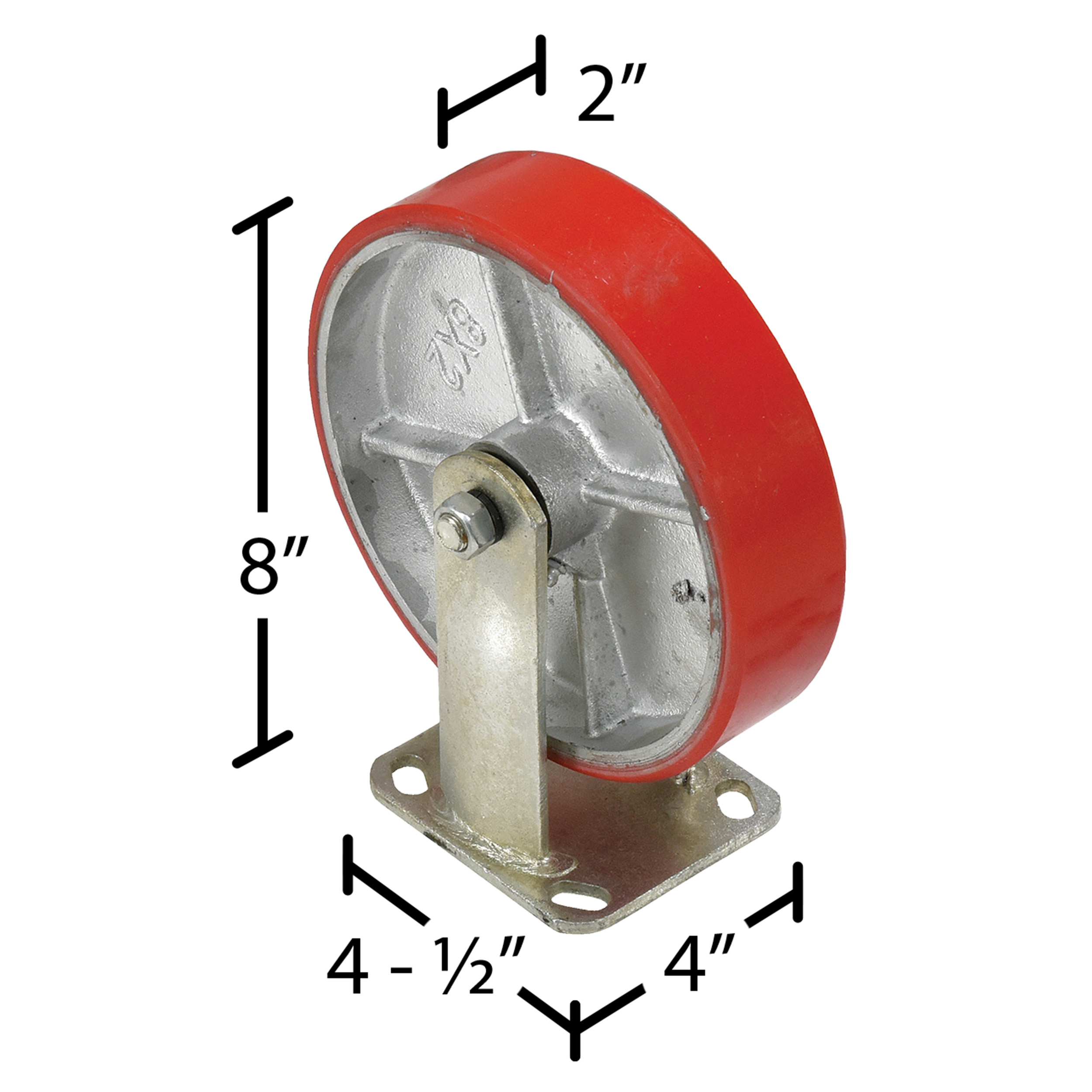

Assembled Size 2"W x 8"L x 8"H
Total Ship Weight 42 lbs
Package 1 Size 10"W x 18"D x 11"H
Color / Finish Red
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 3084
Caster Quantity/Diameter/Width (in.) (4) 8 x 2
Caster Quantity/Type (2) Rigid (2) Swivel
Added Height D-Style Hopper (in.) 9-1/2
Hex Bolt (qty.) 16
Flat Washer (qty.) 16
Lock Nut (qty.) 16
Top Plate Dimensions (in.) 4 x 4-1/2
Hole Spacing (Center to Center) (in.) 2-3/4 x 3-1/4
Bolt Size (in.) 3/8 x 1-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
D-CK4-PU8-2
Product Name
Poly On Steel Caster Kit 8 In. x 2 In. 3084 Lb. Capacity Red
UPC
691215227087
GTIN
00691215227087
Taxonomy 1
Hardware
Taxonomy 2
Builders Hardware
Taxonomy 3
Casters & Glides
Taxonomy 4
Casters
Assembled Depth (in.)
8
Assembled Width(in.)
2
Assembled Height(in.)
8
Assembled Weight(lbs.)
40
Color/Finish
Red
Material
Poly-on-Steel
Option? Y/N
Y
Sell UOM
ST-Set
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
D Style Hoppers, R-125-HD-BK, R-125-HD-BL, R-125-HD-GYSG, R-125-HD-OR, R-125-HD-RD, R-125-HD-SL, R-125-HD-WT, R-125-HD-YL, R-250-HD-BK, R-250-HD-BL, R-250-HD-GYSG, R-250-HD-OR, R-250-HD-RD, R-250-HD-SL, R-250-HD-WT, R-250-HD-YL

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
18
Package Width (in.)
10
Package Height (in.)
11
Package Weight (in.)
42
Freight Class
65
NMFC Code
Casters NOI in bags boxes or drums
NMFC Number
41725
LTL Freight
Parcel
UNSPSC
31162701
HTSUS Number
8716.90.3000
USMCA HS
8716.90
Origin Criterion
B
Certification Indicator
A
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: D-CK4-PU8-2

D-CK4-PU8-2

Poly On Steel Caster Kit 8 In. x 2 In. 3084 Lb. Capacity Red

Transport loads with portable hoppers. The maximum weight capacity is the lowest weight capacity of either the hopper or the caster. Weight of hopper must be considered when calculating usable capacity. Hopper casters are bolted-on by utilizing the factory stamped holes in the fork tubes. The casters are shipped installed to prevent freight damage.

  • Designed to be easily installed on hoppers
  • 2 rigid and 2 swivel casters included
  • Casters allow hopper units to be transported without the use of a fork truck
  • Heavy duty caster construction provides long lasting durable use

Core Data

Assembled Weight: 40 Assembled Size: 2"W x 8"L x 8"H Color: Red
Total Ship Weight: 42 Package 1 Size: 10"W x 18"D x 11"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 3084
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Caster Quantity/Type: (2) Rigid (2) Swivel
Added Height D-Style Hopper (in.): 9-1/2
Hex Bolt (qty.): 16
Flat Washer (qty.): 16
Lock Nut (qty.): 16
Top Plate Dimensions (in.): 4 x 4-1/2
Hole Spacing (Center to Center) (in.): 2-3/4 x 3-1/4
Bolt Size (in.): 3/8 x 1-1/4
