  All Products   Fork Truck Attachments   Hoppers   Open Side Hopper D-NS-200-LD
Product Image

Visual Reference

D-NS-200-LD
D-NS-200-LD
D-NS-200-LD

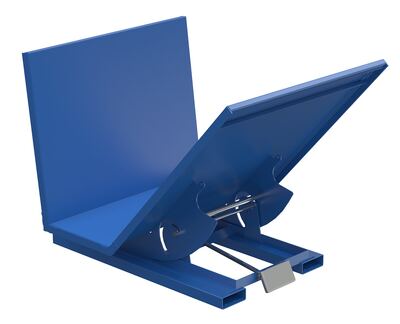

Steel Open Sided Hopper 68-13/16 In. x 53-13/16 In. x 51-13/16 In. 2 Cubic Yard 2000 Lb. Capacity Blue

Steel Open Sided Hopper for Forklift Material Handling and Controlled Load Discharge, 2,000 lb. Capacity with 2 Cubic Yard
The open sided hopper is ideal for the material handling industry. A unique design provides an ergonomic solution to transferring and unloading large amounts of oversized items. For best use, lift the loaded or unloaded model by utilizing the fork pockets attached to the underside of the hopper. Upon reaching the destination, simply engage the auto-release lever and the products will flow from the hopper. It then returns to the upright and locked position automatically after being emptied. Hopper must be attached to fork truck when dumping. Also includes a 60" steel cable that may be operated from the seat of the fork truck to manually dump the hopper.A magnet is attached to the pull cable handle for quick attachment to the side of the hopper chute.
Product Status
Available Non-Returnable
Key Features
  • 2 cubic yard capacity
  • Bumper release for a hands-free unloading
  • Cable is included for manually dumping hopper, if needed
  • Open ended fork pockets
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   model D-NS-200-LD Open Sided Hopper Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 613 lbs
Assembled Size 53.8125"W x 68.8125"L x 51.8125"H
Total Ship Weight 613 lbs
Package 1 Size 54"W x 69"D x 52"H
Color / Finish Blue
Freight Type LTL Loose

Additional Attributes

Capacity (lbs.) 2,000
Volume (cu. yds.) 2
Pull Cable length (in.) 60
Dump Angle 67
Extended Product Details

Marketing Specs.

MFG Model # (Series)
D-NS-200-LD
Product Name
Steel Open Sided Hopper 68-13/16 In. x 53-13/16 In. x 51-13/16 In. 2 Cubic Yard 2000 Lb. Capacity Blue
UPC
691215376310
GTIN
00691215376310
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Hoppers & Accessories
Taxonomy 4
Hoppers
Assembled Depth (in.)
68.8125
Assembled Width(in.)
53.8125
Assembled Height(in.)
51.8125
Assembled Weight(lbs.)
613
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
69
Package Width (in.)
54
Package Height (in.)
52
Package Weight (in.)
613
Subclass
1
Freight Class
200
NMFC Code
Hoppers or Bins a bulk material handling or storage
NMFC Number
99950
LTL Freight
LTL Loose
UNSPSC
47121702
HTSUS Number
7309.00.0090
USMCA HS
7309.00
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: D-NS-200-LD

D-NS-200-LD

Steel Open Sided Hopper 68-13/16 In. x 53-13/16 In. x 51-13/16 In. 2 Cubic Yard 2000 Lb. Capacity Blue

The open sided hopper is ideal for the material handling industry. A unique design provides an ergonomic solution to transferring and unloading large amounts of oversized items. For best use, lift the loaded or unloaded model by utilizing the fork pockets attached to the underside of the hopper. Upon reaching the destination, simply engage the auto-release lever and the products will flow from the hopper. It then returns to the upright and locked position automatically after being emptied. Hopper must be attached to fork truck when dumping. Also includes a 60" steel cable that may be operated from the seat of the fork truck to manually dump the hopper.A magnet is attached to the pull cable handle for quick attachment to the side of the hopper chute.

  • 2 cubic yard capacity
  • Bumper release for a hands-free unloading
  • Cable is included for manually dumping hopper, if needed
  • Open ended fork pockets

Core Data

Assembled Weight: 613 Assembled Size: 53.8125"W x 68.8125"L x 51.8125"H Color: Blue
Total Ship Weight: 613 Package 1 Size: 54"W x 69"D x 52"H Freight: LTL Loose

Specifications

Capacity (lbs.): 2,000
Volume (cu. yds.): 2
Pull Cable length (in.): 60
Dump Angle: 67
