  All Products   Drum Handling Equipment   Drum Transporters, Trucks, Carts & Jacks   Four-Wheel Drum Trucks with Tilt-Back Spring Assist DBT-4RS-PO
Product Image

Visual Reference

DBT-4RS-PO
DBT-4RS-PO
DBT-4RS-PO
DBT-4RS-PO
DBT-4RS-PO
DBT-4RS-PO

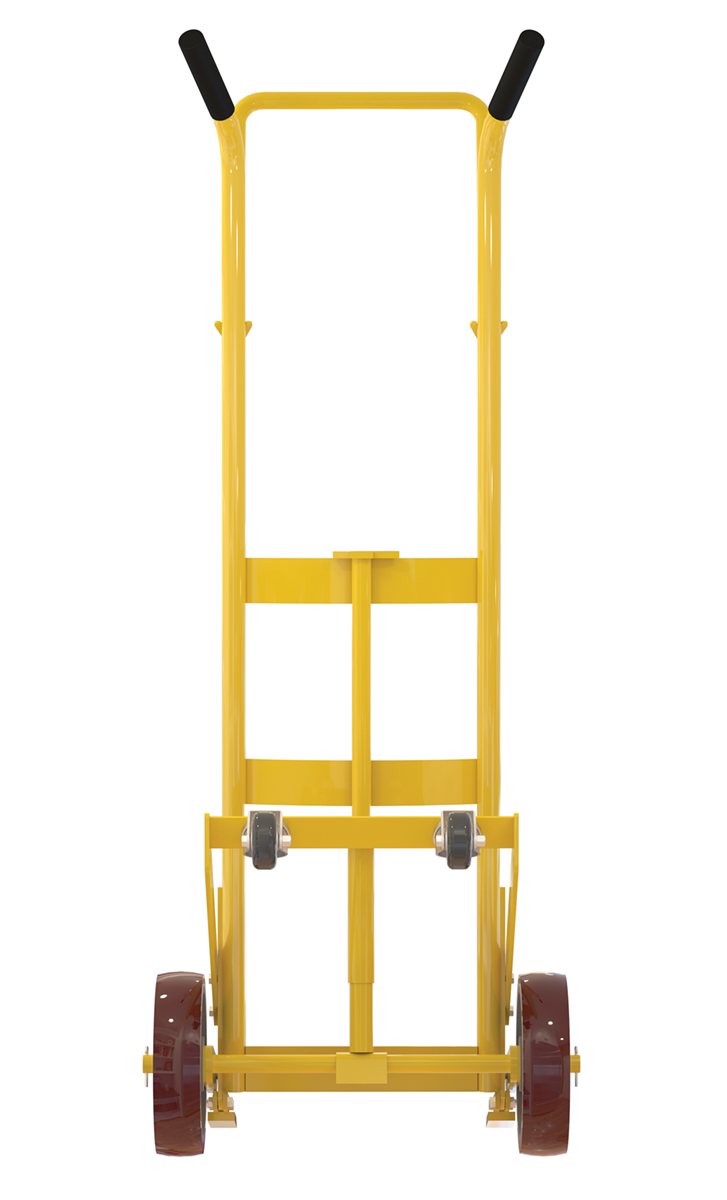

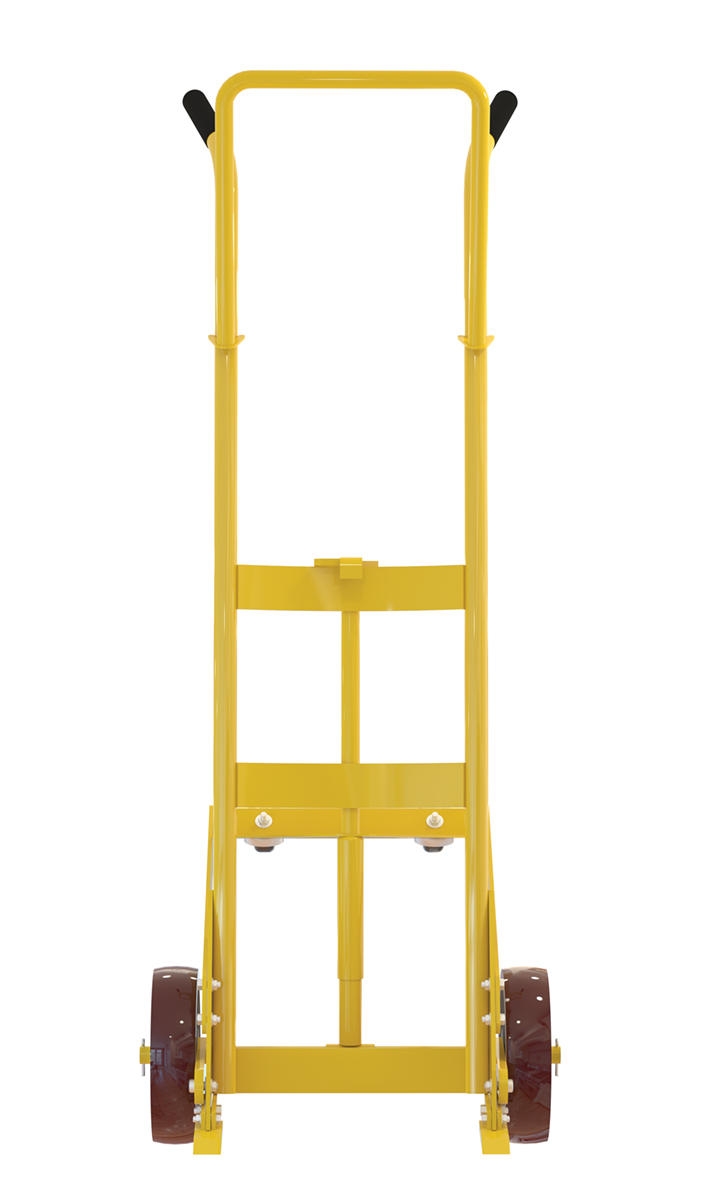

Steel Drum Truck with 2 Rigid/2 Swivel Poly Wheels 1000 Lb. Capacity Yellow

Swivel Rigid Drum Truck for Opening, Moving, and Handling Industrial Drums and Barrels, 1,000 lb. Capacity, Yellow Finish – Model DBT-4RS-PO
Designed for moving 55 gallon steel drums. Features a spring mechanism, which allows for easier tilting of fully-loaded drums. Four-wheel design for easier drum transportation when tilted. Top loop handle allows for easier control when moving. Drum is secured to truck with an adjustable height drum hook bar. Removable drum hook bar includes built-in bung nut wrenches. Capacity is 1,000 pounds. Steel construction with powder coat finish.
Product Status
Temporarily Unavailable - Please Contact Sales
Key Features
  • Extended height handle for better posture
  • Rolling casters when in horizontal position
  • Extended foot and top security points
  • Ability to transfer a variety of drum materials
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 76 lbs
Assembled Size 23.6875"W x 21.0625"L x 60.625"H
Total Ship Weight 111 lbs
Package 1 Size 40"W x 65"D x 27"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,000
Acceptable Drum Type 55 Gallon Steel
Main Wheel Quantity/Diameter/Width (in.) (2) 10 x 2-1/2
Main Wheel Material Poly-On-Poly
Stabilizer Caster Quantity/Diameter/Width (in.) (2) 3 x 1-1/4
Stabilizer Caster Material/Type Poly-on-Poly/Swivel
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DBT-4RS-PO
Product Name
Steel Drum Truck with 2 Rigid/2 Swivel Poly Wheels 1000 Lb. Capacity Yellow
UPC
691215117449
GTIN
00691215117449
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Drum Movers
Taxonomy 4
Drum Truck
Assembled Depth (in.)
21.0625
Assembled Width(in.)
23.6875
Assembled Height(in.)
60.625
Assembled Weight(lbs.)
76
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
65
Package Width (in.)
40
Package Height (in.)
27
Package Weight (in.)
111
Subclass
1
Freight Class
150
NMFC Code
Carts Barrel Hand SU on wheels or KD flat
NMFC Number
188760
LTL Freight
LTL Palletized
UNSPSC
24101903
HTSUS Number
8716.80.5010
USMCA HS
8716.80
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DBT-4RS-PO

DBT-4RS-PO

Steel Drum Truck with 2 Rigid/2 Swivel Poly Wheels 1000 Lb. Capacity Yellow

Designed for moving 55 gallon steel drums. Features a spring mechanism, which allows for easier tilting of fully-loaded drums. Four-wheel design for easier drum transportation when tilted. Top loop handle allows for easier control when moving. Drum is secured to truck with an adjustable height drum hook bar. Removable drum hook bar includes built-in bung nut wrenches. Capacity is 1,000 pounds. Steel construction with powder coat finish.

  • Extended height handle for better posture
  • Rolling casters when in horizontal position
  • Extended foot and top security points
  • Ability to transfer a variety of drum materials

Core Data

Assembled Weight: 76 Assembled Size: 23.6875"W x 21.0625"L x 60.625"H Color: Yellow
Total Ship Weight: 111 Package 1 Size: 40"W x 65"D x 27"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,000
Acceptable Drum Type: 55 Gallon Steel
Main Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2
Main Wheel Material: Poly-On-Poly
Stabilizer Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/4
Stabilizer Caster Material/Type: Poly-on-Poly/Swivel
