Steel Dock Chain Barrier Bollard 5.5 In. Diameter Yellow

Dock Chain Barrier Bollard for Warehouse Traffic Control and Collision Protection, 5.5 in. Diameter

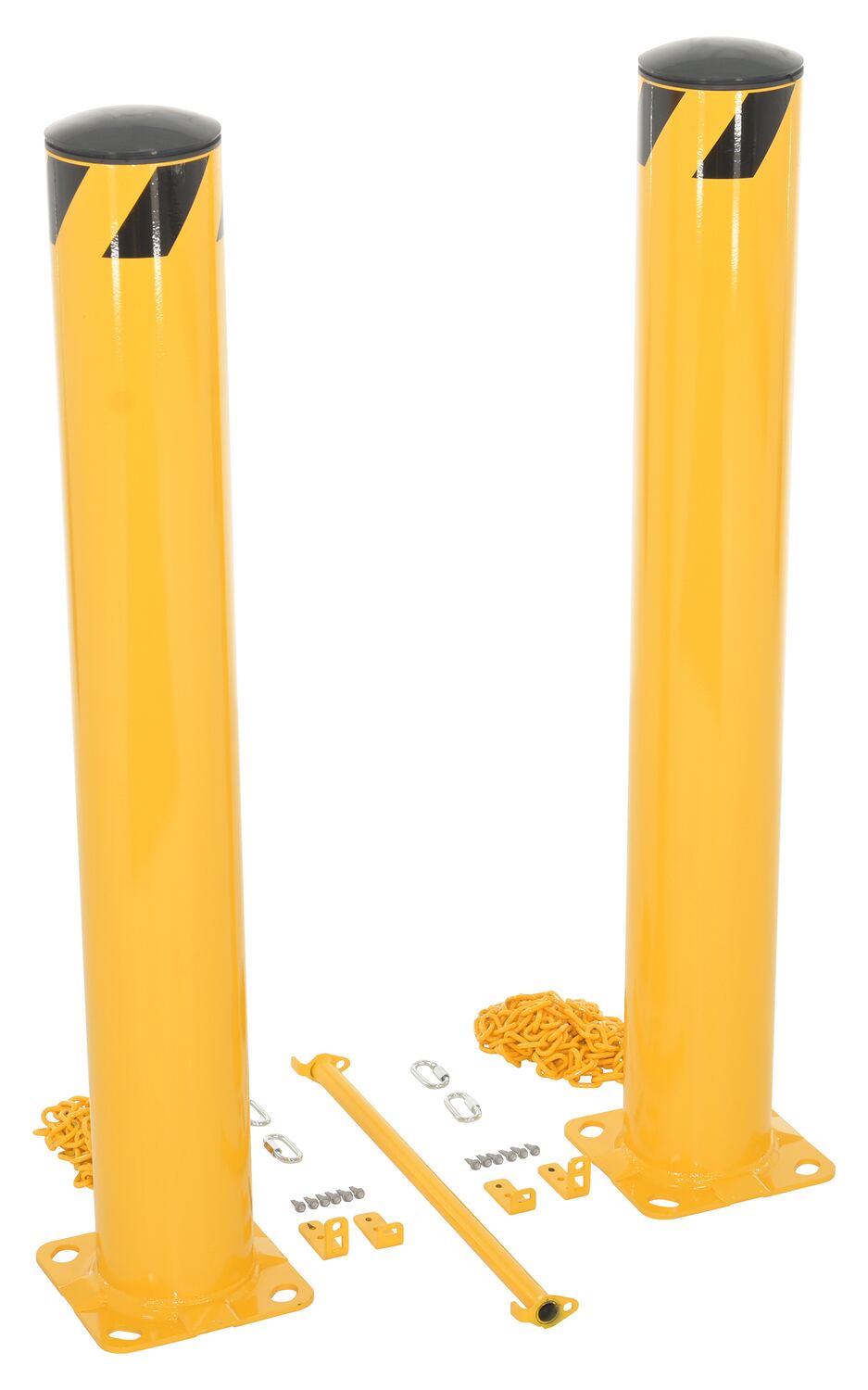

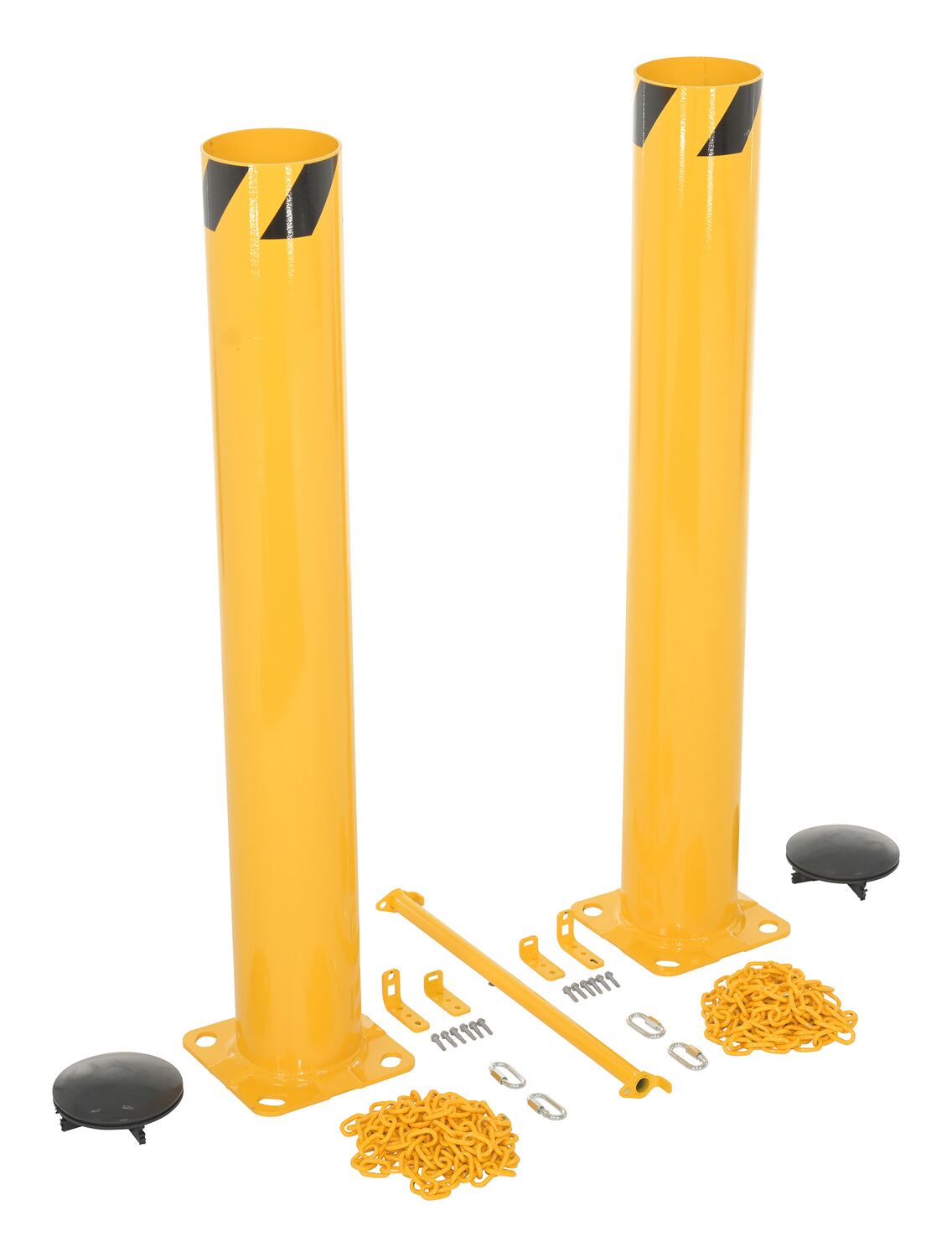

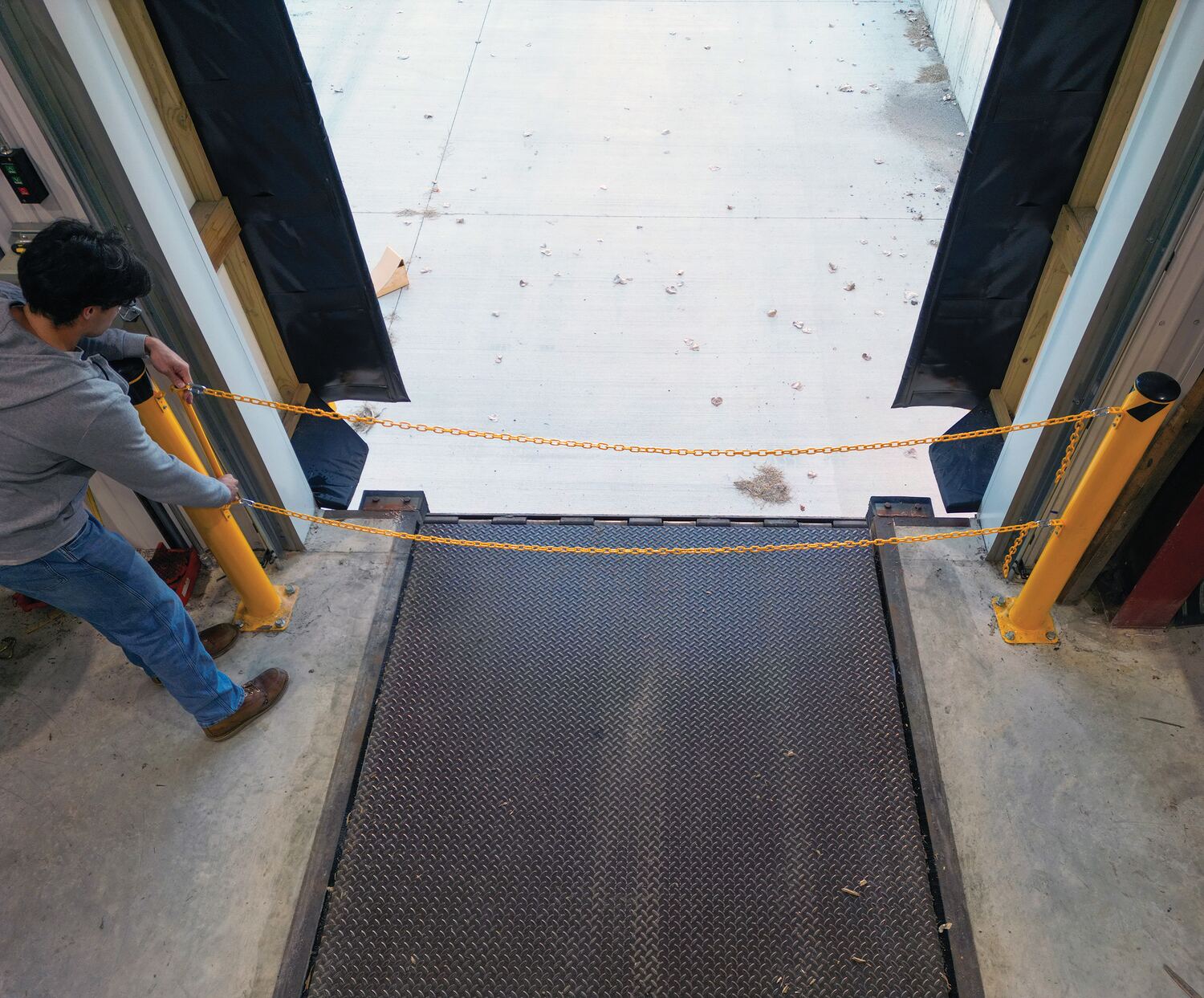

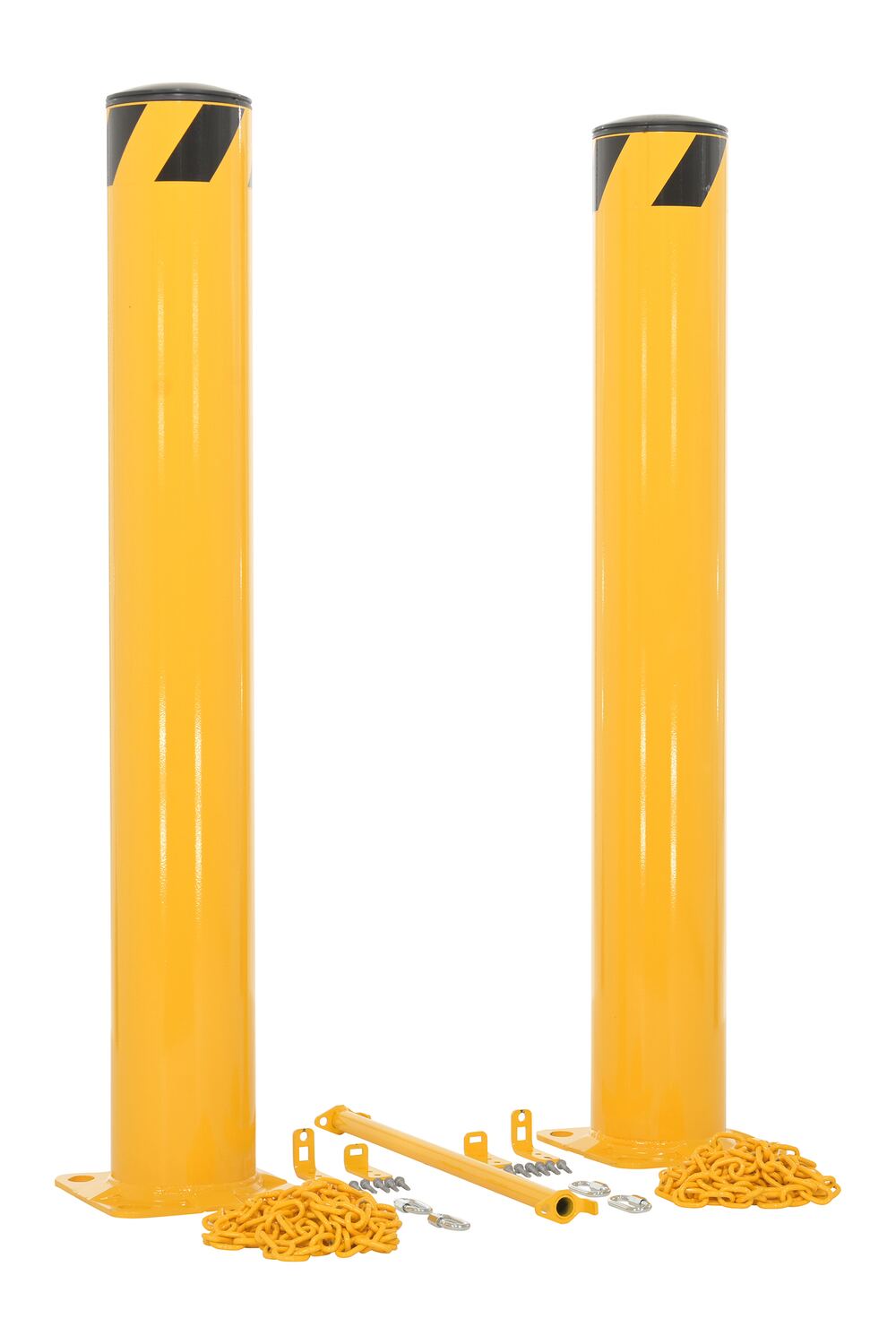

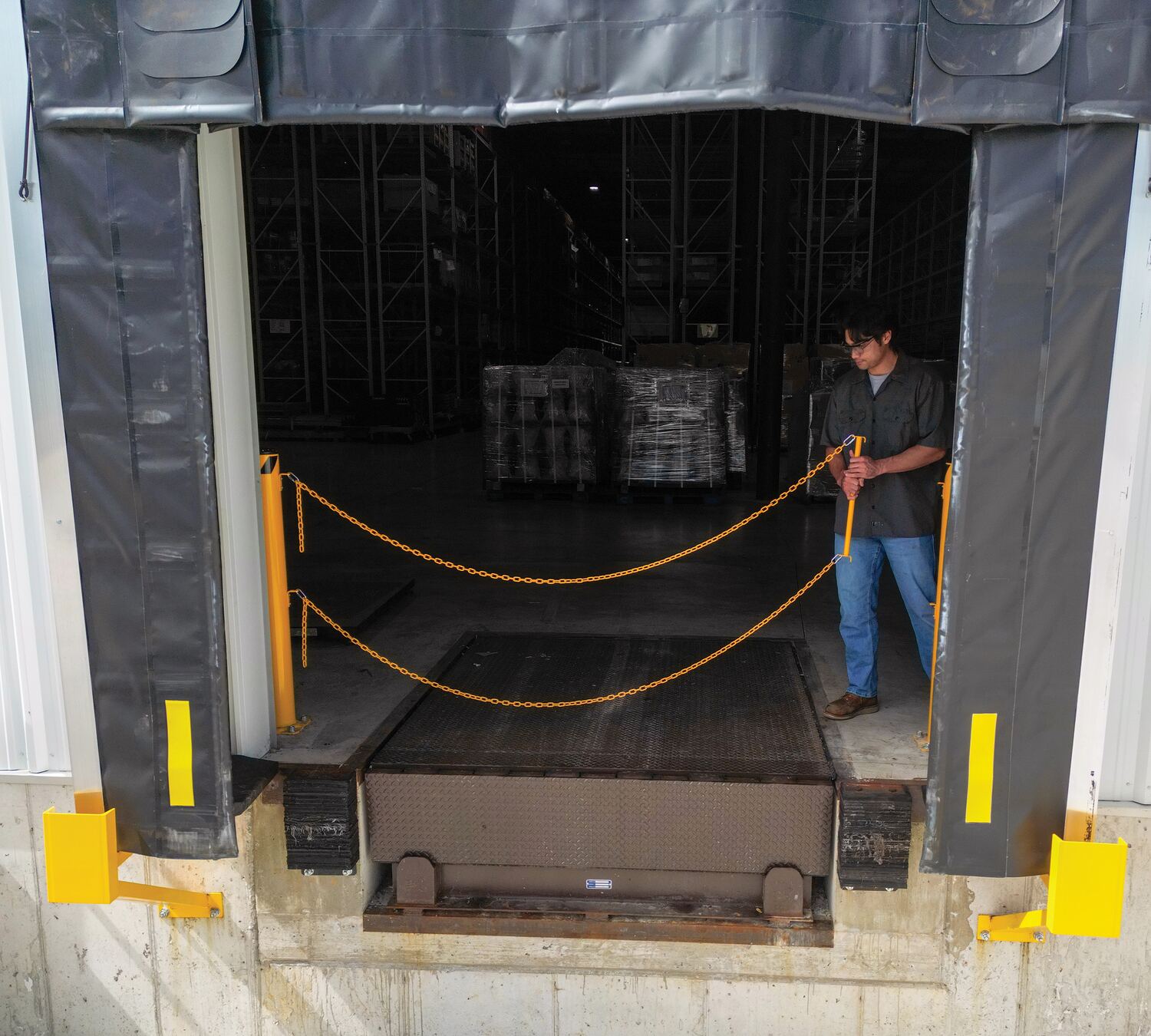

The dock chain barrier system creates a safe environment for both personnel and products. The steel constructed double chain adds extra security for door up to 10'. Unit is designed with a safety yellow finish for clear visibility and a bolt on chain hook-up enabling quick installation or removal. The chain can be cut to a specific size upon request. The barrier system includes (2) two bollards, (2) 127" long chains and (1) one bollard conversion kit. The conversion kit includes four (4) bollard mounting brackets, (16) sixteen self tapping screws, (1) post unfoldment bracket, and (4) four quick links.
Product Status
Available QuickShip
Key Features
  • Dock chain barrier bollard creates a safe environment around the dock area
  • Chains can be mounted at 21" and 39" high on the bollard
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   DCBB Series Dock Chain Barrier Bollard System Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 74 lbs
Assembled Size 8"W x 147.75"L x 42.8125"H
Total Ship Weight 64 lbs
Package 1 Size 9"W x 44"D x 9"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Bollard quantity 2
Bollard Diameter (in.) 5-9/16
Chain Quantity/Length (in.) (2) 127
Mounting Bracket (qty.) 4
Self Tapping Screw (qty.) 16
Chain Post Handle (qty.) 1
Quick Links (qty.) 4
Accommodated Door Width (ft.) 10
Impact Resistance Each BOL = 4,000 @ 4mph, connecting chain = only rated for personnel barrier of 250 lbs. load
Overall Length (in.) 147-3/4
Overall Width (in.) 8
Overall Height (in.) 42-3/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DCBB-42-5.5
Product Name
Steel Dock Chain Barrier Bollard 5.5 In. Diameter Yellow
UPC
691215106115
GTIN
00691215106115
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Safety Equipment
Taxonomy 4
Bollards
Taxonomy 5
Straight - Non Bending
Assembled Depth (in.)
147.75
Assembled Width(in.)
8
Assembled Height(in.)
42.8125
Assembled Weight(lbs.)
74
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
44
Package Width (in.)
9
Package Height (in.)
9
Package Weight (in.)
27
Subclass
16
Freight Class
70
NMFC Code
Pipe Tubing or Pipe or Tubing Fittings
NMFC Number
52200
Package 2 Depth (in.)
44
Package 2 Width (in.)
9
Package 2 Height (in.)
9
Package 2 Weight (lbs.)
27
Package 2 Subclass
18
Package 2 Freight Class
70
Package2 NMFC Number
52200
Package 3 Depth (in.)
28
Package 3 Width (in.)
5
Package 3 Height (in.)
5
Package 3 Weight (in.)
10
Package 3 Subclass
18
Package 3 Freight Class
70
LTL Freight
Parcel
UNSPSC
46161532
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
