Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow

Dock Chain Barrier Bollard Conversion Hardware Kit for Warehouse Traffic Control and Collision Protection

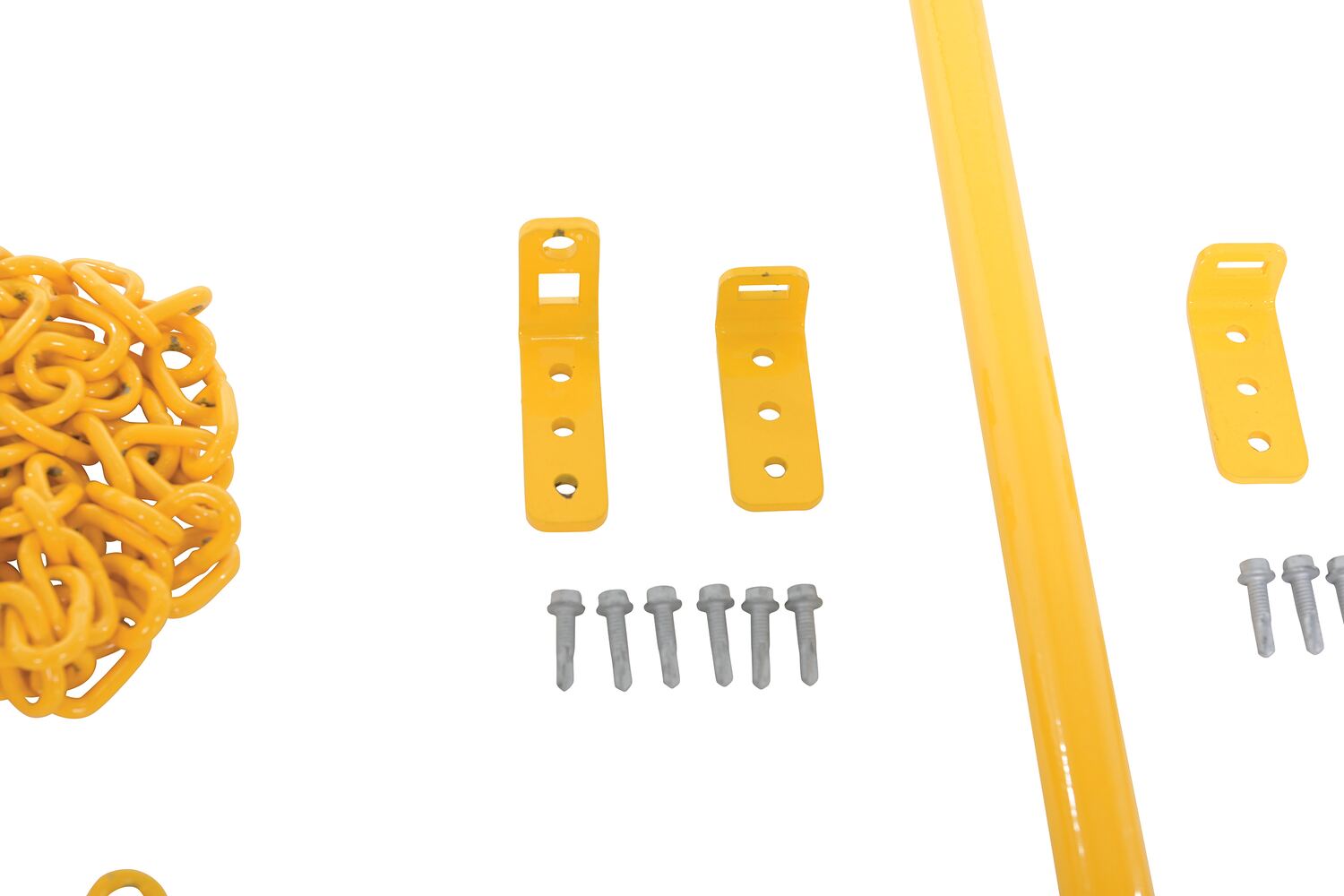

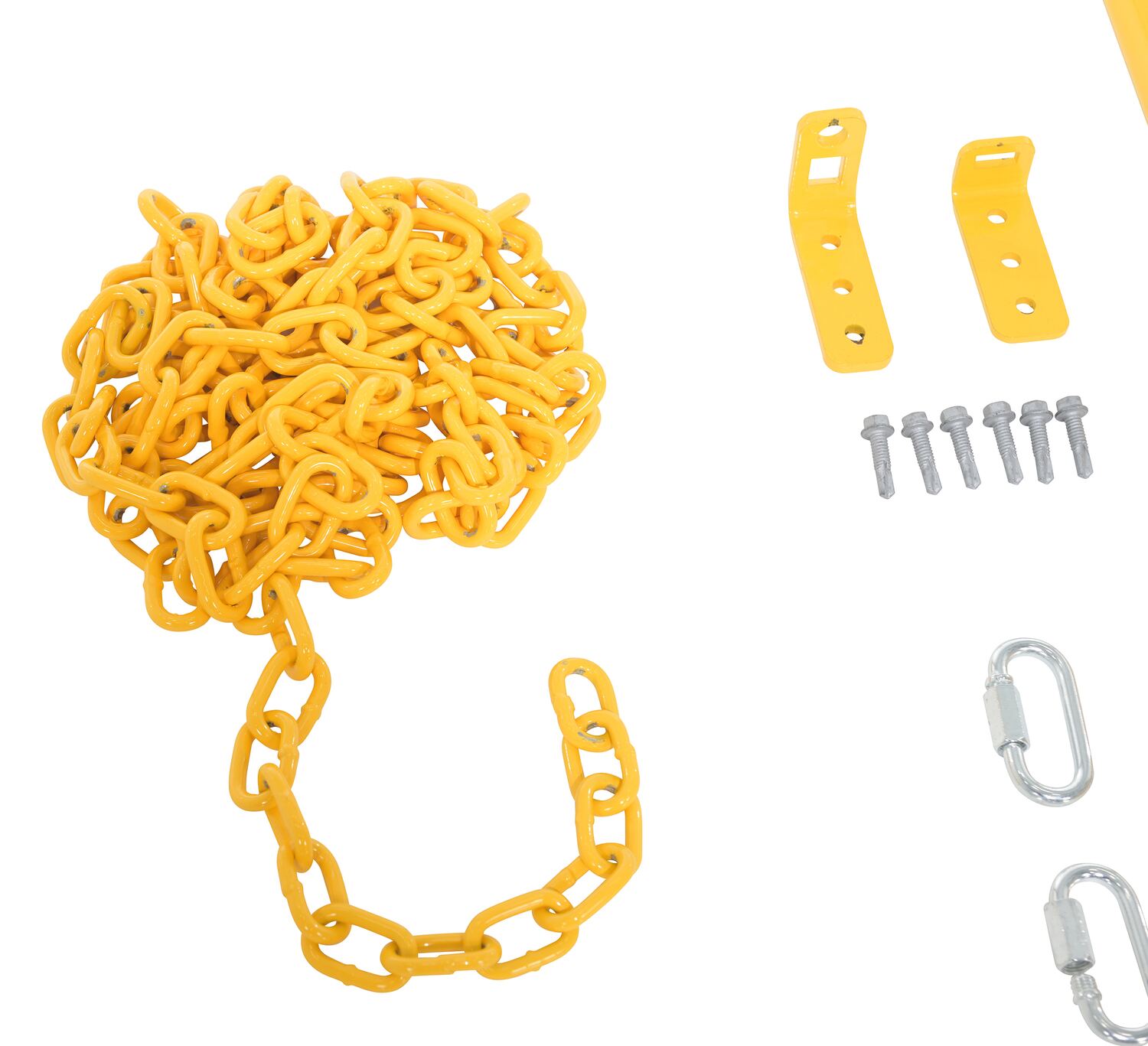

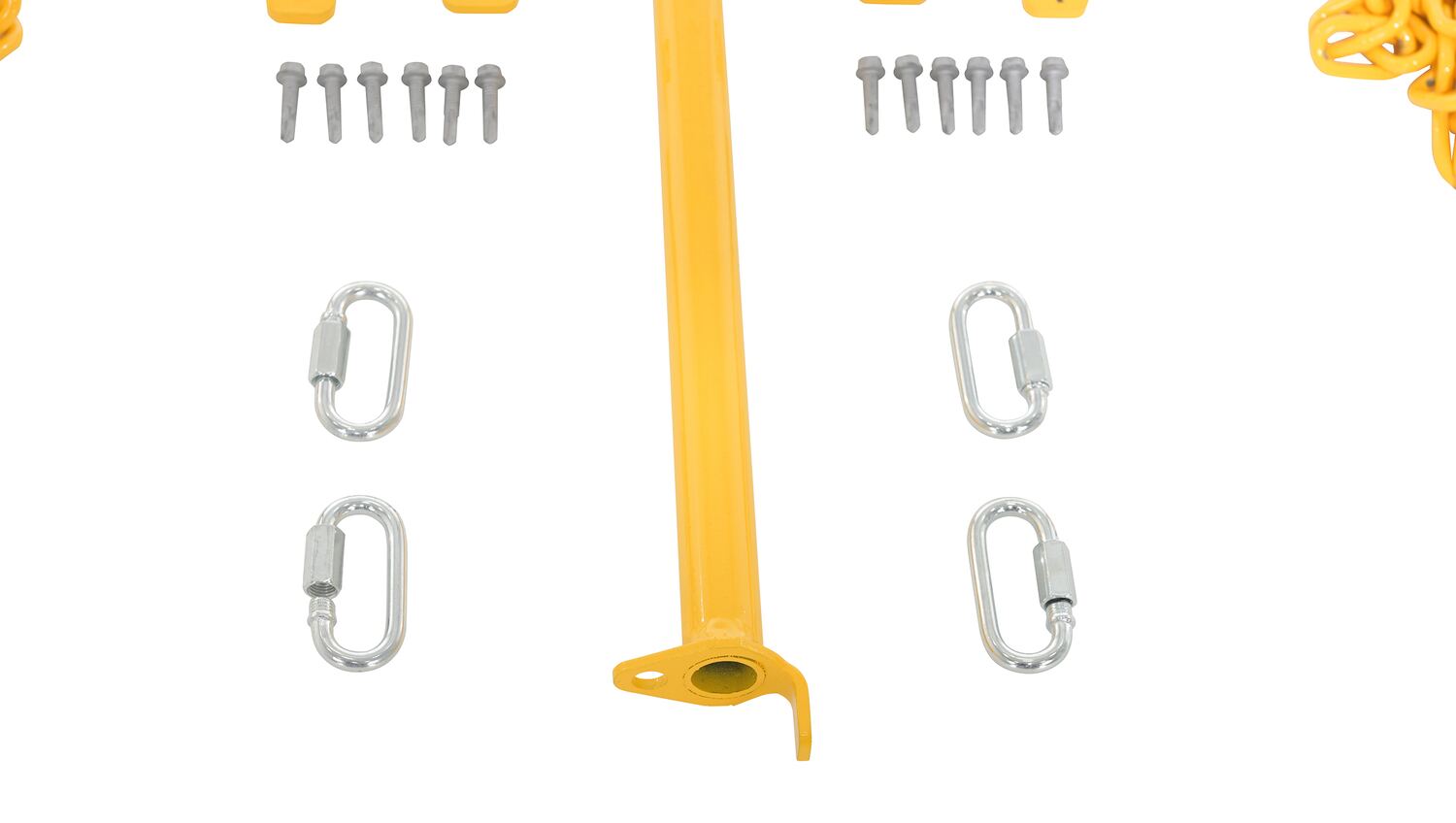

The bollard conversion kit is a great addition to the bollard barrier system. The kit is ideally used to convert existing bollards into barrier systems. The kit includes four (4) bollard mounting brackets, (12) twelve self tapping screws, (1) post welded bracket, and (4) four quick links. This kit is not compatible with 2 inch diameter bollards or 24 inch tall bollards.
Product Status
Available QuickShip
Key Features

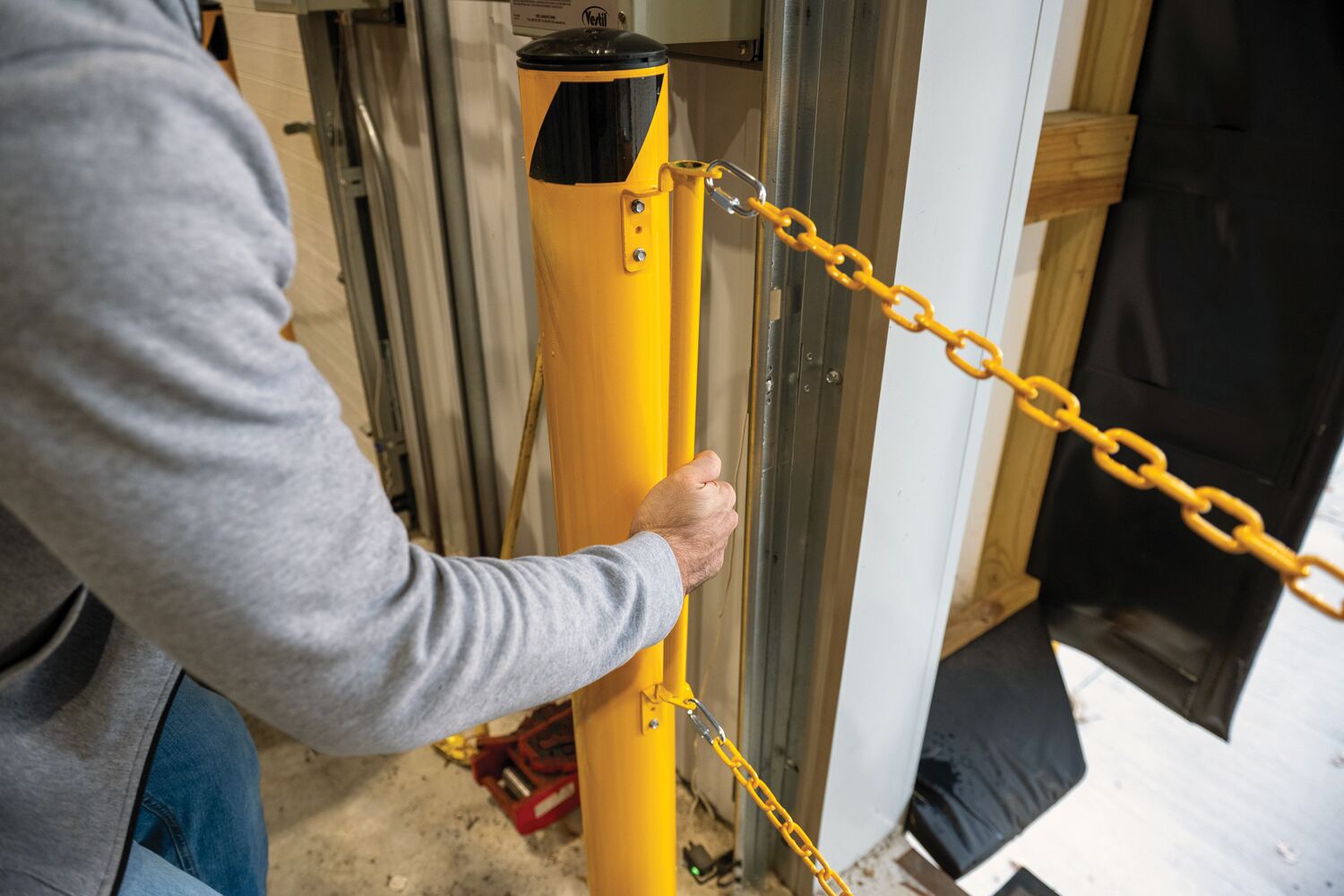

  • Provides solution for attaching chain to existing bollards
  • Simple installation enables immediate use
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal safety
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   DCBB Series Dock Chain Barrier Bollard System Manual   90 Days Warranty
Product Data

Core Data

Assembled Weight 2 lbs
Assembled Size 2"W x 2"L x 20.0625"H
Total Ship Weight 3 lbs
Package 1 Size 4"W x 22"D x 4"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Mounting Bracket Quantity 4
Self Tapping Screw Quantity 16
Chain Post Handle Quantity 1
Quick Links (qty.) 4
Impact Resistance only rated for personnel barrier of 250 lbs. load
Mounting Bracket Height (in.) 2-11/16
Mounting Bracket Length (in.) 2-13/16
Mounting Bracket Width (in.) 7/8
Chain Post Handle Length (in.) 20-1/16
Chain Post Handle Width (in.) 7/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DCBB-B-KIT
Product Name
Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow
UPC
691215106122
GTIN
00691215106122
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Barrier Accessories
Taxonomy 5
Brackets and Braces
Assembled Depth (in.)
2
Assembled Width(in.)
2
Assembled Height(in.)
20.0625
Assembled Weight(lbs.)
2
Color/Finish
Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required
Compatible Products
BOL-36-4.5, BOL-36-5.5, BOL-36-6.5, BOL-36-8.5, BOL-42-4.5, BOL-42-5.5, BOL-42-6.5, BOL-42-8.5, BOL-48-4.5, BOL-48-5.5, BOL-48-6.5, BOL-48-8.5, BOL-62-4.5, BOL-62-5.5, BOL-62-6.5, BOL-72-4.5, BOL-72-5.5, BOL-72-6.5, BOL-RF-36-5.5, BOL-RF-42-4.5, BOL-RF-42-5.5, BOL-RF-48-4.5, BOL-RF-48-5.5, BOLPP-36 models, BOLPP-42 models, BOLPP-48 models, BOLPP-62-4.5, OBOL-35-4.5, OBOL-47-4.5, OBOL-53-4.5, BOL-R-36-5.5, BOL-R-42-5.5, BOL-R-48-5.5, BOL-R-72-5.5

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
22
Package Width (in.)
4
Package Height (in.)
4
Package Weight (in.)
3
Freight Class
55
NMFC Code
Hardware
NMFC Number
93450
LTL Freight
Parcel
UNSPSC
46161532
HTSUS Number
7610.90.0080
USMCA HS
7610.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
