  All Products   Drum Handling Equipment   Fork Mounted Drum Lifters   Fork Truck Drum Carrier/Rotators DCR-205-12-DC
Product Image

Visual Reference

DCR-205-12-DC
DCR-205-12-DC
DCR-205-12-DC
DCR-205-12-DC
DCR-205-12-DC
DCR-205-12-DC
DCR-205-12-DC
DCR-205-12-DC

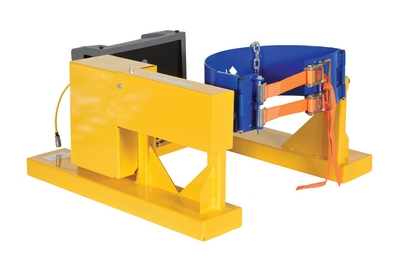

Steel DC Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 1200 Lb. Capacity Yellow

Fork Truck Drum Carrier for Opening, Moving, and Handling Industrial Drums and Barrels, 1,200 lb. Capacity
This Fork Truck drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck. Drums are held securely in place by a durable chain locking system. Carrier/rotator is provided with a chain to allow the drum to be rotated from the fork truck operator's seat. This DC powered unit includes batteries, on-board charger, battery charge indicator gauge and hand held control on a long coil cord. Drum must be full to rotate at rated capacity.
Product Status
Available
Key Features
  • Drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck
  • Drums are held by a durable chain locking system in order to be secure in place
  • Carrier/rotator is provided with a chain to allow the drum to be rotated from the operator's seat
  • Bung nut wrench is also included for opening and closing drums
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   DCR-205-8-DC & DCR-205-12-DC Fork Mounted Drum Carrier/Rotator Manual   Hydraulic Oil SDS   Valve Regulated Lead-Acid Battery SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 276 lbs
Assembled Size 40"W x 46"L x 24.3125"H
Total Ship Weight 327 lbs
Package 1 Size 40"W x 48"D x 27"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,200
Accepts 55-gallon steel drum
Drum Rotation (degrees) 360
Fork Pocket Height (in.) 2-5/8
Fork Pocket Width (in.) 7-5/8
DC Voltage (2) 12
Fork Pocket Centers (in.) 32
Coil Cord Length (ft.) 4 to 20
Safety Chain (in.) 56
Drum Restraint Method Chain
Drum Restraint Chain Length (in.) 36

Battery Information

Battery Depth 8
Battery Width 12
Battery Height 7
Battery Weight 48
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DCR-205-12-DC
Product Name
Steel DC Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 1200 Lb. Capacity Yellow
UPC
691215058827
GTIN
00691215058827
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Drum Attachments
Taxonomy 4
Rotating Carriers
Assembled Depth (in.)
46
Assembled Width(in.)
40
Assembled Height(in.)
24.3125
Assembled Weight(lbs.)
276
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
27
Package Weight (in.)
327
Subclass
7
Freight Class
92.5
NMFC Code
Lift Truck Attachments Fork arms fingers tine
NMFC Number
193100
LTL Freight
LTL Palletized
UNSPSC
24101903
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
48
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DCR-205-12-DC

DCR-205-12-DC

Steel DC Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 1200 Lb. Capacity Yellow

This Fork Truck drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck. Drums are held securely in place by a durable chain locking system. Carrier/rotator is provided with a chain to allow the drum to be rotated from the fork truck operator's seat. This DC powered unit includes batteries, on-board charger, battery charge indicator gauge and hand held control on a long coil cord. Drum must be full to rotate at rated capacity.

  • Drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck
  • Drums are held by a durable chain locking system in order to be secure in place
  • Carrier/rotator is provided with a chain to allow the drum to be rotated from the operator's seat
  • Bung nut wrench is also included for opening and closing drums

Core Data

Assembled Weight: 276 Assembled Size: 40"W x 46"L x 24.3125"H Color: Yellow
Total Ship Weight: 327 Package 1 Size: 40"W x 48"D x 27"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,200
Accepts: 55-gallon steel drum
Drum Rotation (degrees): 360
Fork Pocket Height (in.): 2-5/8
Fork Pocket Width (in.): 7-5/8
DC Voltage: (2) 12
Fork Pocket Centers (in.): 32
Coil Cord Length (ft.): 4 to 20
Safety Chain (in.): 56
Drum Restraint Method: Chain
Drum Restraint Chain Length (in.): 36
