Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 800 Lb. Capacity Yellow

Fork Truck Drum Carrier for Opening, Moving, and Handling Industrial Drums and Barrels, 800 lb. Capacity, Yellow Finish – Model DCR-205-8
This Fork Truck drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck. Drums are held securely in place by a durable chain locking system. Carrier/rotator is provided with a chain to allow the drum to be rotated from the fork truck operator's seat. Drum must be full to rotate at rated capacity. Complies with OSHA Gen. Industry rule 1910.178; ANSI B56.1.
Product Status
Available QuickShip
Key Features
  • Fork Truck drum carrier/rotator is for handling steel drums efficiently
  • Chain locking system holds drums securely for ideal operation
  • Additional chain allows the drum to be rotated from operator's seat
  • Includes a bung nut wrench for opening and closing drums effectively
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   DCR-205-20 Drum Carriers/Rotators Instruction Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 151 lbs

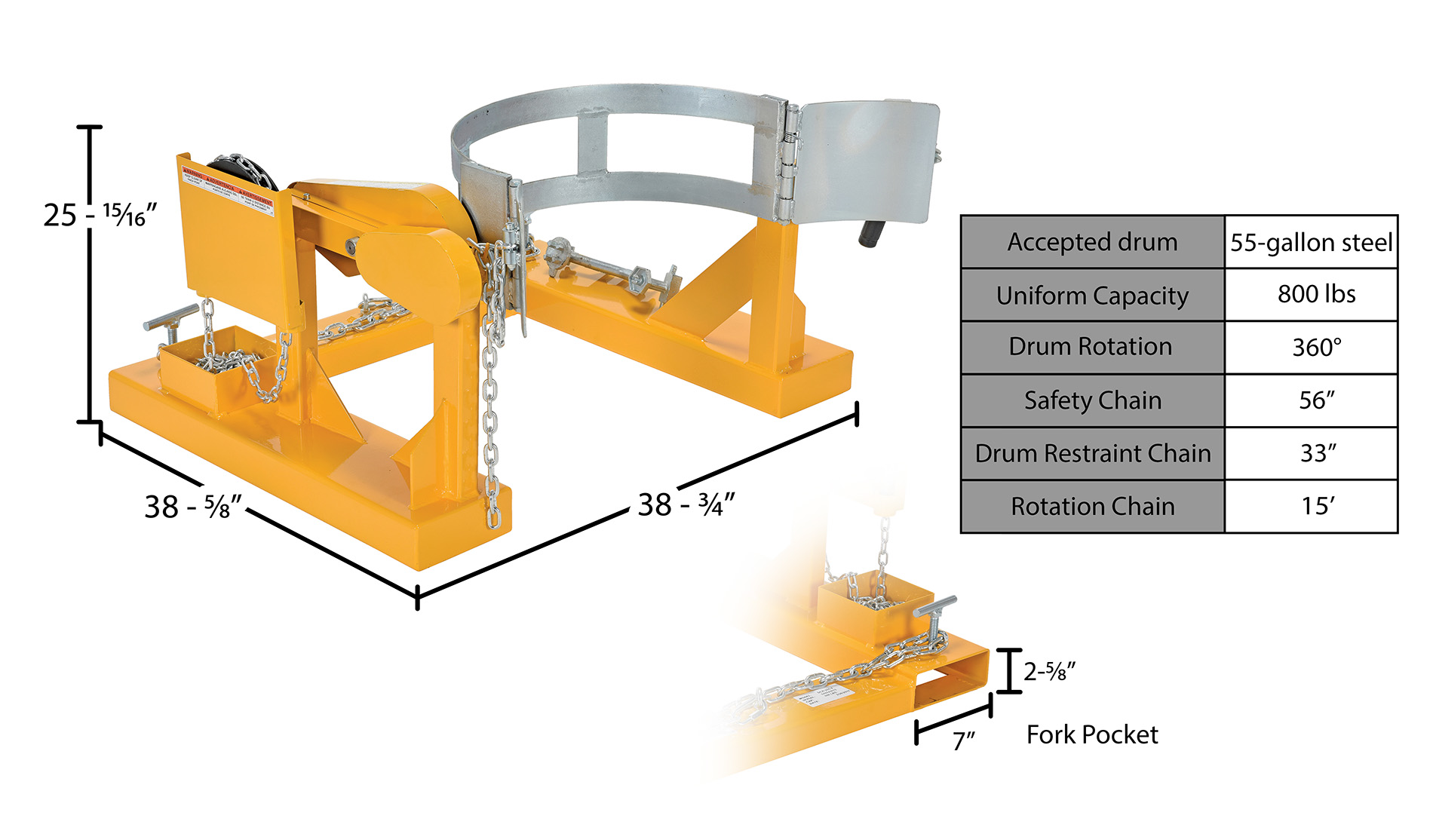

Assembled Size 38.75"W x 38.625"L x 25.9375"H
Total Ship Weight 228 lbs
Package 1 Size 41"W x 48"D x 30"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 800
Accepts 55-gallon steel drum
Rotation Chain (ft.) 15
Drum Rotation (degree) 360
Fork Pocket Height (in.) 2-5/8
Fork Pocket Width (in.) 7
Fork Pocket Centers (in.) 31-3/8
Crank Turns per 90 degree Rotation (qty.) 10
Safety Chain (in.) 56
Drum Restraint Method Chain
Drum Restraint Chain Length (in.) 33
Drum Cradle Finish Zinc Plated
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DCR-205-8
Product Name
Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 800 Lb. Capacity Yellow
UPC
691215012799
GTIN
00691215012799
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Drum Attachments
Taxonomy 4
Rotating Carriers
Assembled Depth (in.)
38.625
Assembled Width(in.)
38.75
Assembled Height(in.)
25.9375
Assembled Weight(lbs.)
151
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
41
Package Height (in.)
30
Package Weight (in.)
228
Subclass
5
Freight Class
125
NMFC Code
Lift Truck Attachments Fork arms fingers tine
NMFC Number
193100
LTL Freight
LTL Palletized
UNSPSC
24101903
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DCR-205-8

DCR-205-8

Steel Fork Truck Drum Carrier/Rotator For Steel Drums 55 Gallon 800 Lb. Capacity Yellow

This Fork Truck drum carrier/rotator allows you to easily transport and rotate steel drums using a fork truck. Drums are held securely in place by a durable chain locking system. Carrier/rotator is provided with a chain to allow the drum to be rotated from the fork truck operator's seat. Drum must be full to rotate at rated capacity. Complies with OSHA Gen. Industry rule 1910.178; ANSI B56.1.

  • Fork Truck drum carrier/rotator is for handling steel drums efficiently
  • Chain locking system holds drums securely for ideal operation
  • Additional chain allows the drum to be rotated from operator's seat
  • Includes a bung nut wrench for opening and closing drums effectively

Core Data

Assembled Weight: 151 Assembled Size: 38.75"W x 38.625"L x 25.9375"H Color: Yellow
Total Ship Weight: 228 Package 1 Size: 41"W x 48"D x 30"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 800
Accepts: 55-gallon steel drum
Rotation Chain (ft.): 15
Drum Rotation (degree): 360
Fork Pocket Height (in.): 2-5/8
Fork Pocket Width (in.): 7
Fork Pocket Centers (in.): 31-3/8
Crank Turns per 90 degree Rotation (qty.): 10
Safety Chain (in.): 56
Drum Restraint Method: Chain
Drum Restraint Chain Length (in.): 33
Drum Cradle Finish: Zinc Plated
