Product Data Sheet

  Print to PDF
  All Products   Drum Handling Equipment   Fork Mounted Drum Lifters   Drum Grippers DGD-A
Product Image

Visual Reference

DGD-A
DGD-A
DGD-A
DGD-A
DGD-A
DGD-A
DGD-A
DGD-A
DGD-A

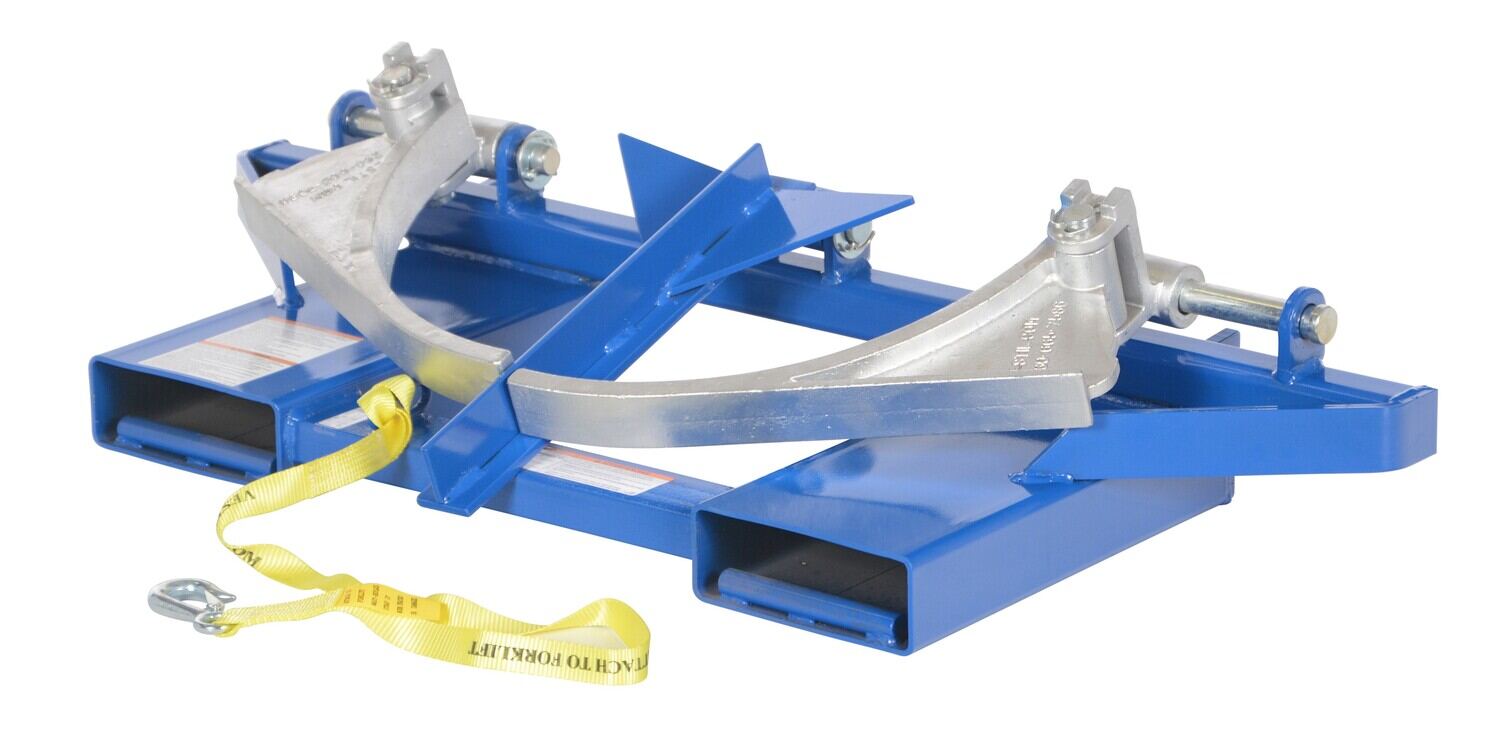

Steel Adjustable Double Drum Gripper 35 In. x 45 In. x 7-1/2 In. 1500 Lb. Capacity Blue

Adjustable Fork Lift Barrel Gripper for Opening, Moving, and Handling Industrial Drums and Barrels, 1,500 lb. Capacity with 35 in. x 45 in. x 7-1/2 in.
The drum gripper makes it easy to pick up one or two open head (with lid installed and secured) and closed head steel drum without leaving the seat of the fork truck. Simply slip the forks into the fork pocket, fasten the safety restraint and the drum gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. Features hinged folding design for storage and adjustable-width arms for use with steel drums. Safety restraint included. Welded steel construction. Powder coat finish.
Product Status
Available
Key Features
  • Unique drum release design automatically releases drum by lowering forks
  • Heavy-duty welded steel construction provides long lasting rugged use
  • Knuckle grip design securely grabs steel drums
  • Fold-up arms provide convenient storage
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Drum Grippers DGD-A   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 136 lbs
Assembled Size 45"W x 35"L x 7.5"H
Total Ship Weight 211 lbs
Package 1 Size 48"W x 48"D x 15"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,500
Accepts (2) 30 and/or 55-gallon steel drums
Fork Pocket on Center (in.) 24
Fork Pocket Width (in.) 7-5/8
Usable Fork Pocket Height (in.) 1-7/8
Fork Pocket Length (in.) 15-7/8
Type Adjustable Fold-up
Minimum Drum Spacing Each Side (in.) 2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DGD-A
Product Name
Steel Adjustable Double Drum Gripper 35 In. x 45 In. x 7-1/2 In. 1500 Lb. Capacity Blue
UPC
691215013161
GTIN
00691215013161
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Drum Attachments
Taxonomy 4
Grippers
Assembled Depth (in.)
35
Assembled Width(in.)
45
Assembled Height(in.)
7.5
Assembled Weight(lbs.)
136
Color/Finish
Blue
Material
Welded Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
48
Package Height (in.)
15
Package Weight (in.)
211
Subclass
7
Freight Class
92.5
NMFC Code
Lift Truck Attachments Fork arms fingers tine
NMFC Number
193100
LTL Freight
LTL Palletized
UNSPSC
24101902
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DGD-A

DGD-A

Steel Adjustable Double Drum Gripper 35 In. x 45 In. x 7-1/2 In. 1500 Lb. Capacity Blue

The drum gripper makes it easy to pick up one or two open head (with lid installed and secured) and closed head steel drum without leaving the seat of the fork truck. Simply slip the forks into the fork pocket, fasten the safety restraint and the drum gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. Features hinged folding design for storage and adjustable-width arms for use with steel drums. Safety restraint included. Welded steel construction. Powder coat finish.

  • Unique drum release design automatically releases drum by lowering forks
  • Heavy-duty welded steel construction provides long lasting rugged use
  • Knuckle grip design securely grabs steel drums
  • Fold-up arms provide convenient storage

Core Data

Assembled Weight: 136 Assembled Size: 45"W x 35"L x 7.5"H Color: Blue
Total Ship Weight: 211 Package 1 Size: 48"W x 48"D x 15"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,500
Accepts: (2) 30 and/or 55-gallon steel drums
Fork Pocket on Center (in.): 24
Fork Pocket Width (in.): 7-5/8
Usable Fork Pocket Height (in.): 1-7/8
Fork Pocket Length (in.): 15-7/8
Type: Adjustable Fold-up
Minimum Drum Spacing Each Side (in.): 2
