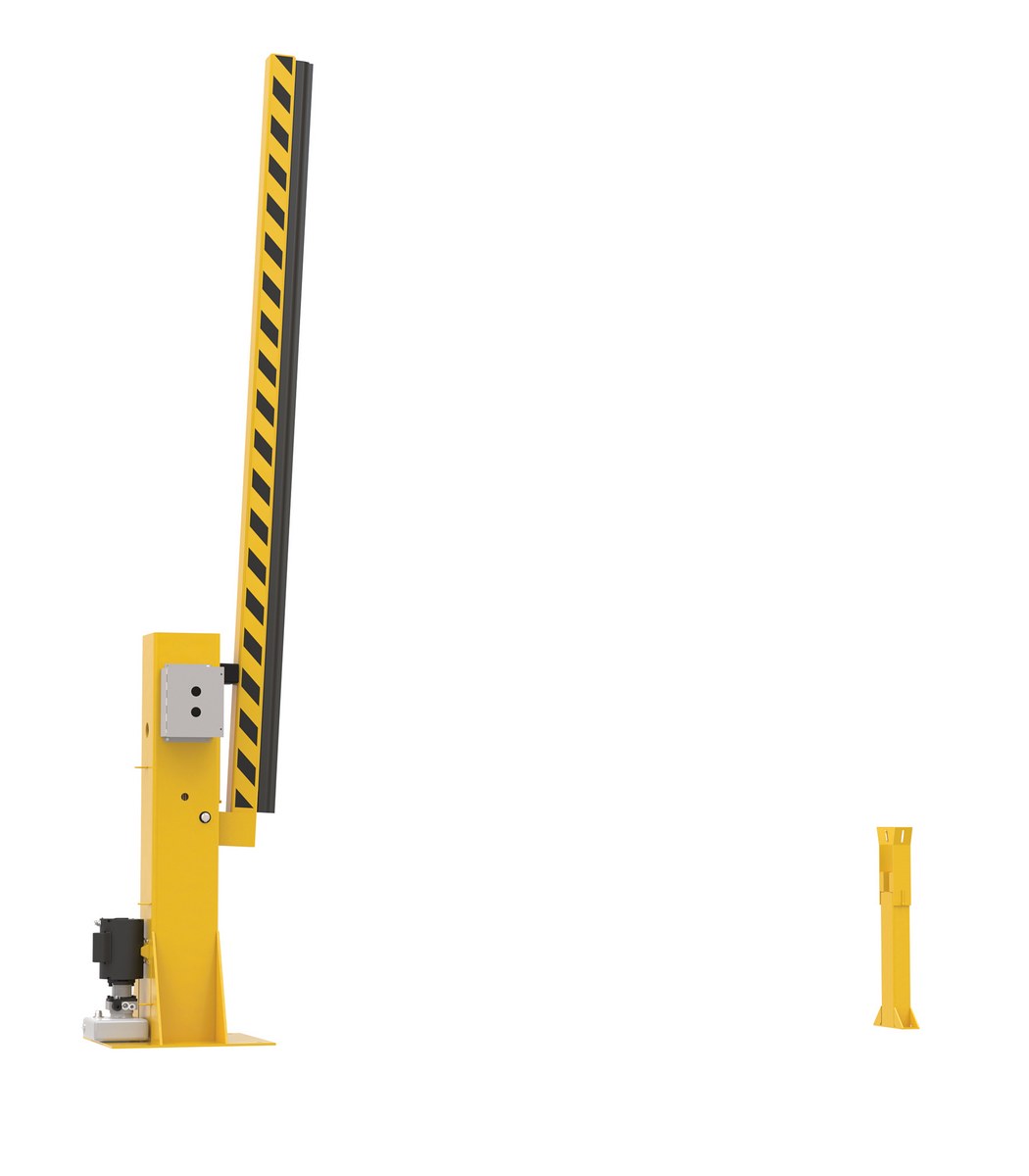

Steel Dock Barricade Electric/Hydraulic 8 Ft. Yellow

Dock Traffic Barrier Electric Dock Barrier for Commercial Dock Access and Waterfront Operations
The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. The electric/hydraulic power unit provides quick and effortless operation. It is electronically operated and consists of an electrical bumper-style safety stop circuit to sense obstructions when lowering. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included. Installation is simple, anchor the unit to the floor and plug in.
Product Status
Available
Key Features
  • Unique design protects open doorways at loading docks
  • Bottom arm safety stop will reverse direction when contacted
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Dock Barricade DJG-100 Instruction Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 528 lbs
Assembled Size 24"W x 130.75"L x 60.125"H
Total Ship Weight 686 lbs
Package 1 Size 28"W x 159"D x 72"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Impact Rating (lb. at mph.) 4,000 at 4
Door Width/Height (ft.) 8 x 8
Arm Height in Vertical Position (in.) 148-5/8
Arm Height in Horizontal Position (in.) 28-1/2
Motor Horsepower 3/4
Base Plate Size (in.) 24 x 24
Power 115V 1 Phase AC Power
Hand Control Voltage 24
Arm Length (in.) 102
Padlock Included? No
Overall Length (in.) 130-3/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DJG-100
Product Name
Steel Dock Barricade Electric/Hydraulic 8 Ft. Yellow
UPC
691215013529
GTIN
00691215013529
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Barricades
Assembled Depth (in.)
130.75
Assembled Width(in.)
24
Assembled Height(in.)
60.125
Assembled Weight(lbs.)
528
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
159
Package Width (in.)
28
Package Height (in.)
72
Package Weight (in.)
686
Freight Class
77.5
NMFC Code
Barriers or Gates parking lot or road traffic
NMFC Number
114733
LTL Freight
LTL Palletized
UNSPSC
46151501
HTSUS Number
7308.90.9590
USMCA HS
7308.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DJG-100

DJG-100

Steel Dock Barricade Electric/Hydraulic 8 Ft. Yellow

The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. The electric/hydraulic power unit provides quick and effortless operation. It is electronically operated and consists of an electrical bumper-style safety stop circuit to sense obstructions when lowering. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included. Installation is simple, anchor the unit to the floor and plug in.

  • Unique design protects open doorways at loading docks
  • Bottom arm safety stop will reverse direction when contacted
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour

Core Data

Assembled Weight: 528 Assembled Size: 24"W x 130.75"L x 60.125"H Color: Yellow
Total Ship Weight: 686 Package 1 Size: 28"W x 159"D x 72"H Freight: LTL Palletized

Specifications

Impact Rating (lb. at mph.): 4,000 at 4
Door Width/Height (ft.): 8 x 8
Arm Height in Vertical Position (in.): 148-5/8
Arm Height in Horizontal Position (in.): 28-1/2
Motor Horsepower: 3/4
Base Plate Size (in.): 24 x 24
Power: 115V 1 Phase AC Power
Hand Control Voltage: 24
Arm Length (in.): 102
Padlock Included?: No
Overall Length (in.): 130-3/4
