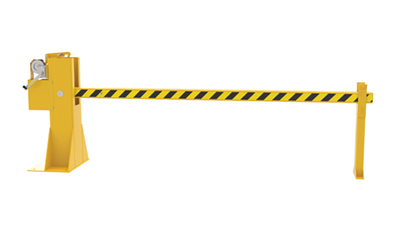

Steel Dock Barricade Manual Hand Crank 8 Ft. Yellow

Manual Dock Traffic Barrier Electric Dock Barrier for Commercial Dock Access and Waterfront Operations
The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. Installation is simple, anchor the unit to the floor. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included.
Product Status
Available
Key Features
  • Unique design protects open doorways at loading docks
  • Manual hand crank easily raises and lowers arm
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Dock Barricade DJG-100 Instruction Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 394 lbs
Assembled Size 24"W x 133.25"L x 45.625"H
Total Ship Weight 539 lbs
Package 1 Size 24"W x 135"D x 30"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Impact Rating (lb. at mph.) 4,000 at 4
Door Width/Height (ft.) 8 x 8
Arm Height Raised (in.) 149
Arm Height Lowered (in.) 32
Operation Manual Hand Crank
Base Plate Width (in.) 17-1/4
Base Plate Length (in.) 24
Overall Length (in.) 133-1/4
Arm Length (in.) 108-7/8
Overall Height (in.) 45-5/8
Padlock Included? No
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DJG-100MW
Product Name
Steel Dock Barricade Manual Hand Crank 8 Ft. Yellow
UPC
691215013536
GTIN
00691215013536
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Barricades
Assembled Depth (in.)
133.25
Assembled Width(in.)
24
Assembled Height(in.)
45.625
Assembled Weight(lbs.)
394
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
135
Package Width (in.)
24
Package Height (in.)
30
Package Weight (in.)
539
Freight Class
77.5
NMFC Code
Barriers or Gates parking lot or road traffic
NMFC Number
114733
LTL Freight
LTL Palletized
UNSPSC
46151501
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DJG-100MW

DJG-100MW

Steel Dock Barricade Manual Hand Crank 8 Ft. Yellow

The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. Installation is simple, anchor the unit to the floor. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included.

  • Unique design protects open doorways at loading docks
  • Manual hand crank easily raises and lowers arm
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour

Core Data

Assembled Weight: 394 Assembled Size: 24"W x 133.25"L x 45.625"H Color: Yellow
Total Ship Weight: 539 Package 1 Size: 24"W x 135"D x 30"H Freight: LTL Palletized

Specifications

Impact Rating (lb. at mph.): 4,000 at 4
Door Width/Height (ft.): 8 x 8
Arm Height Raised (in.): 149
Arm Height Lowered (in.): 32
Operation: Manual Hand Crank
Base Plate Width (in.): 17-1/4
Base Plate Length (in.): 24
Overall Length (in.): 133-1/4
Arm Length (in.): 108-7/8
Overall Height (in.): 45-5/8
Padlock Included?: No
