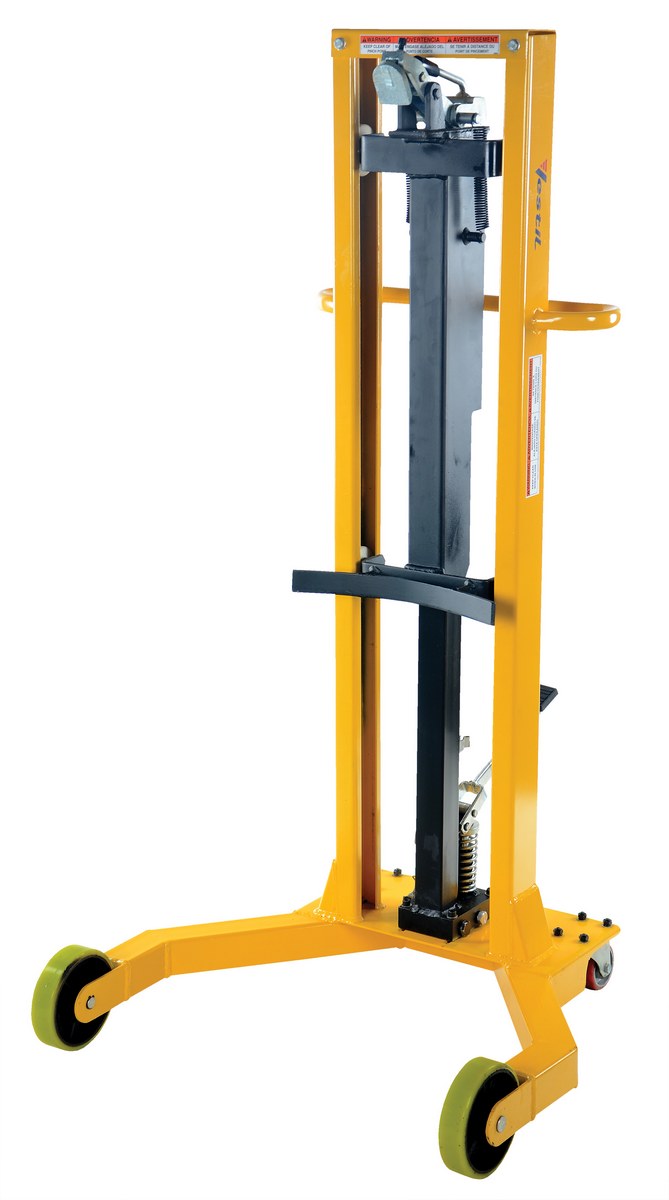

Steel Portable Drum Jack Accepts 55 Gallon Steel and Fiber Drums 500 Lb. Capacity Yellow

Portable Barrel Jack for Opening, Moving, and Handling Industrial Drums and Barrels, 500 lb. Capacity
This drum jack is the perfect solution to any of your drum transporting needs. Compact design allows for maximum maneuverability in restrictive areas. Accepts drums with a top lip. Includes rigid and swivel casters for portability, manual hydraulic foot pump to raise and lower the drum.
Product Status
Available QuickShip
Key Features
  • Holds 55 gallon steel and fiber drums with a top lip
  • Poly on steel wheels
  • Designed to easily lift drums with little energy
  • Solid steel construction offers long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Drum Jack Model DRUM-55-36 Manual   Label Page PDF   Hydraulic Oil SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 116 lbs
Assembled Size 30.5"W x 27.8125"L x 57.5"H
Total Ship Weight 161 lbs
Package 1 Size 40"W x 48"D x 62"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 500
Lift Height (in.) 15
Beak Service Range (in.) 33 to 52
Accepts 55-gallon steel and fiber drums
Front Rigid Wheel Quantity/Diameter/Width (in.) (2) 6 x 1-1/2
Rear Caster Material Poly-on-steel
Front Wheel Type Poly-on-steel
Rear Swivel Caster Quantity/Diameter/Width (in.)/ (2) 3 x 1-1/2
Foot Pump Height (in.) 17-3/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DRUM-55-36
Product Name
Steel Portable Drum Jack Accepts 55 Gallon Steel and Fiber Drums 500 Lb. Capacity Yellow
UPC
691215133500
GTIN
00691215133500
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Tools
Taxonomy 4
Jacks & Components
Taxonomy 5
Jacks
Assembled Depth (in.)
27.8125
Assembled Width(in.)
30.5
Assembled Height(in.)
57.5
Assembled Weight(lbs.)
116
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
62
Package Weight (in.)
161
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101903
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DRUM-55-36

DRUM-55-36

Steel Portable Drum Jack Accepts 55 Gallon Steel and Fiber Drums 500 Lb. Capacity Yellow

This drum jack is the perfect solution to any of your drum transporting needs. Compact design allows for maximum maneuverability in restrictive areas. Accepts drums with a top lip. Includes rigid and swivel casters for portability, manual hydraulic foot pump to raise and lower the drum.

  • Holds 55 gallon steel and fiber drums with a top lip
  • Poly on steel wheels
  • Designed to easily lift drums with little energy
  • Solid steel construction offers long lasting rugged use

Core Data

Assembled Weight: 116 Assembled Size: 30.5"W x 27.8125"L x 57.5"H Color: Yellow
Total Ship Weight: 161 Package 1 Size: 40"W x 48"D x 62"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 500
Lift Height (in.): 15
Beak Service Range (in.): 33 to 52
Accepts: 55-gallon steel and fiber drums
Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 6 x 1-1/2
Rear Caster Material: Poly-on-steel
Front Wheel Type: Poly-on-steel
Rear Swivel Caster Quantity/Diameter/Width (in.)/: (2) 3 x 1-1/2
Foot Pump Height (in.): 17-3/16
