Steel Mobile Tilting Drum Dolly with Handle 30-7/8 In. x 30-7/8 In. x 6-1/4 In. 1000 Lb. Capacity Silver

Barrel Dolly for Moving Loads Through Warehouses and Production Areas, 1,000 lb. Capacity with 30-7/8 in. x 30-7/8 in. x 6-1/4 in – Model DRUM-DRH-HR-TLT

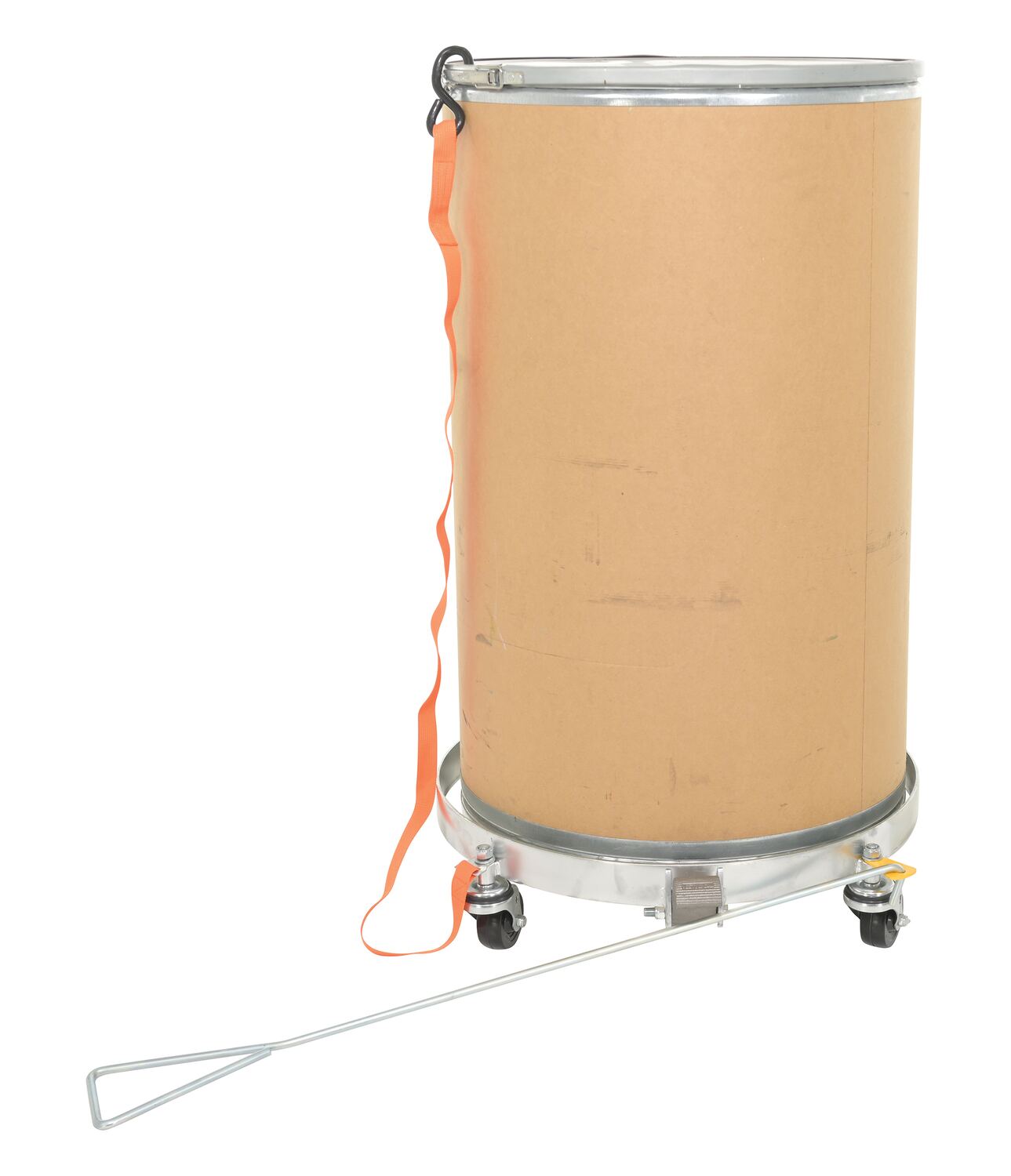

The tilting drum dolly is ideal for manufacturing and industrial facilities. The dolly creates an ergonomically friendly way of transporting 55 gallon drums. The steel construction design is lightweight, yet strong, for use in the harshest of environments, while, the hard rubber casters provide a smooth transition from work station to work station. The tilting feature is foot operated and is locked into place for secure handling during extraction.
Product Status
Available QuickShip
Key Features
  • Tilting drum dolly creates an ergonomic way of transporting 55-gallon drums for ideal operation

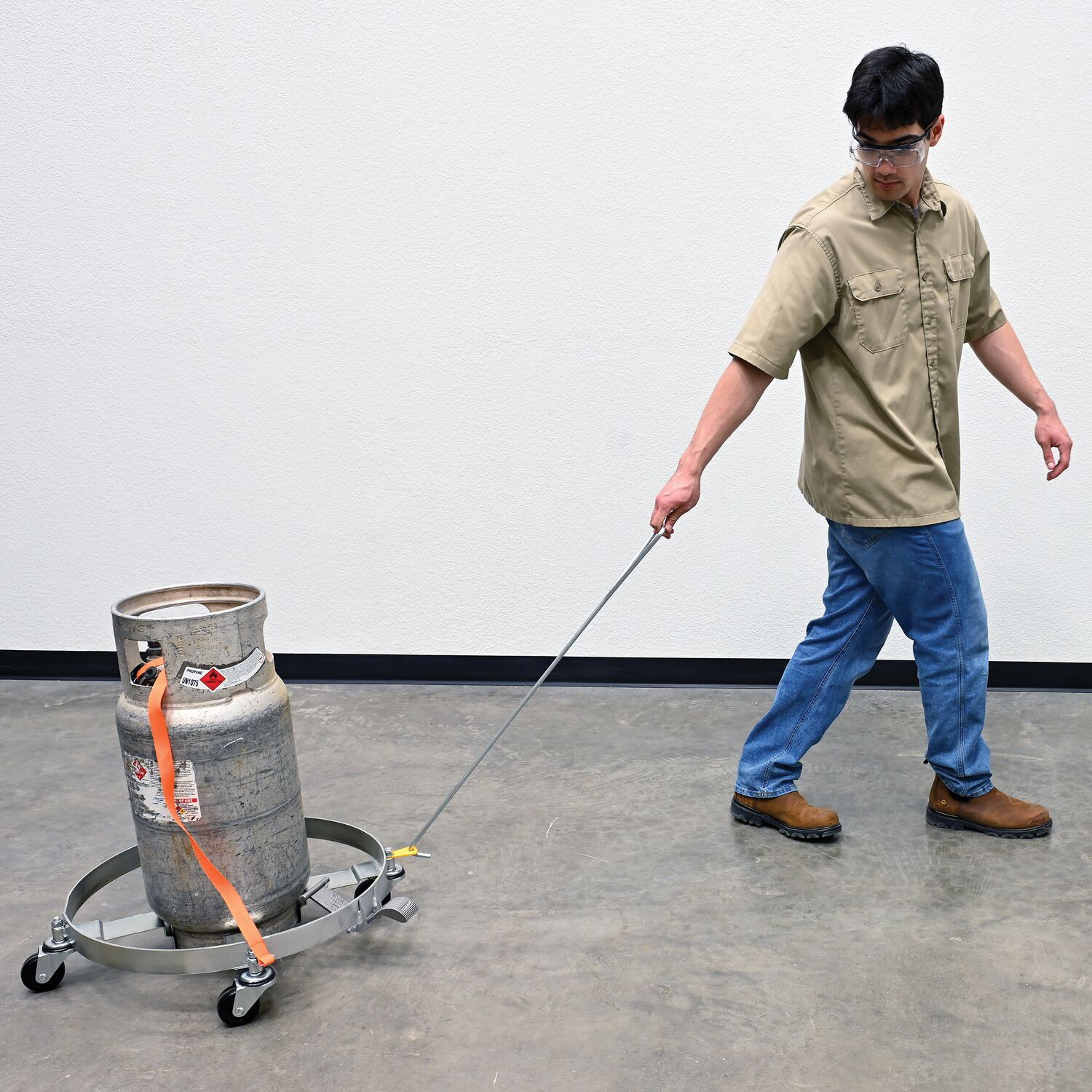

  • Includes a handle that is lightweight and strong for maximum efficiency

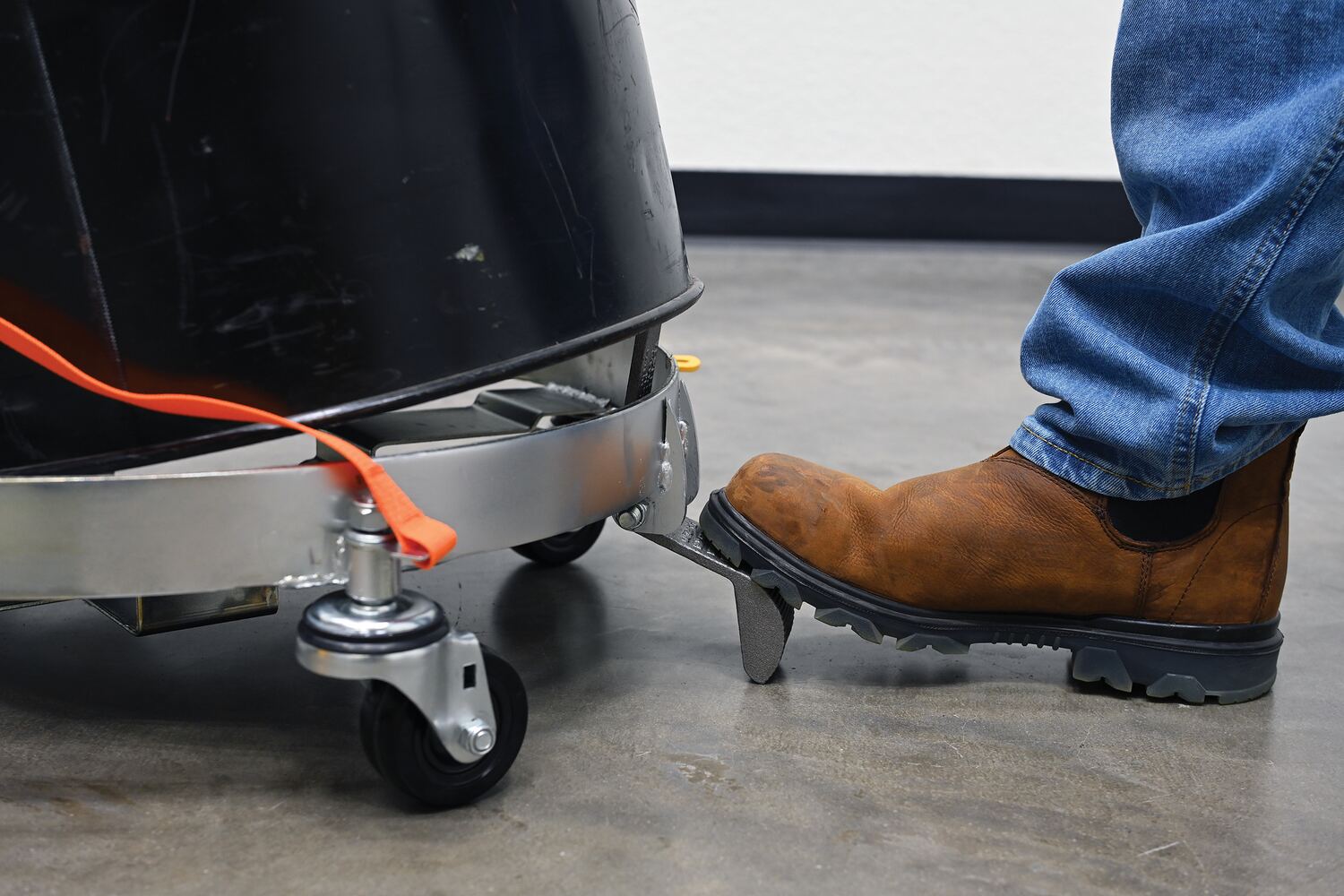

  • Includes a foot operated tilting feature which is ideal for ergonomic drum handling

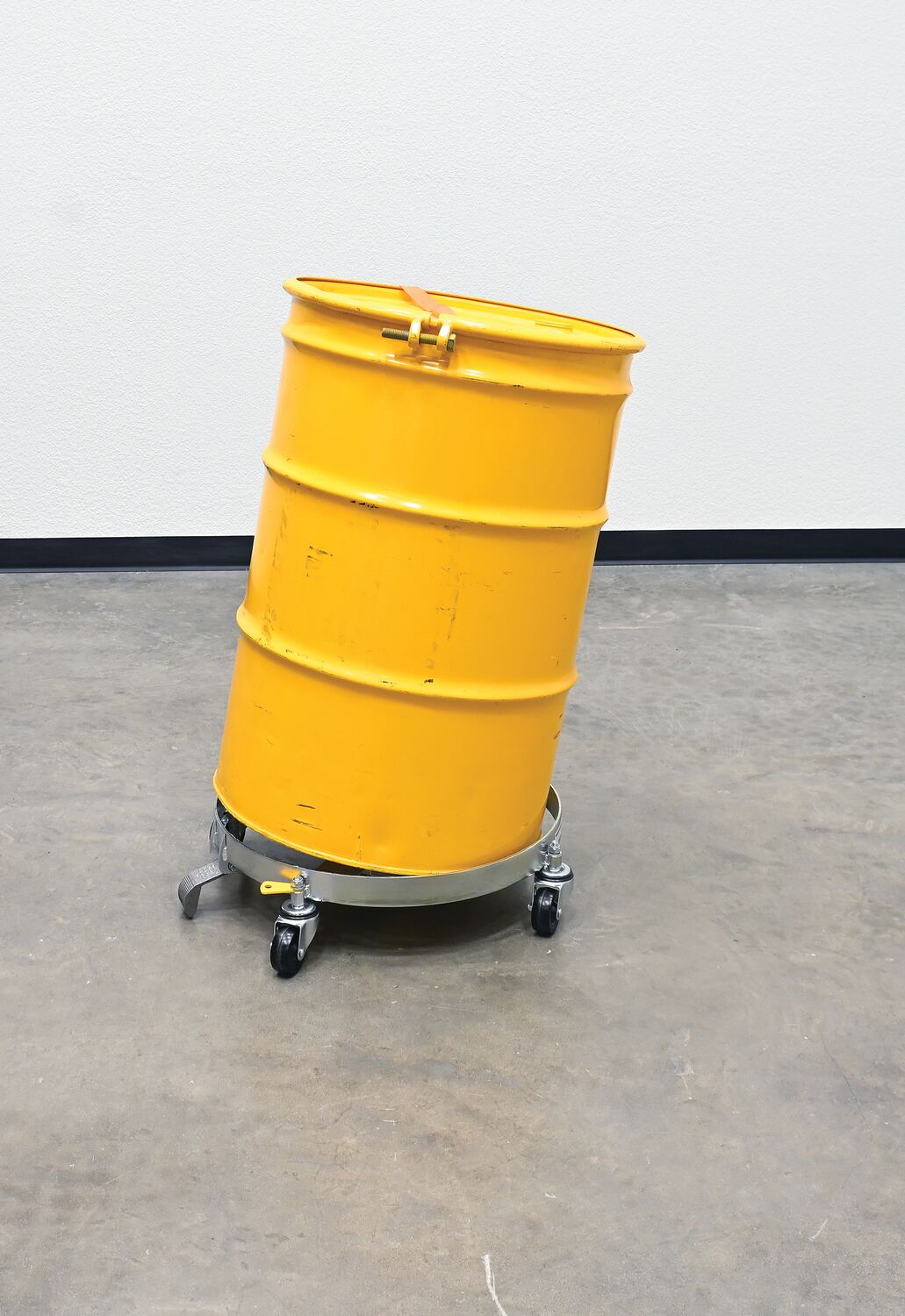

  • Tilt feature can be locked into place for secure handling during extraction
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 27 lbs
Assembled Size 30.875"W x 30.875"L x 6.25"H
Total Ship Weight 27 lbs
Package 1 Size 25"W x 25"D x 7"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 1,000
Uniform Tilt Capacity (lb.) 200
Tilt (degree) 10

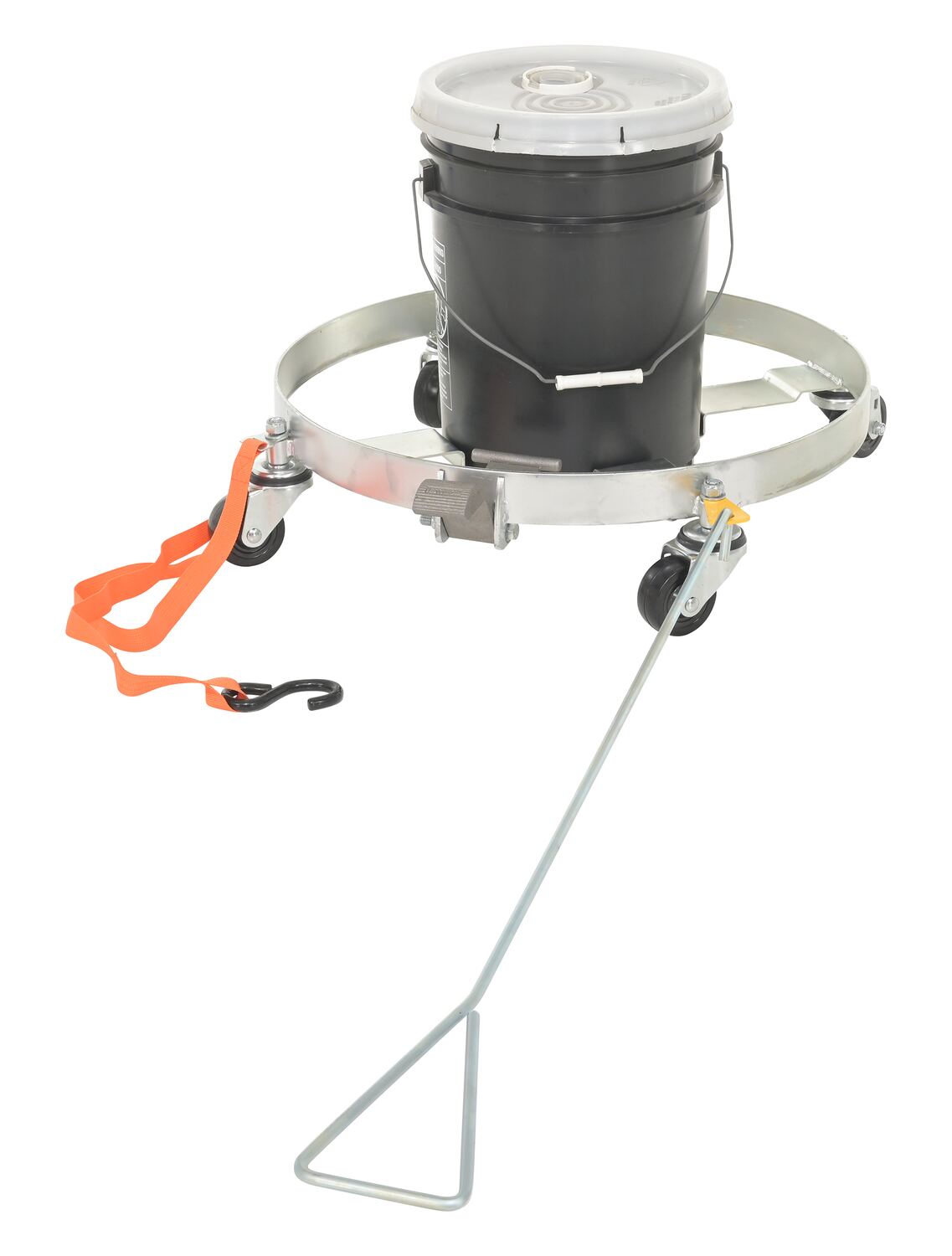

Transports 5-gallon pail, 30 & 55-gallon drums
Caster Quantity/Diameter/Width (in.) (4) 3 x 1-1/4
Caster Material Hard Rubber
Inside Diameter (in.) 23-1/2
Handle Length (in.) 36
Lip Height (in.) 1-7/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DRUM-DRH-HR-TLT
Product Name
Steel Mobile Tilting Drum Dolly with Handle 30-7/8 In. x 30-7/8 In. x 6-1/4 In. 1000 Lb. Capacity Silver
UPC
691215076593
GTIN
00691215076593
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Drum Movers
Taxonomy 4
Drum Dollies
Assembled Depth (in.)
30.875
Assembled Width(in.)
30.875
Assembled Height(in.)
6.25
Assembled Weight(lbs.)
27
Color/Finish
Silver
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
25
Package Width (in.)
25
Package Height (in.)
7
Package Weight (in.)
27
Freight Class
70
NMFC Code
Dollie material handling NOI wood and or steel
NMFC Number
189035
LTL Freight
Parcel
UNSPSC
24101503
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DRUM-DRH-HR-TLT

DRUM-DRH-HR-TLT

Steel Mobile Tilting Drum Dolly with Handle 30-7/8 In. x 30-7/8 In. x 6-1/4 In. 1000 Lb. Capacity Silver

The tilting drum dolly is ideal for manufacturing and industrial facilities. The dolly creates an ergonomically friendly way of transporting 55 gallon drums. The steel construction design is lightweight, yet strong, for use in the harshest of environments, while, the hard rubber casters provide a smooth transition from work station to work station. The tilting feature is foot operated and is locked into place for secure handling during extraction.

  • Tilting drum dolly creates an ergonomic way of transporting 55-gallon drums for ideal operation
  • Includes a handle that is lightweight and strong for maximum efficiency
  • Includes a foot operated tilting feature which is ideal for ergonomic drum handling
  • Tilt feature can be locked into place for secure handling during extraction

Core Data

Assembled Weight: 27 Assembled Size: 30.875"W x 30.875"L x 6.25"H Color: Silver
Total Ship Weight: 27 Package 1 Size: 25"W x 25"D x 7"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 1,000
Uniform Tilt Capacity (lb.): 200
Tilt (degree): 10
Transports: 5-gallon pail, 30 & 55-gallon drums
Caster Quantity/Diameter/Width (in.): (4) 3 x 1-1/4
Caster Material: Hard Rubber
Inside Diameter (in.): 23-1/2
Handle Length (in.): 36
Lip Height (in.): 1-7/8
