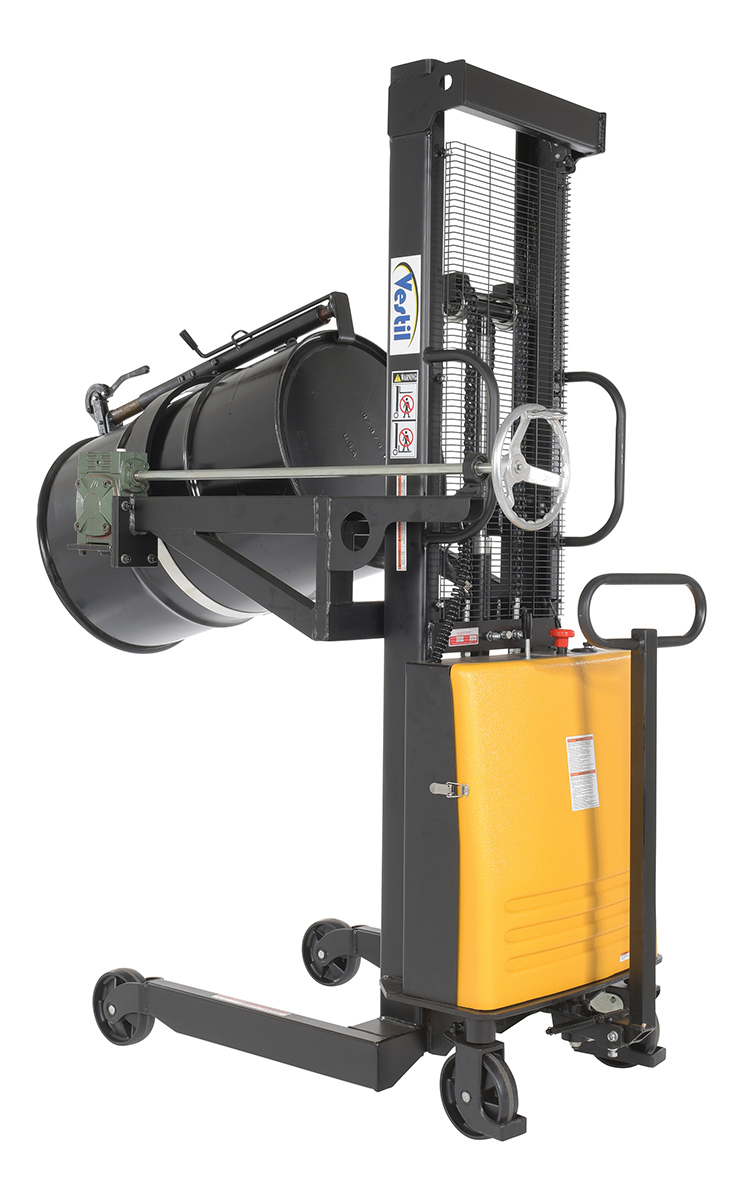

Steel DC Powered Drum Lifter/Rotator/Transporter 61 In. x 36-1/4 In. x 88 In. 550 Lb. Capacity Black/Yellow

DC-Powered Portable Drum Lifter/rotator/transporter for Opening, Moving, and Handling Industrial Drums and Barrels, 550 lb. Capacity with 61 in. x 36-1/4 in. x 88 in., Black and Yellow

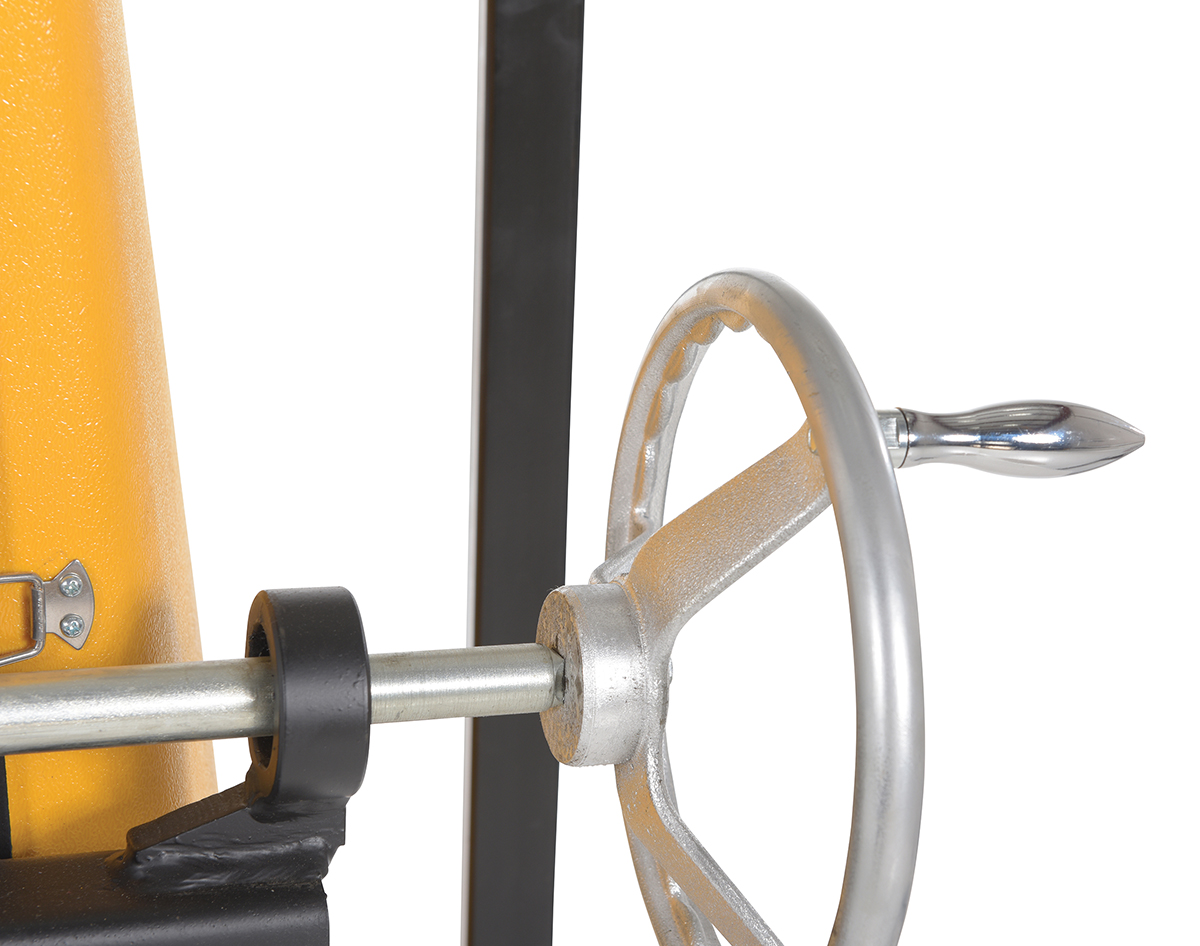

A portable Drum Lifter/rotator/transporter has a DC battery powered lift operation and a manual hand crank gear mechanism rotation (on-board charger standard). For use with steel and fiber drums.
Product Status
Available QuickShip
Key Features
  • Unique design works with 55 gallon drums
  • Caster style rolls smoothly when loaded
  • Solid steel construction offers long lasting rugged use
  • Drum lifter design lifts, rotates & transports drums easily
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   DRUM-LRT Portable Drum Lifter Rotator Transporter   Hydraulic Oil SDS   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 629 lbs
Assembled Size 36.25"W x 61"L x 88"H
Total Ship Weight 768 lbs
Package 1 Size 41"W x 65"D x 88"H
Color / Finish Black / Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 550
Vertical Raised Height (in.) 62
Horizontal (Dump) Raised Height (in.) 67
Drum Size 55-gallon
Drum Diameter (in.) 24
Drum Type Steel, Fiber
Rotation (degrees) 360
Operates DC Power
Battery (volts) 12
Leg Type Fixed
Caster Material Nylon

Battery Information

Battery Depth 11
Battery Width 7
Battery Height 9
Battery Weight 42
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DRUM-LRT-DC
Product Name
Steel DC Powered Drum Lifter/Rotator/Transporter 61 In. x 36-1/4 In. x 88 In. 550 Lb. Capacity Black/Yellow
UPC
691215015554
GTIN
00691215015554
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Accessories
Taxonomy 4
Drum Rotators / Carriers
Taxonomy 5
Electric
Assembled Depth (in.)
61
Assembled Width(in.)
36.25
Assembled Height(in.)
88
Assembled Weight(lbs.)
629
Color/Finish
Black / Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
65
Package Width (in.)
41
Package Height (in.)
88
Package Weight (in.)
768
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101903
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
42
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DRUM-LRT-DC

DRUM-LRT-DC

Steel DC Powered Drum Lifter/Rotator/Transporter 61 In. x 36-1/4 In. x 88 In. 550 Lb. Capacity Black/Yellow

A portable Drum Lifter/rotator/transporter has a DC battery powered lift operation and a manual hand crank gear mechanism rotation (on-board charger standard). For use with steel and fiber drums.

  • Unique design works with 55 gallon drums
  • Caster style rolls smoothly when loaded
  • Solid steel construction offers long lasting rugged use
  • Drum lifter design lifts, rotates & transports drums easily

Core Data

Assembled Weight: 629 Assembled Size: 36.25"W x 61"L x 88"H Color: Black / Yellow
Total Ship Weight: 768 Package 1 Size: 41"W x 65"D x 88"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62
Horizontal (Dump) Raised Height (in.): 67
Drum Size: 55-gallon
Drum Diameter (in.): 24
Drum Type: Steel, Fiber
Rotation (degrees): 360
Operates: DC Power
Battery (volts): 12
Leg Type: Fixed
Caster Material: Nylon
