  All Products   Drum Handling Equipment   Drum Transporters, Trucks, Carts & Jacks   Portable Drum Lifter/Rotator/Transporters DRUM-LRT-II
Product Image

Visual Reference

DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II
DRUM-LRT-II

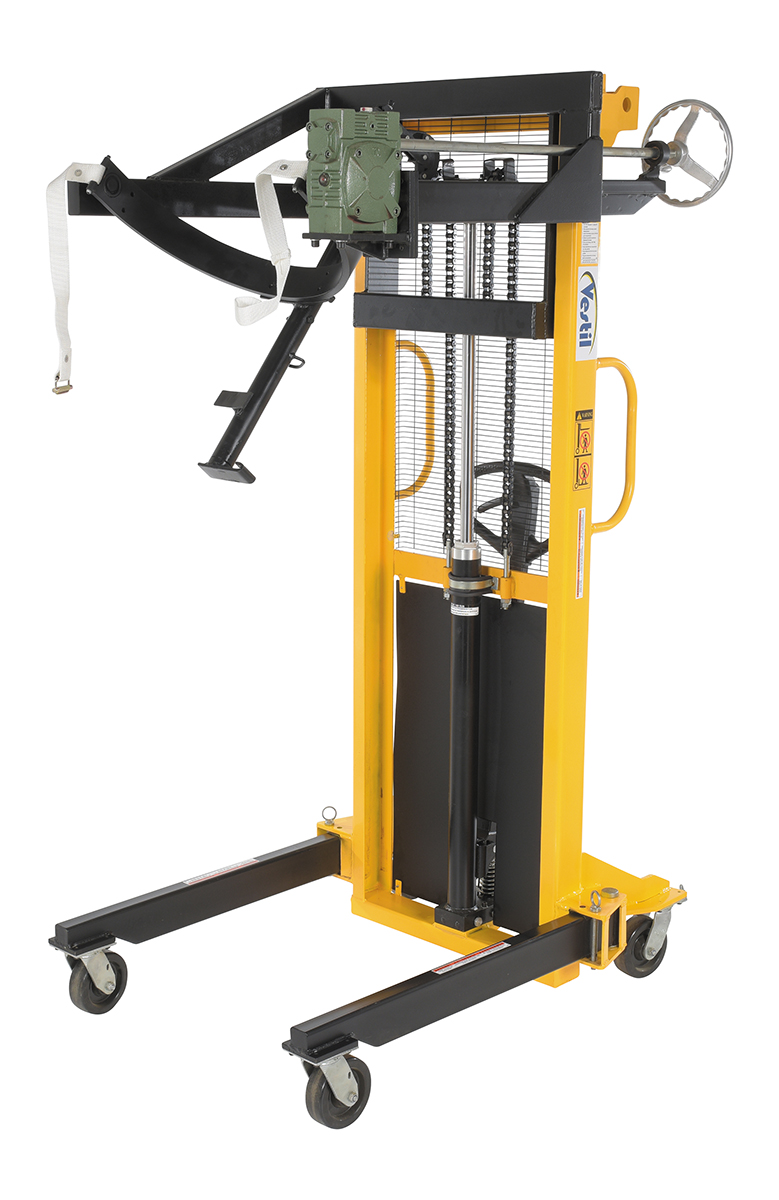

Steel Manual Drum Lifter/Rotator/Transport 51-1/2 In. x 34 In. x 82-5/8 In. 550 Lb. Capacity Yellow/Black

Manual Portable Drum Lifter/rotator/transporter for Opening, Moving, and Handling Industrial Drums and Barrels, 550 lb. Capacity with 51-1/2 in. x 34 in. x 82-5/8 in.
The manual operation, portable Drum Lifter/rotator/transporter features pivoting straddle legs for access to drums on pallets. Legs will manually pivot and lock into place with locking pin.
Product Status
Available QuickShip
Key Features
  • Unique design works with 55 gallon drums
  • Caster style rolls smoothly when loaded
  • Solid steel construction offers long lasting rugged use
  • For use with steel and fiber drums
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   DRUM-LRT Portable Drum Lifter Rotator Transporter   Hydraulic Oil SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 426 lbs
Assembled Size 34"W x 51.5"L x 82.625"H
Total Ship Weight 574 lbs
Package 1 Size 40"W x 64"D x 86"H
Color / Finish Yellow / Black
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 550
Vertical Raised Height (in.) 62
Horizontal (Dump) Raised Height (in.) 67
Drum Size 55-gallon
Drum Diameter (in.) 24
Drum Type Steel, Fiber
Rotation (degrees) 360
Leg Type Pivoting Straddle
Operates Manual
Mast Single
Overall Mast Height (in.) 82-5/8
Steering Wheel Diameter (in.) 7
Steering Wheel Width (in.) 2
Steering Wheel Diameter (in.) 7
Front Wheel Width (in.) 1-1/4
Front Wheel Diameter (in.) 5-9/10
Caster Material Nylon
Pumps to Raise to Maximum Height 71
Turns to rotate to 360 degrees 42
Down Time (seconds) 24.28
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DRUM-LRT-II
Product Name
Steel Manual Drum Lifter/Rotator/Transport 51-1/2 In. x 34 In. x 82-5/8 In. 550 Lb. Capacity Yellow/Black
UPC
691215076609
GTIN
00691215076609
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Accessories
Taxonomy 4
Drum Rotators / Carriers
Taxonomy 5
Manual
Assembled Depth (in.)
51.5
Assembled Width(in.)
34
Assembled Height(in.)
82.625
Assembled Weight(lbs.)
426
Color/Finish
Yellow / Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
86
Package Weight (in.)
574
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101900
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DRUM-LRT-II

DRUM-LRT-II

Steel Manual Drum Lifter/Rotator/Transport 51-1/2 In. x 34 In. x 82-5/8 In. 550 Lb. Capacity Yellow/Black

The manual operation, portable Drum Lifter/rotator/transporter features pivoting straddle legs for access to drums on pallets. Legs will manually pivot and lock into place with locking pin.

  • Unique design works with 55 gallon drums
  • Caster style rolls smoothly when loaded
  • Solid steel construction offers long lasting rugged use
  • For use with steel and fiber drums

Core Data

Assembled Weight: 426 Assembled Size: 34"W x 51.5"L x 82.625"H Color: Yellow / Black
Total Ship Weight: 574 Package 1 Size: 40"W x 64"D x 86"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 550
Vertical Raised Height (in.): 62
Horizontal (Dump) Raised Height (in.): 67
Drum Size: 55-gallon
Drum Diameter (in.): 24
Drum Type: Steel, Fiber
Rotation (degrees): 360
Leg Type: Pivoting Straddle
Operates: Manual
Mast: Single
Overall Mast Height (in.): 82-5/8
Steering Wheel Diameter (in.): 7
Steering Wheel Width (in.): 2
Steering Wheel Diameter (in.): 7
Front Wheel Width (in.): 1-1/4
Front Wheel Diameter (in.): 5-9/10
Caster Material: Nylon
Pumps to Raise to Maximum Height: 71
Turns to rotate to 360 degrees: 42
Down Time (seconds): 24.28
