Steel Mobile Drum Dolly-Adjustable with Cast Steel Wheels 25-7/8 In. x 25-7/8 In. x 5-1/16 In. 1200 Lb. Capacity Blue

Adjustable Drum Dolly for Moving Loads Through Warehouses and Production Areas, 1,200 lb. Capacity with 25-7/8 in. x 25-7/8 in. x 5-1/16 in.
The multi-level drum dolly is ideal for transferring a variety of drum and crate sizes. The steel construction can withstand heavy loads on a daily basis. The smooth finish allows for simple handling from workstation to workstation.
Product Status
Available QuickShip
Key Features
  • Drum dolly transports ordinary or specialty drums easily
  • Cross arm dolly accommodates 30, 55, 85, and 95 gallon drums
  • Adjust to fit multiple square and rectangular crate for more load variety
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

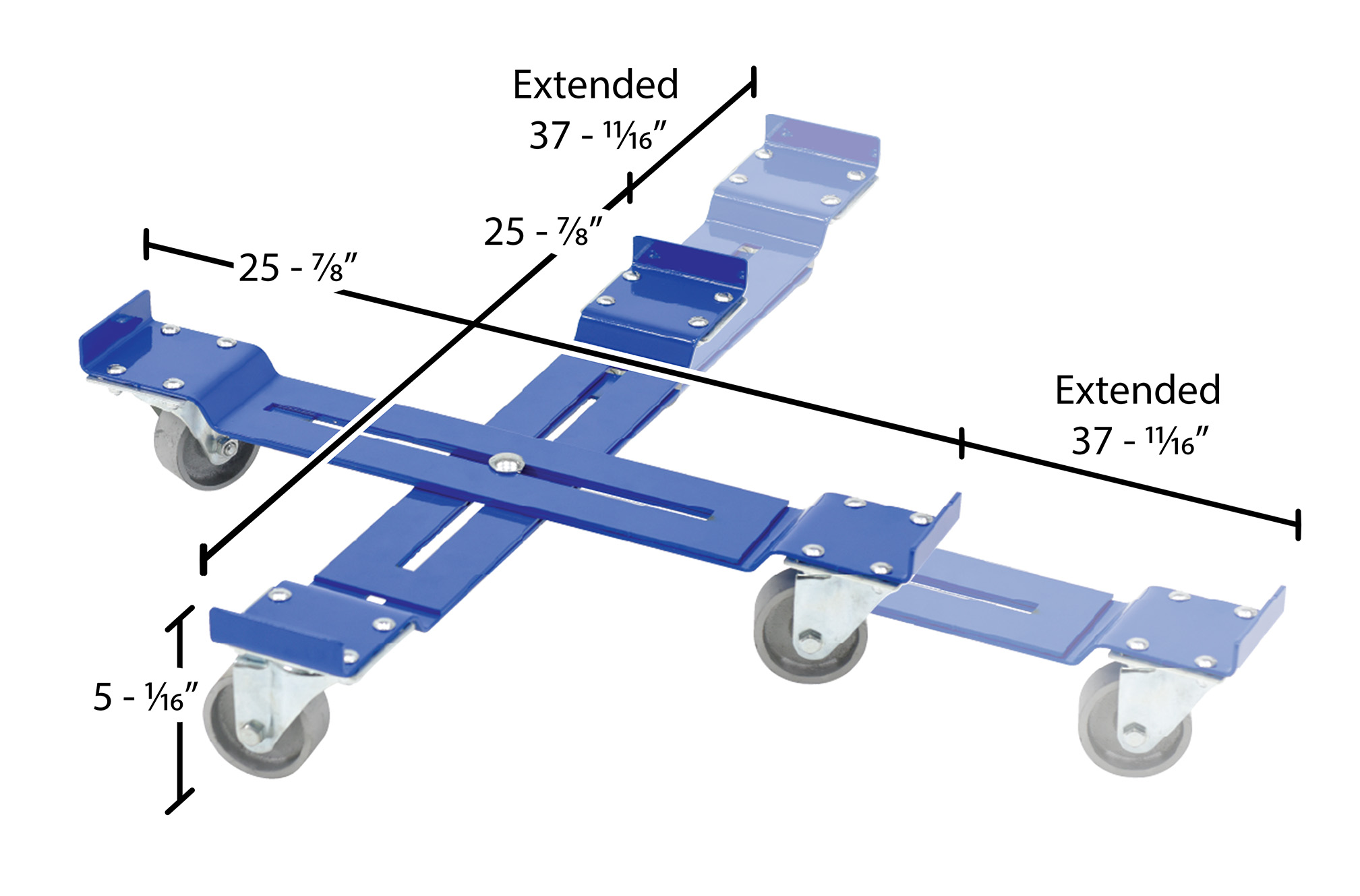

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   DRUM-X Adjustable Drum Dollies Instruction Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 20 lbs
Assembled Size 25.875"W x 25.875"L x 5.0625"H
Total Ship Weight 22 lbs
Package 1 Size 25"W x 25"D x 7"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 1,200
Drum Types 30, 55, 85 & 95-gallon drums
Swivel Caster Quantity/Diameter/Width (in.) (4) 3 x 2-1/2
Caster Material Cast Steel
Extended Width (in.) 37-11/16
Extended Length (in.) 37-11/16
Style Adjustable
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DRUM-X-C
Product Name
Steel Mobile Drum Dolly-Adjustable with Cast Steel Wheels 25-7/8 In. x 25-7/8 In. x 5-1/16 In. 1200 Lb. Capacity Blue
UPC
691215068130
GTIN
00691215068130
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Drum Movers
Taxonomy 4
Drum Dollies
Assembled Depth (in.)
25.875
Assembled Width(in.)
25.875
Assembled Height(in.)
5.0625
Assembled Weight(lbs.)
20
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
25
Package Width (in.)
25
Package Height (in.)
7
Package Weight (in.)
22
Freight Class
70
NMFC Code
Dollie material handling NOI wood and or steel
NMFC Number
189035
LTL Freight
Parcel
UNSPSC
24101503
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DRUM-X-C

DRUM-X-C

Steel Mobile Drum Dolly-Adjustable with Cast Steel Wheels 25-7/8 In. x 25-7/8 In. x 5-1/16 In. 1200 Lb. Capacity Blue

The multi-level drum dolly is ideal for transferring a variety of drum and crate sizes. The steel construction can withstand heavy loads on a daily basis. The smooth finish allows for simple handling from workstation to workstation.

  • Drum dolly transports ordinary or specialty drums easily
  • Cross arm dolly accommodates 30, 55, 85, and 95 gallon drums
  • Adjust to fit multiple square and rectangular crate for more load variety
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 20 Assembled Size: 25.875"W x 25.875"L x 5.0625"H Color: Blue
Total Ship Weight: 22 Package 1 Size: 25"W x 25"D x 7"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 1,200
Drum Types: 30, 55, 85 & 95-gallon drums
Swivel Caster Quantity/Diameter/Width (in.): (4) 3 x 2-1/2
Caster Material: Cast Steel
Extended Width (in.): 37-11/16
Extended Length (in.): 37-11/16
Style: Adjustable
