Steel Overhead Door Track Protector 6 In. x 6 In. x 48-1/4 In. Yellow

Overhead Door Barrier for Organized Warehouse Storage and Material Support, 6 in. x 6 in. x 48-1/4 in.
Protect the tracks of overhead doors from fork trucks, pallet trucks, and other traffic with this solid steel constructed, economical overhead Door Track protector. Safety yellow powder coat finish for long term wear. Steel construction.
Product Status
Available QuickShip
Key Features
  • Angle design protects track for overhead doors from damage
  • Universal design may be used on either left or right side of door
  • Easy-to-install design only requires three bolts
  • Heavy-duty steel construction provides durable long lasting use
Quick Actions

Product Resources

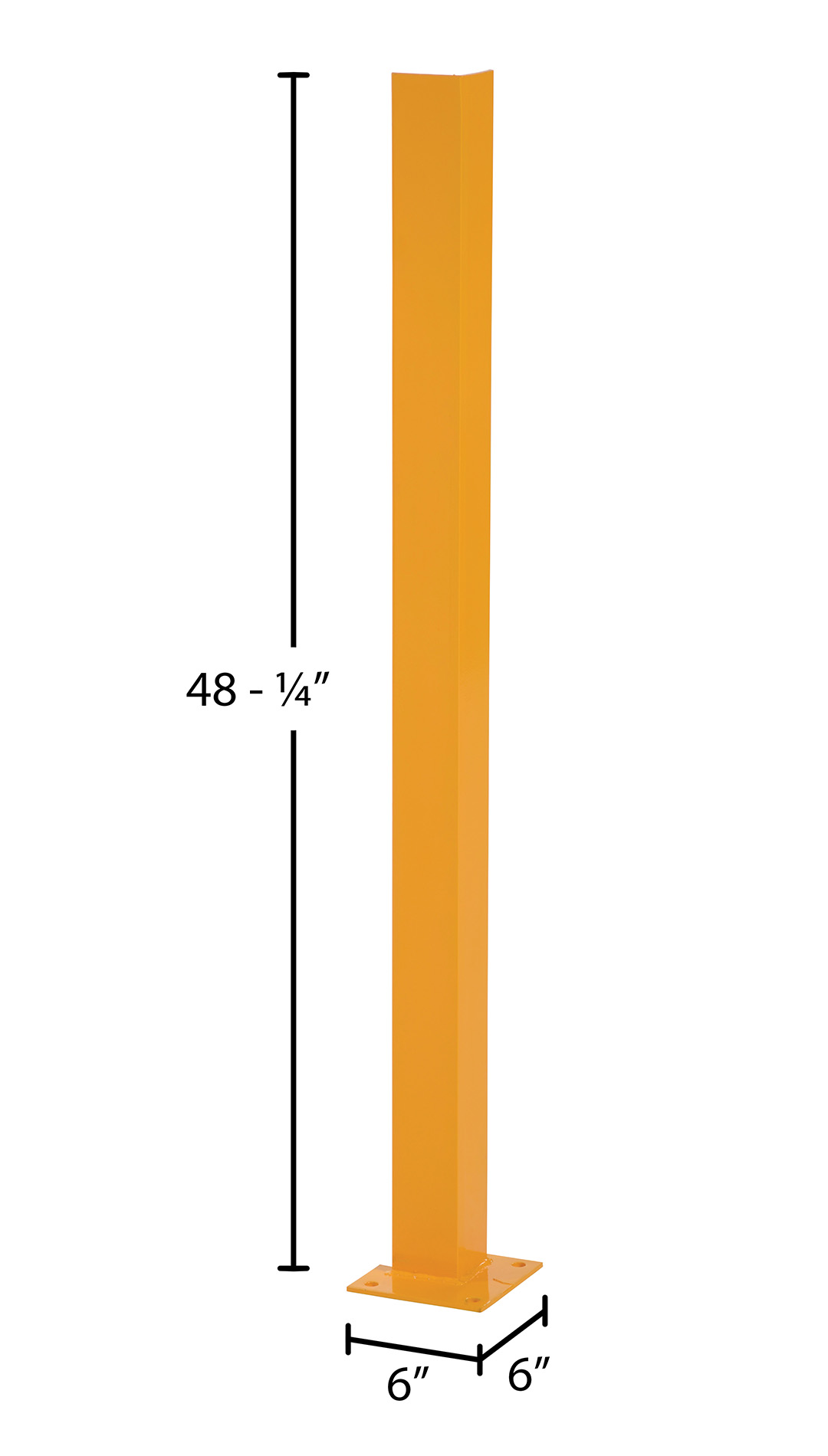

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   DSP Series Overhead Door Track Protectors Owners Manual   90 Days Warranty
Product Data

Core Data

Assembled Weight 19 lbs
Assembled Size 6"W x 6"L x 48.25"H
Total Ship Weight 19 lbs
Package 1 Size 7"W x 49"D x 7"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Base Plate Notch Out (in.) 3
Mounting Hole Diameter (in.) 9/16
Bolt Hole (qty.) 3
Extended Product Details

Marketing Specs.

MFG Model # (Series)
DSP-48
Product Name
Steel Overhead Door Track Protector 6 In. x 6 In. x 48-1/4 In. Yellow
UPC
691215015844
GTIN
00691215015844
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Door Protection
Taxonomy 4
Track Protectors
Assembled Depth (in.)
6
Assembled Width(in.)
6
Assembled Height(in.)
48.25
Assembled Weight(lbs.)
19
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
IN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
49
Package Width (in.)
7
Package Height (in.)
7
Package Weight (in.)
19
Subclass
2
Freight Class
100
NMFC Code
Machine Guards iron steel or wire
NMFC Number
124560
LTL Freight
Parcel
UNSPSC
46171516
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: DSP-48

DSP-48

Steel Overhead Door Track Protector 6 In. x 6 In. x 48-1/4 In. Yellow

Protect the tracks of overhead doors from fork trucks, pallet trucks, and other traffic with this solid steel constructed, economical overhead Door Track protector. Safety yellow powder coat finish for long term wear. Steel construction.

  • Angle design protects track for overhead doors from damage
  • Universal design may be used on either left or right side of door
  • Easy-to-install design only requires three bolts
  • Heavy-duty steel construction provides durable long lasting use

Core Data

Assembled Weight: 19 Assembled Size: 6"W x 6"L x 48.25"H Color: Yellow
Total Ship Weight: 19 Package 1 Size: 7"W x 49"D x 7"H Freight: Parcel

Specifications

Base Plate Notch Out (in.): 3
Mounting Hole Diameter (in.): 9/16
Bolt Hole (qty.): 3
