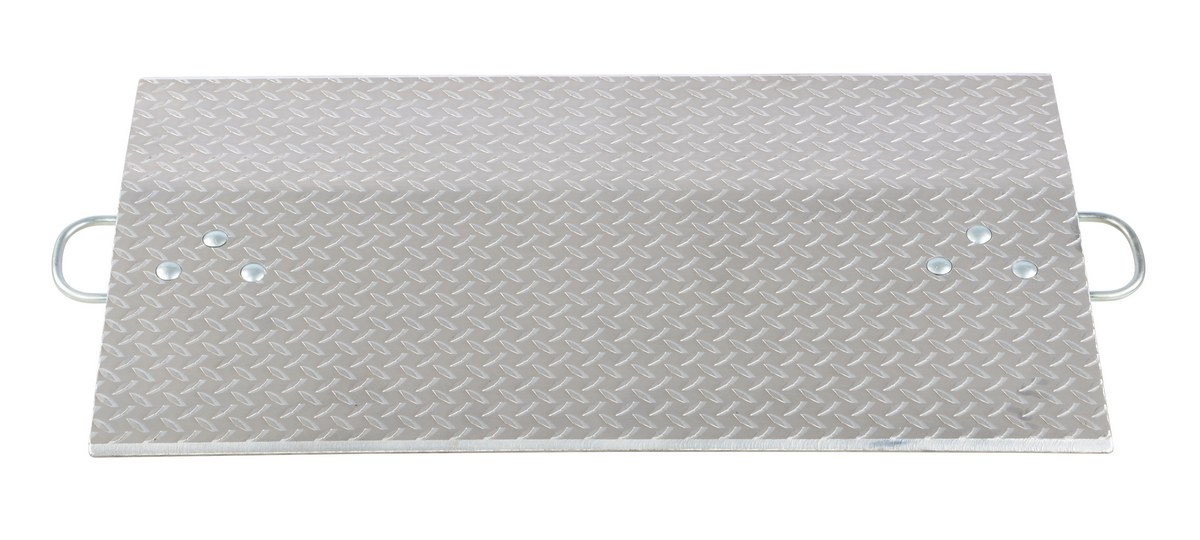

Aluminum Economizer Dock Plate Usable 36 In. x 24 In. 3/8 In. Plate Thickness 3600 Lb. Capacity

Aluminum Hand Truck Dockplate for Trailer Loading, Dock Access, and Material Transfer, 3,600 lb. Capacity with 36 in. x 24 in.
The aluminum economizer dock plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. The dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.
Product Status
Available QuickShip
Key Features
  • Sturdy design is ideal for foot traffic, hand trucks and pallet trucks (not for use with fork trucks)
  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs and lifting handles are OSHA compliant
  • Beveled entrance and exit edges allow for smoother transition
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   A, AH, E, EH Dockboards Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 44 lbs

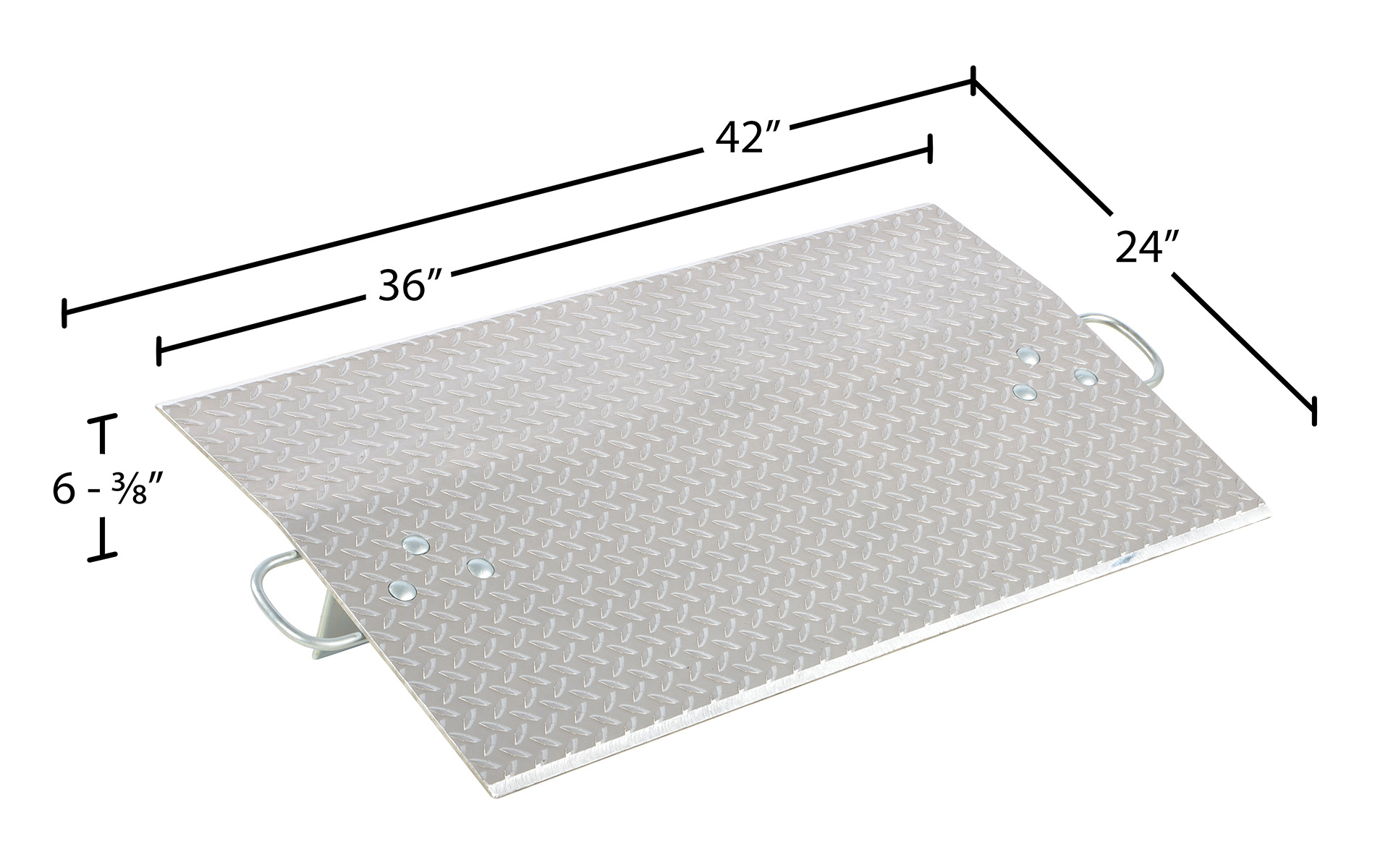

Assembled Size 42"W x 24"L x 6.375"H
Total Ship Weight 66 lbs
Package 1 Size 36"W x 24"D x 3"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 3600
Bend or Crown (degrees) 11
Distance Between Bend or Crown From Dockplate Edge (in.) 9
Usable Width (in.) 36
Usable Length (in.) 24
Plate Thickness (in.) 3/8
Height Difference Between Truck and Door (in.) 3
Leg Height (in.) 6
OSHA 1910.30(a)
ANSI MH 30.2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
E-3624
Product Name
Aluminum Economizer Dock Plate Usable 36 In. x 24 In. 3/8 In. Plate Thickness 3600 Lb. Capacity
UPC
691215016063
GTIN
00691215016063
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Dockplates
Assembled Depth (in.)
24
Assembled Width(in.)
42
Assembled Height(in.)
6.375
Assembled Weight(lbs.)
44
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
24
Package Width (in.)
36
Package Height (in.)
3
Package Weight (in.)
54
Subclass
1
Freight Class
100
NMFC Code
Ramps Dockboards freight loading not mechanical
NMFC Number
168720
Package 2 Depth (in.)
11
Package 2 Width (in.)
11
Package 2 Height (in.)
8
Package 2 Weight (lbs.)
12
Package 2 Subclass
9
Package 2 Freight Class
70
Package2 NMFC Number
95190
LTL Freight
Parcel
UNSPSC
24101807
HTSUS Number
7610.90.0080
USMCA HS
7610.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: E-3624

E-3624

Aluminum Economizer Dock Plate Usable 36 In. x 24 In. 3/8 In. Plate Thickness 3600 Lb. Capacity

The aluminum economizer dock plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. The dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.

  • Sturdy design is ideal for foot traffic, hand trucks and pallet trucks (not for use with fork trucks)
  • High-strength aluminum tread plate material is durable yet lightweight
  • Zinc-plated locking legs and lifting handles are OSHA compliant
  • Beveled entrance and exit edges allow for smoother transition

Core Data

Assembled Weight: 44 Assembled Size: 42"W x 24"L x 6.375"H Color: Silver
Total Ship Weight: 66 Package 1 Size: 36"W x 24"D x 3"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 3600
Bend or Crown (degrees): 11
Distance Between Bend or Crown From Dockplate Edge (in.): 9
Usable Width (in.): 36
Usable Length (in.): 24
Plate Thickness (in.): 3/8
Height Difference Between Truck and Door (in.): 3
Leg Height (in.): 6
OSHA: 1910.30(a)
ANSI: MH 30.2
