Steel Geared Eye Manual Trolley 1000 Lb. Capacity Orange

Manual Lift Trolleys for Overhead Load Lifting and Controlled Positioning, 1,000 lb. Capacity, Orange Finish – Model E-MT-1-C

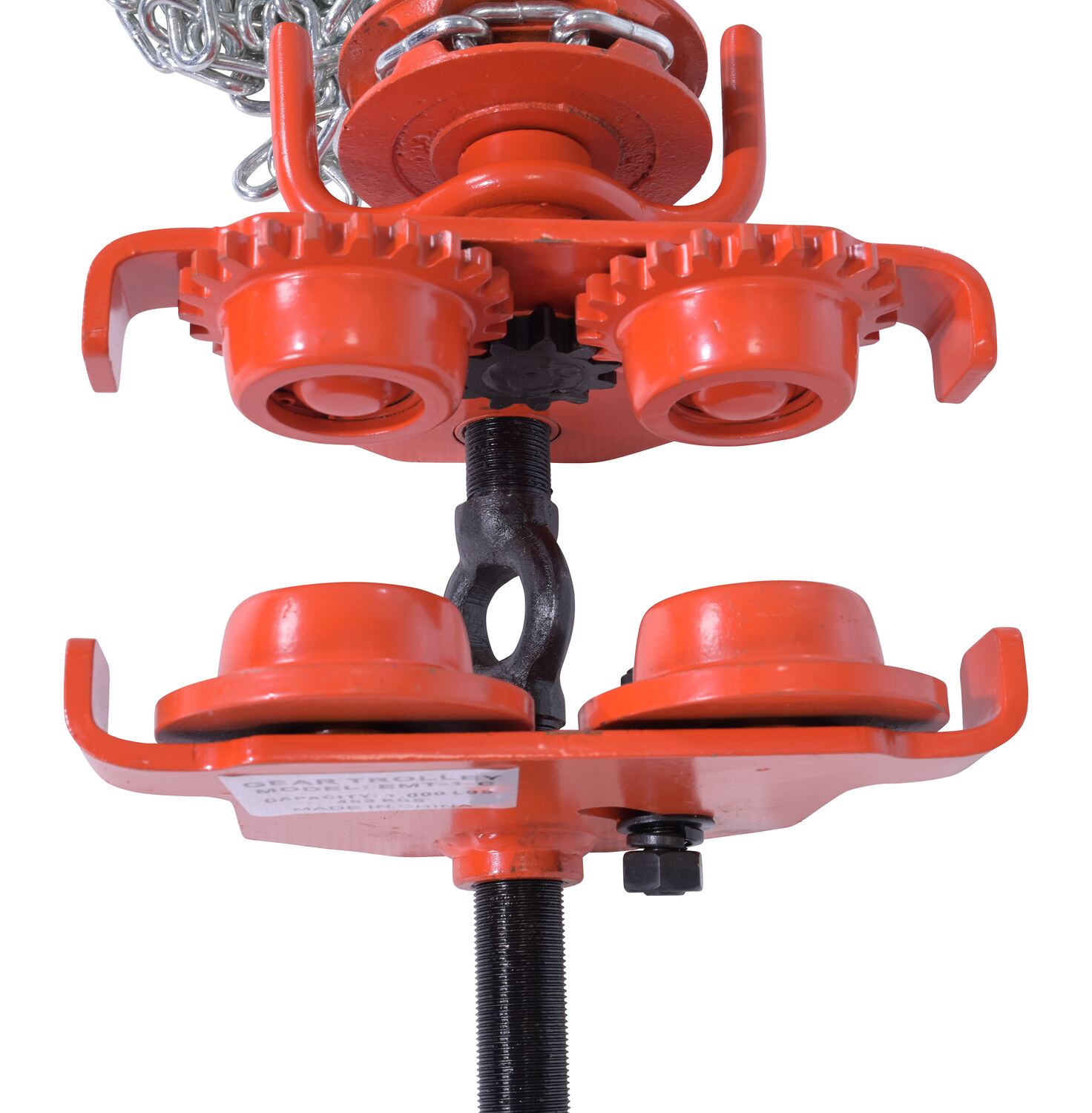

This low profile manual trolley has been designed to quickly install on virtually any S, H, W and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once the hoist (not included) is attached, the center rod cannot be rotated which prevents the trolley width from accidentally changing. This geared trolley is ideal for when precise positioning of the trolley is required. It includes four (4) rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). The trolley features steel construction and a painted finish.
Product Status
Available QuickShip
Key Features
  • Fits tapered (S & I beams) and Flat-Flanged Beams (W-Beams)

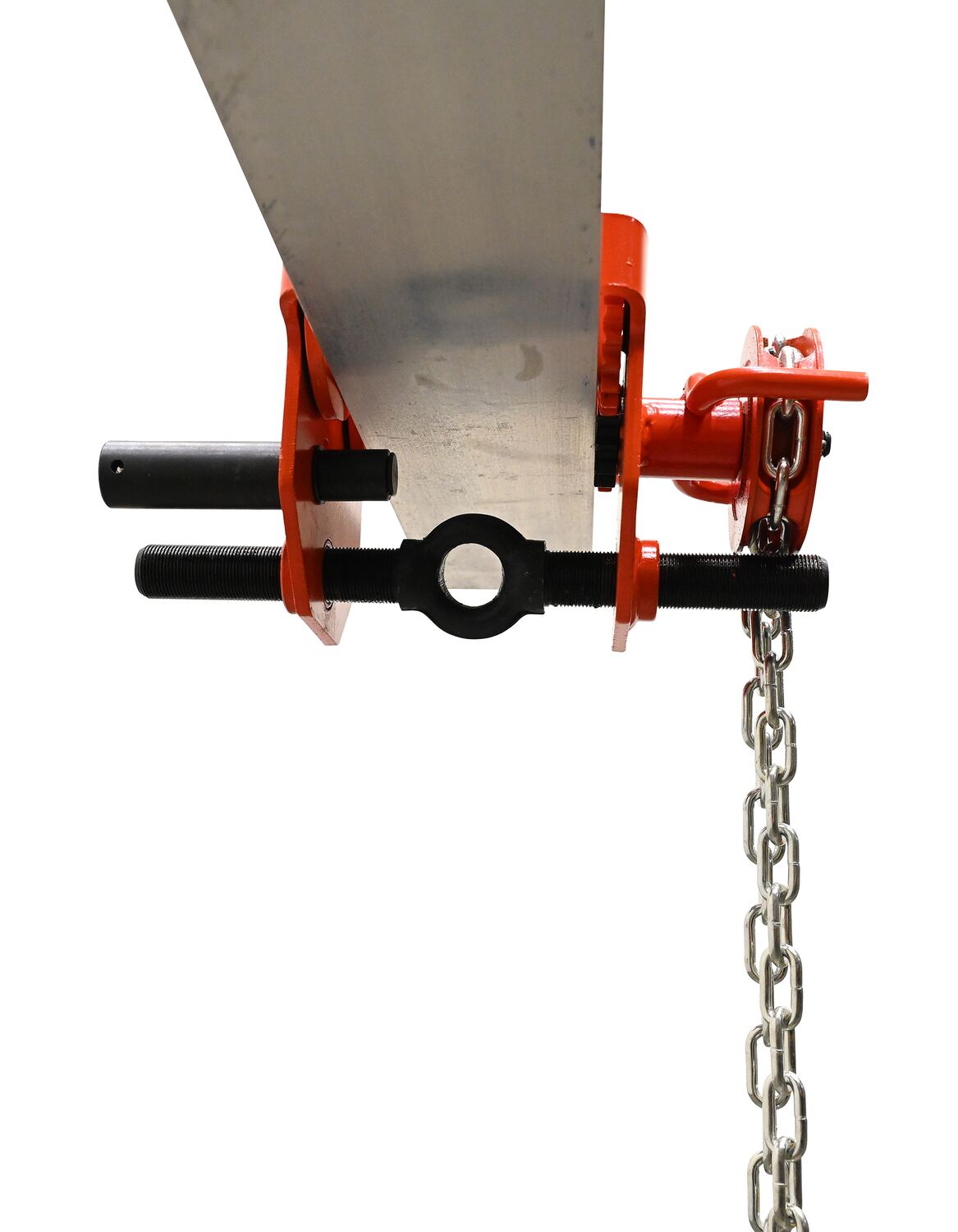

  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Series E-MT Eye Manual Trollies Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 18 lbs
Assembled Size 12"W x 8"L x 6.25"H
Total Ship Weight 21 lbs
Package 1 Size 11"W x 12"D x 7"H
Color / Finish Orange
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 1,000
Fits Beam Flange Width (in.) 2-1/2 to 5-1/2
Headroom (in.) 4-1/2
Operation Manual Chain Gear

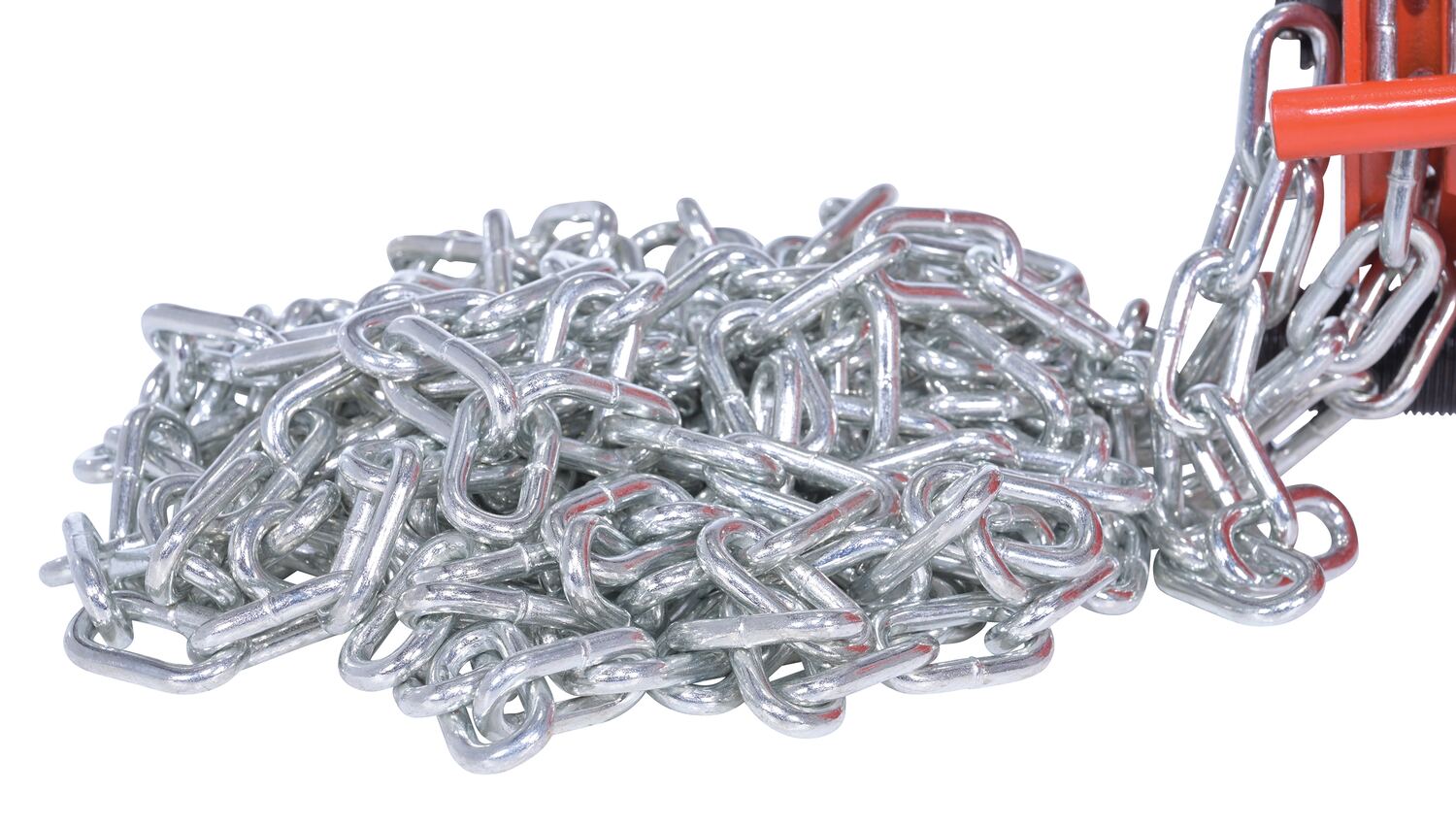

Chain Length (ft.) 10
Extended Product Details

Marketing Specs.

MFG Model # (Series)
E-MT-1-C
Product Name
Steel Geared Eye Manual Trolley 1000 Lb. Capacity Orange
UPC
691215018609
GTIN
00691215018609
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Manual Trollies
Assembled Depth (in.)
8
Assembled Width(in.)
12
Assembled Height(in.)
6.25
Assembled Weight(lbs.)
18
Color/Finish
Orange
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
12
Package Width (in.)
11
Package Height (in.)
7
Package Weight (in.)
21
Freight Class
70
NMFC Code
Trolleys overhead track iron with or without gear
NMFC Number
132450
LTL Freight
Parcel
UNSPSC
24101706
HTSUS Number
8425.19.0000
USMCA HS
8425.19
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: E-MT-1-C

E-MT-1-C

Steel Geared Eye Manual Trolley 1000 Lb. Capacity Orange

This low profile manual trolley has been designed to quickly install on virtually any S, H, W and M type I-beam. The width of the trolley is adjusted by rotating the center rod with lifting eye clockwise or counterclockwise. Once the hoist (not included) is attached, the center rod cannot be rotated which prevents the trolley width from accidentally changing. This geared trolley is ideal for when precise positioning of the trolley is required. It includes four (4) rollers with sealed bearings for long life. A lifting eye is located at the bottom of the trolley for attaching a hoist (not included). The trolley features steel construction and a painted finish.

  • Fits tapered (S & I beams) and Flat-Flanged Beams (W-Beams)
  • Turning center screw with eye easily adjusts trolley width
  • Solid steel construction provides long lasting rugged use
  • Sealed bearings provide long life

Core Data

Assembled Weight: 18 Assembled Size: 12"W x 8"L x 6.25"H Color: Orange
Total Ship Weight: 21 Package 1 Size: 11"W x 12"D x 7"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2
Headroom (in.): 4-1/2
Operation: Manual Chain Gear
Chain Length (ft.): 10
