Electric Powered Tugger with 3000 Lb. Pull Capacity Yellow/Black

Electric Powered Tugger with for Moving Loads Through Warehouses and Production Areas, 3,000 lb. Capacity
The electric powered Tuggers are ideal for industrial facilities, hospitals, airports, and wholesale/retail stores. The unit is designed of a durable construction for constantly strong use on a daily basis. Tugger is perfect for confined areas due to its short turning radius. An infinite throttle position allows for unlimited forward and reverse adjustments for precise positioning. Unit can be tilted forward manually to align the hitch if needed. An integral battery charger and level gauge allow for convenient as needed charging and level awareness. Pin hitch standard, optional attachments available.
Product Status
Available QuickShip
Key Features
  • Ergonomic handle for easy operation while diminishing the need of bending and twisting
  • Dead-man activation for the utmost safety and security
  • Forward and reverse operations for precise maneuverability
  • High torque for heavy duty operations
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Series E-TUG Electric Powered Tuggers Manual   Label Page PDF   Hydraulic Oil SDS   Valve-Regulated Lead Acid Battery Series SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 375 lbs

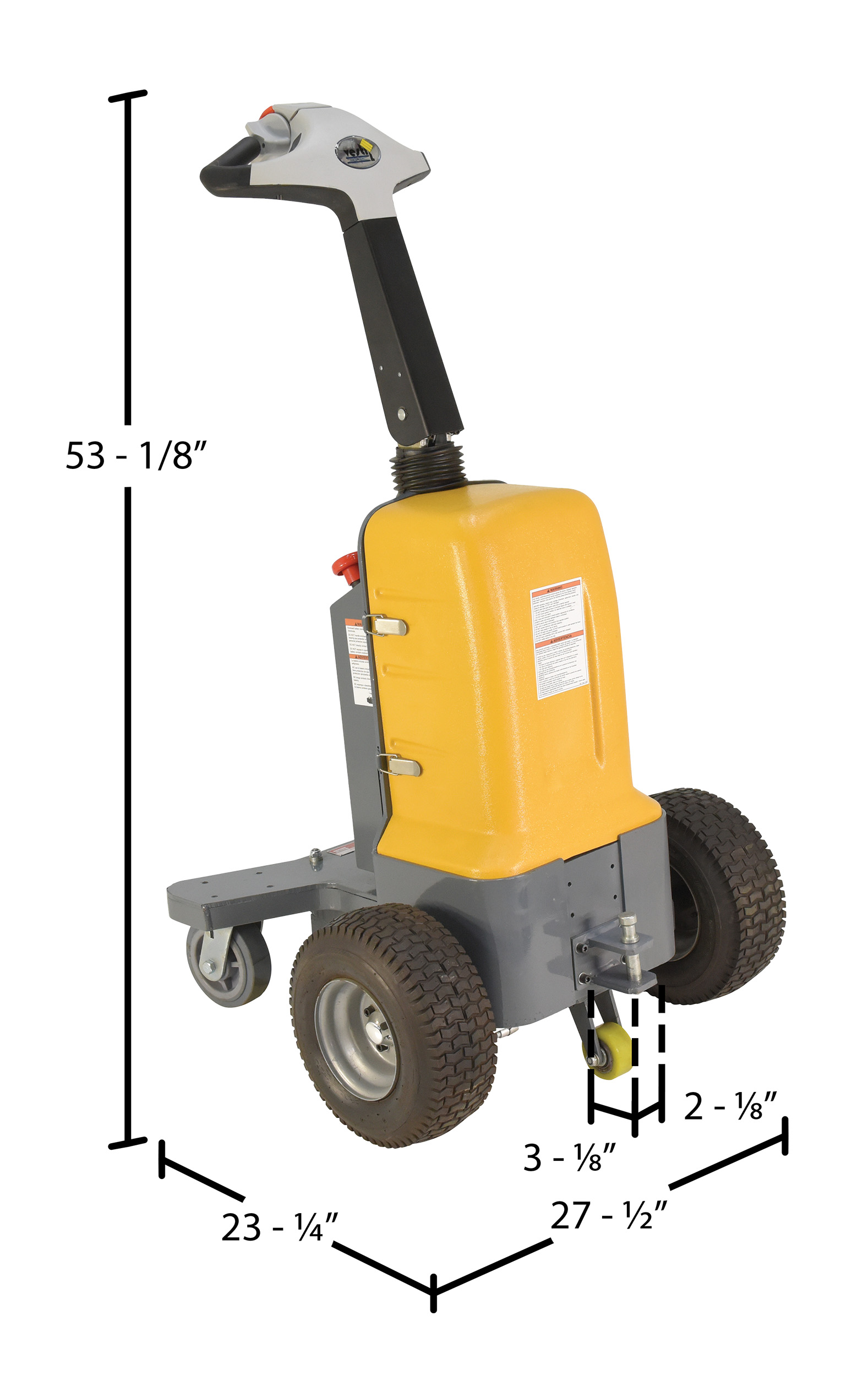

Assembled Size 27.5"W x 23.25"L x 53.125"H
Total Ship Weight 434 lbs
Package 1 Size 41"W x 49"D x 60"H
Color / Finish Black & Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Pull Capacity (lbs.) 3,000
Drive Motor 24V DC
Battery Qty./Volts (2) 12V
Horsepower (HP) 1
Handle Height (in.) 53-1/8
Wheel Qty./Size (in.) (2) 12 x 4-3/4
Wheel Material Solid Foam
Rear Caster Qty./Size (in.) (2) 4 x 1-1-4
Caster Material Polyurethane
Loaded Speed (MPH) 2.3
Unloaded Speed (MPH) 2.7
Maximum Gradeability (degrees) 2
Unloaded Gradeability (degrees) 3

Battery Information

Battery Depth 7.76
Battery Width 5.125
Battery Height 7.125
Battery Weight 21.67
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description Batteries or Cells, Offered for transportation as a Hazard Class 4, 8 or 9
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
E-TUG-30
Product Name
Electric Powered Tugger with 3000 Lb. Pull Capacity Yellow/Black
UPC
691215320863
GTIN
00691215320863
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Trailer Mover
Assembled Depth (in.)
23.25
Assembled Width(in.)
27.5
Assembled Height(in.)
53.125
Assembled Weight(lbs.)
375
Color/Finish
Black & Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
E-TUG-ABMH, E-TUG-ADSH, E-TUG-MCLA, E-TUG-MM, E-TUG-PINH, E-TUG-SABH

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
49
Package Width (in.)
41
Package Height (in.)
60
Package Weight (in.)
434
Subclass
6
Freight Class
200
NMFC Code
Tugs or Tuggers, used for pushing or pulling heavy, wheeled equipment or vehicles
NMFC Number
190236
LTL Freight
LTL Palletized
UNSPSC
24101513
HTSUS Number
8427.20.8090
USMCA HS
8427.20
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
21.67
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
Batteries or Cells, Offered for transportation as a Hazard Class 4, 8 or 9
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: E-TUG-30

E-TUG-30

Electric Powered Tugger with 3000 Lb. Pull Capacity Yellow/Black

The electric powered Tuggers are ideal for industrial facilities, hospitals, airports, and wholesale/retail stores. The unit is designed of a durable construction for constantly strong use on a daily basis. Tugger is perfect for confined areas due to its short turning radius. An infinite throttle position allows for unlimited forward and reverse adjustments for precise positioning. Unit can be tilted forward manually to align the hitch if needed. An integral battery charger and level gauge allow for convenient as needed charging and level awareness. Pin hitch standard, optional attachments available.

  • Ergonomic handle for easy operation while diminishing the need of bending and twisting
  • Dead-man activation for the utmost safety and security
  • Forward and reverse operations for precise maneuverability
  • High torque for heavy duty operations

Core Data

Assembled Weight: 375 Assembled Size: 27.5"W x 23.25"L x 53.125"H Color: Black & Yellow
Total Ship Weight: 434 Package 1 Size: 41"W x 49"D x 60"H Freight: LTL Palletized

Specifications

Uniform Pull Capacity (lbs.): 3,000
Drive Motor: 24V DC
Battery Qty./Volts: (2) 12V
Horsepower (HP): 1
Handle Height (in.): 53-1/8
Wheel Qty./Size (in.): (2) 12 x 4-3/4
Wheel Material: Solid Foam
Rear Caster Qty./Size (in.): (2) 4 x 1-1-4
Caster Material: Polyurethane
Loaded Speed (MPH): 2.3
Unloaded Speed (MPH): 2.7
Maximum Gradeability (degrees): 2
Unloaded Gradeability (degrees): 3
