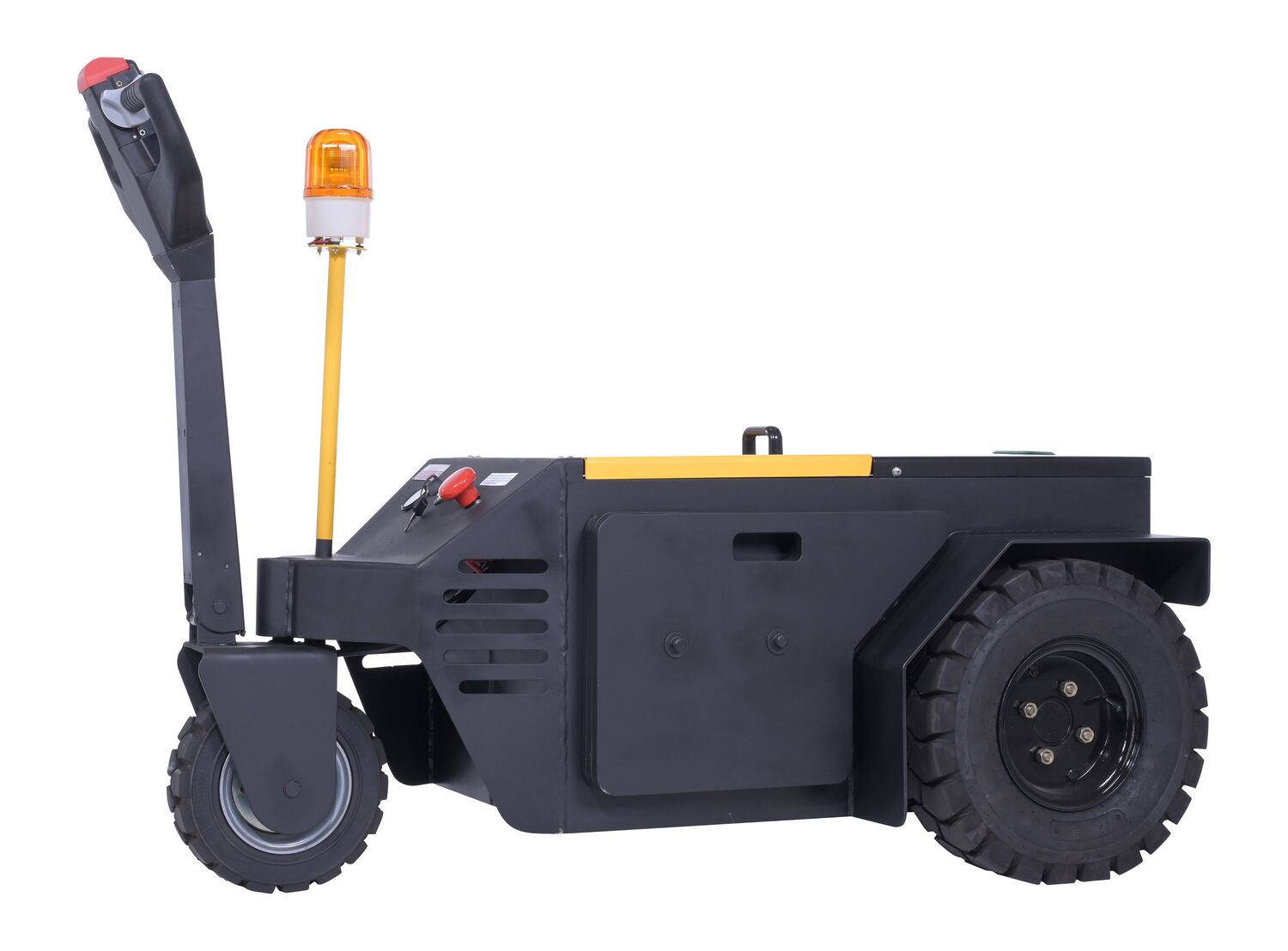

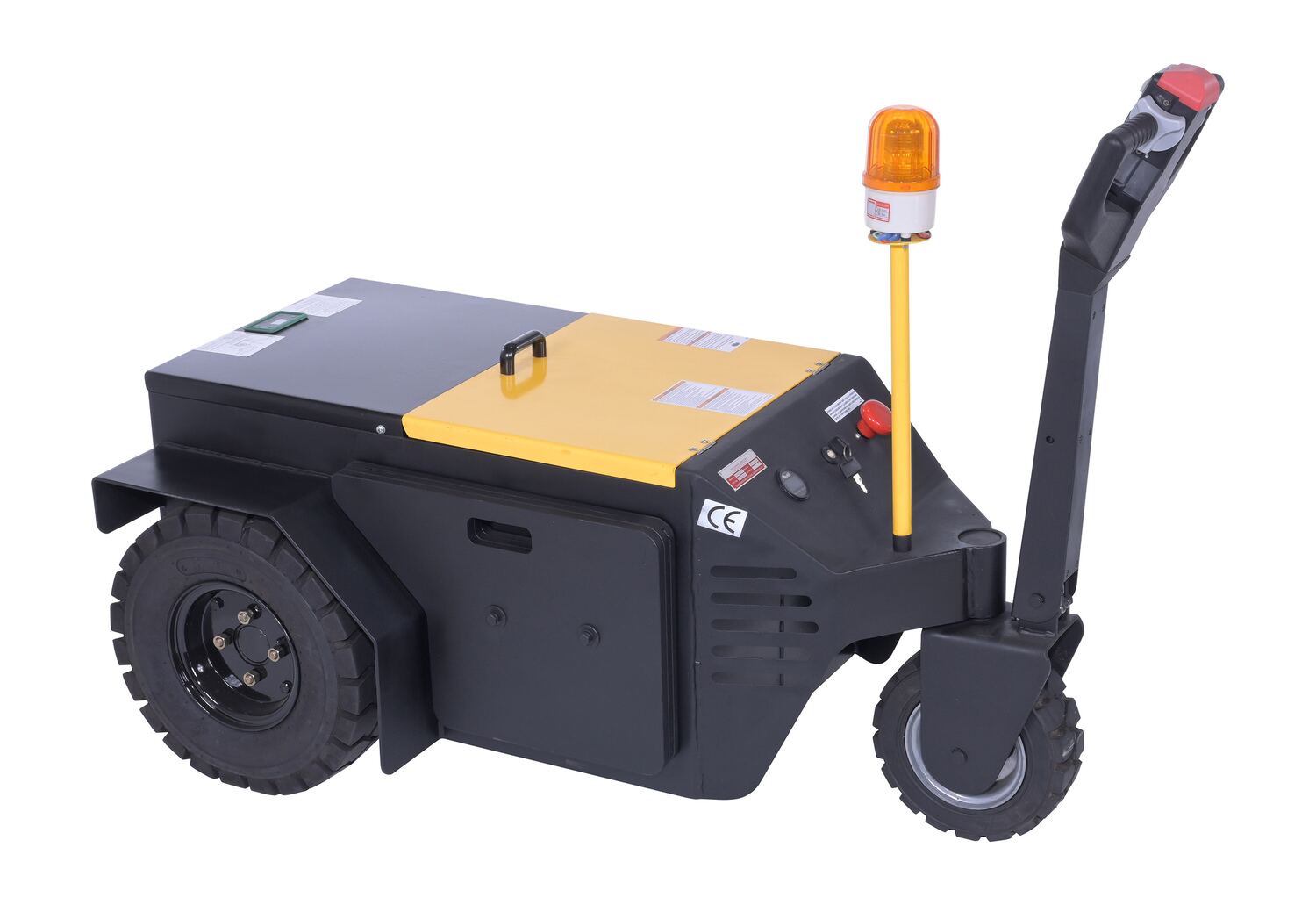

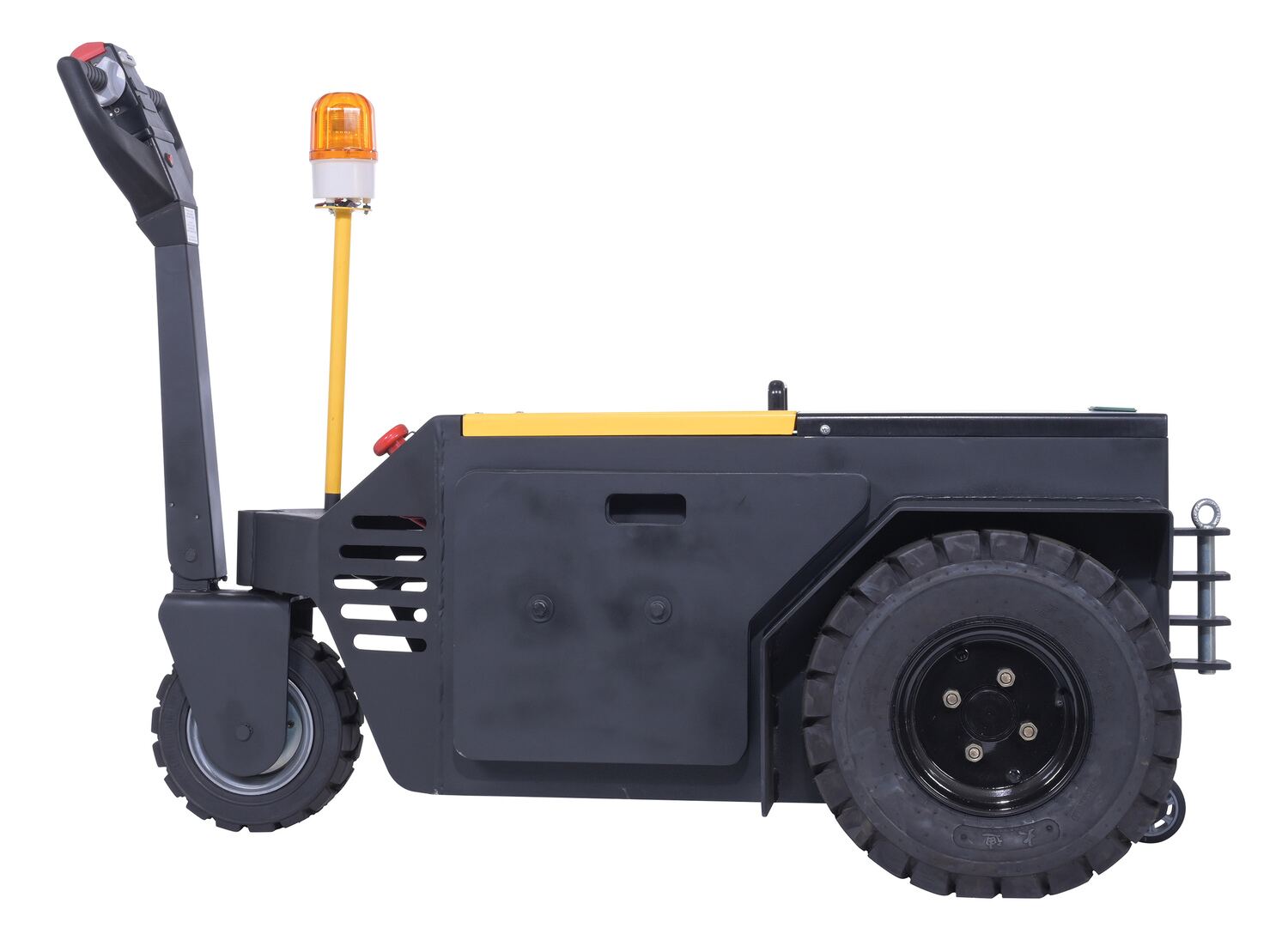

Steel Heavy Duty Electric Powered Tugger 12,000 Lb. Pulling Capacity Yellow

Heavy Duty Electric Powered Tugger 12,000 Lb. Pulling Capacity for Moving Loads Through Warehouses and Production Areas, 12,000 lb. Capacity

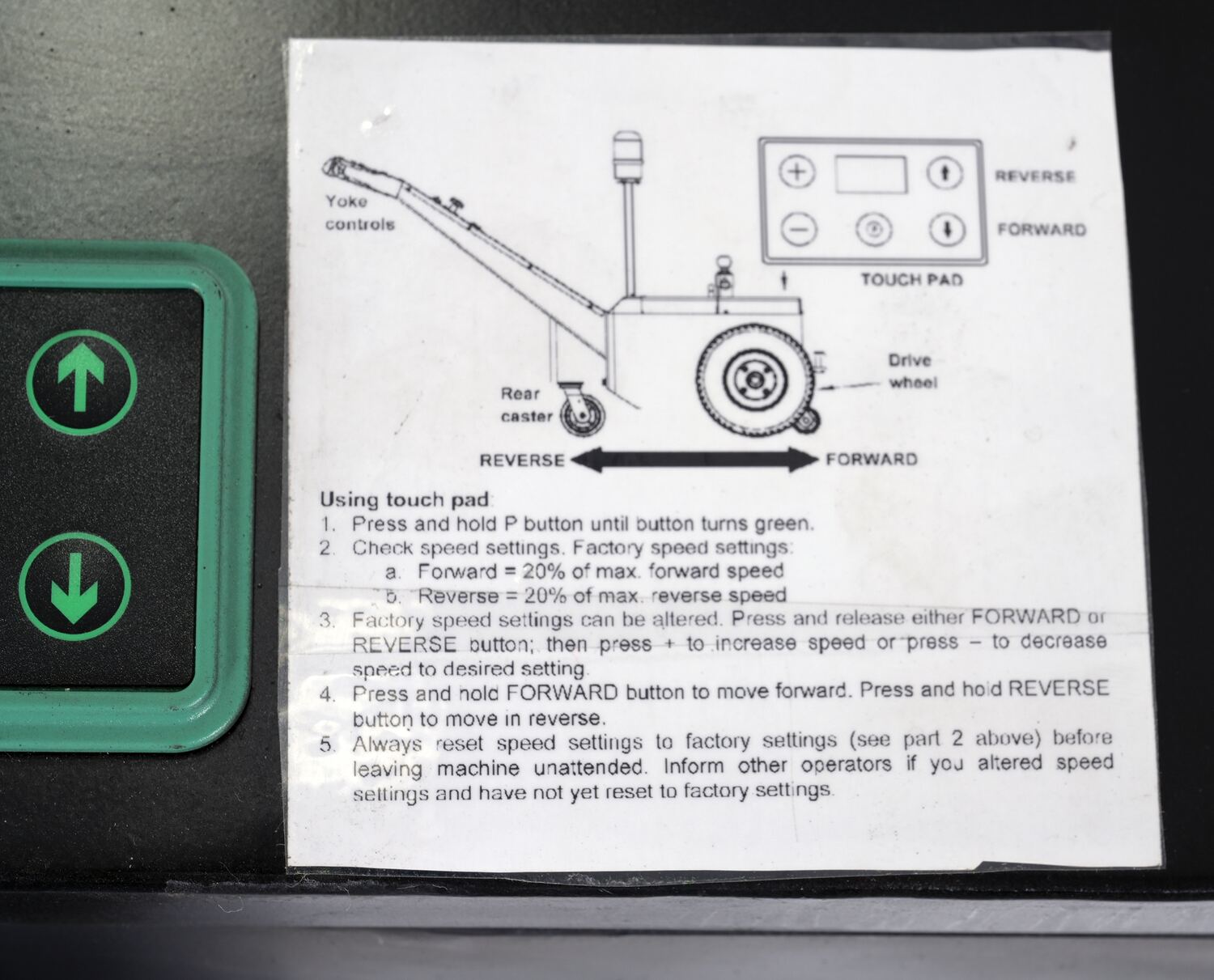

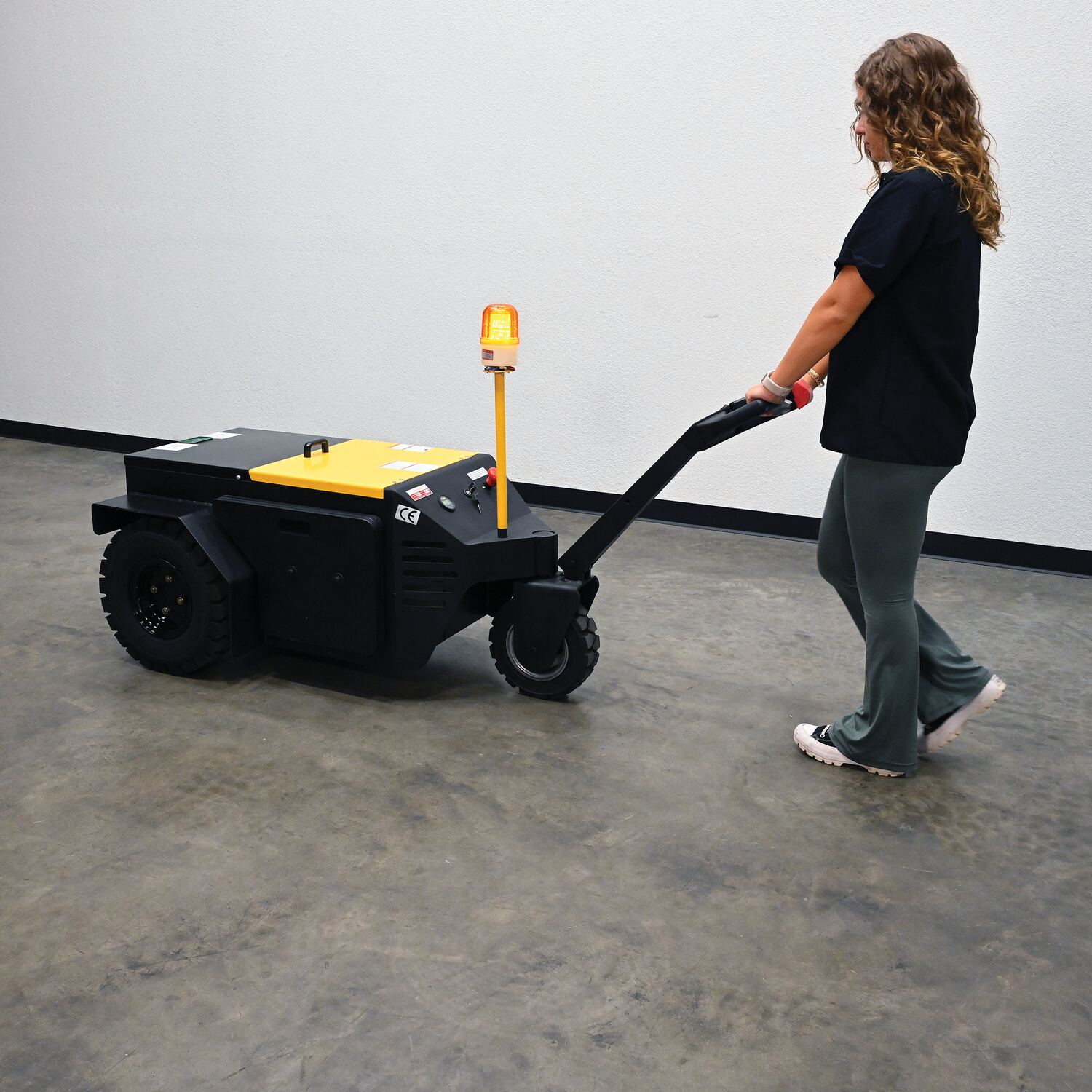

An electric powered heavy duty tugger is suitable for use in airports, hospitals. They can also be used in a variety of applications like pulling industrial carts, hoppers, and trailers; all without the needless extreme stress or strain on your body. Ergonomic handle features easy to operate throttle with forward/reverse speeds and horn. Also included is an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.
Product Status
Available
Key Features
  • DC battery powered

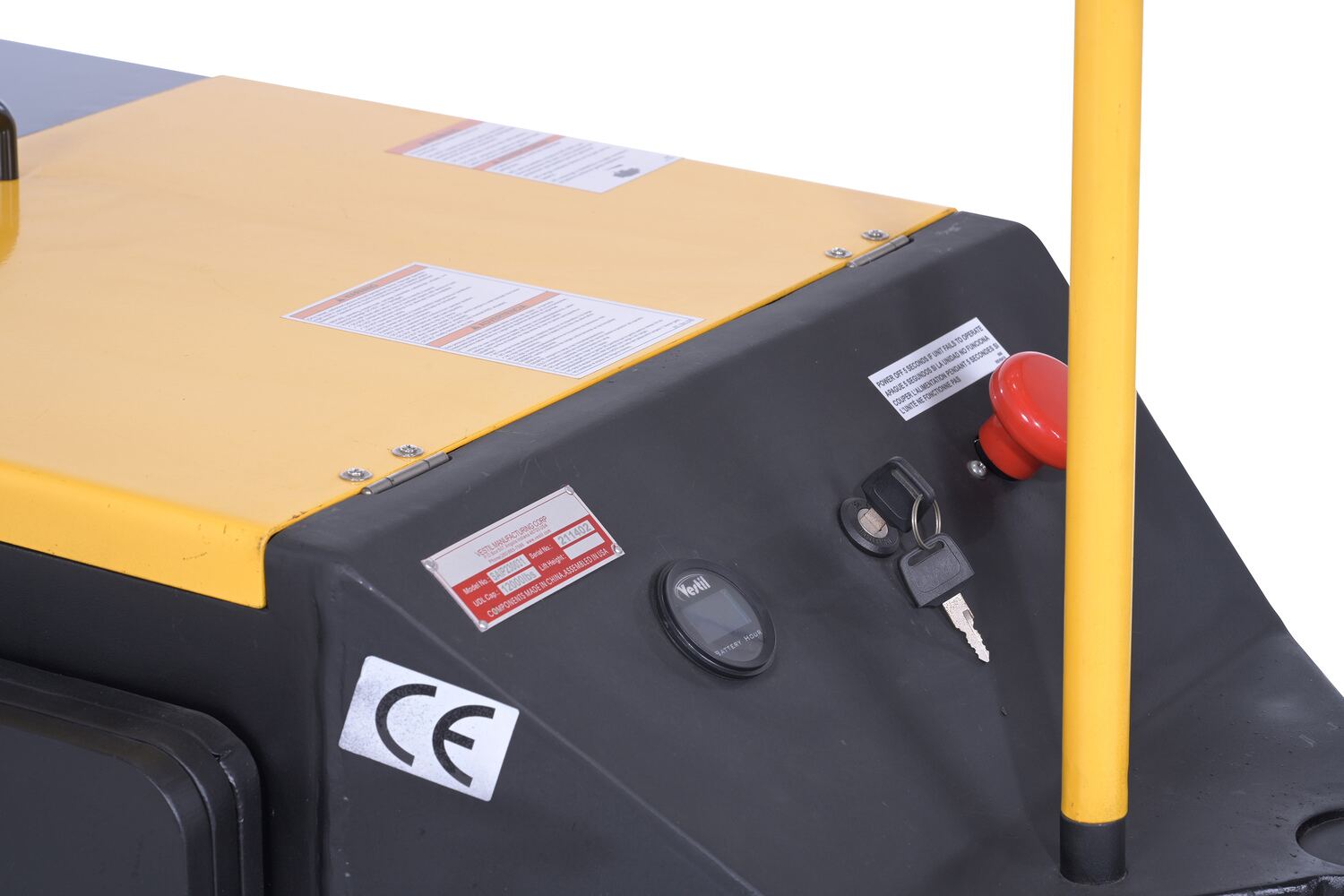

  • Battery charger and gauge included

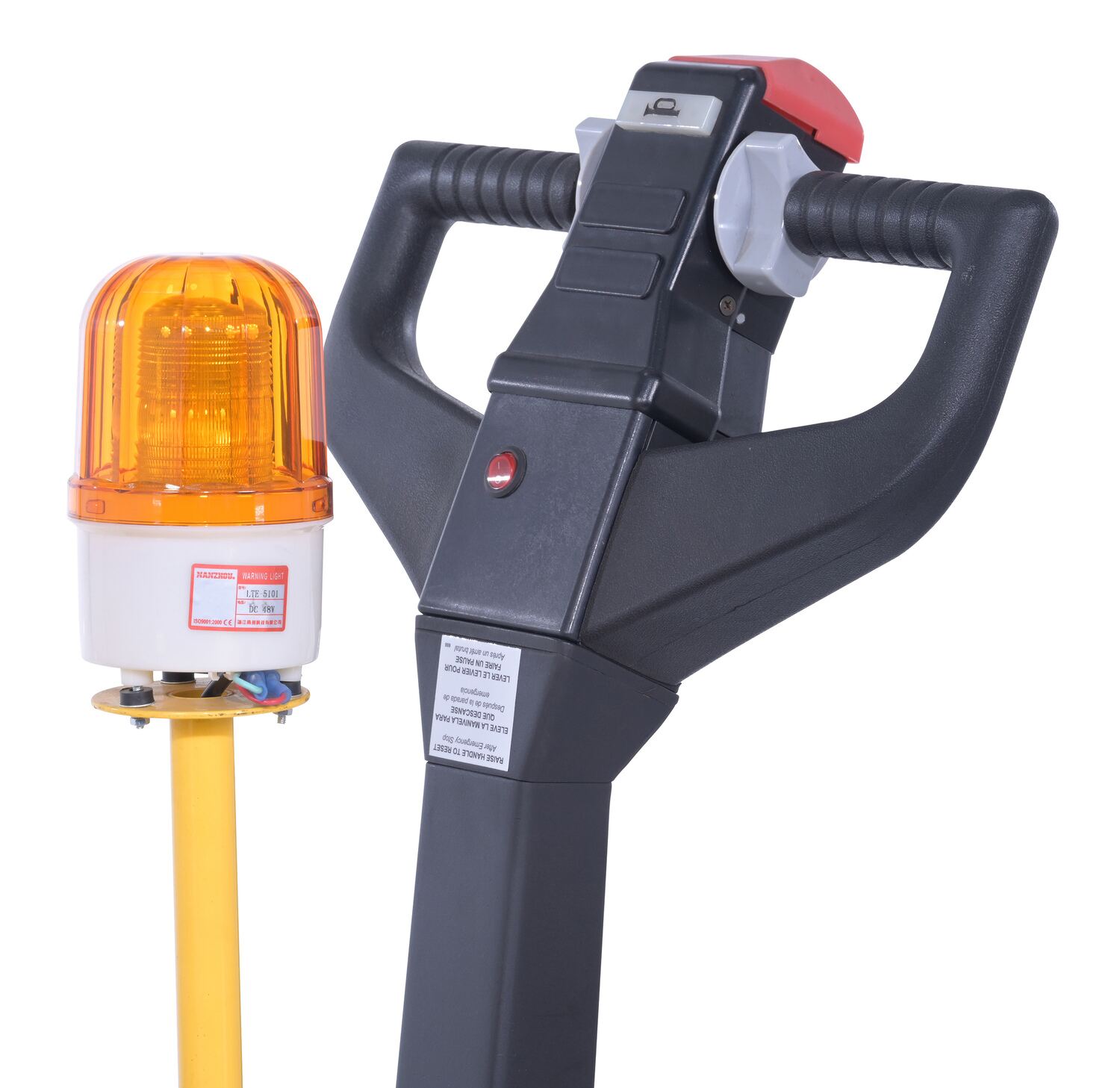

  • High visibility caution light

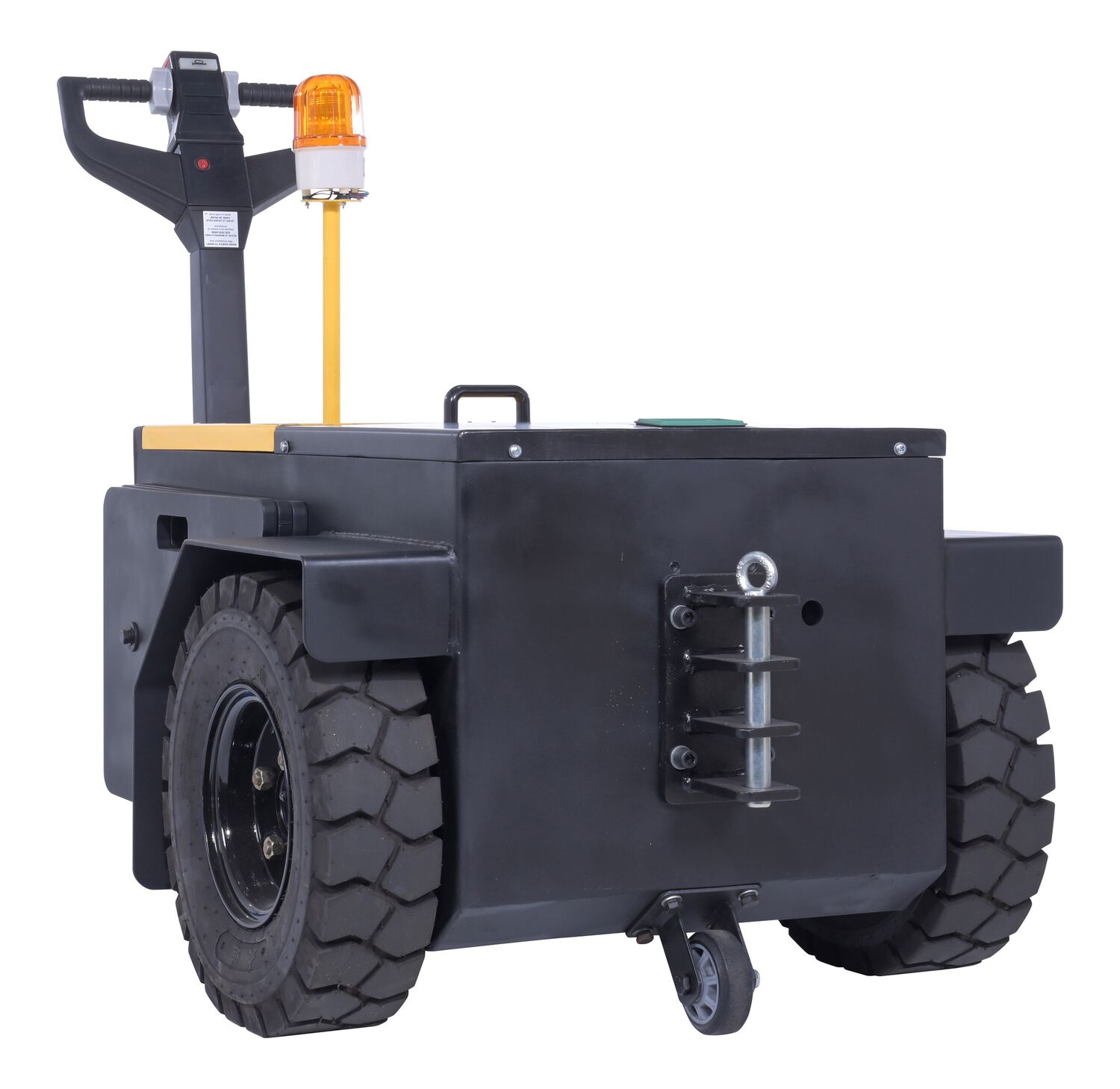

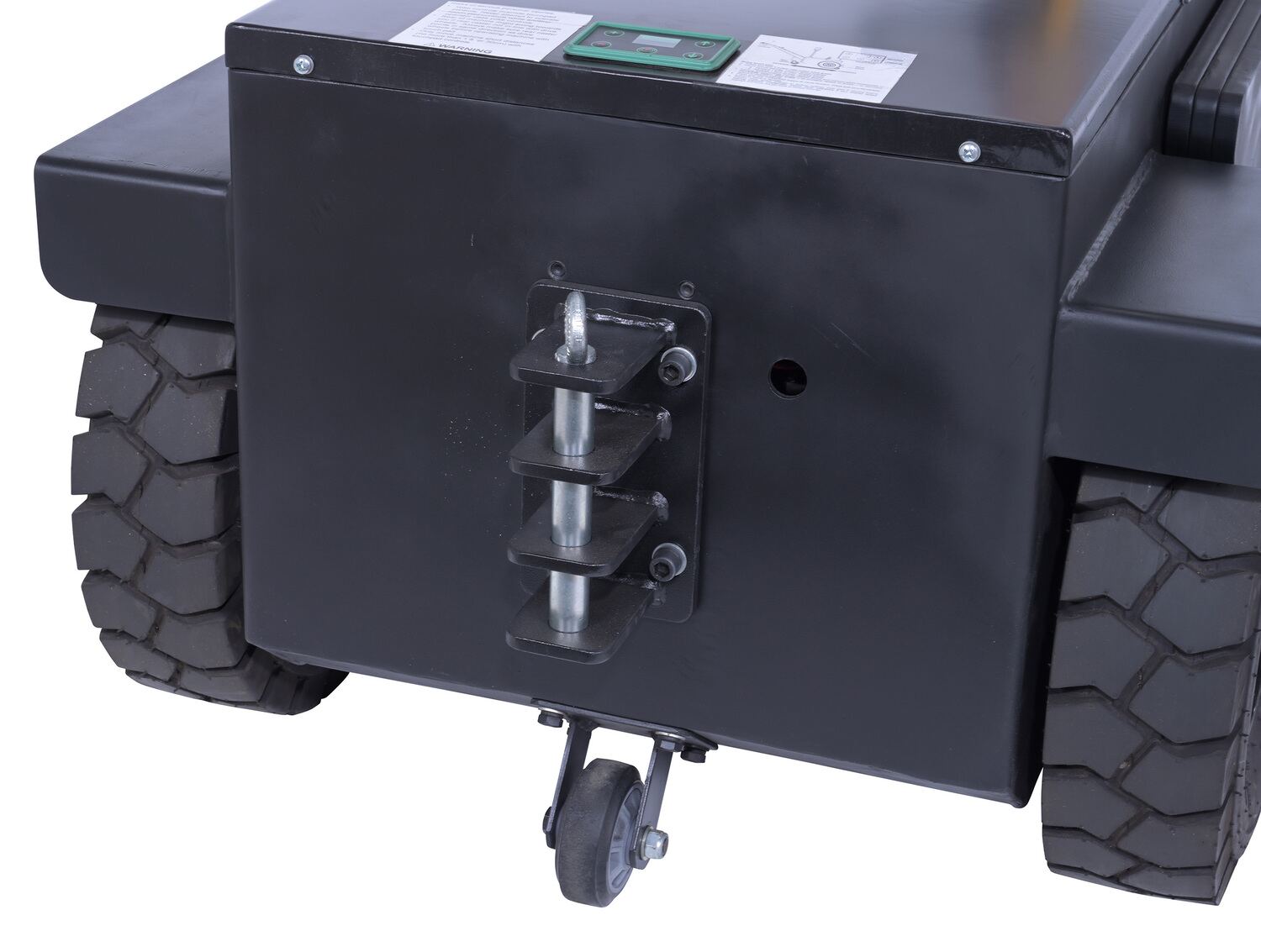

  • Single rear steering wheel
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Series E-TUG-HD Heavy Duty Electric Powered Tuggers Manual   Label Page PDF   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 1140 lbs
Assembled Size 33.5"W x 70"L x 44"H
Total Ship Weight 1190 lbs
Package 1 Size 38"W x 76"D x 49"H
Color / Finish Black & Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 12,000
Drive Motor 24V DC
Battery Qty./Volts (4) 6V
Front Wheel Qty./Size (in.) (2) 15 x 4-1/2
Rear Wheel Qty./Size (in.) (1) 12 x 3
Wheel Material Molded Rubber
Operation Method Hand Operated
Overload Protection? No
Horsepower (HP) 3
Tow Ball Included? No
Maximum Gradeability (degrees) 3
Unloaded Gradeability (degrees) 5

Battery Information

Battery Depth 10.375
Battery Width 7.125
Battery Height 9.75
Battery Weight 60
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description Batteries or Cells, Offered for transportation as a Hazard Class 4, 8 or 9
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
E-TUG-HD-120
Product Name
Steel Heavy Duty Electric Powered Tugger 12,000 Lb. Pulling Capacity Yellow
UPC
691215378345
GTIN
00691215378345
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Trailer Mover
Assembled Depth (in.)
70
Assembled Width(in.)
33.5
Assembled Height(in.)
44
Assembled Weight(lbs.)
1140
Color/Finish
Black & Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
E-TUG-HD-ADSH, E-TUG-HD-DABH, E-TUG-HD-DPINH, E-TUG-HD-MM, E-TUG-HD-PINH, E-TUG-HD-RP-16, E-TUG-HD-RP-20, E-TUG-HD-RPB-19, E-TUG-HD-SBH-4, E-TUG-HD-SBH-8, E-TUG-HD-SLH, E-TUG-HD-SLPINH, AGM-UPG-4-6V

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
76
Package Width (in.)
38
Package Height (in.)
49
Package Weight (in.)
1190
Subclass
8
Freight Class
77.5
NMFC Code
Tugs or Tuggers, used for pushing or pulling heavy, wheeled equipment or vehicles
NMFC Number
190236
LTL Freight
LTL Palletized
UNSPSC
24101513
HTSUS Number
8427.20.8090
USMCA HS
8427.20
Origin Criterion
No
Certification Indicator
No
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
60
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
Batteries or Cells, Offered for transportation as a Hazard Class 4, 8 or 9
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: E-TUG-HD-120

E-TUG-HD-120

Steel Heavy Duty Electric Powered Tugger 12,000 Lb. Pulling Capacity Yellow

An electric powered heavy duty tugger is suitable for use in airports, hospitals. They can also be used in a variety of applications like pulling industrial carts, hoppers, and trailers; all without the needless extreme stress or strain on your body. Ergonomic handle features easy to operate throttle with forward/reverse speeds and horn. Also included is an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

  • DC battery powered
  • Battery charger and gauge included
  • High visibility caution light
  • Single rear steering wheel

Core Data

Assembled Weight: 1140 Assembled Size: 33.5"W x 70"L x 44"H Color: Black & Yellow
Total Ship Weight: 1190 Package 1 Size: 38"W x 76"D x 49"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 12,000
Drive Motor: 24V DC
Battery Qty./Volts: (4) 6V
Front Wheel Qty./Size (in.): (2) 15 x 4-1/2
Rear Wheel Qty./Size (in.): (1) 12 x 3
Wheel Material: Molded Rubber
Operation Method: Hand Operated
Overload Protection?: No
Horsepower (HP): 3
Tow Ball Included?: No
Maximum Gradeability (degrees): 3
Unloaded Gradeability (degrees): 5
