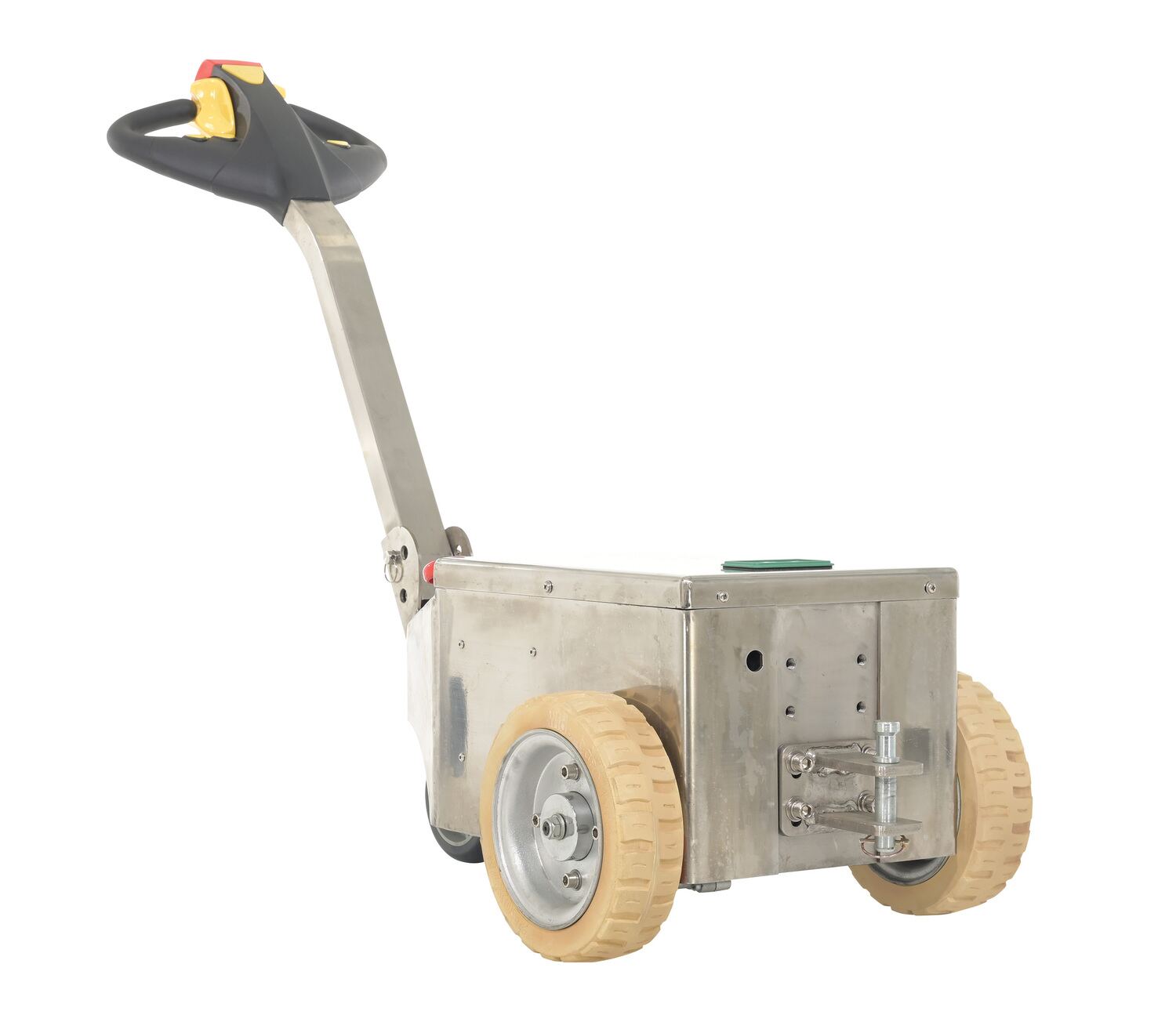

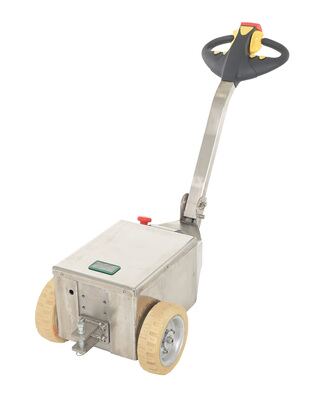

304 Stainless Steel Heavy Duty Electric Powered Tugger 2,000 Lb. Capacity Silver

304 Stainless Steel Heavy Duty Electric Powered Tugger 2,000 Lb. Capacity for Moving Loads Through Warehouses and Production Areas, 2,000 lb. Capacity

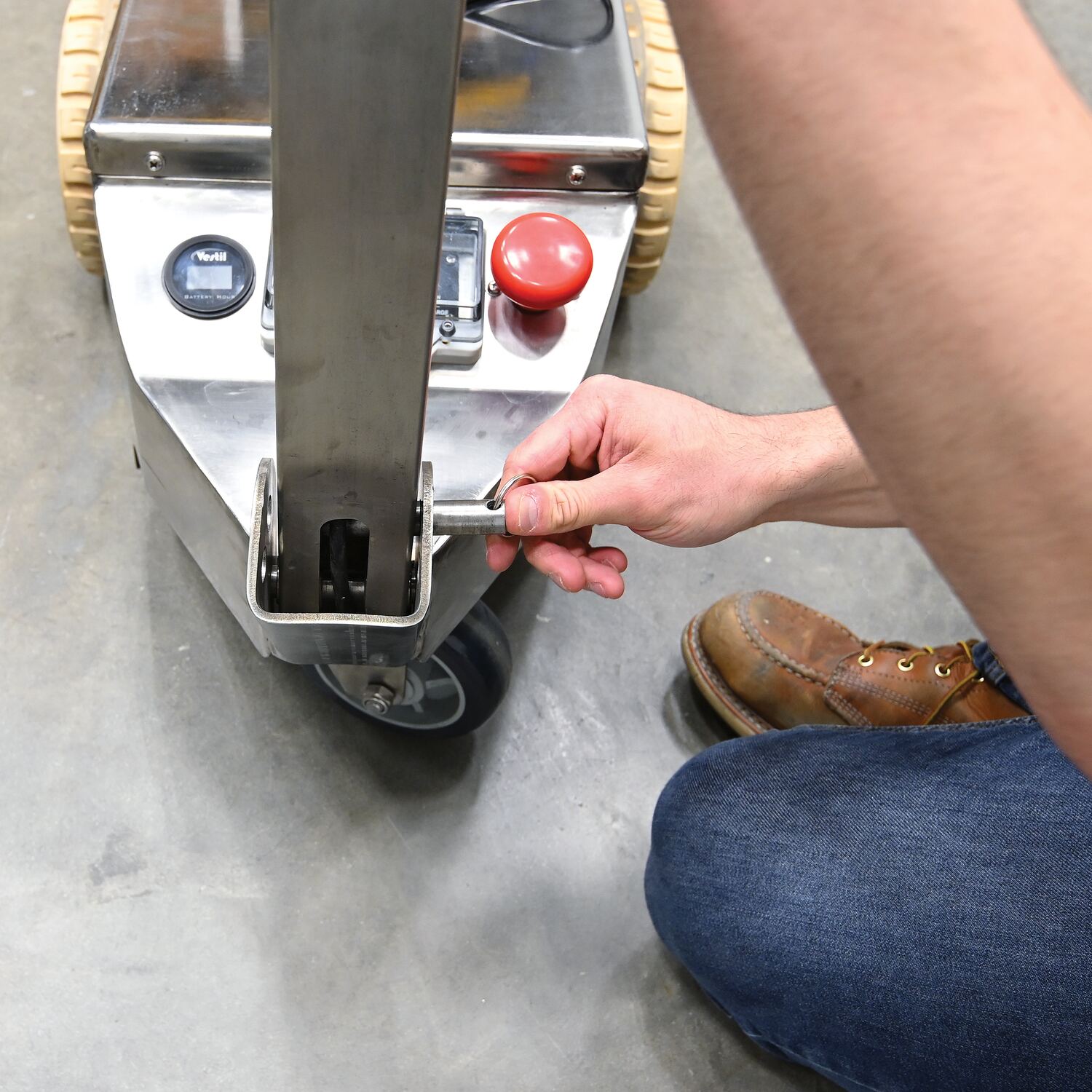

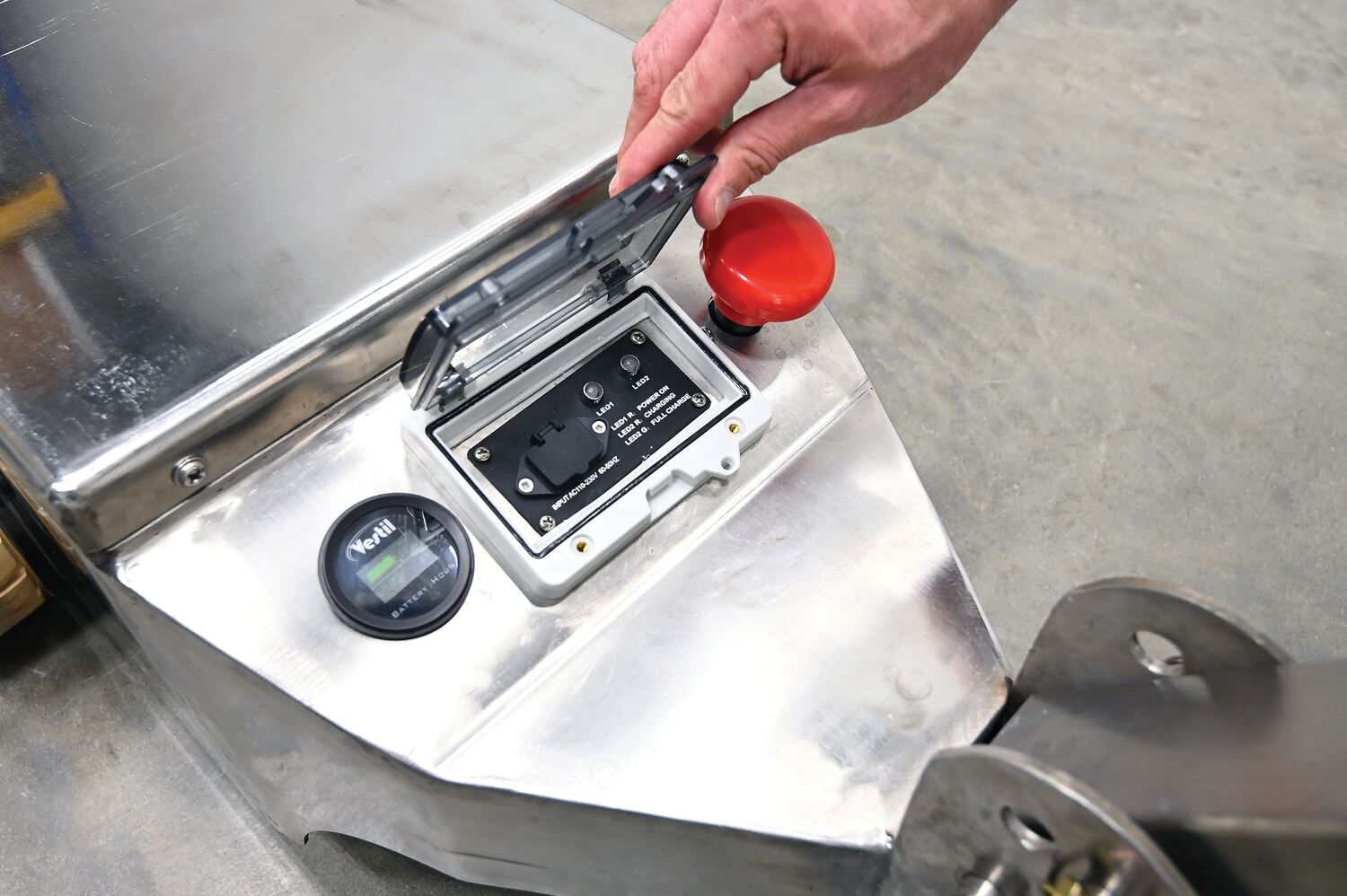

An electric powered tugger is the perfect accessory for industrial facilities, hospitals, airports, and wholesale/retail stores. Like all powered tuggers, this tugger works well in confined areas due to its short turning radius. An incorporated infinite throttle position allows for a quick, but careful directional changes. Unit can be tilted forward manually to align the hitch if needed. An integral battery charger and level gauge allow for convenient as needed charging and level awareness. Pin hitch standard, optional attachments available.
Product Status
Available Ships from Angola, Indiana 46703
Key Features
  • Stainless steel design
  • Dead-man activation for the utmost safety and security
  • Forward and reverse operations for precise maneuverability
  • High torque for heavy duty operations
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  1 Year Warranty
Product Data

Core Data

Assembled Weight 390 lbs

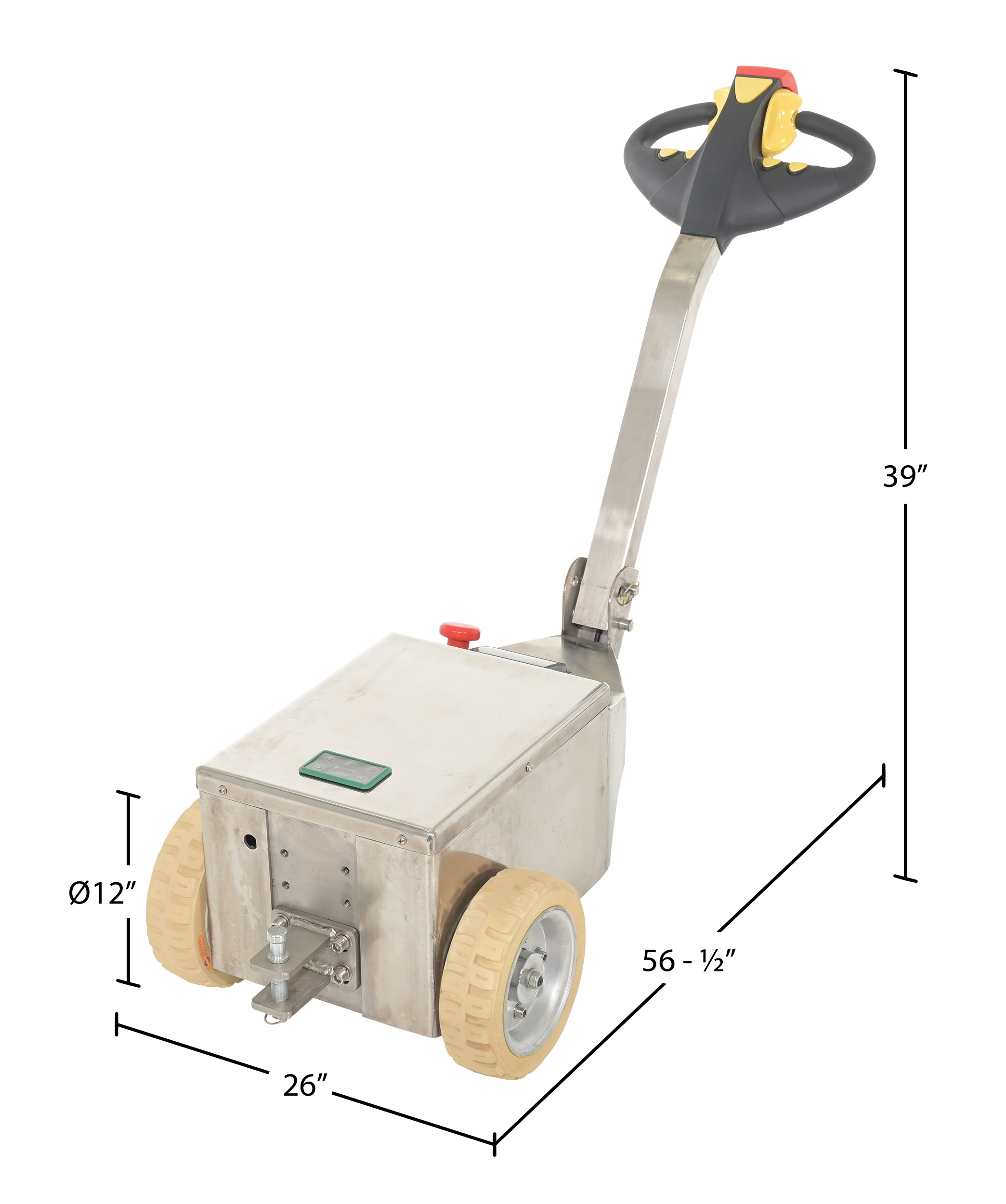

Assembled Size 26"W x 56.5"L x 39"H
Total Ship Weight 415 lbs
Package 1 Size 40"W x 64"D x 45"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Capacity (lbs.) 2,000
Material 304 Stainless Steel
Drive Motor 12V DC
Battery Qty./Volts (1) 12V
Handle Diameter (in.) 1-1/4
Rear Wheel Qty./Diameter/Width (in.) (1) 6 x 2
Front Wheel Qty./Diameter/Width (in.) (2) 12 x 4
Wheel Material Rubber
Horsepower (hp) 0.5
Overload Protection? No
Maximum Gradeability (degrees) 3
Unloaded Gradeability (degrees) 5

Battery Information

Battery Depth 7.5
Battery Width 6.5
Battery Height 6.75
Battery Weight 28.57
Battery Freight Class 65
Battery NMFC Number 60680
Battery NMFC Description Batteries or Cells
Battery Subclass 2
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
E-TUG-HD-20-SS
Product Name
304 Stainless Steel Heavy Duty Electric Powered Tugger 2,000 Lb. Capacity Silver
UPC
691215381949
GTIN
00691215381949
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Trailer Mover
Assembled Depth (in.)
56.5
Assembled Width(in.)
26
Assembled Height(in.)
39
Assembled Weight(lbs.)
390
Color/Finish
Silver
Material
304 Stainless Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
E-TUG-ABMH, E-TUG-ADSH, E-TUG-HD-ADSH, E-TUG-HD-DABH, E-TUG-HD-DPINH, E-TUG-HD-MM, E-TUG-HD-PINH, E-TUG-HD-RP-16, E-TUG-HD-RP-20, E-TUG-HD-RPB-19, E-TUG-HD-SBH-4, E-TUG-HD-SBH-8, E-TUG-HD-SLH, E-TUG-HD-SLPINH, E-TUG-MCLA, E-TUG-MM, E-TUG-PINH, E-TUG-SABH, AGM-UPG-SL

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
45
Package Weight (in.)
415
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles, NOI
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101513
HTSUS Number
8427.20.8090
USMCA HS
8427.20
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, Indiana
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
28.57
Battery Freight Class
65
Battery NMFC Number
60680
Battery NMFC Description
Batteries or Cells
Battery Subclass
2
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: E-TUG-HD-20-SS

E-TUG-HD-20-SS

304 Stainless Steel Heavy Duty Electric Powered Tugger 2,000 Lb. Capacity Silver

An electric powered tugger is the perfect accessory for industrial facilities, hospitals, airports, and wholesale/retail stores. Like all powered tuggers, this tugger works well in confined areas due to its short turning radius. An incorporated infinite throttle position allows for a quick, but careful directional changes. Unit can be tilted forward manually to align the hitch if needed. An integral battery charger and level gauge allow for convenient as needed charging and level awareness. Pin hitch standard, optional attachments available.

  • Stainless steel design
  • Dead-man activation for the utmost safety and security
  • Forward and reverse operations for precise maneuverability
  • High torque for heavy duty operations

Core Data

Assembled Weight: 390 Assembled Size: 26"W x 56.5"L x 39"H Color: Silver
Total Ship Weight: 415 Package 1 Size: 40"W x 64"D x 45"H Freight: LTL Palletized

Specifications

Capacity (lbs.): 2,000
Material: 304 Stainless Steel
Drive Motor: 12V DC
Battery Qty./Volts: (1) 12V
Handle Diameter (in.): 1-1/4
Rear Wheel Qty./Diameter/Width (in.): (1) 6 x 2
Front Wheel Qty./Diameter/Width (in.): (2) 12 x 4
Wheel Material: Rubber
Horsepower (hp): 0.5
Overload Protection?: No
Maximum Gradeability (degrees): 3
Unloaded Gradeability (degrees): 5
