Product Data Sheet

  Print to PDF
  All Products   Industrial Carts & Dollies   Trailer Movers   Electric Powered Tuggers E-TUG-HD-30
Product Image

Visual Reference

E-TUG-HD-30
E-TUG-HD-30
E-TUG-HD-30
E-TUG-HD-30
E-TUG-HD-30
E-TUG-HD-30
E-TUG-HD-30
E-TUG-HD-30
E-TUG-HD-30
E-TUG-HD-30
E-TUG-HD-30

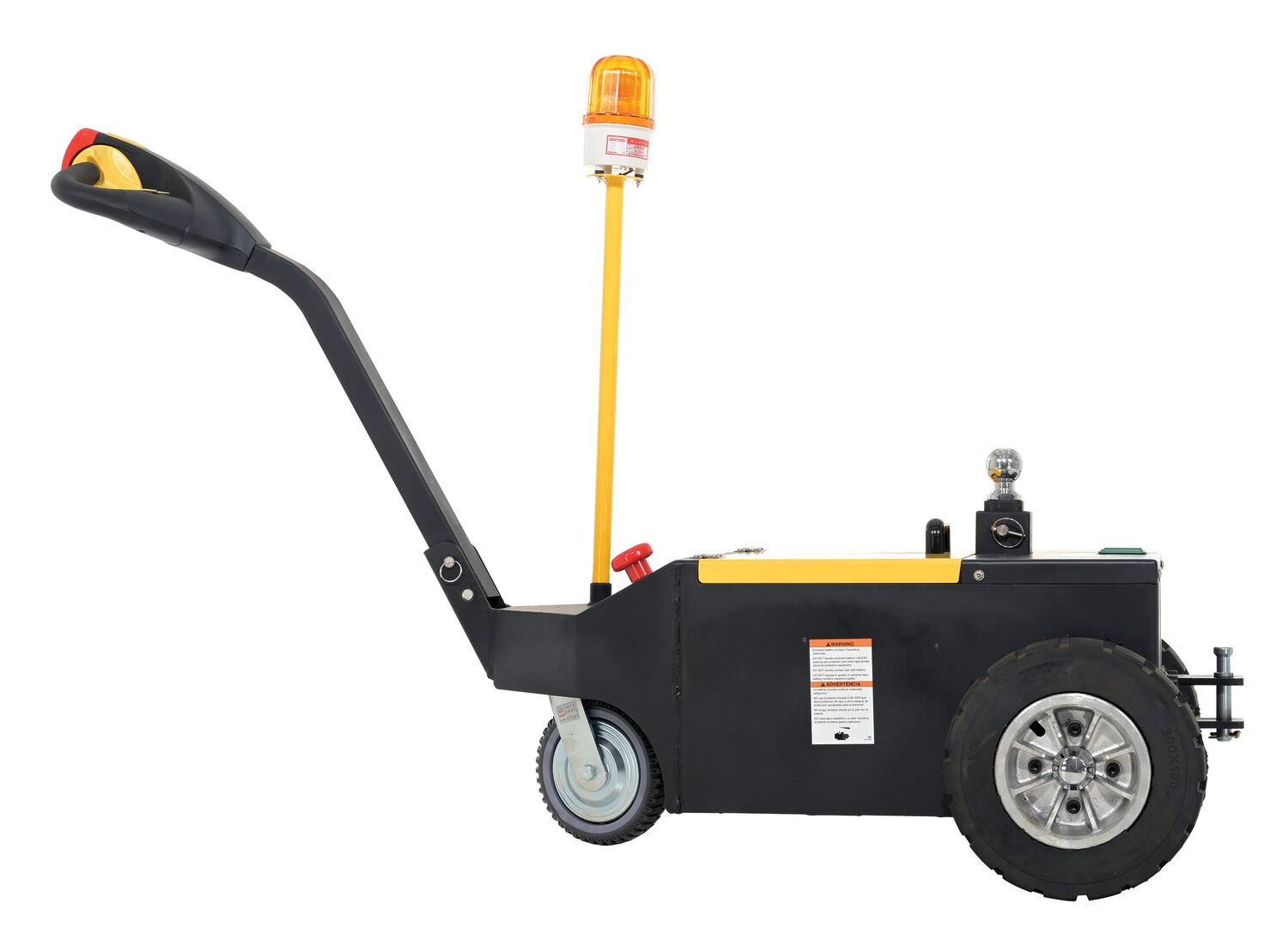

Steel Heavy Duty Electric Powered Tugger 3000 Lb. Pull Capacity Yellow/Black

Heavy Duty Electric Powered Tugger for Moving Loads Through Warehouses and Production Areas, 3,000 lb. Capacity

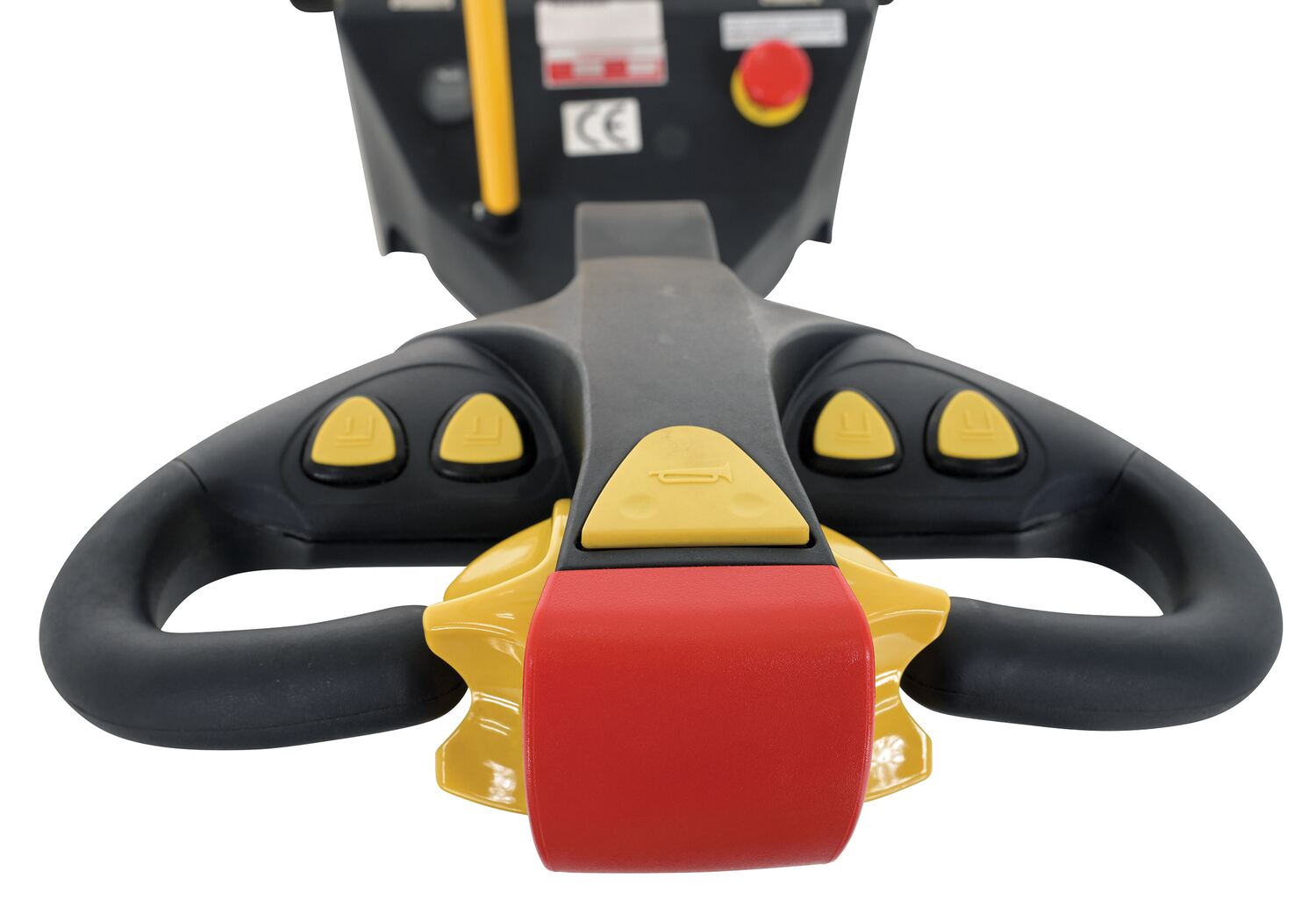

Having a heavy duty electric tugger is a tremendous asset when moving heavy trailers and carts. Predominantly used in airports, warehouses and other facilities, this tugger is great for compact and condensed areas when open space is limited. It not only has the ability to pull loads, but push them as well without extreme stress or strain on the user's body. Easy to reach button controls are centrally located on steering handle. Unit includes batteries, battery charger and battery level gauge.
Product Status
Available QuickShip
Key Features
  • Durable steel construction
  • Powder coated surface for long term toughness
  • DC operated for consistent power supply
  • Large tires for increased traction
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Series E-TUG-HD Heavy Duty Electric Powered Tuggers Manual   Label Page PDF   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 354 lbs
Assembled Size 28.5"W x 61.41"L x 45.6875"H
Total Ship Weight 420 lbs
Package 1 Size 41"W x 66"D x 52"H
Color / Finish Black & Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lbs.) 3,000
Drive Motor 24V DC
Battery Qty./Volts (2) 12V
Front Wheel Qty./Size (in.) (2) 12-1/4 x 4-1/2
Rear Wheel Qty./Size (in.) (1) 7-7/8 x 2
Wheel Material Molded Rubber
Operation Method Hand Operated
Overload Protection? No
Horsepower (HP) 2

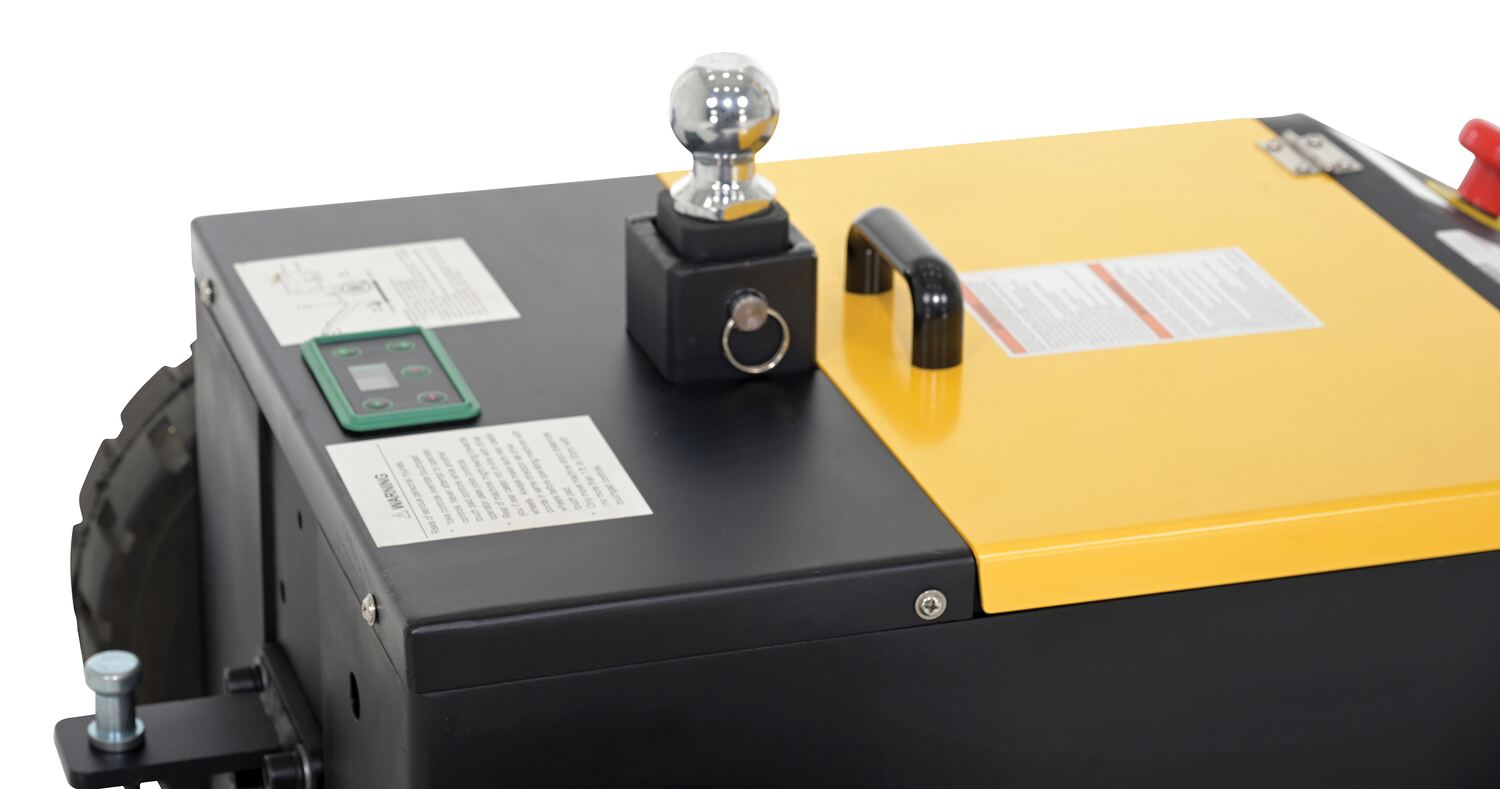

Tow Ball Included? Yes
Tow Ball Size (in.) 1-7/8
Unloaded Speed (MPH) 2 to 2.5
Maximum Gradeability (degrees) 3
Unloaded Gradeability (degrees) 5

Battery Information

Battery Depth 13.5
Battery Width 10
Battery Height 6
Battery Weight 53
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description Batteries or Cells, Offered for transportation as a Hazard Class 4, 8 or 9
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
E-TUG-HD-30
Product Name
Steel Heavy Duty Electric Powered Tugger 3000 Lb. Pull Capacity Yellow/Black
UPC
691215336949
GTIN
00691215336949
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Trailer Mover
Assembled Depth (in.)
61.41
Assembled Width(in.)
28.5
Assembled Height(in.)
45.6875
Assembled Weight(lbs.)
354
Color/Finish
Black & Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
E-TUG-HD-ADSH, E-TUG-HD-DABH, E-TUG-HD-DPINH, E-TUG-HD-MM, E-TUG-HD-PINH, E-TUG-HD-RP-16, E-TUG-HD-RP-20, E-TUG-HD-RPB-19, E-TUG-HD-SBH-4, E-TUG-HD-SBH-8, E-TUG-HD-SLH, E-TUG-HD-SLPINH, AGM-UPG-SL-2-12V

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
66
Package Width (in.)
41
Package Height (in.)
52
Package Weight (in.)
420
Subclass
6
Freight Class
200
NMFC Code
Tugs or Tuggers, used for pushing or pulling heavy, wheeled equipment or vehicles
NMFC Number
190236
LTL Freight
LTL Palletized
UNSPSC
24101513
HTSUS Number
8427.10.8095
USMCA HS
8427.10
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
53
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
Batteries or Cells, Offered for transportation as a Hazard Class 4, 8 or 9
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: E-TUG-HD-30

E-TUG-HD-30

Steel Heavy Duty Electric Powered Tugger 3000 Lb. Pull Capacity Yellow/Black

Having a heavy duty electric tugger is a tremendous asset when moving heavy trailers and carts. Predominantly used in airports, warehouses and other facilities, this tugger is great for compact and condensed areas when open space is limited. It not only has the ability to pull loads, but push them as well without extreme stress or strain on the user's body. Easy to reach button controls are centrally located on steering handle. Unit includes batteries, battery charger and battery level gauge.

  • Durable steel construction
  • Powder coated surface for long term toughness
  • DC operated for consistent power supply
  • Large tires for increased traction

Core Data

Assembled Weight: 354 Assembled Size: 28.5"W x 61.41"L x 45.6875"H Color: Black & Yellow
Total Ship Weight: 420 Package 1 Size: 41"W x 66"D x 52"H Freight: LTL Palletized

Specifications

Uniform Capacity (lbs.): 3,000
Drive Motor: 24V DC
Battery Qty./Volts: (2) 12V
Front Wheel Qty./Size (in.): (2) 12-1/4 x 4-1/2
Rear Wheel Qty./Size (in.): (1) 7-7/8 x 2
Wheel Material: Molded Rubber
Operation Method: Hand Operated
Overload Protection?: No
Horsepower (HP): 2
Tow Ball Included?: Yes
Tow Ball Size (in.): 1-7/8
Unloaded Speed (MPH): 2 to 2.5
Maximum Gradeability (degrees): 3
Unloaded Gradeability (degrees): 5
