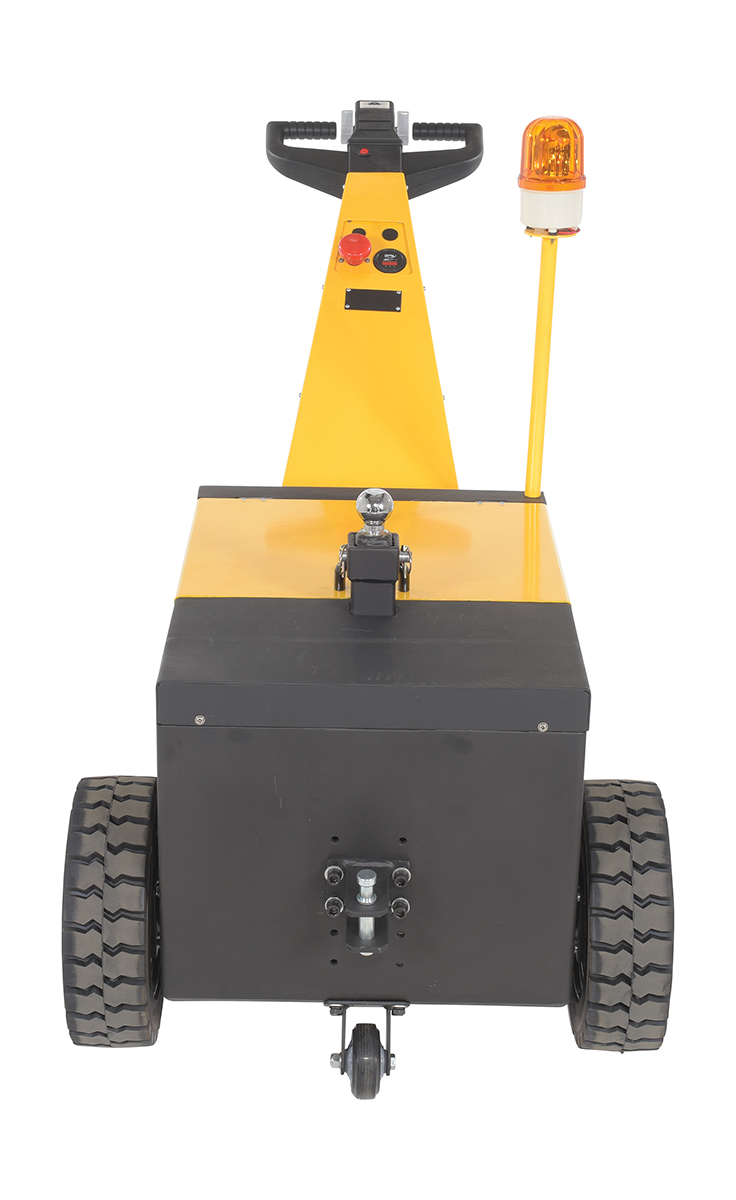

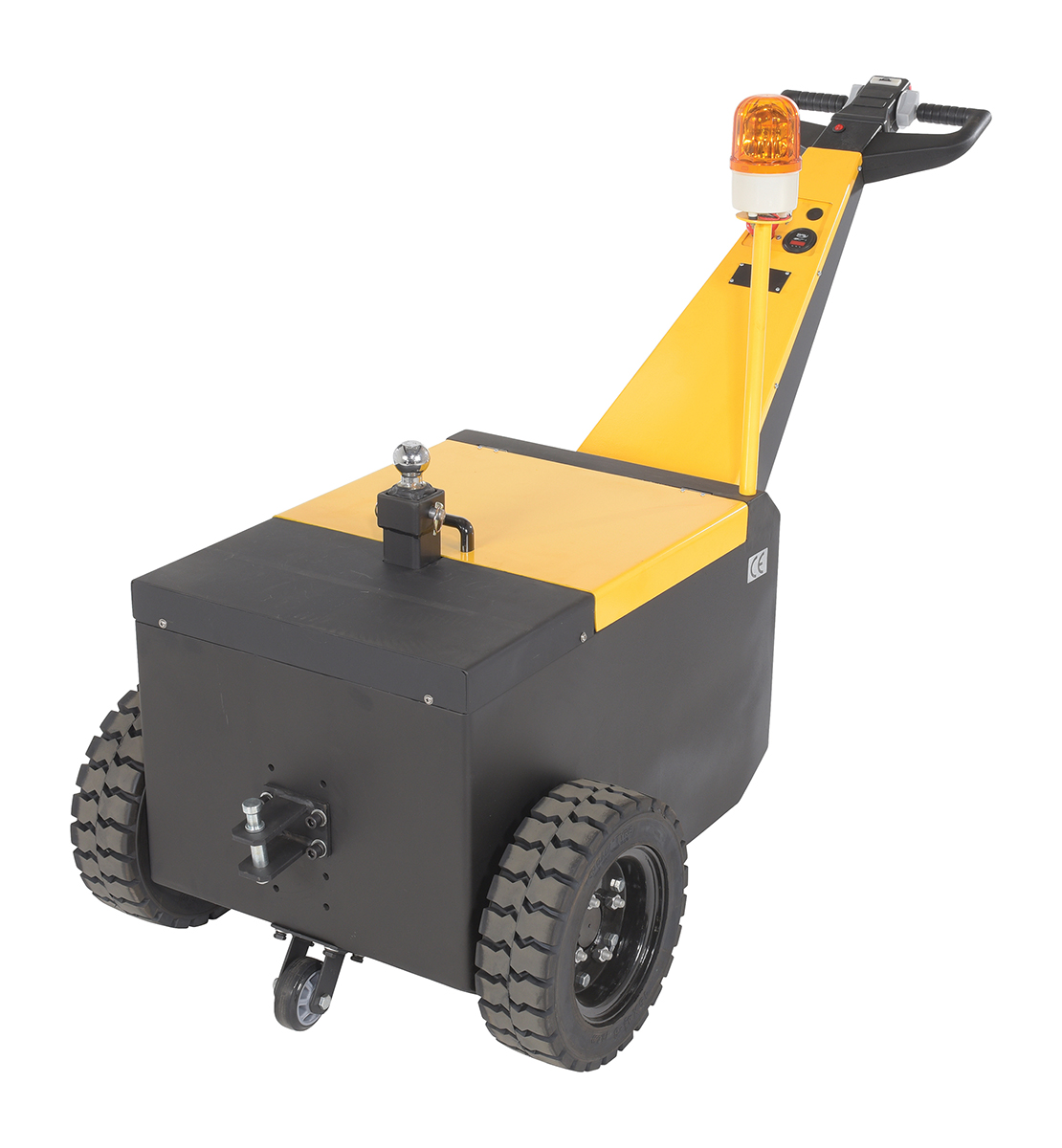

Steel Heavy Duty Electric Powered Tugger 7000 Lb. Pull Capacity Yellow/Black

Heavy Duty Electric Powered Tugger for Moving Loads Through Warehouses and Production Areas, 7,000 lb. Capacity
Having a heavy duty electric tugger is a tremendous asset when moving heavy trailers and carts. Predominantly used in airports, warehouses and other facilities, this tugger is great for compact and condensed areas when open space is limited. It not only has the ability to pull loads, but push them as well without extreme stress or strain on the user's body. Easy to reach button controls are centrally located on steering handle. Unit includes batteries, battery charger and battery level gauge.
Product Status
Out of Stock QuickShip
Key Features
  • Durable steel construction
  • Powder coated surface for long term toughness
  • DC operated for consistent power supply

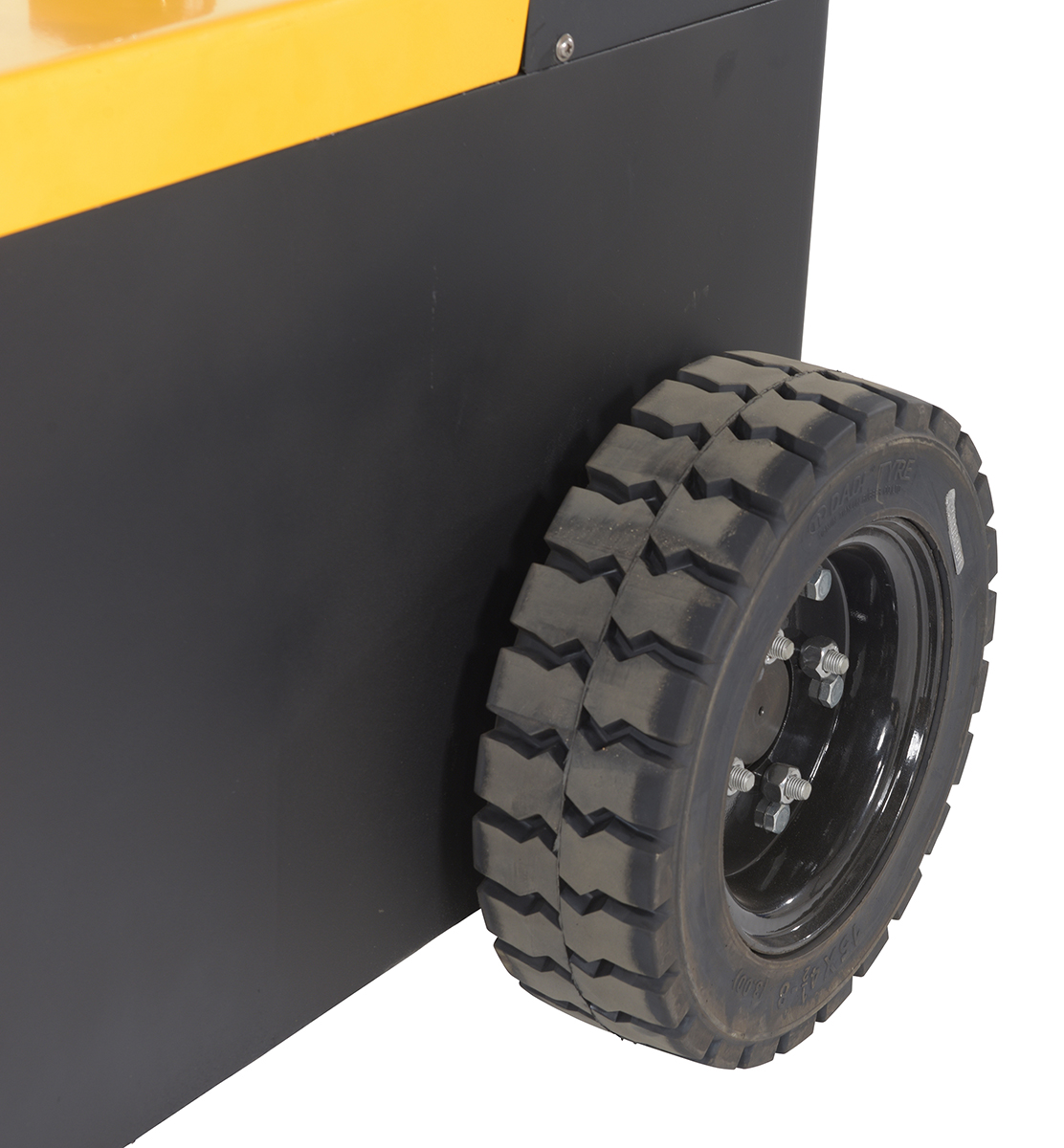

  • Large tires for increased traction
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Series E-TUG-HD Heavy Duty Electric Powered Tuggers Manual   Label Page PDF   Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 958 lbs
Assembled Size 31.625"W x 75.375"L x 48.5"H
Total Ship Weight 1012 lbs
Package 1 Size 37"W x 85"D x 49"H
Color / Finish Black & Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 7,000
Drive Motor 24V DC
Battery Qty./Type (4) 6V
Front Caster Qty./Size (in.) (2) 15 x 4-1/2
Rear Caster Qty./Size (in.) 6 x 2
Caster Material Rubber
Control Hand
Maximum Gradeability (degrees) 3
Unloaded Gradeability (degrees) 5

Battery Information

Battery Depth 10.375
Battery Width 7.125
Battery Height 9.75
Battery Weight 60
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description Batteries or Cells, Offered for transportation as a Hazard Class 4, 8 or 9
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
E-TUG-HD-70
Product Name
Steel Heavy Duty Electric Powered Tugger 7000 Lb. Pull Capacity Yellow/Black
UPC
691215336963
GTIN
00691215336963
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Trailer Mover
Assembled Depth (in.)
75.375
Assembled Width(in.)
31.625
Assembled Height(in.)
48.5
Assembled Weight(lbs.)
958
Color/Finish
Black & Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
E-TUG-HD-ADSH, E-TUG-HD-DABH, E-TUG-HD-DPINH, E-TUG-HD-MM, E-TUG-HD-PINH, E-TUG-HD-RP-16, E-TUG-HD-RP-20, E-TUG-HD-RPB-19, E-TUG-HD-SBH-4, E-TUG-HD-SBH-8, E-TUG-HD-SLH, E-TUG-HD-SLPINH, AGM-UPG-4-6V

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
85
Package Width (in.)
37
Package Height (in.)
49
Package Weight (in.)
1012
Subclass
7
Freight Class
110
NMFC Code
Tugs or Tuggers, used for pushing or pulling heavy, wheeled equipment or vehicles
NMFC Number
190236
LTL Freight
LTL Palletized
UNSPSC
24101513
HTSUS Number
8427.10.8095
USMCA HS
8427.10
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
60
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
Batteries or Cells, Offered for transportation as a Hazard Class 4, 8 or 9
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: E-TUG-HD-70

E-TUG-HD-70

Steel Heavy Duty Electric Powered Tugger 7000 Lb. Pull Capacity Yellow/Black

Having a heavy duty electric tugger is a tremendous asset when moving heavy trailers and carts. Predominantly used in airports, warehouses and other facilities, this tugger is great for compact and condensed areas when open space is limited. It not only has the ability to pull loads, but push them as well without extreme stress or strain on the user's body. Easy to reach button controls are centrally located on steering handle. Unit includes batteries, battery charger and battery level gauge.

  • Durable steel construction
  • Powder coated surface for long term toughness
  • DC operated for consistent power supply
  • Large tires for increased traction

Core Data

Assembled Weight: 958 Assembled Size: 31.625"W x 75.375"L x 48.5"H Color: Black & Yellow
Total Ship Weight: 1012 Package 1 Size: 37"W x 85"D x 49"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 7,000
Drive Motor: 24V DC
Battery Qty./Type: (4) 6V
Front Caster Qty./Size (in.): (2) 15 x 4-1/2
Rear Caster Qty./Size (in.): 6 x 2
Caster Material: Rubber
Control: Hand
Maximum Gradeability (degrees): 3
Unloaded Gradeability (degrees): 5
