Product Data Sheet

  Print to PDF
  All Products   Loading Dock Equipment   Wheel Chocks & Accessories   Aluminum Wheel Chocks EALUM-7-H
Product Image

Visual Reference

EALUM-7-H
EALUM-7-H
EALUM-7-H
EALUM-7-H
EALUM-7-H
EALUM-7-H
EALUM-7-H
EALUM-7-H
EALUM-7-H
EALUM-7-H

Aluminum Wheel Chock with Handle 11-7/8 In. x 17-1/16 In. x 37-9/16 In. Silver

Aluminum Truck Wheel Chock for Vehicle and Wheel Restraint at Loading Areas, 10,000 lb. Capacity with 11-7/8 in. x 17-1/16 in. x 37-9/16 in.
The aluminum wheel chock is ideal for maintenance and industrial facilities. The chock is constructed of extruded lightweight aluminum that is easy to handle. The unit features a serrated top to grip the tire and a triple edged bottom to grip the ground. An extended handle for simple maneuvering is included. D-ring provided for attaching security chain. Chain not included.
Product Status
Available QuickShip
Key Features
  • Extruded aluminum construction is strong yet lightweight
  • Open design provides an optional attaching safety chain
  • Rugged bottom includes cleats for extra grip
  • Serrated top provides extra tire grip
Quick Actions

Product Resources

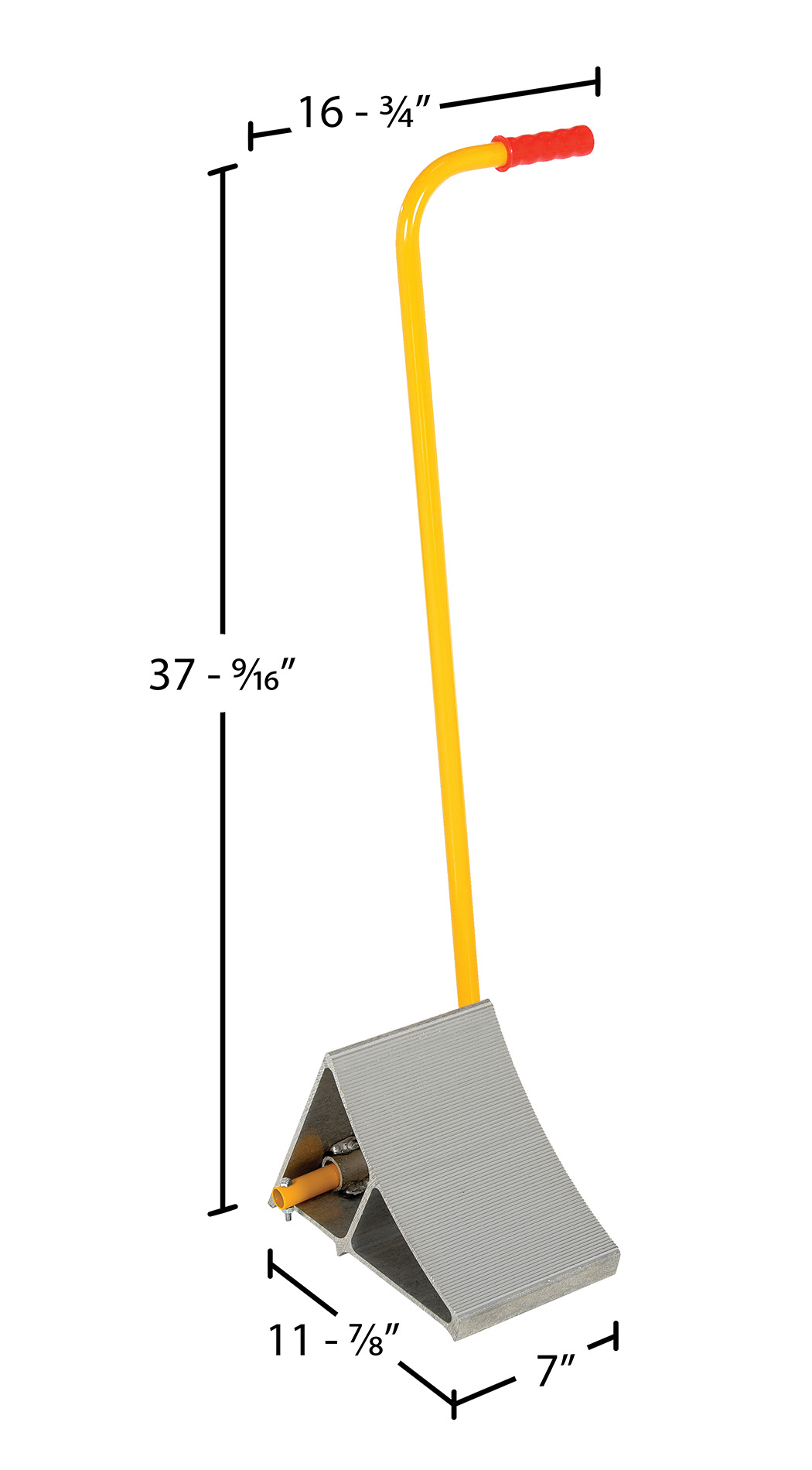

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 11 lbs
Assembled Size 16.75"W x 11.875"L x 37.5625"H
Total Ship Weight 20 lbs
Package 1 Size 24"W x 49"D x 1"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Includes Wheel Chock, Handle
Load Bearing Limit (lb.) 10,000
% Grade Rating 30%
Grip Surface Material Aluminum
Reversible Handle? Yes
Handle Diameter (in.) 7/8
Chock Size (in.) 7 x 11-7/8
Handle Height (in.) 37-9/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
EALUM-7-H
Product Name
Aluminum Wheel Chock with Handle 11-7/8 In. x 17-1/16 In. x 37-9/16 In. Silver
UPC
691215016414
GTIN
00691215016414
Taxonomy 1
Automotive
Taxonomy 2
Tools
Taxonomy 3
Wheel & Tire
Taxonomy 4
Wheel Chocks
Assembled Depth (in.)
11.875
Assembled Width(in.)
16.75
Assembled Height(in.)
37.5625
Assembled Weight(lbs.)
11
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
49
Package Width (in.)
24
Package Height (in.)
1
Package Weight (in.)
13
Freight Class
70
NMFC Code
Handle Yokes iron with or without wooden grips
NMFC Number
95140
Package 2 Depth (in.)
11
Package 2 Width (in.)
8
Package 2 Height (in.)
12
Package 2 Weight (lbs.)
7
Package 2 Subclass
1
Package 2 Freight Class
70
Package2 NMFC Number
136500
LTL Freight
Parcel
UNSPSC
24101808
HTSUS Number
7616.99.5190
USMCA HS
7616.99
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EALUM-7-H

EALUM-7-H

Aluminum Wheel Chock with Handle 11-7/8 In. x 17-1/16 In. x 37-9/16 In. Silver

The aluminum wheel chock is ideal for maintenance and industrial facilities. The chock is constructed of extruded lightweight aluminum that is easy to handle. The unit features a serrated top to grip the tire and a triple edged bottom to grip the ground. An extended handle for simple maneuvering is included. D-ring provided for attaching security chain. Chain not included.

  • Extruded aluminum construction is strong yet lightweight
  • Open design provides an optional attaching safety chain
  • Rugged bottom includes cleats for extra grip
  • Serrated top provides extra tire grip

Core Data

Assembled Weight: 11 Assembled Size: 16.75"W x 11.875"L x 37.5625"H Color: Silver
Total Ship Weight: 20 Package 1 Size: 24"W x 49"D x 1"H Freight: Parcel

Specifications

Includes: Wheel Chock, Handle
Load Bearing Limit (lb.): 10,000
% Grade Rating: 30%
Grip Surface Material: Aluminum
Reversible Handle?: Yes
Handle Diameter (in.): 7/8
Chock Size (in.): 7 x 11-7/8
Handle Height (in.): 37-9/16
