Aluminum Wheel Chock with Handle and Flag Yellow

Aluminum Ergonomic Handle Wheel Chock for Vehicle and Wheel Restraint at Loading Areas, 10,000 lb. Capacity

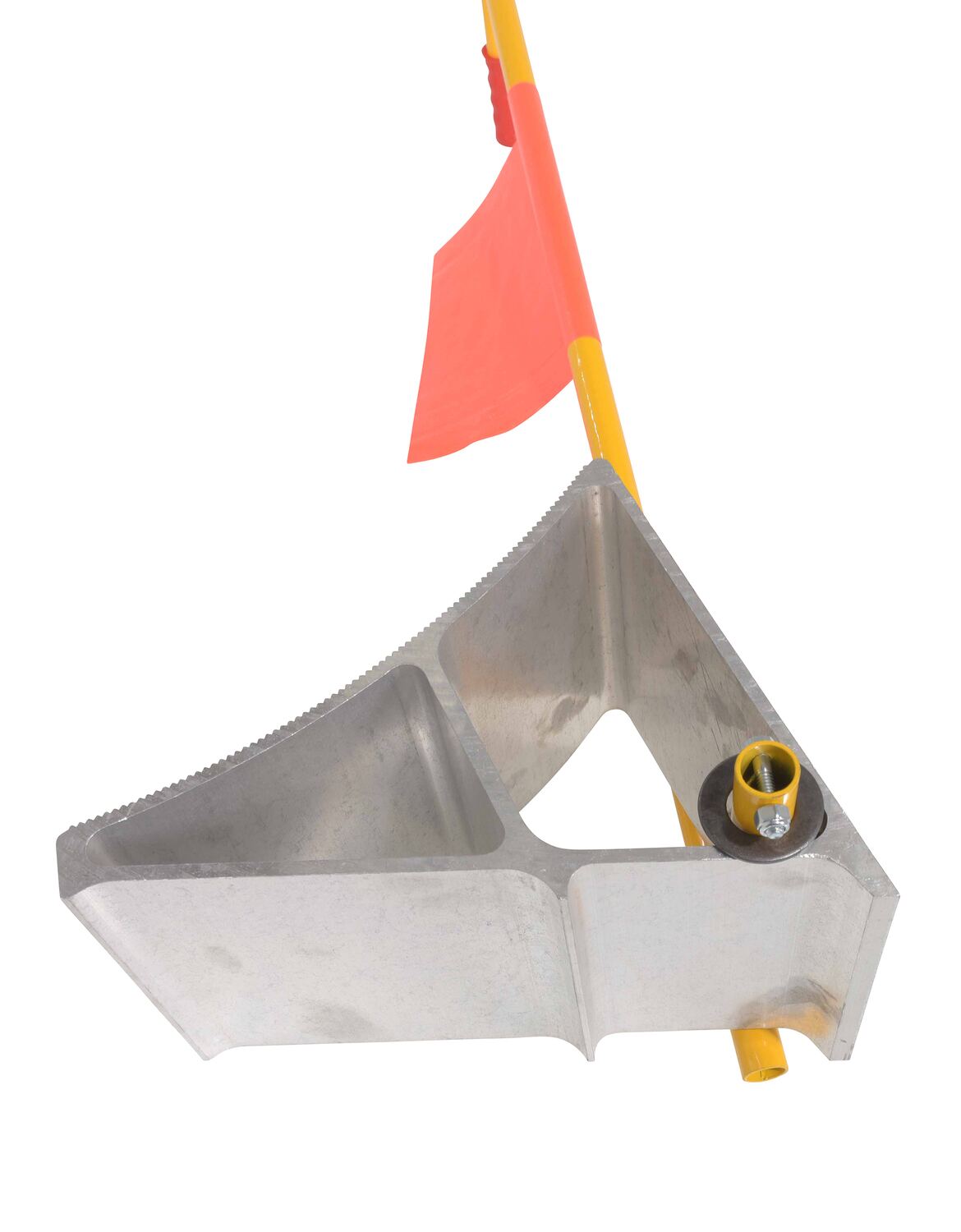

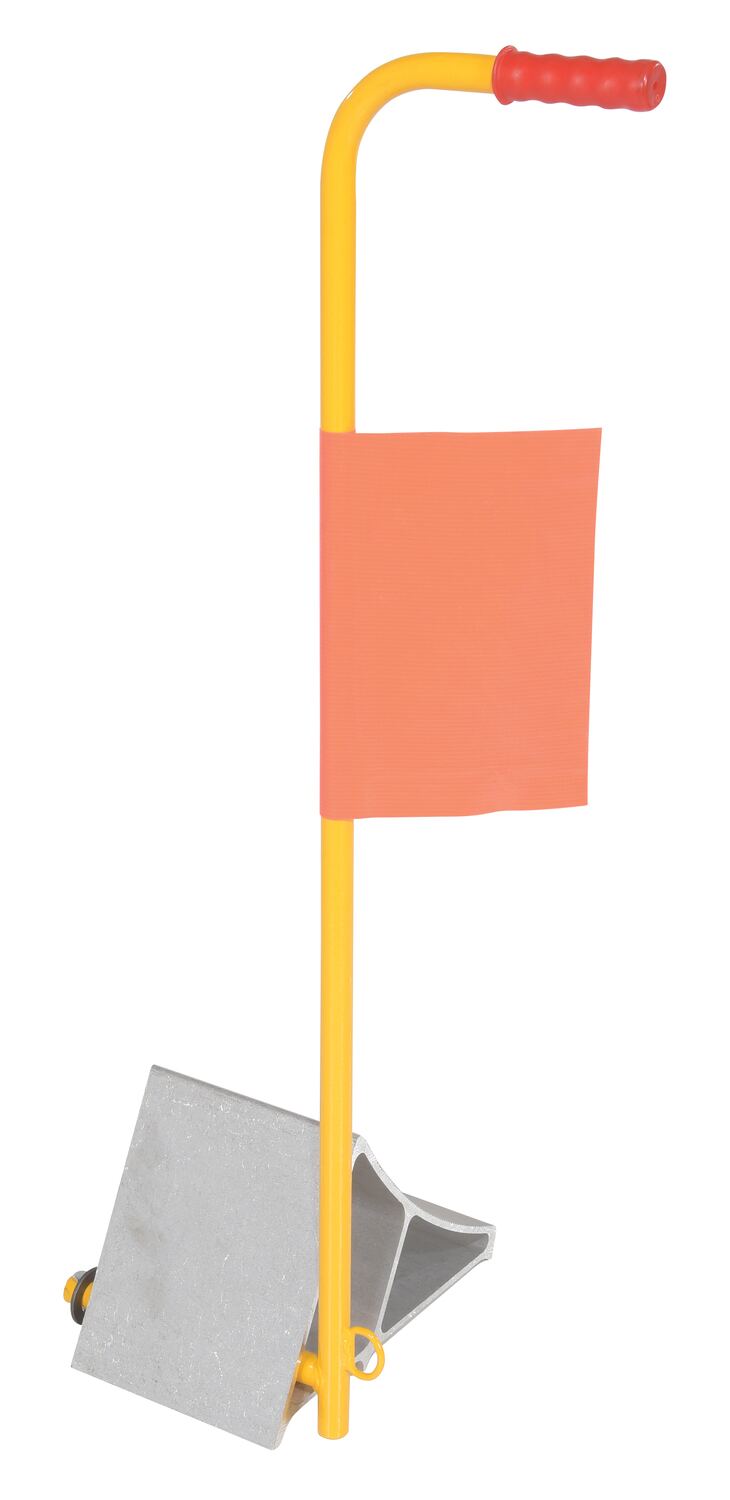

The aluminum wheel chock is ideal for maintenance and industrial facilities. The chock is constructed of extruded lightweight aluminum that is easy to handle. The unit features a serrated top to grip the tire and a triple edged bottom to grip the ground. An extended handle for simple maneuvering is included. D-ring provided for attaching security chain. A vinyl flag is included to provide added visibility and awareness to the chock. Chain not included.
Product Status
Available QuickShip
Key Features
  • Extruded aluminum construction is strong yet lightweight
  • Open design provides an optional attaching safety chain
  • Rugged bottom includes cleats for extra grip

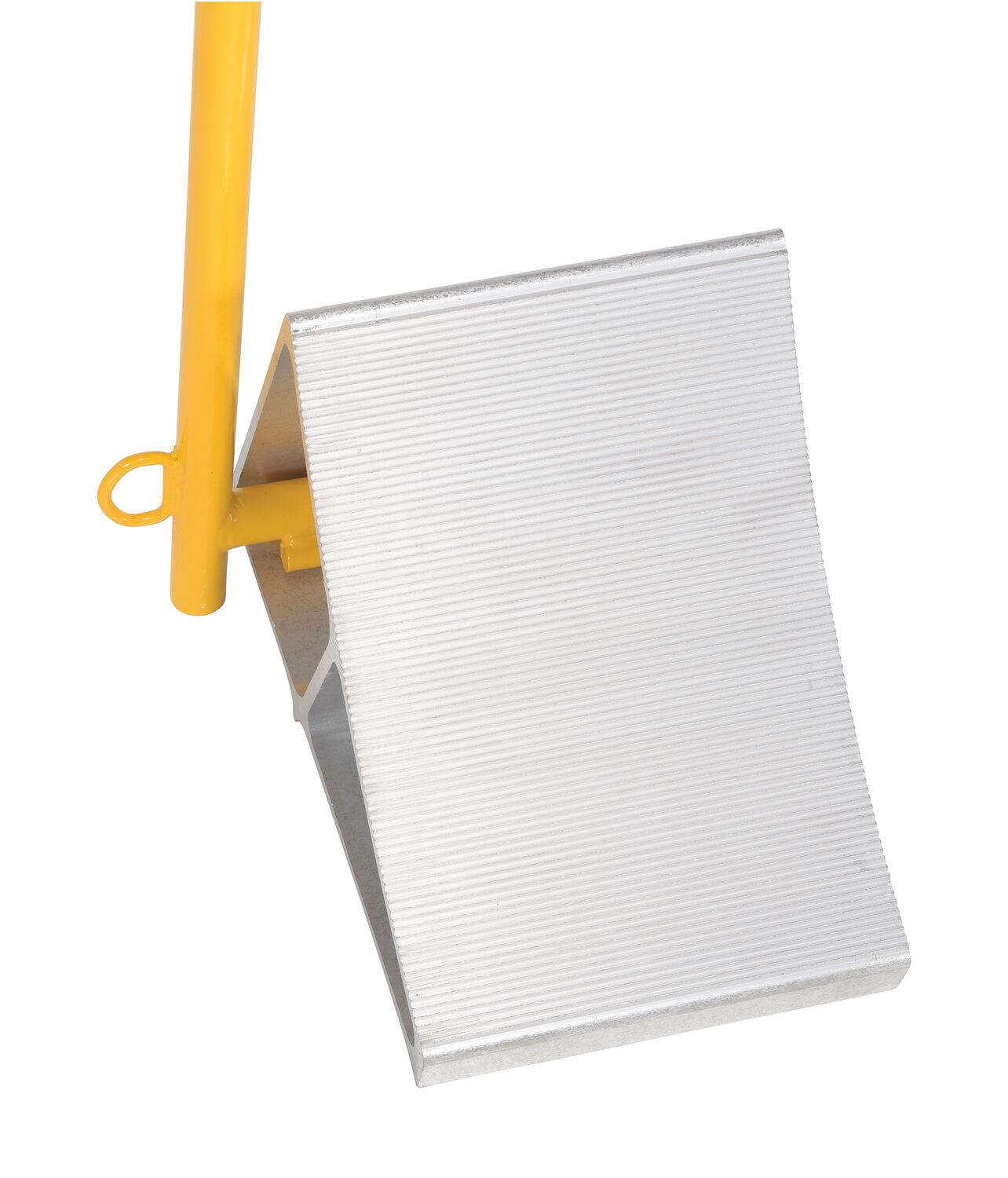

  • Serrated edge provides extra tire grip
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   30 Days Warranty
Product Data

Core Data

Assembled Weight 11 lbs

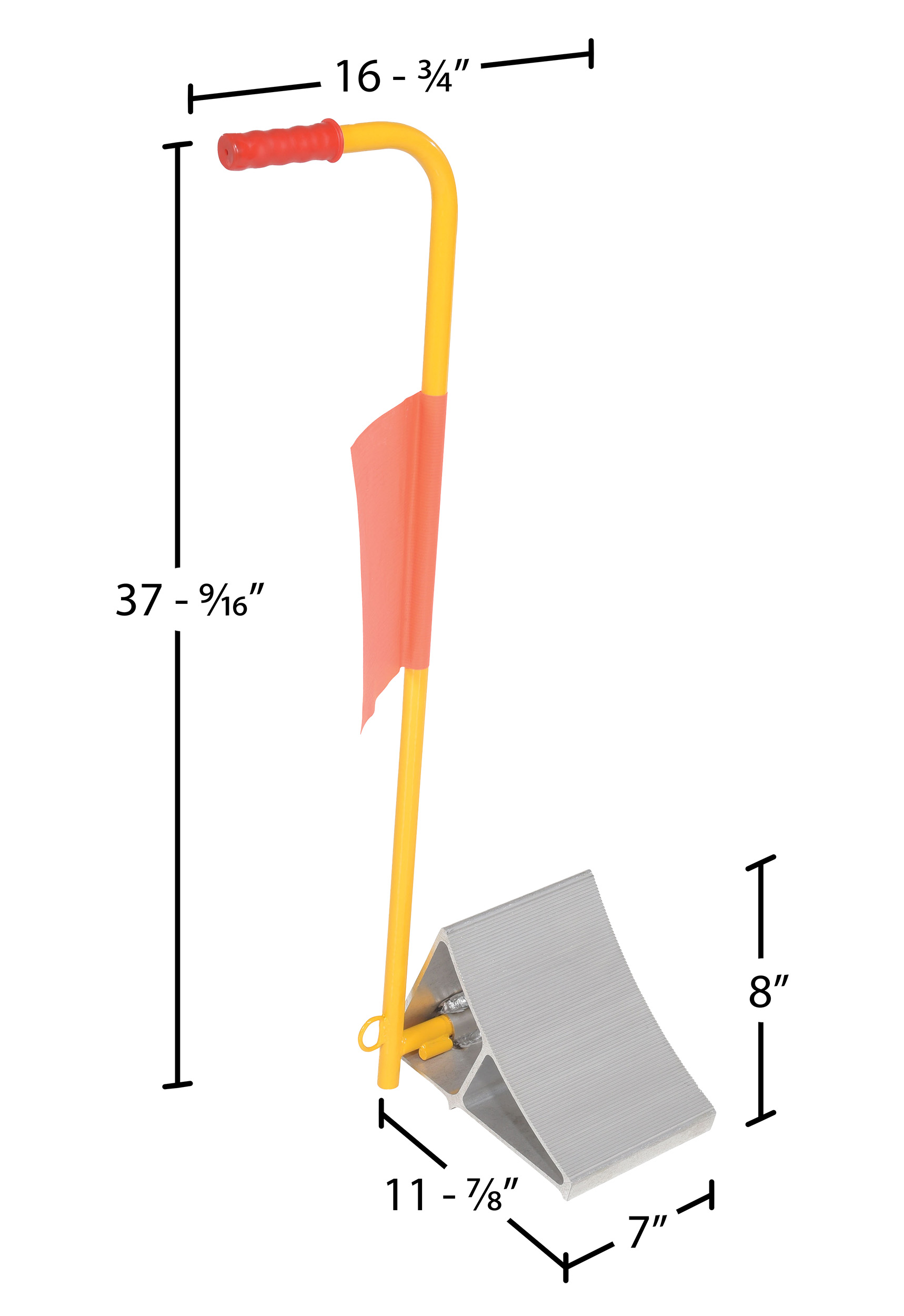

Assembled Size 16.5625"W x 11.875"L x 38"H
Total Ship Weight 11 lbs
Package 1 Size 22"W x 40"D x 5"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Usable Chock Width (in.) 7
Usable Chock Length (in.) 11-7/8
Usable Chock Height (in.) 7-11/16
Flag Material Vinyl
Handle Reversible
Extended Product Details

Marketing Specs.

MFG Model # (Series)
EALUM-7-H-FL
Product Name
Aluminum Wheel Chock with Handle and Flag Yellow
UPC
691215364355
GTIN
00691215364355
Taxonomy 1
Automotive
Taxonomy 2
Tools
Taxonomy 3
Wheel & Tire
Taxonomy 4
Wheel Chocks
Assembled Depth (in.)
11.875
Assembled Width(in.)
16.5625
Assembled Height(in.)
38
Assembled Weight(lbs.)
11
Color/Finish
Yellow
Material
Steel/Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
40
Package Width (in.)
22
Package Height (in.)
5
Package Weight (in.)
4
Subclass
6
Freight Class
100
NMFC Code
Metal or Metal Alloys
NMFC Number
135955
Package 2 Depth (in.)
13
Package 2 Width (in.)
11
Package 2 Height (in.)
8
Package 2 Weight (lbs.)
7
Package 2 Subclass
6
Package 2 Freight Class
100
Package2 NMFC Number
135955
LTL Freight
Parcel
UNSPSC
24101808
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EALUM-7-H-FL

EALUM-7-H-FL

Aluminum Wheel Chock with Handle and Flag Yellow

The aluminum wheel chock is ideal for maintenance and industrial facilities. The chock is constructed of extruded lightweight aluminum that is easy to handle. The unit features a serrated top to grip the tire and a triple edged bottom to grip the ground. An extended handle for simple maneuvering is included. D-ring provided for attaching security chain. A vinyl flag is included to provide added visibility and awareness to the chock. Chain not included.

  • Extruded aluminum construction is strong yet lightweight
  • Open design provides an optional attaching safety chain
  • Rugged bottom includes cleats for extra grip
  • Serrated edge provides extra tire grip

Core Data

Assembled Weight: 11 Assembled Size: 16.5625"W x 11.875"L x 38"H Color: Yellow
Total Ship Weight: 11 Package 1 Size: 22"W x 40"D x 5"H Freight: Parcel

Specifications

Usable Chock Width (in.): 7
Usable Chock Length (in.): 11-7/8
Usable Chock Height (in.): 7-11/16
Flag Material: Vinyl
Handle: Reversible
