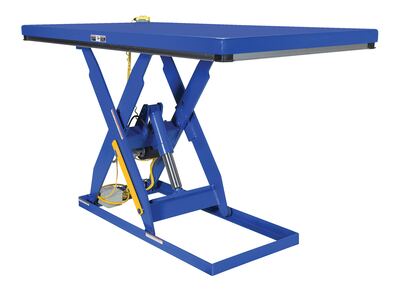

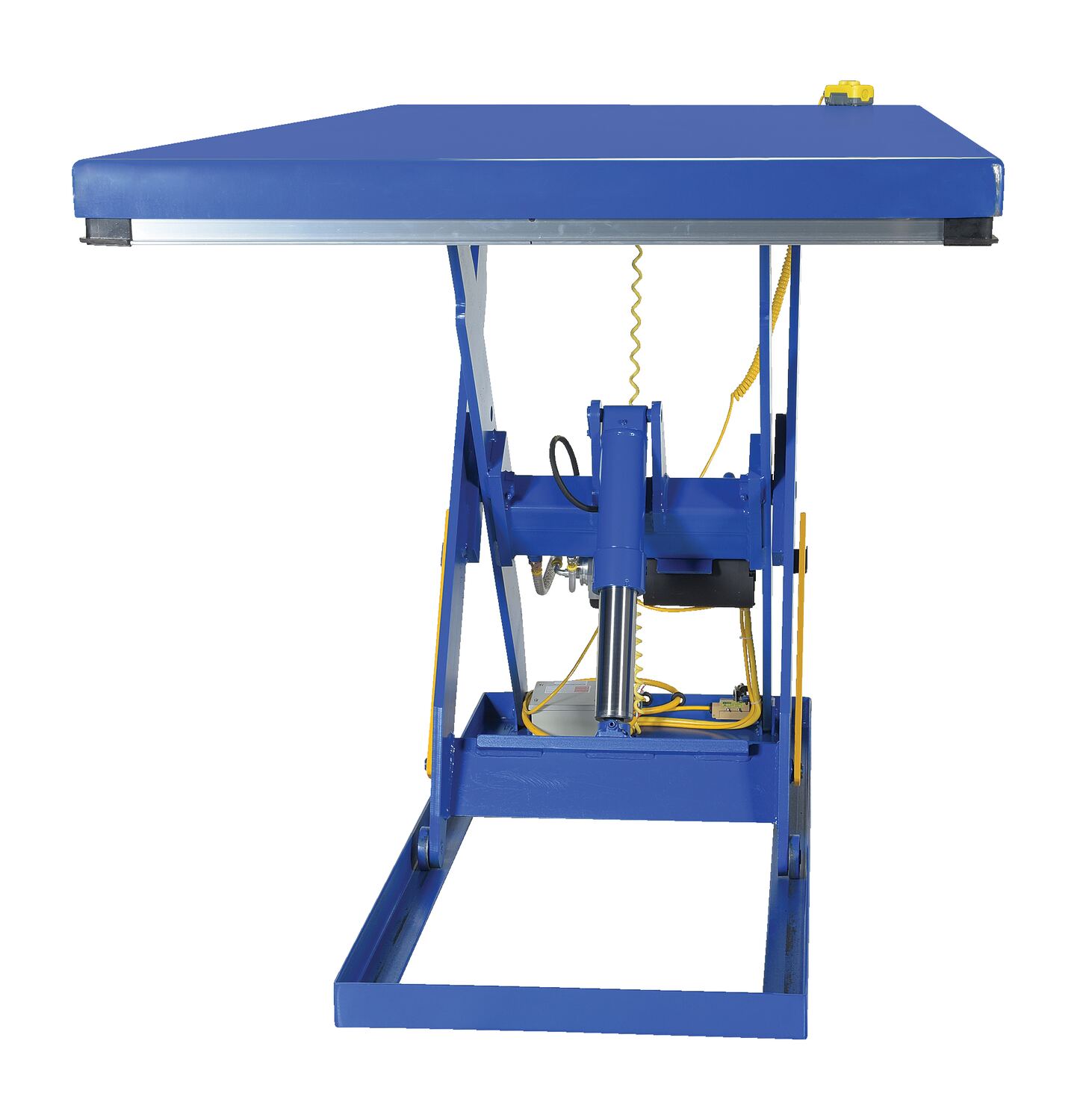

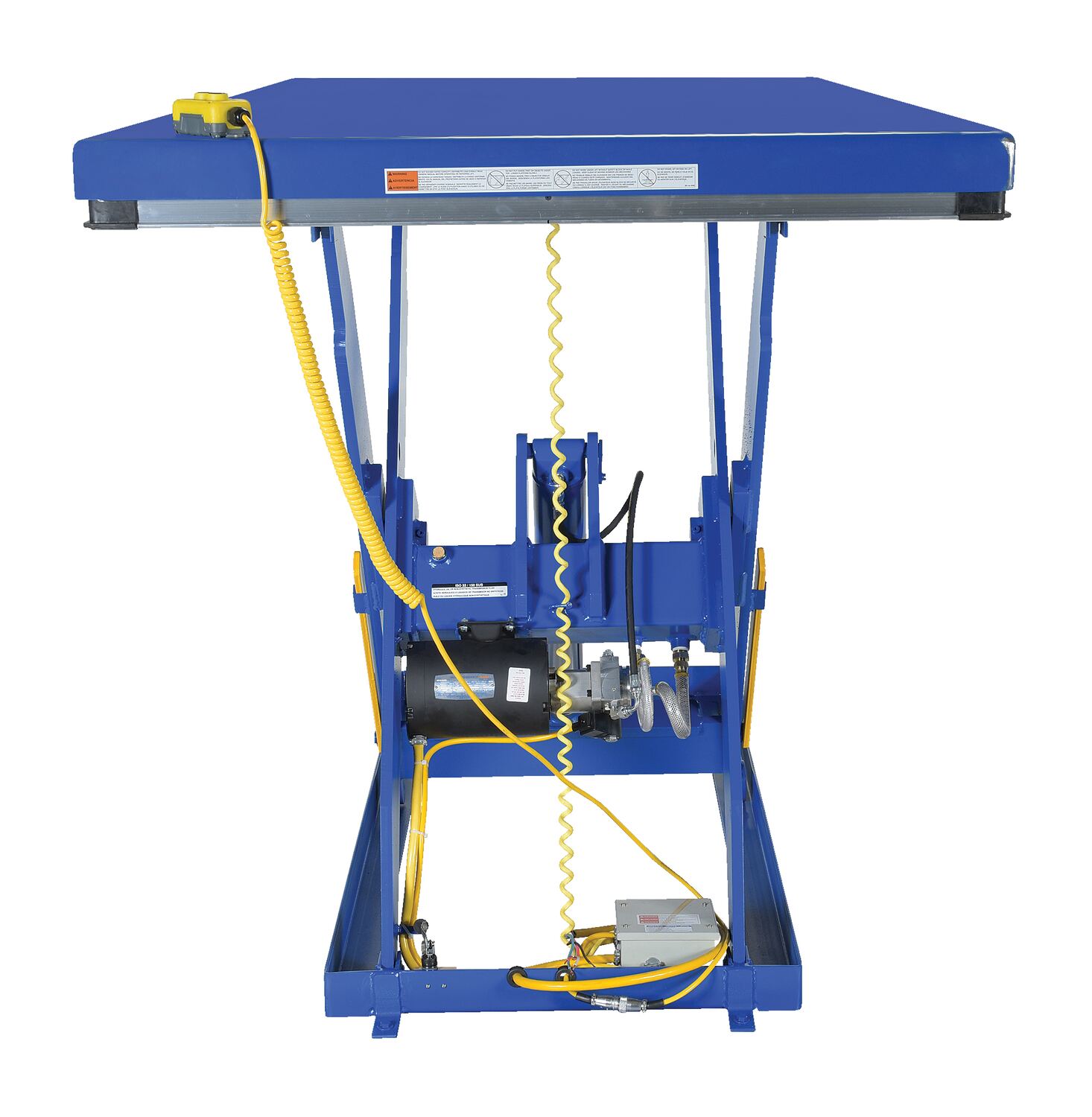

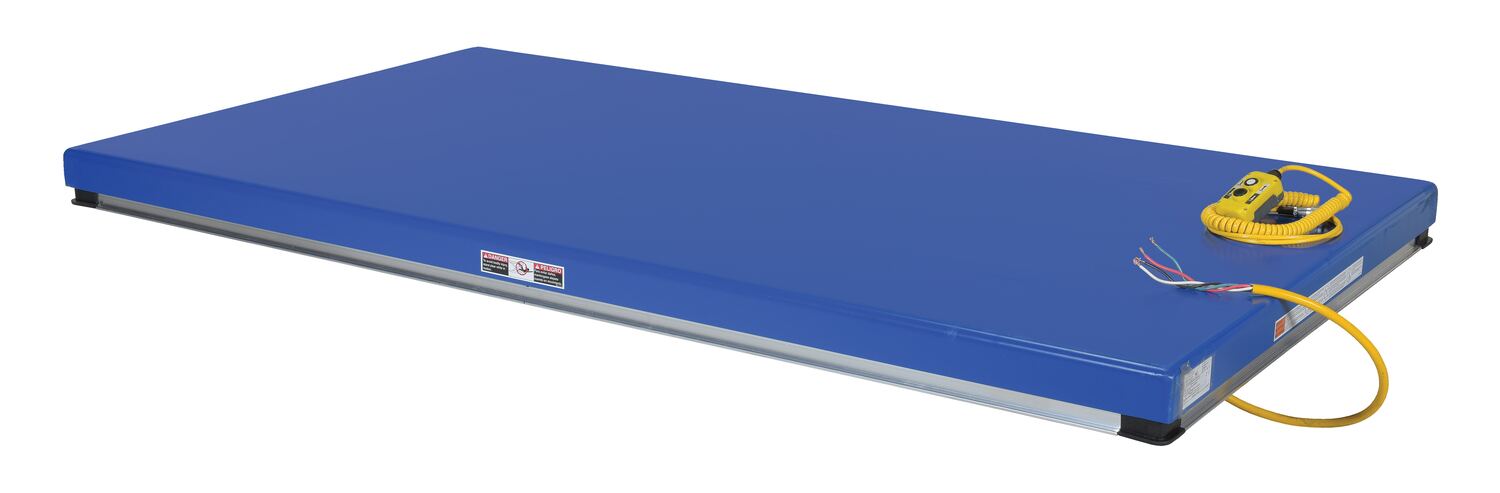

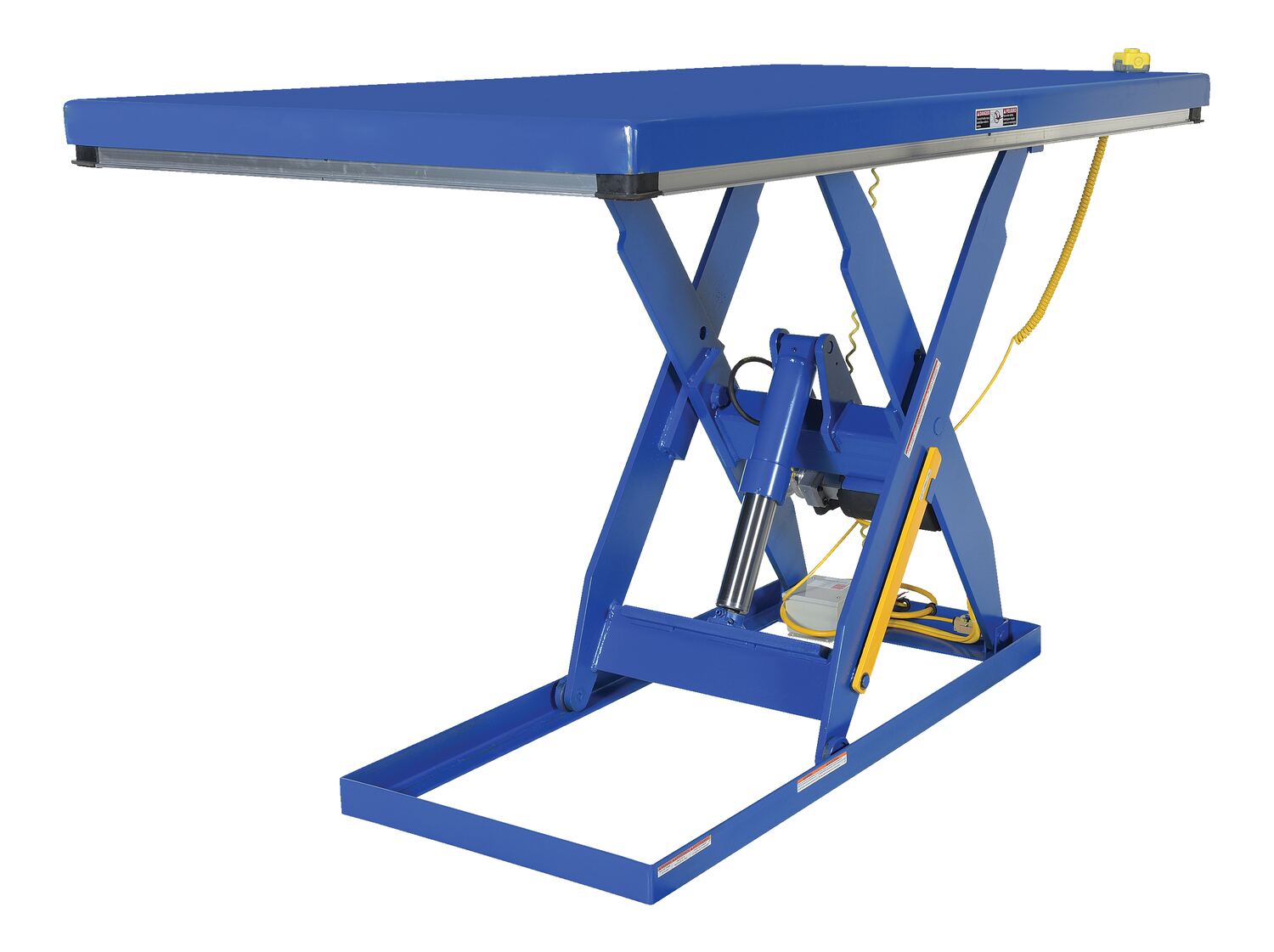

Steel Electric Hydraulic Lift Table 55 In. Height 1000 Lb. Capacity Blue

Electric-Hydraulic Platform Scissor Lift for Ergonomic Load Lifting and Workstation Positioning, 1,000 lb. Capacity with 55 in.
The electric hydraulic scissor lift table is used by all types of manufacturing and warehouse facilities. Safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering the table, fused push button control, internal safety velocity fuse to maintain platform height in the event of hose or fitting failure, integral maintenance prop, adjustable upper travel limit switch to stop the table at maximum height, and displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, and state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is fully enclosed with additional voltage options available. Contact factory if platform dimensions are crucial.
Product Status
Available Non-Returnable
Key Features
  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 625 lbs
Assembled Size 48"W x 90"L x 55"H
Total Ship Weight 755 lbs
Package 1 Size 70"W x 39"D x 14"H
Color / Finish Blue
Freight Type LTL Palletized
Extended Product Details

Marketing Specs.

MFG Model # (Series)
EHLT-1-55
Product Name
Steel Electric Hydraulic Lift Table 55 In. Height 1000 Lb. Capacity Blue
UPC
691215017268
GTIN
00691215017268
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Lift Table
Taxonomy 5
Electric
Assembled Depth (in.)
90
Assembled Width(in.)
48
Assembled Height(in.)
55
Assembled Weight(lbs.)
625
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
Y
Assembly
Assembled
Compatible Products
ROTATE, SCALE, PROGRAM, RRC-2PB, FC-2, PM-12BRIDGE-A, PM-12BRIDGE-S, PM-18BRIDGE-A, PM-18BRIDGE-S

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
39
Package Width (in.)
70
Package Height (in.)
14
Package Weight (in.)
755
Subclass
20
Freight Class
55
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101617
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EHLT-1-55

EHLT-1-55

Steel Electric Hydraulic Lift Table 55 In. Height 1000 Lb. Capacity Blue

The electric hydraulic scissor lift table is used by all types of manufacturing and warehouse facilities. Safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering the table, fused push button control, internal safety velocity fuse to maintain platform height in the event of hose or fitting failure, integral maintenance prop, adjustable upper travel limit switch to stop the table at maximum height, and displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, and state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is fully enclosed with additional voltage options available. Contact factory if platform dimensions are crucial.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use

Core Data

Assembled Weight: 625 Assembled Size: 48"W x 90"L x 55"H Color: Blue
Total Ship Weight: 755 Package 1 Size: 70"W x 39"D x 14"H Freight: LTL Palletized
