Steel Portable Lift Table 430 Volt 3 Phase 48 In. x 64 In. 2000 Lb. Capacity Blue

Portable Scissor Lift Table for Ergonomic Load Lifting and Workstation Positioning, 2,000 lb. Capacity with 430 Volt, Blue Finish – Model EHLTP-4864-2-60-A4
An electric hydraulic lift table is one of the most efficient way raise and lower heavy equipment and now, it's even better. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle for simple maneuvering is also included to enhance the workability of the unit. The casters and handle make a once steel constructed stationary unit accessible throughout the entire workplace.
Product Status
Temporarily Unavailable - Please Contact Sales Non-Returnable
Key Features
  • Adjustable travel limit switch
  • Hand pendent included to keep a safe distance during use
  • Electric toe guard included for pinch point safety
  • Emergency safety-stop to ensure user protection
Quick Actions

Product Resources

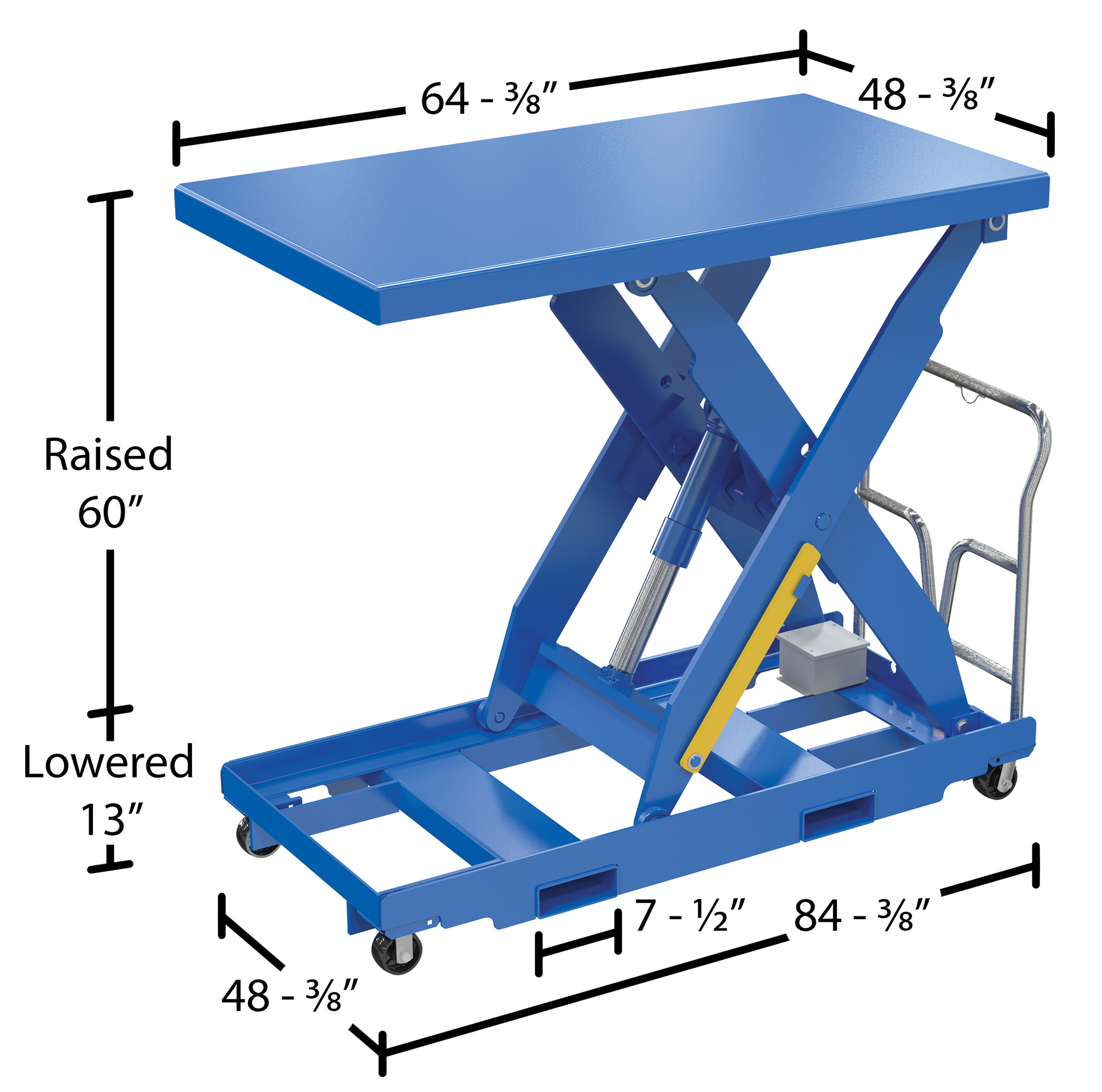

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   EHLTP series Portable Electric Hydraulic lift table manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 1460 lbs
Assembled Size 48.375"W x 84.375"L x 36.6875"H
Total Ship Weight 1510 lbs
Package 1 Size 64"W x 64"D x 19"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Power 460V 3 Phase
Platform Width (in.) 48-3/8
Platform Length (in.) 64-3/8
Service Range (in.) 13 to 60
Fork Pocket Width/Height (in.) 7-1/2 x 2-1/2
Fork Pocket Center (in.) 27
Caster Qty./Type (2) Swivel w/ Brake, (2) Rigid
Caster Diameter/Width (in.) 4 x 2
Caster Material Glass Filled Nylon
Handle Height (in.) 36-11/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
EHLTP-4864-2-60-A4
Product Name
Steel Portable Lift Table 430 Volt 3 Phase 48 In. x 64 In. 2000 Lb. Capacity Blue
UPC
691215326285
GTIN
00691215326285
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Scissor Lift Table
Taxonomy 5
Electric
Assembled Depth (in.)
84.375
Assembled Width(in.)
48.375
Assembled Height(in.)
36.6875
Assembled Weight(lbs.)
1460
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
64
Package Height (in.)
19
Package Weight (in.)
1510
Subclass
20
Freight Class
55
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
24101617
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EHLTP-4864-2-60-A4

EHLTP-4864-2-60-A4

Steel Portable Lift Table 430 Volt 3 Phase 48 In. x 64 In. 2000 Lb. Capacity Blue

An electric hydraulic lift table is one of the most efficient way raise and lower heavy equipment and now, it's even better. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle for simple maneuvering is also included to enhance the workability of the unit. The casters and handle make a once steel constructed stationary unit accessible throughout the entire workplace.

  • Adjustable travel limit switch
  • Hand pendent included to keep a safe distance during use
  • Electric toe guard included for pinch point safety
  • Emergency safety-stop to ensure user protection

Core Data

Assembled Weight: 1460 Assembled Size: 48.375"W x 84.375"L x 36.6875"H Color: Blue
Total Ship Weight: 1510 Package 1 Size: 64"W x 64"D x 19"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Power: 460V 3 Phase
Platform Width (in.): 48-3/8
Platform Length (in.): 64-3/8
Service Range (in.): 13 to 60
Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2
Fork Pocket Center (in.): 27
Caster Qty./Type: (2) Swivel w/ Brake, (2) Rigid
Caster Diameter/Width (in.): 4 x 2
Caster Material: Glass Filled Nylon
Handle Height (in.): 36-11/16
