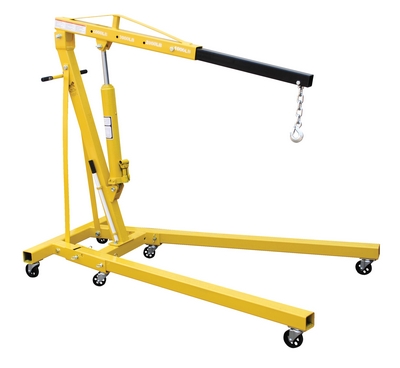

Steel Shop Crane Engine Hoist with Folding Legs 4000 Lb. Capacity Yellow

Folding Crane Hoist Motor for Overhead Load Lifting and Controlled Positioning, 4,000 lb. Capacity
A portable shop crane engine hoist is great for hundreds of lifting applications. It features a telescopic boom, benefiting different lifting heights and capacities. Features a large diameter ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for portability. Heavy-duty steel construction and painted finish.
Product Status
Available QuickShip
Key Features
  • Variable boom lengths
  • Collapsible design
  • Manual hand pump for raise and lowering
  • High-capacity hydraulic cylinder
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   EHN-40-C Portable Engine Hoist Manual   Portable Crane Hoists   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 196 lbs
Assembled Size 42.625"W x 72"L x 57.625"H
Total Ship Weight 238 lbs
Package 1 Size 40"W x 64"D x 12"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,000
Leg Design Foldable
4,000 Capacity Reach (in.) 39-1/4
4,000 Capacity Boom Height (in.) 21 to 85-3/4
3,000 Capacity Reach (in.) 46-1/4
3,000 Capacity Boom Height (in.) 15 to 91-1/4
2,000 Capacity Reach (in.) 53-1/4
2,000 Capacity Boom Height (in.) 9 to 96-9/16
1,000 Capacity Reach (in.) 60-1/2
1,000 Capacity Boom Height (in.) 3 to 102
Rear Rubber Swivel Caster Diameter (in.) 3-1/2
Rear Rubber Swivel Caster Width (in.) 1-1/4
Middle Rubber Swivel Caster Diameter (in.) 3
Middle Rubber Swivel Caster Width (in.) 1-1/4
Front Rubber Rigid Caster Diameter (in.) 3-1/2
Front Rubber Rigid Caster Width (in.) 1-1/4
Chain Length (in.) 7
Chain Length w/ Hook (in.) 11
Collapsed Width (in.) 31
Collapsed Length (in.) 21
Collapsed Height (in.) 65-7/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
EHN-40-C
Product Name
Steel Shop Crane Engine Hoist with Folding Legs 4000 Lb. Capacity Yellow
UPC
691215049603
GTIN
00691215049603
Taxonomy 1
Automotive
Taxonomy 2
Tools
Taxonomy 3
Lifts, Jacks, & Supports
Taxonomy 4
Engine & Transmission
Taxonomy 5
Hoists / Cranes
Assembled Depth (in.)
72
Assembled Width(in.)
42.625
Assembled Height(in.)
57.625
Assembled Weight(lbs.)
196
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
12
Package Weight (in.)
238
Freight Class
85
NMFC Code
Hoists dumping vehicle body hydraulic
NMFC Number
122883
LTL Freight
LTL Palletized
UNSPSC
24101602
HTSUS Number
8425.19.0000
USMCA HS
8425.19
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EHN-40-C

EHN-40-C

Steel Shop Crane Engine Hoist with Folding Legs 4000 Lb. Capacity Yellow

A portable shop crane engine hoist is great for hundreds of lifting applications. It features a telescopic boom, benefiting different lifting heights and capacities. Features a large diameter ram to withstand angled loads when lifting. Includes two (2) rigid and two (2) swivel casters for portability. Heavy-duty steel construction and painted finish.

  • Variable boom lengths
  • Collapsible design
  • Manual hand pump for raise and lowering
  • High-capacity hydraulic cylinder

Core Data

Assembled Weight: 196 Assembled Size: 42.625"W x 72"L x 57.625"H Color: Yellow
Total Ship Weight: 238 Package 1 Size: 40"W x 64"D x 12"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,000
Leg Design: Foldable
4,000 Capacity Reach (in.): 39-1/4
4,000 Capacity Boom Height (in.): 21 to 85-3/4
3,000 Capacity Reach (in.): 46-1/4
3,000 Capacity Boom Height (in.): 15 to 91-1/4
2,000 Capacity Reach (in.): 53-1/4
2,000 Capacity Boom Height (in.): 9 to 96-9/16
1,000 Capacity Reach (in.): 60-1/2
1,000 Capacity Boom Height (in.): 3 to 102
Rear Rubber Swivel Caster Diameter (in.): 3-1/2
Rear Rubber Swivel Caster Width (in.): 1-1/4
Middle Rubber Swivel Caster Diameter (in.): 3
Middle Rubber Swivel Caster Width (in.): 1-1/4
Front Rubber Rigid Caster Diameter (in.): 3-1/2
Front Rubber Rigid Caster Width (in.): 1-1/4
Chain Length (in.): 7
Chain Length w/ Hook (in.): 11
Collapsed Width (in.): 31
Collapsed Length (in.): 21
Collapsed Height (in.): 65-7/8
