Product Data Sheet

  Print to PDF
  All Products   Overhead Lifting   Hoists & Trollies   Mighty Mini Lever Hoists (disc brake) ELH-10-20
Product Image

Visual Reference

ELH-10-20
ELH-10-20
ELH-10-20
ELH-10-20
ELH-10-20

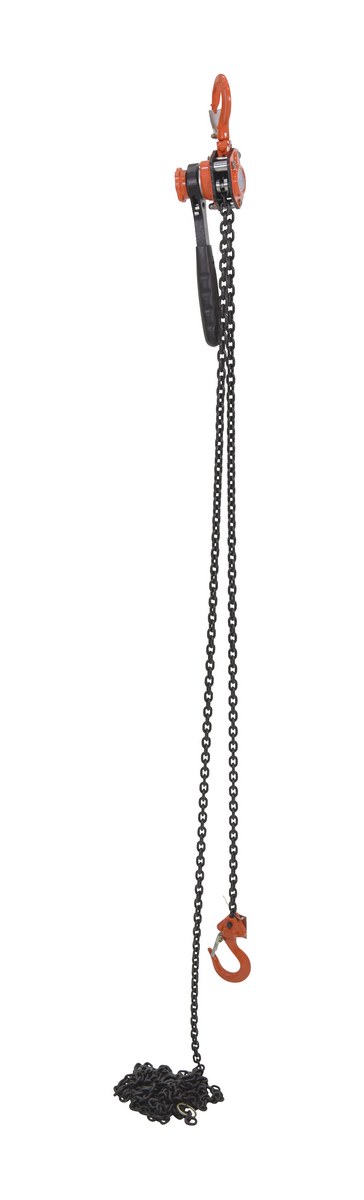

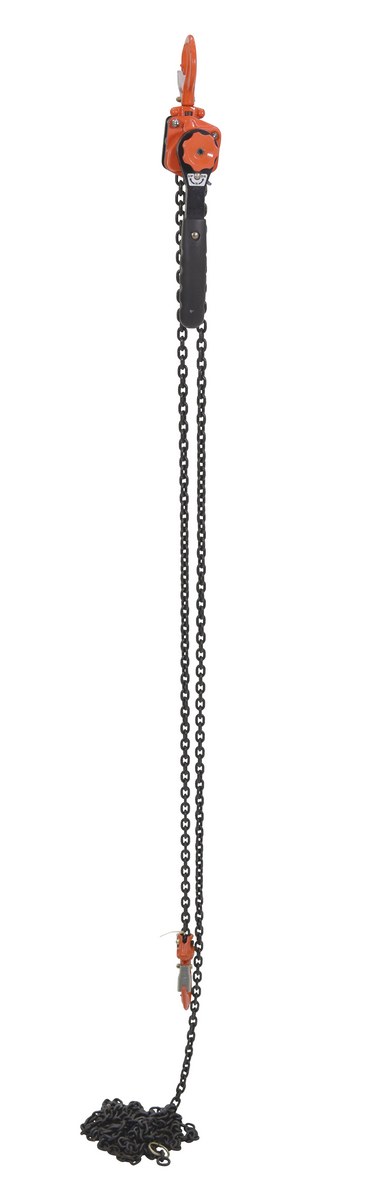

Steel Mighty Mini Lever Hoist 20 Ft. Chain Length 1000 Lb. Capacity Orange

Electric Hoists Winches for Overhead Load Lifting and Controlled Positioning, 1,000 lb. Capacity with 20 ft. Chain Length
Lightweight mini lever hoists are durable and easy to operate. Single-hand "free chaining" is simple, allowing for trouble-free operation in the vertical or horizontal position. This hoist has long life brake discs and a short lever handle that can rotate in a complete 360 degree circle.
Product Status
Available QuickShip
Key Features
  • Tested to 150% of rated capacity
  • Main parts are made of alloy steel and heat treated
  • High strength grade 80 chain provides strength and long product life
  • Meets applicable ASME B30.21 specifications
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 10 lbs
Assembled Size 4"W x 14"L x 3"H
Total Ship Weight 22 lbs
Package 1 Size 11"W x 25"D x 10"H
Color / Finish Orange
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 1,000
Standard Lift (ft.) 20
Minimum Distance Between Hooks (in.) 10
Handle Length (in.) 8-1/2
Rotation (degrees) 360
Lever Resistance (lbs.) 104.3
Extended Product Details

Marketing Specs.

MFG Model # (Series)
ELH-10-20
Product Name
Steel Mighty Mini Lever Hoist 20 Ft. Chain Length 1000 Lb. Capacity Orange
UPC
691215112505
GTIN
00691215112505
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Chain Hoists
Taxonomy 4
Lever
Assembled Depth (in.)
14
Assembled Width(in.)
4
Assembled Height(in.)
3
Assembled Weight(lbs.)
10
Color/Finish
Orange
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
25
Package Width (in.)
11
Package Height (in.)
10
Package Weight (in.)
22
Subclass
1
Freight Class
85
NMFC Code
Chain Pulley Hoists Chain Hoist Pulley Block
NMFC Number
117040
LTL Freight
Parcel
UNSPSC
24101602
HTSUS Number
8425.19.0000
USMCA HS
8425.19
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ELH-10-20

ELH-10-20

Steel Mighty Mini Lever Hoist 20 Ft. Chain Length 1000 Lb. Capacity Orange

Lightweight mini lever hoists are durable and easy to operate. Single-hand "free chaining" is simple, allowing for trouble-free operation in the vertical or horizontal position. This hoist has long life brake discs and a short lever handle that can rotate in a complete 360 degree circle.

  • Tested to 150% of rated capacity
  • Main parts are made of alloy steel and heat treated
  • High strength grade 80 chain provides strength and long product life
  • Meets applicable ASME B30.21 specifications

Core Data

Assembled Weight: 10 Assembled Size: 4"W x 14"L x 3"H Color: Orange
Total Ship Weight: 22 Package 1 Size: 11"W x 25"D x 10"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 1,000
Standard Lift (ft.): 20
Minimum Distance Between Hooks (in.): 10
Handle Length (in.): 8-1/2
Rotation (degrees): 360
Lever Resistance (lbs.): 104.3
