Steel Electric Material Handling Cart No Sides 28 In. x 60 In. 1500 Lb. Capacity Gray

Electric Matl Hndl No Sides Cart for Commercial and Industrial Powered Carts Use, 1,500 lb. Capacity with 28 in. x 60 in.
Electric material handling carts are ideal for moving heavy loads safely and easily throughout warehouses, offices, schools, and hospitals and incorporates a multitude of features to make light work of heavy loads. Reduce injury and increase productivity with these high quality carts. Features an 800W electric drive motor with (2) two 12V batteries for power and on-board 115V AC battery charger. The handle includes forward and reverse throttle control levers, an emergency reverse switch, a battery level gauge, and a slow/fast speed switch. Pinpoint turning is accurate with the mid-axle drive feature.
Product Status
Available QuickShip
Key Features
  • Minimizes pushing or pulling of heavy loads
  • Battery powered for long traversing use
  • Open platform for simple loading and unloading
  • High handle for ergonomic steering
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Electric Material Handling Cart Owners Manual   Hydraulic Oil SDS   Valve-Regulated Lead Acid Battery Series SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 373 lbs

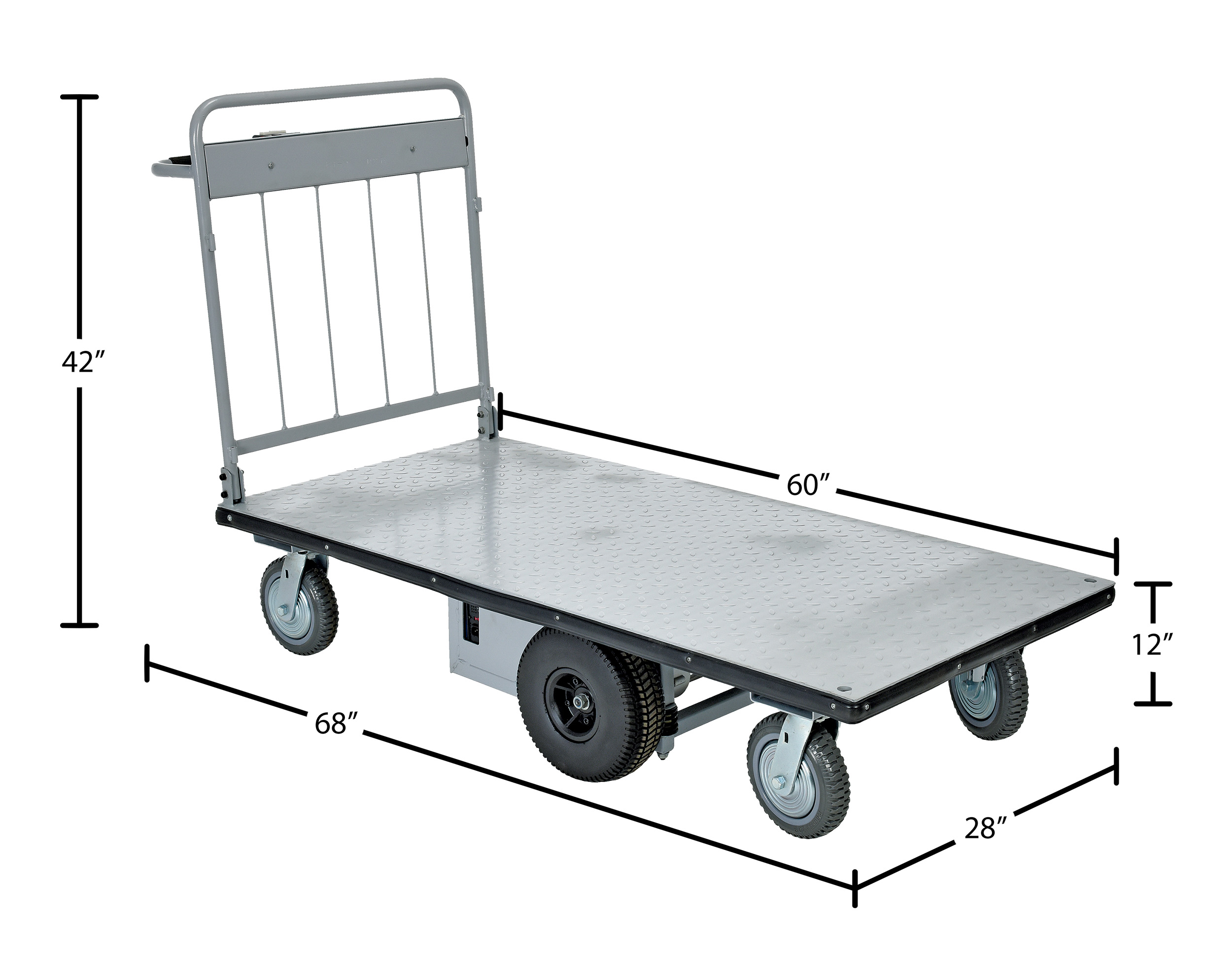

Assembled Size 28.75"W x 68.6875"L x 42"H
Total Ship Weight 375 lbs
Package 1 Size 45"W x 85"D x 41"H
Color / Finish Gray
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,500
Platform Width (in.) 28
Platform Length (in.) 60
Drive Motor 24V DC / 800 W
Battery Qty./Type (2) 12V / 45 Ah (AGM)
Charger 24V / 8 AMP
Speed - Unloaded 2.8 MPH
Speed - Loaded 2.2 MPH

Battery Information

Battery Depth 8
Battery Width 14
Battery Height 7
Battery Weight 56
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
EMHC-2860-1
Product Name
Steel Electric Material Handling Cart No Sides 28 In. x 60 In. 1500 Lb. Capacity Gray
UPC
691215117470
GTIN
00691215117470
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Platform Carts
Taxonomy 4
Electric
Assembled Depth (in.)
68.6875
Assembled Width(in.)
28.75
Assembled Height(in.)
42
Assembled Weight(lbs.)
373
Color/Finish
Gray
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
85
Package Width (in.)
45
Package Height (in.)
41
Package Weight (in.)
375
Subclass
6
Freight Class
200
NMFC Code
Cars Lift Trucks or Vehicles electric NOI
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
56
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EMHC-2860-1

EMHC-2860-1

Steel Electric Material Handling Cart No Sides 28 In. x 60 In. 1500 Lb. Capacity Gray

Electric material handling carts are ideal for moving heavy loads safely and easily throughout warehouses, offices, schools, and hospitals and incorporates a multitude of features to make light work of heavy loads. Reduce injury and increase productivity with these high quality carts. Features an 800W electric drive motor with (2) two 12V batteries for power and on-board 115V AC battery charger. The handle includes forward and reverse throttle control levers, an emergency reverse switch, a battery level gauge, and a slow/fast speed switch. Pinpoint turning is accurate with the mid-axle drive feature.

  • Minimizes pushing or pulling of heavy loads
  • Battery powered for long traversing use
  • Open platform for simple loading and unloading
  • High handle for ergonomic steering

Core Data

Assembled Weight: 373 Assembled Size: 28.75"W x 68.6875"L x 42"H Color: Gray
Total Ship Weight: 375 Package 1 Size: 45"W x 85"D x 41"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,500
Platform Width (in.): 28
Platform Length (in.): 60
Drive Motor: 24V DC / 800 W
Battery Qty./Type: (2) 12V / 45 Ah (AGM)
Charger: 24V / 8 AMP
Speed - Unloaded: 2.8 MPH
Speed - Loaded: 2.2 MPH
