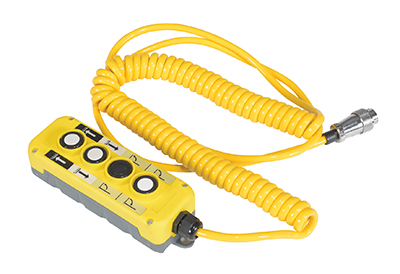

Plastic Power Lift Hand Control For Fully Powered Electric Floor Crane Models Yellow

Engine Crane Hand Control for Overhead Load Lifting and Controlled Positioning with Plastic Construction
This hand control option allows the user to maneuver the lift table to the desired height in a matter of seconds.
Product Status
Available QuickShip
Key Features
  • Compact design
  • Lightweight for simple handling
  • Allows user to move freely
  • Perfect for consistent positioning
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 3 lbs
Assembled Size 5.5"W x 9"L x 2.5"H
Total Ship Weight 3 lbs
Package 1 Size 9"W x 18"D x 3"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Speeds (qty.) 4
Symbol Display? Yes
Text Display? No
Digital Display? No
Information Displayed Raise/Lower
Number of Buttons 4
Button Color Black/White
Pushbutton Type Standard Pushbutton
Switch Type Selector Switch
Emergency Shut Off? No
Pilot Light? No
Power Source Type AC
Voltage (V) 110
Amperage (A) 13
NEMA Rating N/A
Minimum Operating Temperature (F) 0
Maximum Operating Temperature (F) 158
UL Compliant No
CSA Certified Yes
CE Approved Yes
Cord Length (in.) 18 - 90
Extended Product Details

Marketing Specs.

MFG Model # (Series)
EPFC-HC
Product Name
Plastic Power Lift Hand Control For Fully Powered Electric Floor Crane Models Yellow
UPC
691215055949
GTIN
00691215055949
Taxonomy 1
Electrical
Taxonomy 2
Automation Control Components
Taxonomy 3
Control Switches
Taxonomy 4
Pendant Stations
Assembled Depth (in.)
9
Assembled Width(in.)
5.5
Assembled Height(in.)
2.5
Assembled Weight(lbs.)
3
Color/Finish
Yellow
Material
Plastic
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
EPFC-25, EPFC-25-AA, EPFC-CB-15

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
18
Package Width (in.)
9
Package Height (in.)
3
Package Weight (in.)
3
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
Parcel
UNSPSC
20102302
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EPFC-HC

EPFC-HC

Plastic Power Lift Hand Control For Fully Powered Electric Floor Crane Models Yellow

This hand control option allows the user to maneuver the lift table to the desired height in a matter of seconds.

  • Compact design
  • Lightweight for simple handling
  • Allows user to move freely
  • Perfect for consistent positioning

Core Data

Assembled Weight: 3 Assembled Size: 5.5"W x 9"L x 2.5"H Color: Yellow
Total Ship Weight: 3 Package 1 Size: 9"W x 18"D x 3"H Freight: Parcel

Specifications

Speeds (qty.): 4
Symbol Display?: Yes
Text Display?: No
Digital Display?: No
Information Displayed: Raise/Lower
Number of Buttons: 4
Button Color: Black/White
Pushbutton Type: Standard Pushbutton
Switch Type: Selector Switch
Emergency Shut Off?: No
Pilot Light?: No
Power Source Type: AC
Voltage (V): 110
Amperage (A): 13
NEMA Rating: N/A
Minimum Operating Temperature (F): 0
Maximum Operating Temperature (F): 158
UL Compliant: No
CSA Certified: Yes
CE Approved: Yes
Cord Length (in.): 18 - 90
