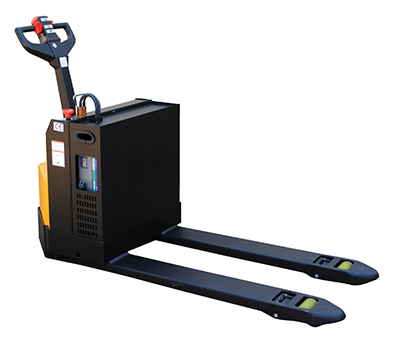

EPT-2048-45-RP-AGM

Steel Electric Pallet Truck with Rider Platform 20 In. x 48 In. 4,500 Lb. Capacity

Stand on Platform Pallet Truck for Moving Loads Through Warehouses and Production Areas, 4,500 lb. Capacity with 20 in. x 48 in., Black and Yellow – Model EPT-2048-45-RP-AGM
The fully powered electric pallet truck has an easy and quick operation. The unit raises and lowers loads with a push of a button. It can maneuver loads in warehouses and trailers. The reinforced welded forks have adjustable tie-rods that provide long service. The high-torque DC drive and lift motors handle heavy-duty jobs. Unit includes integral battery charger, battery level gauge and key switch. The truck rolls smoothly on poly-on-steel, steer and load wheels. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the proprietary safety-enhancing emergency reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.
Product Status
Available
Key Features
  • Fully-powered pallet truck makes movement of pallets quick and easy
  • Includes fingertip raise and lower buttons for operator convenience
  • Safety belly reverse button improves worker safety
  • Easy-to-operate throttle for forward and reverse direction
Product Data

Core Data

Assembled Weight 816 lbs

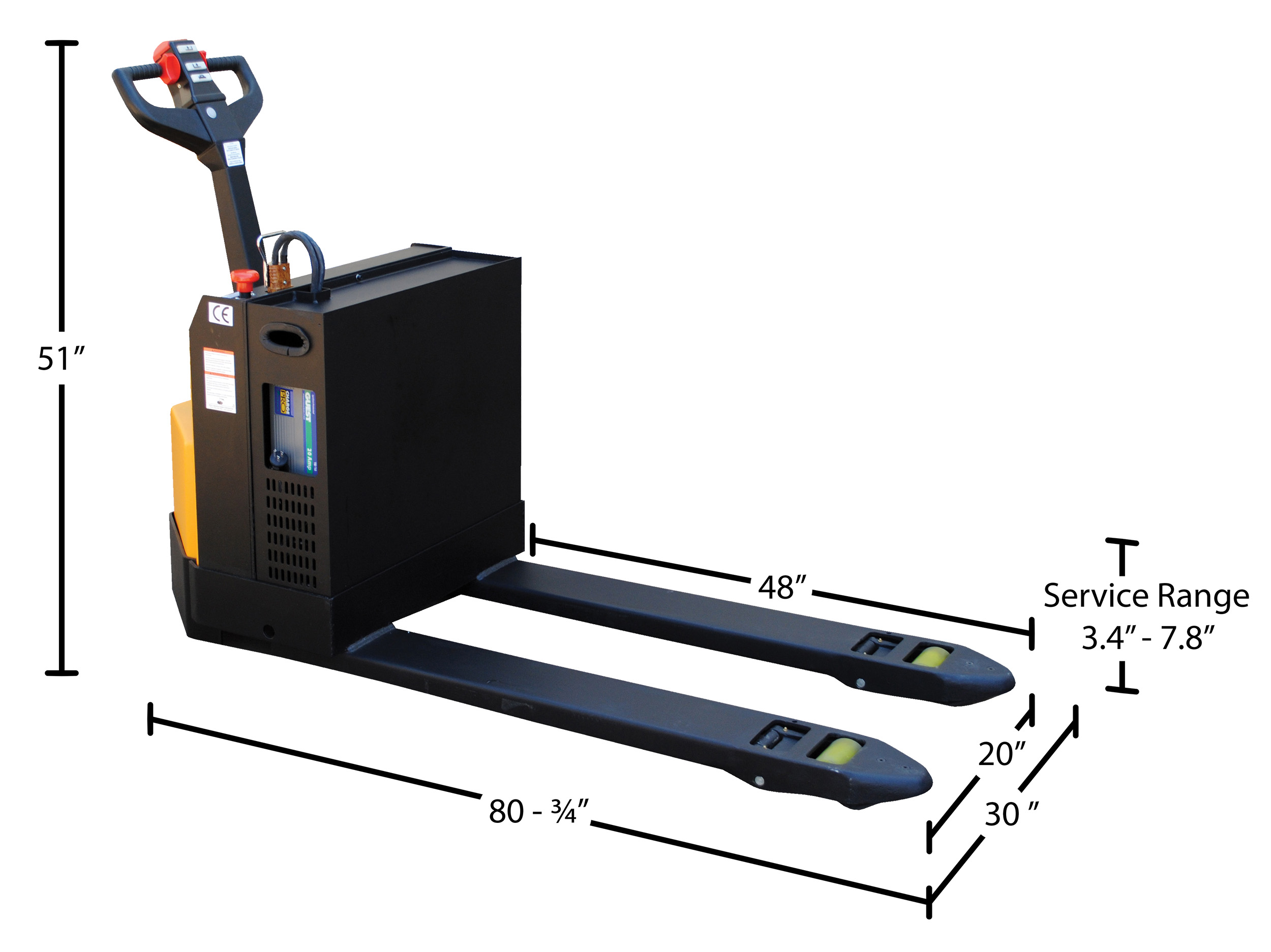

Assembled Size 30"W x 80.75"L x 51"H
Total Ship Weight 1016 lbs
Package 1 Size 42"W x 85"D x 57"H
Color / Finish Black / Yellow
Freight Type LTL Palletized

Additional Attributes

Overall Fork Width (in.) 20
Overall Fork Length (in.) 48
Uniform Capacity (lb.) 4500
Lowered Height (in.) 3.4
Raised Height (in.) 7.8
Battery Type (4) AGM
DC Motor Voltage 24
Battery Charger 120V Input, 24V/20 amp
Turn Radius (in.) 52
Drive KW 1.2
Lift Motor KW 2.0
Operation at Full Charge (hours) 6 to 7
Operation When Used Intermittently (hours) 8
Drive Wheel Diameter (in.) 10
Drive Wheel Width (in) 3-1/8
Load Roller Diameter (in.) 2-3/4
Load Roller Width (in.) 3
Stabilizing Roller Diameter (in.) 1-1/2
Stabilizing Roller Width (in.) 3
Wheel & Roller Type Poly on Steel

Battery Information

Battery Depth 10
Battery Width 28
Battery Height 9
Battery Weight 120
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
EPT-2048-45-RP-AGM
Product Name
Steel Electric Pallet Truck with Rider Platform 20 In. x 48 In. 4,500 Lb. Capacity
UPC
691215086615
GTIN
00691215086615
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
80.75
Assembled Width(in.)
30
Assembled Height(in.)
51
Assembled Weight(lbs.)
816
Color/Finish
Black / Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
85
Package Width (in.)
42
Package Height (in.)
57
Package Weight (in.)
1016
Subclass
7
Freight Class
110
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
120
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Details For Model: EPT-2048-45-RP-AGM


EPT-2048-45-RP-AGM

Steel Electric Pallet Truck with Rider Platform 20 In. x 48 In. 4,500 Lb. Capacity

The fully powered electric pallet truck has an easy and quick operation. The unit raises and lowers loads with a push of a button. It can maneuver loads in warehouses and trailers. The reinforced welded forks have adjustable tie-rods that provide long service. The high-torque DC drive and lift motors handle heavy-duty jobs. Unit includes integral battery charger, battery level gauge and key switch. The truck rolls smoothly on poly-on-steel, steer and load wheels. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the proprietary safety-enhancing emergency reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle.

  • Fully-powered pallet truck makes movement of pallets quick and easy
  • Includes fingertip raise and lower buttons for operator convenience
  • Safety belly reverse button improves worker safety
  • Easy-to-operate throttle for forward and reverse direction

Core Data

Assembled Weight: 816 Assembled Size: 30"W x 80.75"L x 51"H Color: Black / Yellow
Total Ship Weight: 1016 Package 1 Size: 42"W x 85"D x 57"H Freight: LTL Palletized

Specifications

Overall Fork Width (in.): 20
Overall Fork Length (in.): 48
Uniform Capacity (lb.): 4500
Lowered Height (in.): 3.4
Raised Height (in.): 7.8
Battery Type: (4) AGM
DC Motor Voltage: 24
Battery Charger: 120V Input, 24V/20 amp
Turn Radius (in.): 52
Drive KW: 1.2
Lift Motor KW: 2.0
Operation at Full Charge (hours): 6 to 7
Operation When Used Intermittently (hours): 8
Drive Wheel Diameter (in.): 10
Drive Wheel Width (in): 3-1/8
Load Roller Diameter (in.): 2-3/4
Load Roller Width (in.): 3
Stabilizing Roller Diameter (in.): 1-1/2
Stabilizing Roller Width (in.): 3
Wheel & Roller Type: Poly on Steel
