Steel Electric Pallet Truck 27 In x 45 In 4,500 Lb. Capacity Black/Blue

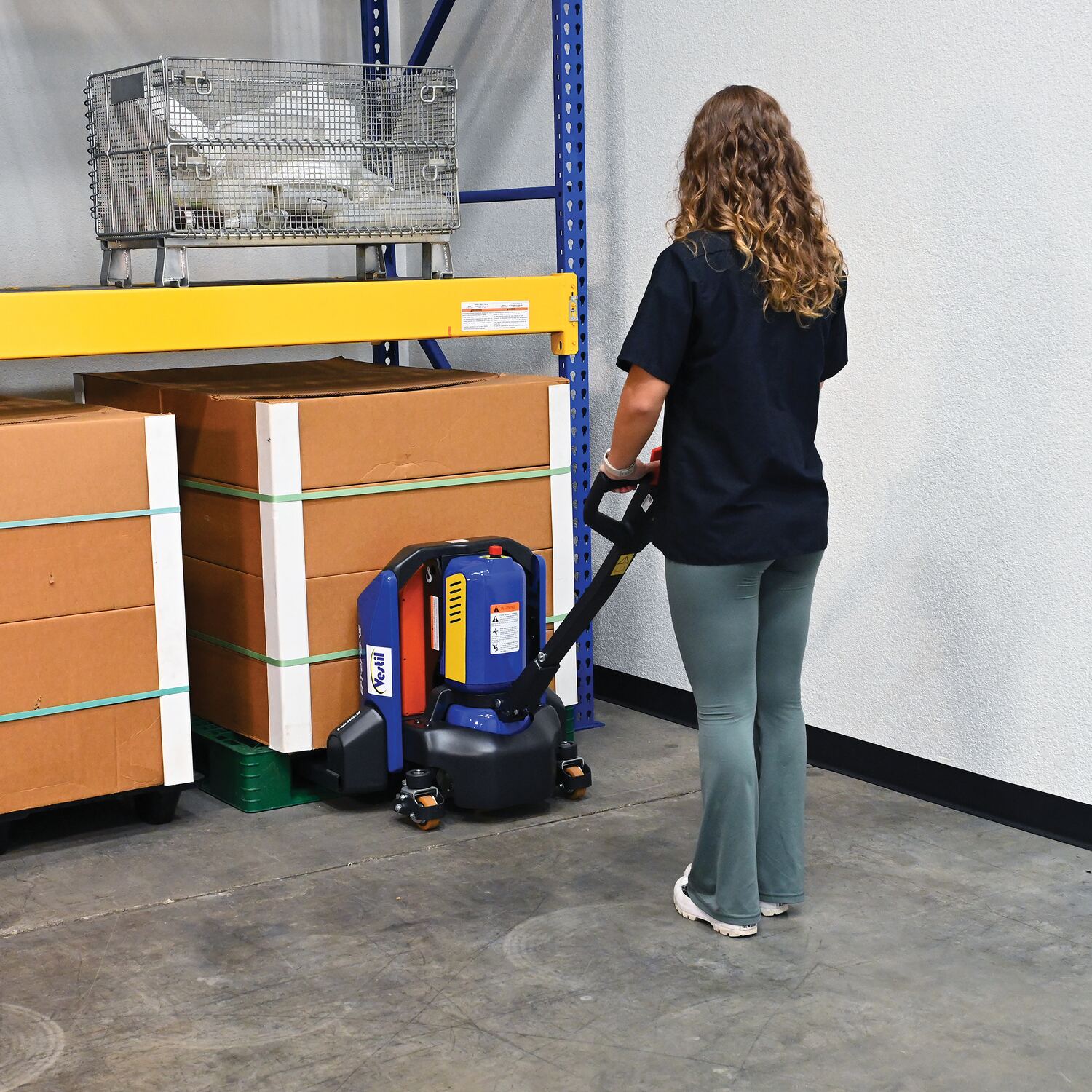

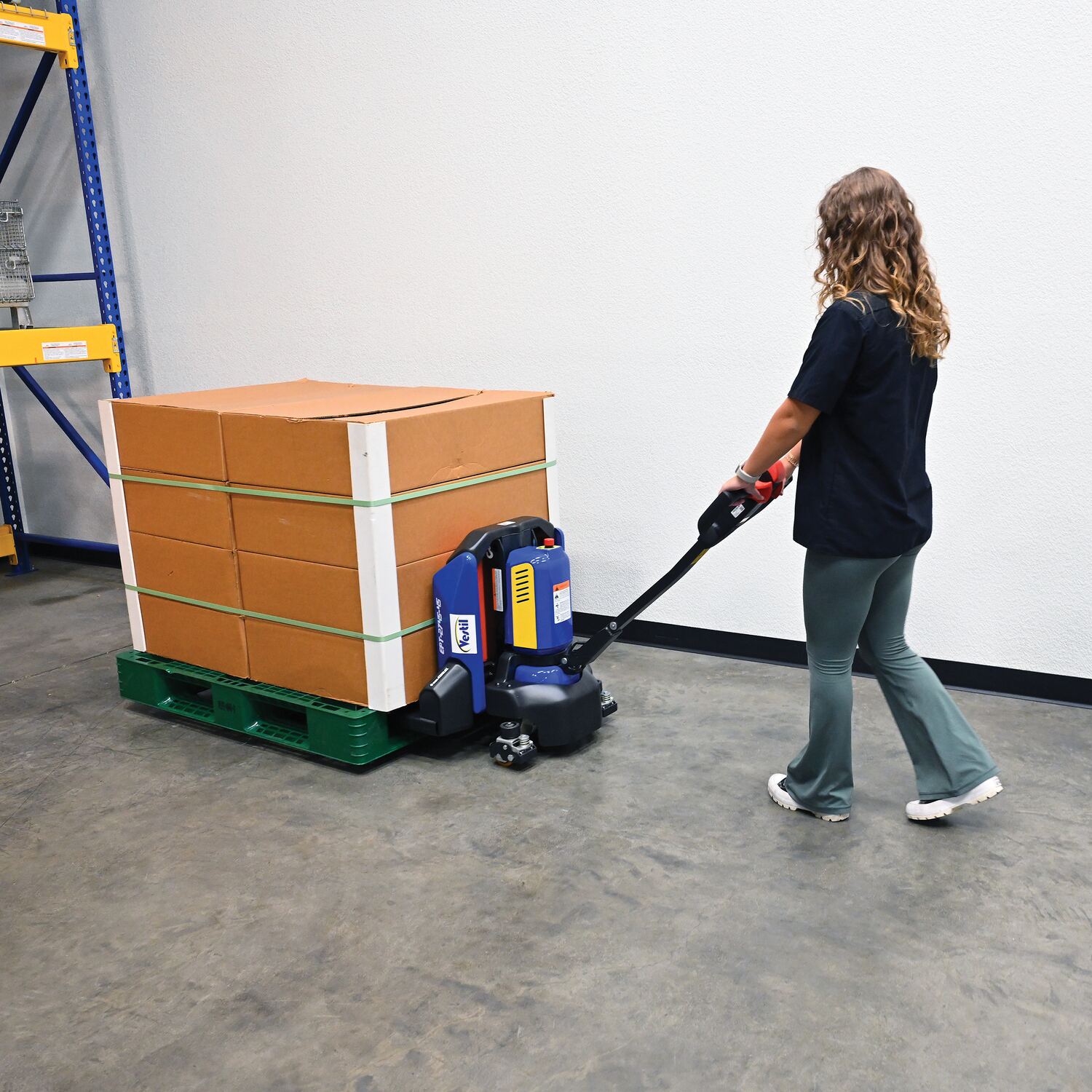

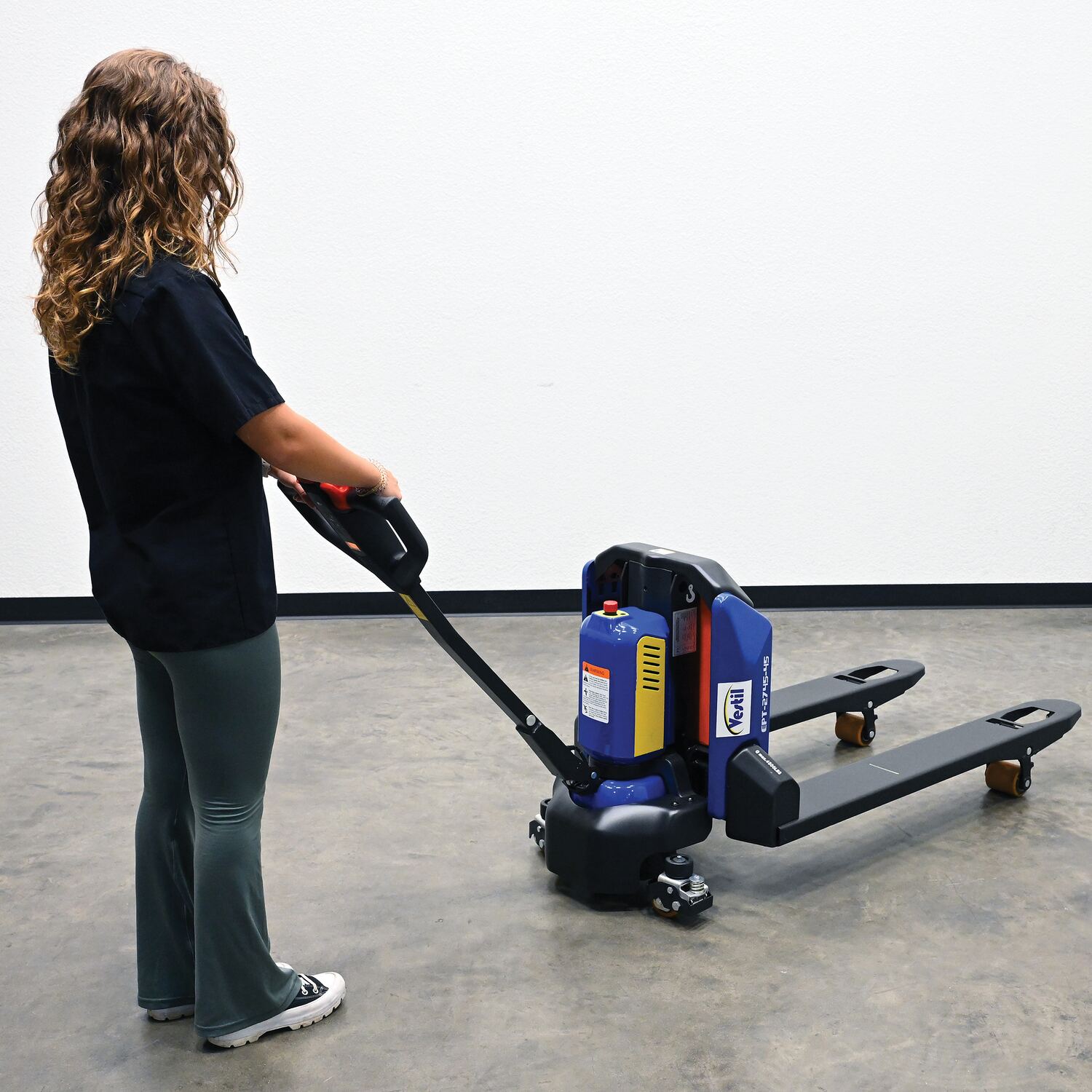

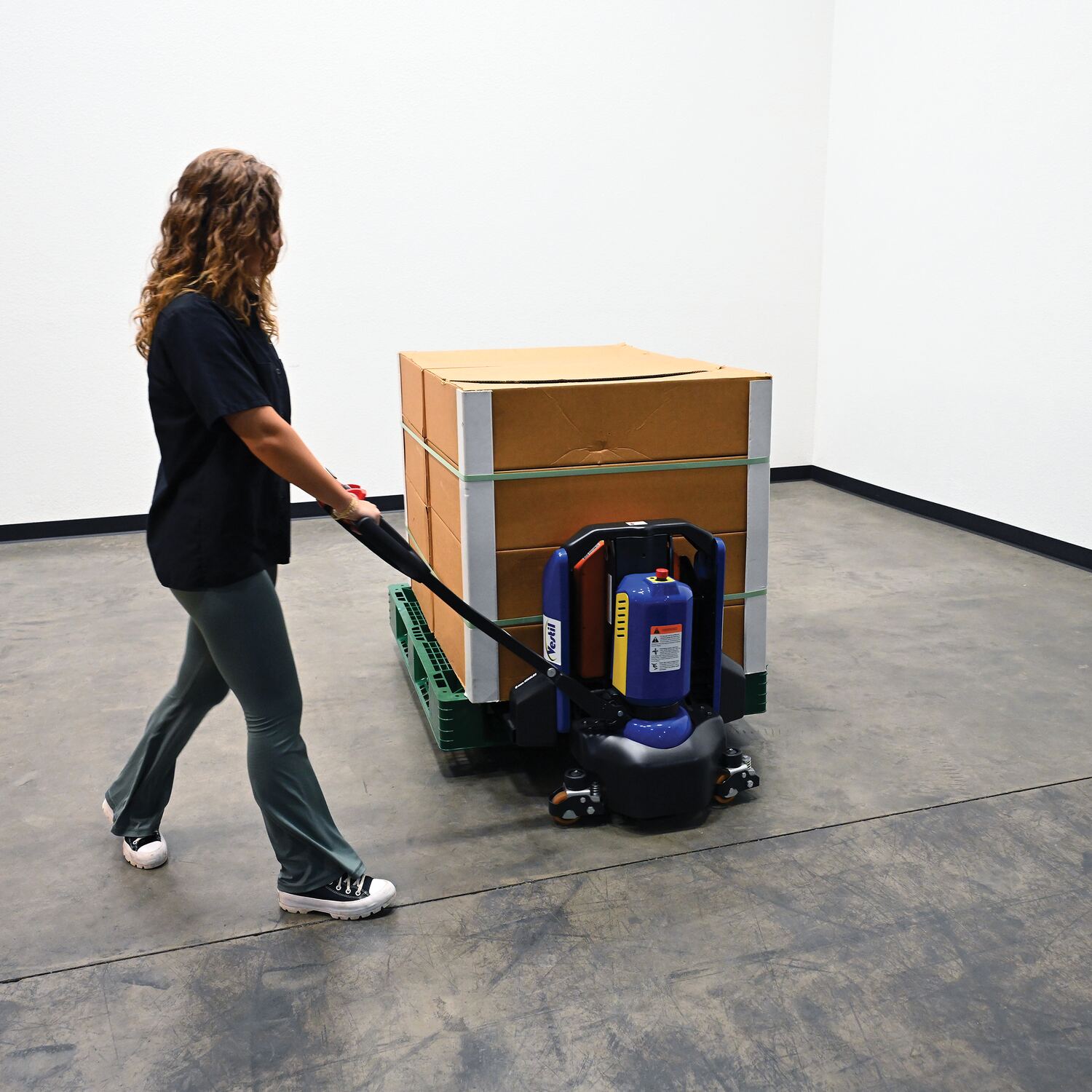

Stand on Platform Pallet Truck for Moving Loads Through Warehouses and Production Areas, 4,500 lb. Capacity
An electric pallet truck is the perfect upgrade from the standard manual design. This functional approach minimizes manual labor and maximizes efficiency when moving products and goods. Speed adjustments as well as raising/lowering forks can be modified without the users' hands leaving the functional handle. Unit is powered by a lithium ion battery for continuous consistent use. Forks are powder coated for a baked in added toughness. Horn is also included.
Product Status
Available QuickShip
Key Features

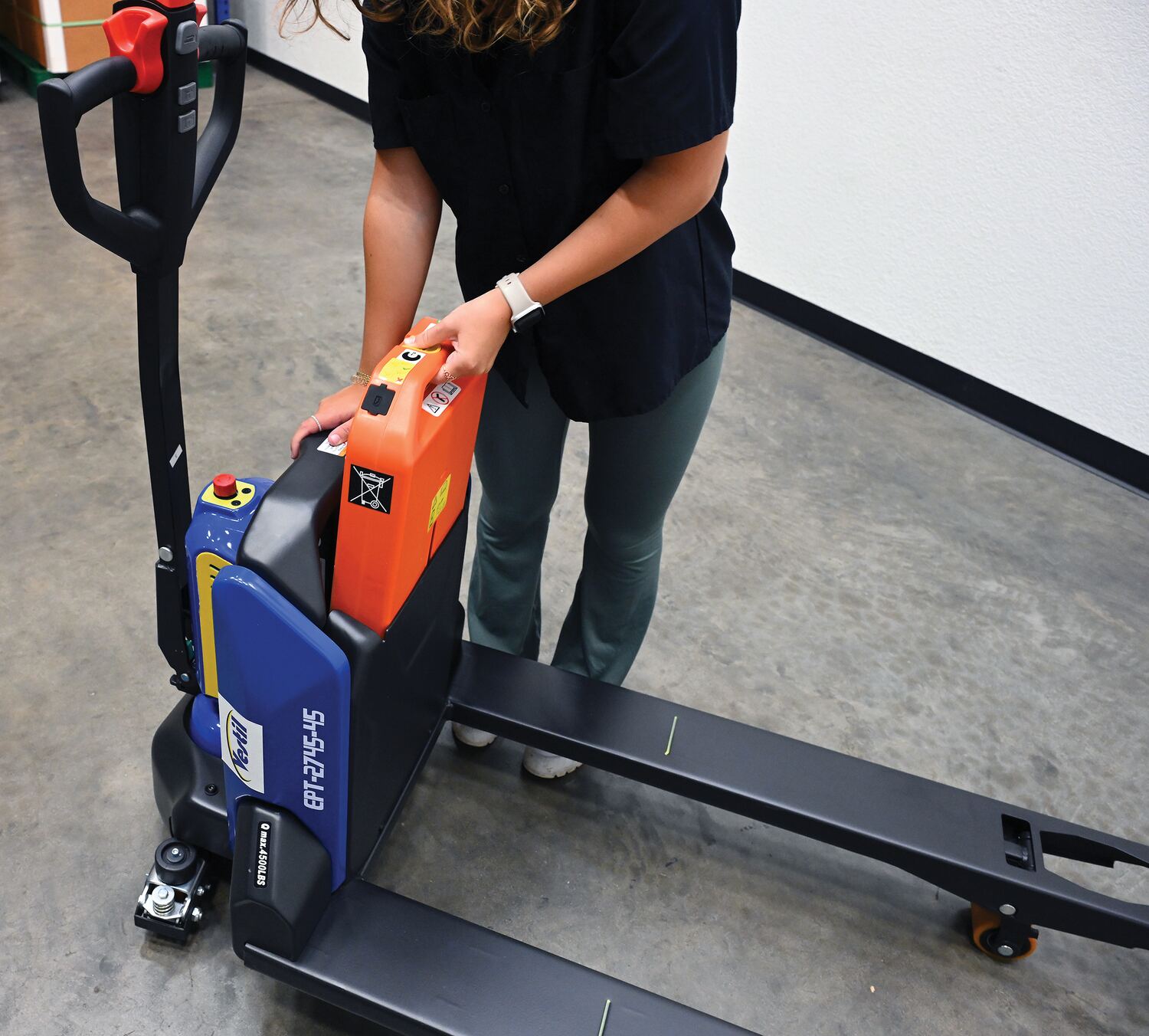

  • Lithium ion battery pack is interchangeable for continuous usage

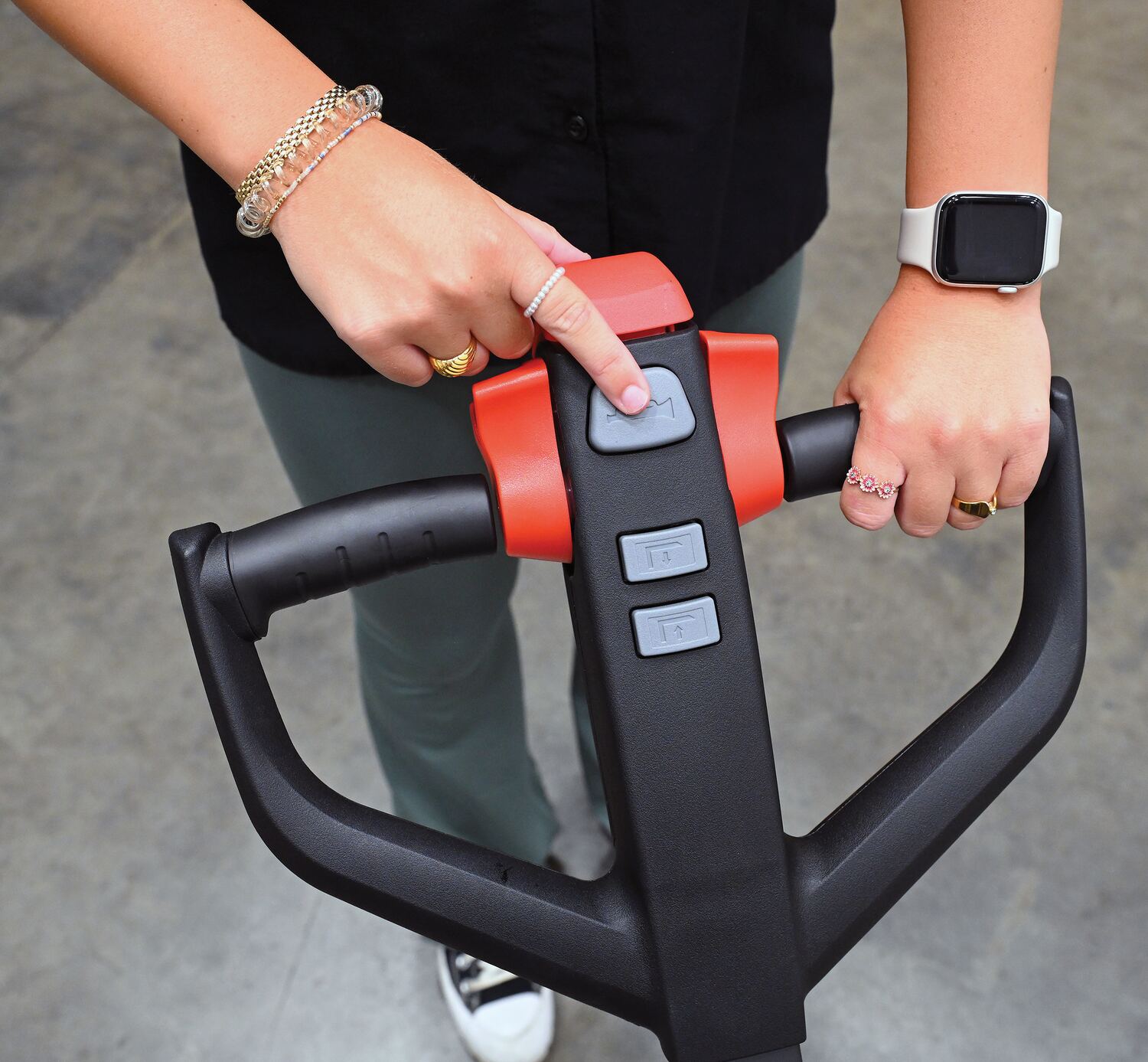

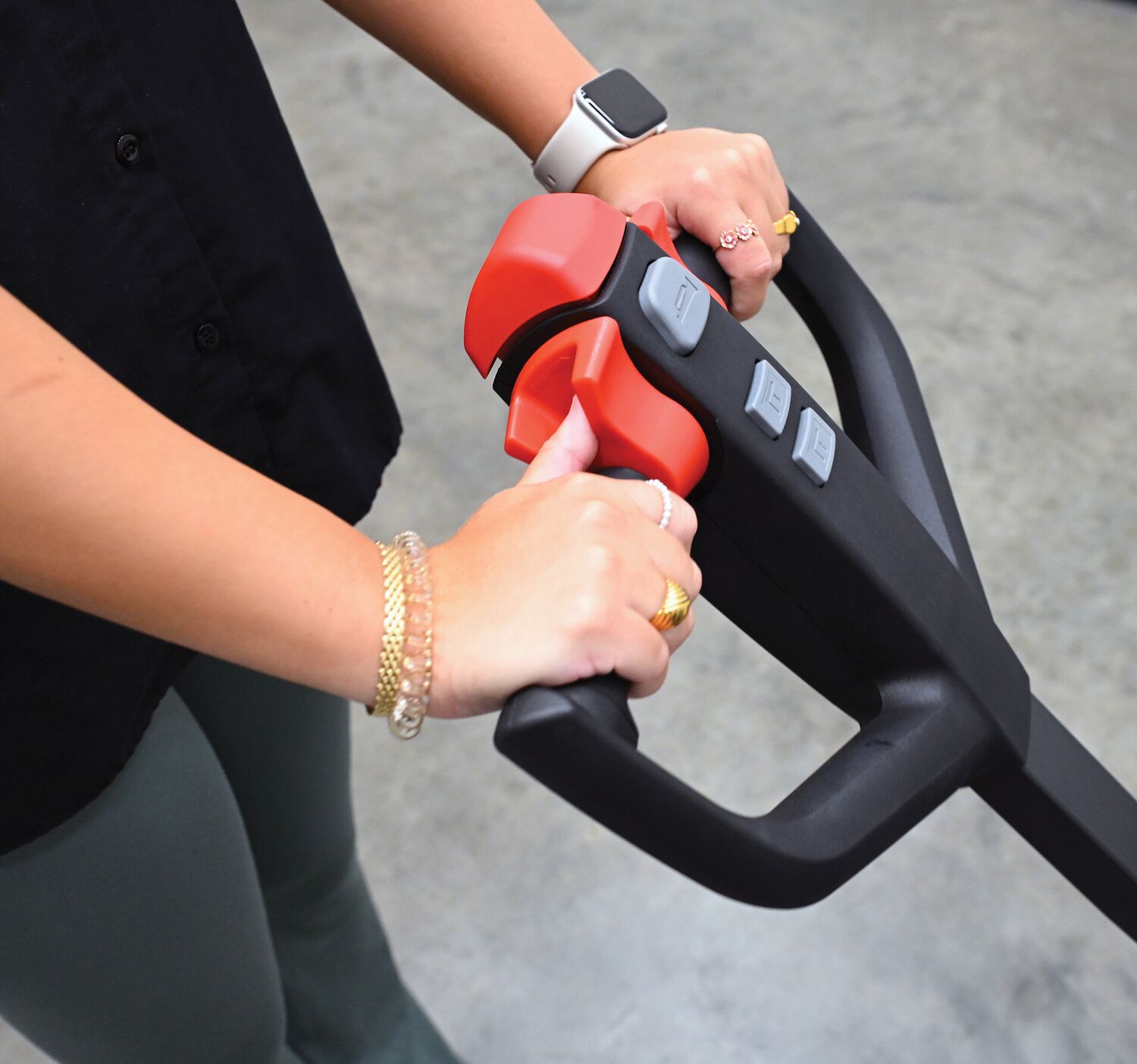

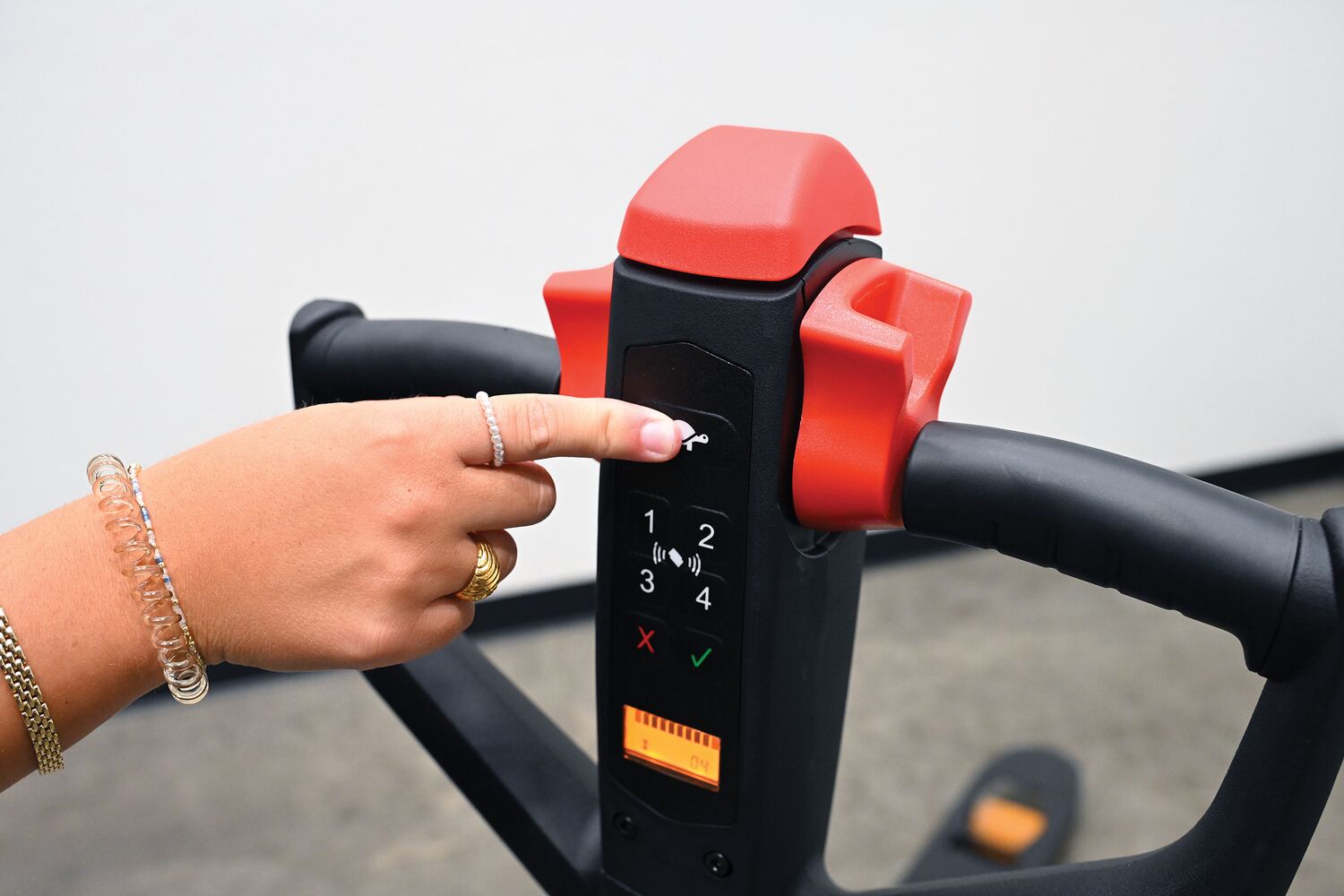

  • Multi-function handle with built in controls
  • Accessible design for maintenance and cleaning
  • Emergency reverse belly switch instantly reverses direction
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Fully Powered Electric Pallet Truck Model EPT-2745-45 Manual   Label Page PDF   Hydraulic Oil SDS   Li-Ion Battery SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 368 lbs
Assembled Size 27"W x 60.25"L x 46"H
Total Ship Weight 384 lbs
Package 1 Size 42"W x 66"D x 54"H
Color / Finish Black / Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,500
Service Range (in.) 3-1/8 to 7-5/8
Fork Width/Length (in.) 6.3 x 45
Fixed Fork Spacing (in.) 27
Power Source Electric
Voltage (V) 48
Handle Height (in.) 46

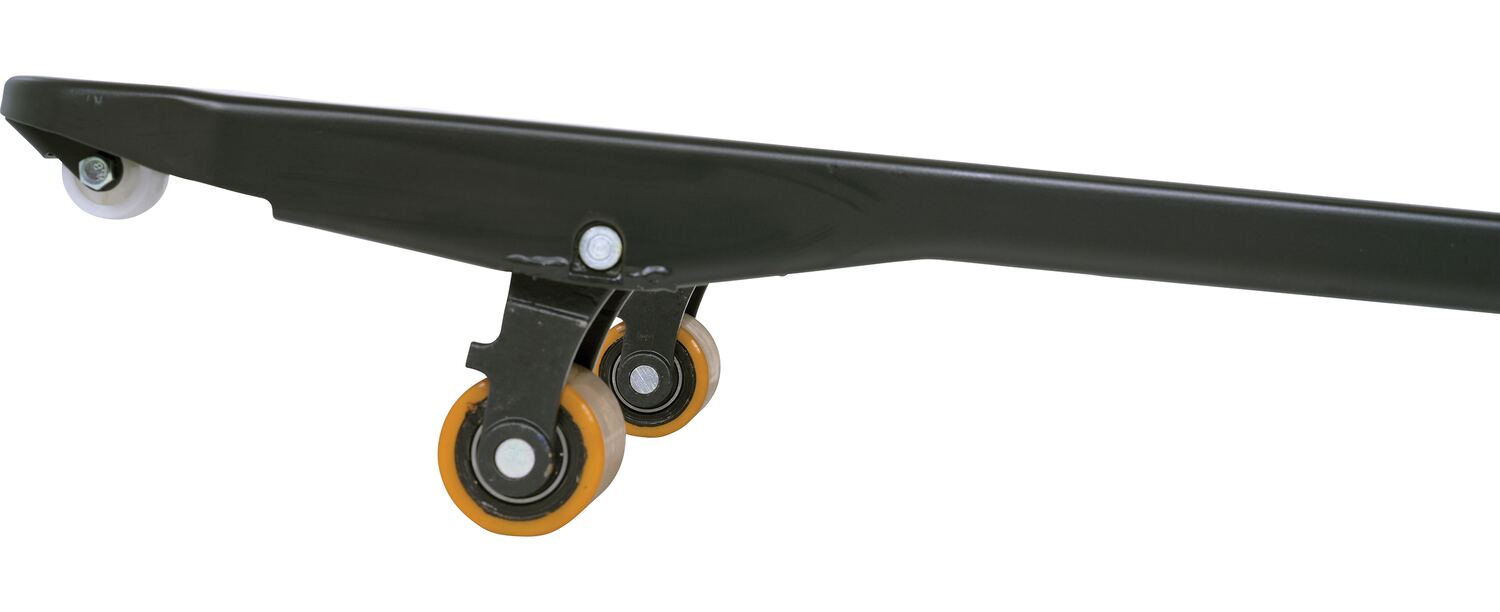

Swivel Caster Qty./Diameter/Width (in.) (2) 7 x 2
Rigid Caster Qty./Diameter/Width (in.) (2) 3 x 3-1/2
Caster Material Polyurethane
Fully Welded Frame? Yes
Fork Thickness (in.) 2-3/4

Battery Information

Battery Depth 12
Battery Width 3
Battery Height 15
Battery Weight 17
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
EPT-2745-45
Product Name
Steel Electric Pallet Truck 27 In x 45 In 4,500 Lb. Capacity Black/Blue
UPC
691215350631
GTIN
00691215350631
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
60.25
Assembled Width(in.)
27
Assembled Height(in.)
46
Assembled Weight(lbs.)
368
Color/Finish
Black / Blue
Material
Steel/Plastic
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
EPT-2745-45-BATT

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
66
Package Width (in.)
42
Package Height (in.)
54
Package Weight (in.)
384
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
17
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EPT-2745-45

EPT-2745-45

Steel Electric Pallet Truck 27 In x 45 In 4,500 Lb. Capacity Black/Blue

An electric pallet truck is the perfect upgrade from the standard manual design. This functional approach minimizes manual labor and maximizes efficiency when moving products and goods. Speed adjustments as well as raising/lowering forks can be modified without the users' hands leaving the functional handle. Unit is powered by a lithium ion battery for continuous consistent use. Forks are powder coated for a baked in added toughness. Horn is also included.

  • Lithium ion battery pack is interchangeable for continuous usage
  • Multi-function handle with built in controls
  • Accessible design for maintenance and cleaning
  • Emergency reverse belly switch instantly reverses direction

Core Data

Assembled Weight: 368 Assembled Size: 27"W x 60.25"L x 46"H Color: Black / Blue
Total Ship Weight: 384 Package 1 Size: 42"W x 66"D x 54"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,500
Service Range (in.): 3-1/8 to 7-5/8
Fork Width/Length (in.): 6.3 x 45
Fixed Fork Spacing (in.): 27
Power Source: Electric
Voltage (V): 48
Handle Height (in.): 46
Swivel Caster Qty./Diameter/Width (in.): (2) 7 x 2
Rigid Caster Qty./Diameter/Width (in.): (2) 3 x 3-1/2
Caster Material: Polyurethane
Fully Welded Frame?: Yes
Fork Thickness (in.): 2-3/4
