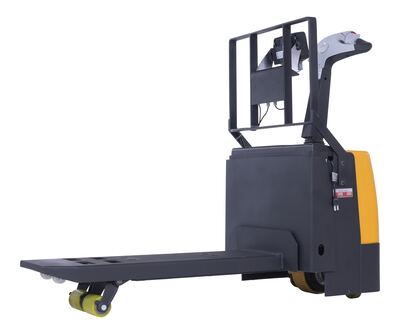

Steel Electric Pallet Truck Single Fork 40 In. Length With Scale 2,600 Lb. Capacity Black

Electric Pallet Truck for Moving Loads Through Warehouses and Production Areas, 2,600 lb. Capacity with 40 in. Length
There are jobs where a standard electric pallet truck will suffice, but sometimes the job requires something unique. With the single fork electric pallet truck that requirement is fulfilled. The one fork design enables users to pick up and transfer items with a single fork pocket that would previously be difficult to maneuver such as half size pallets or bulk containers. With a walk behind set-up, the controls are organized in an accessible central location on or near the driving handle. This unit is battery operated for consistent steady use. (2) 12V AGM batteries standard. Powder-coated finish for baked in added toughness.
Product Status
Available QuickShip
Key Features
  • Ergonomic handle with forward and reverse controls
  • Emergency reverse belly switch
  • Built-in scale technology
  • Digital readout screen
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 340 lbs
Assembled Size 25"W x 57"L x 46"H
Total Ship Weight 340 lbs
Package 1 Size 25"W x 57"D x 46"H
Color / Finish Black
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2600
Overall Fork Length (in.) 40
Overall Fork Width (in.) 12
Lowered Height (in.) 3.1
Raised Height (in.) 7.875
Power 24VDC
Battery Type AGM
Battery Quantity 2
Handle Height (in.) 46
Handle Diameter (in.) 1.875
Swivel Caster Quantity 1
Swivel Caster Diameter (in.) 3
Swivel Caster Width (in.) 1.375
Load Roller Quantity 2
Load Roller Diameter (in.) 3
Load Roller Width (in.) 3.75
Drive Wheel Quantity 1
Drive Wheel Diameter (in.) 8.25
Drive Wheel Width (in.) 2.75
Wheel/Caster Material Poly on Steel

Battery Information

Battery Depth 8
Battery Width 6
Battery Height 8
Battery Weight 29
Battery Freight Class 70
Battery NMFC Number 60680
Battery NMFC Description UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass 1
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
EPT-SF-1240-26-SCL
Product Name
Steel Electric Pallet Truck Single Fork 40 In. Length With Scale 2,600 Lb. Capacity Black
UPC
691215374552
GTIN
00691215374552
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
57
Assembled Width(in.)
25
Assembled Height(in.)
46
Assembled Weight(lbs.)
340
Color/Finish
Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
57
Package Width (in.)
25
Package Height (in.)
46
Package Weight (in.)
340
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101505
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
29
Battery Freight Class
70
Battery NMFC Number
60680
Battery NMFC Description
UN2794 BATTERIES WET FILLED WITH ACID
Battery Subclass
1
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EPT-SF-1240-26-SCL

EPT-SF-1240-26-SCL

Steel Electric Pallet Truck Single Fork 40 In. Length With Scale 2,600 Lb. Capacity Black

There are jobs where a standard electric pallet truck will suffice, but sometimes the job requires something unique. With the single fork electric pallet truck that requirement is fulfilled. The one fork design enables users to pick up and transfer items with a single fork pocket that would previously be difficult to maneuver such as half size pallets or bulk containers. With a walk behind set-up, the controls are organized in an accessible central location on or near the driving handle. This unit is battery operated for consistent steady use. (2) 12V AGM batteries standard. Powder-coated finish for baked in added toughness.

  • Ergonomic handle with forward and reverse controls
  • Emergency reverse belly switch
  • Built-in scale technology
  • Digital readout screen

Core Data

Assembled Weight: 340 Assembled Size: 25"W x 57"L x 46"H Color: Black
Total Ship Weight: 340 Package 1 Size: 25"W x 57"D x 46"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2600
Overall Fork Length (in.): 40
Overall Fork Width (in.): 12
Lowered Height (in.): 3.1
Raised Height (in.): 7.875
Power: 24VDC
Battery Type: AGM
Battery Quantity: 2
Handle Height (in.): 46
Handle Diameter (in.): 1.875
Swivel Caster Quantity: 1
Swivel Caster Diameter (in.): 3
Swivel Caster Width (in.): 1.375
Load Roller Quantity: 2
Load Roller Diameter (in.): 3
Load Roller Width (in.): 3.75
Drive Wheel Quantity: 1
Drive Wheel Diameter (in.): 8.25
Drive Wheel Width (in.): 2.75
Wheel/Caster Material: Poly on Steel
