ERGO-FL
ERGO-FL
ERGO-FL
ERGO-FL
ERGO-FL

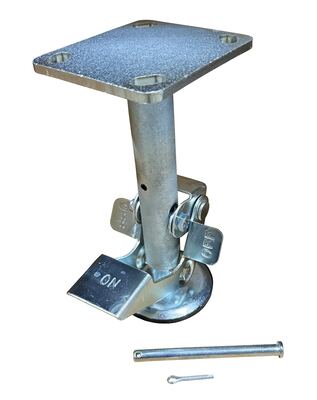

Steel Floor Lock For Ergo-Handled Cart

Floor Lock for Commercial and Industrial Ergo-handle Carts Use, Blue and Silver Finish
Floor Lock for ergo-handle cart.
Product Status
Available QuickShip Non-Returnable
Key Features
  • Floor lock for ideal operation
  • Ideal for ergo-handle cart for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 6 lbs
Assembled Size 4.3125"W x 6.25"L x 9.75"H
Total Ship Weight 6 lbs
Package 1 Size 8"W x 12"D x 5"H
Color / Finish Blue / Silver
Freight Type Parcel

Additional Attributes

For Use With Caster Diameter (in.) 8
Overall Width (in.) 4-5/16
Overall Length (in.) 6-1/4
Retracted Height (in.) 8-3/4
Extended Height (in.) 9-3/4
Mounting Height (in.) 9-1/2
Pin Length (in.) 4-5/8
Pin Diameter (in.) 3/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
ERGO-FL
Product Name
Steel Floor Lock For Ergo-Handled Cart
UPC
691215018869
GTIN
00691215018869
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Accessories
Taxonomy 4
Floor Locks
Assembled Depth (in.)
6.25
Assembled Width(in.)
4.3125
Assembled Height(in.)
9.75
Assembled Weight(lbs.)
6
Color/Finish
Blue / Silver
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
DH-MR2-2436, DH-MR2-2436-D, DH-MR2-2448, DH-MR2-2448-D, DH-MR2-3060, DH-MR2-3060-D, DH-PH4-2436, DH-PH4-2436-3, DH-PH4-2436-D, DH-PH4-2448, DH-PH4-2448-3, DH-PH4-2448-D, DH-PH4-2460, DH-PH4-2460-3, DH-PH4-2460-D, DH-PH4-2472, DH-PH4-2472-3, DH-PH4-2472-D, DH-PH4-3060, DH-PH4-3060-3, DH-PH4-3060-D, DH-PH4-3448, DH-PH4-3448-3, DH-PH4-3448-D, DH-PH4-3460, DH-PH4-3460-3, DH-PH4-3460-D, DH-PH4-3472, DH-PH4-3472-3, DH-PH4-3472-D, DH-PU2.4-2436, DH-PU2.4-2436-D, DH-PU2.4-2448, DH-PU2.4-2448-D, DH-PU2.4-3060, DH-PU2.4-3060-D

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
12
Package Width (in.)
8
Package Height (in.)
5
Package Weight (in.)
6
Subclass
8
Freight Class
85
NMFC Code
Vehicles, other than self-propelled
NMFC Number
189800
LTL Freight
Parcel
UNSPSC
46171500
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ERGO-FL

ERGO-FL

Steel Floor Lock For Ergo-Handled Cart

Floor Lock for ergo-handle cart.

  • Floor lock for ideal operation
  • Ideal for ergo-handle cart for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 6 Assembled Size: 4.3125"W x 6.25"L x 9.75"H Color: Blue / Silver
Total Ship Weight: 6 Package 1 Size: 8"W x 12"D x 5"H Freight: Parcel

Specifications

For Use With Caster Diameter (in.): 8
Overall Width (in.): 4-5/16
Overall Length (in.): 6-1/4
Retracted Height (in.): 8-3/4
Extended Height (in.): 9-3/4
Mounting Height (in.): 9-1/2
Pin Length (in.): 4-5/8
Pin Diameter (in.): 3/8
