Fiberglass Autoloader Ramp 168 In. x 36 In. 5,000 Lb. Capacity

Vehicle Service Ramp for Commercial and Industrial Walk & Service Ramps Use, 5,000 lb. Capacity with 168 in. x 36 in.

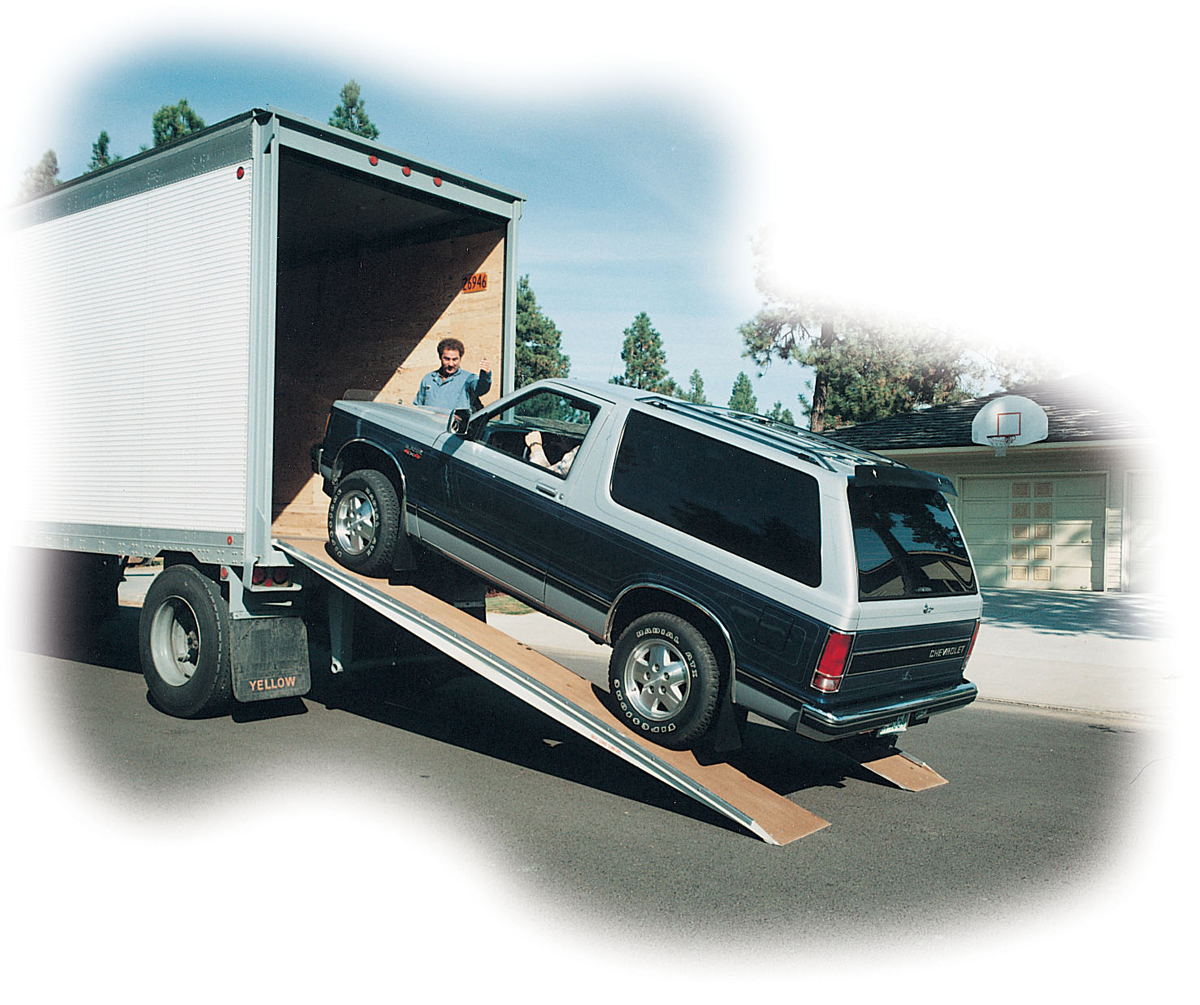

The Fiberglass autoloader ramp can be separated in half to provide two (2) ramps that may be used to load automobiles and other vehicles. To separate simply remove center hinge pins. (Includes retaining pin).
Product Status
Quote Required Ships from Spokane, WA 99211 Non-Returnable
Key Features
  • Fiberglass autoloader ramp can be separated in half for ideal operation
  • Provides two ramps that may be used to load automobiles and other vehicles
  • Center hinge pins hold together but remove in order to separate
  • Use in industrial applications for optimal results
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  FAL series Autoloader Ramps Manual   1 Year Warranty
Product Data

Core Data

Assembled Weight 220 lbs
Assembled Size 36"W x 168"L x 7.5"H
Total Ship Weight 330 lbs
Package 1 Size 19"W x 170"D x 15"H
Color / Finish White / Tan
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 5000
Max Working Height (in.) 45
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FAL-3614-50
Product Name
Fiberglass Autoloader Ramp 168 In. x 36 In. 5,000 Lb. Capacity
UPC
691215019231
GTIN
00691215019231
Taxonomy 1
Automotive
Taxonomy 2
Accessories
Taxonomy 3
Truck & Towing
Taxonomy 4
Light Truck & Van
Taxonomy 5
Loading Ramps
Taxonomy 6
Loading Ramps
Assembled Depth (in.)
168
Assembled Width(in.)
36
Assembled Height(in.)
7.5
Assembled Weight(lbs.)
220
Color/Finish
White / Tan
Material
Fiberglass
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
170
Package Width (in.)
19
Package Height (in.)
15
Package Weight (in.)
330
Subclass
2
Freight Class
85
NMFC Code
Ramps (Dockboards) freight dock hinged type
NMFC Number
128140
LTL Freight
LTL Palletized
UNSPSC
24101615
HTSUS Number
3926.90.9989
USMCA HS
3926.90
Origin Criterion
B
Certification Indicator
A
ECCN
EAR99
US Shipping Point
Spokane, WA
Supplier Postal Code
99211
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FAL-3614-50

FAL-3614-50

Fiberglass Autoloader Ramp 168 In. x 36 In. 5,000 Lb. Capacity

The Fiberglass autoloader ramp can be separated in half to provide two (2) ramps that may be used to load automobiles and other vehicles. To separate simply remove center hinge pins. (Includes retaining pin).

  • Fiberglass autoloader ramp can be separated in half for ideal operation
  • Provides two ramps that may be used to load automobiles and other vehicles
  • Center hinge pins hold together but remove in order to separate
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 220 Assembled Size: 36"W x 168"L x 7.5"H Color: White / Tan
Total Ship Weight: 330 Package 1 Size: 19"W x 170"D x 15"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 5000
Max Working Height (in.): 45
